Engine
>>
Cylinder Block Assembly
Cylinder Block Assembly

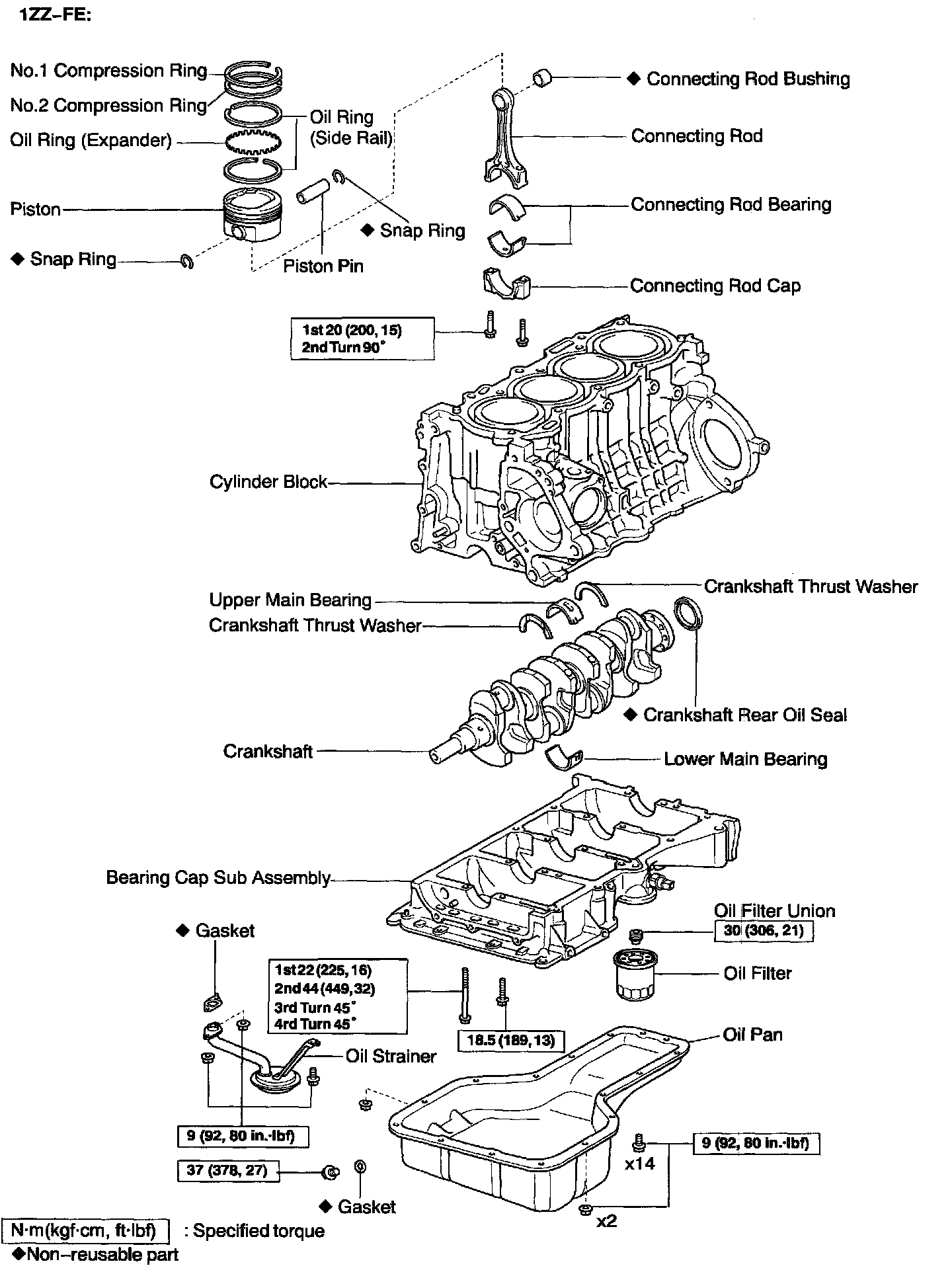

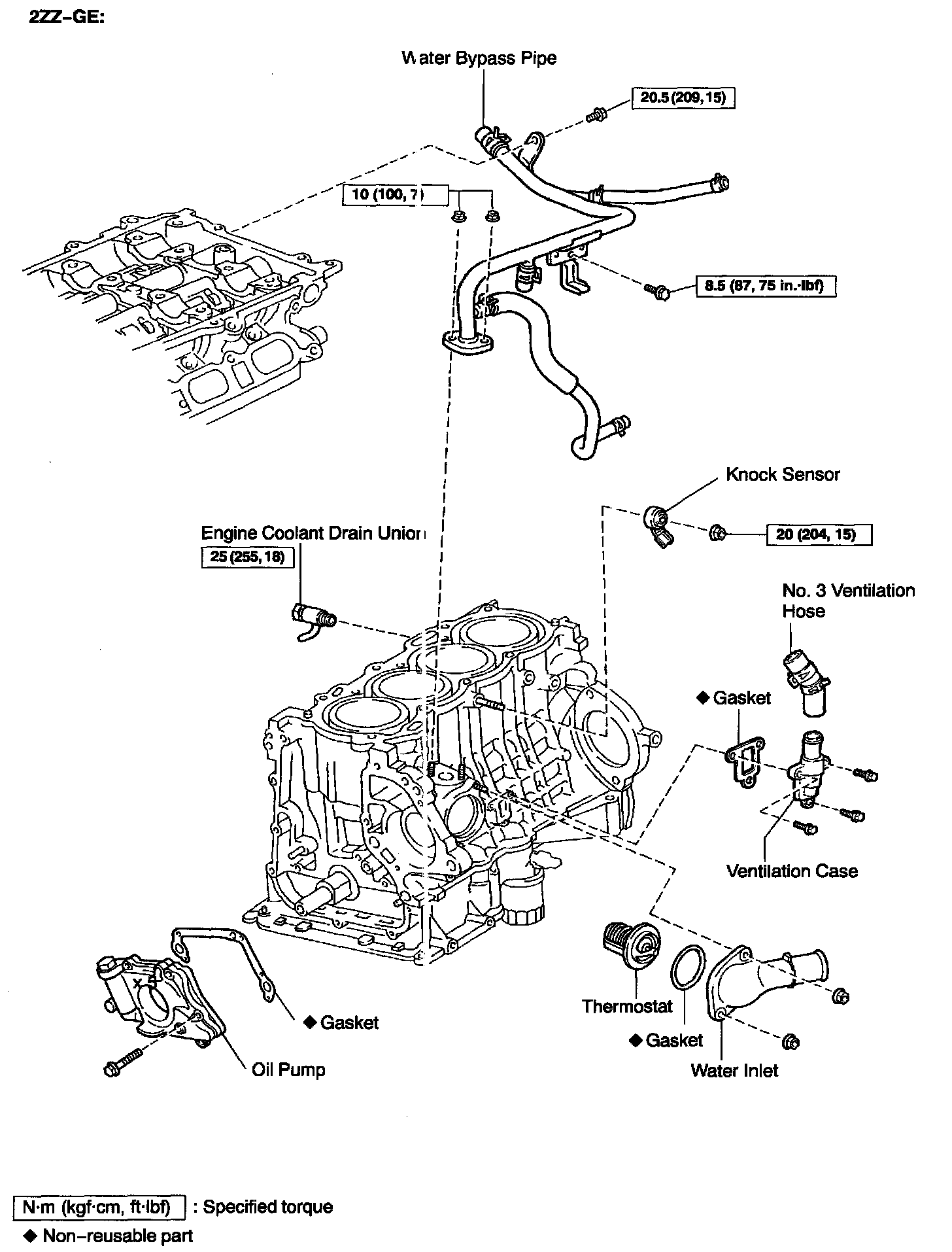

CYLINDER BLOCK OVERHAUL W/ RELATED COMPONENTS
