Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2005 >> Celica L4-1.8L (2ZZ-GE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications

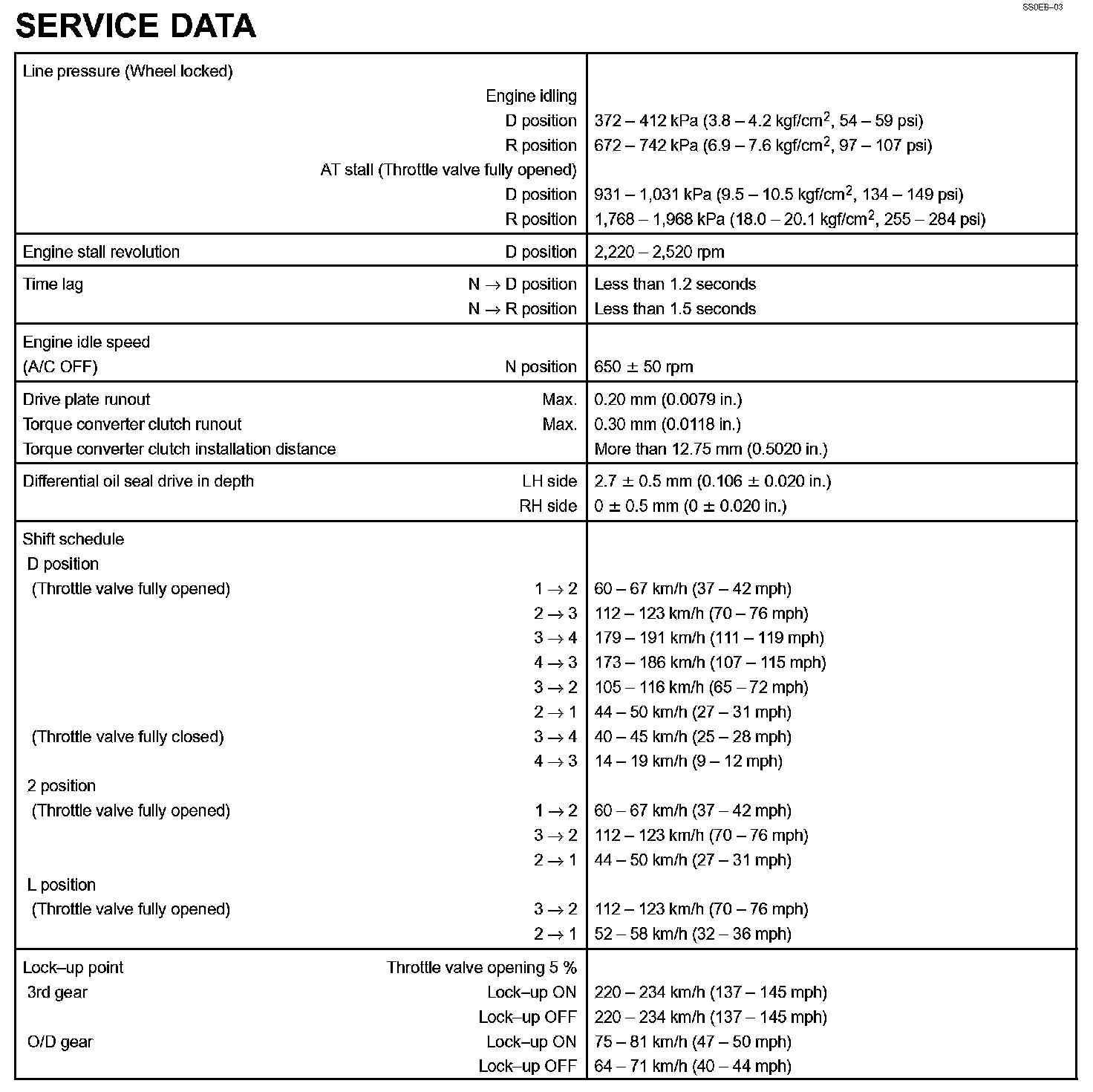

Automatic Transaxle (U240E) - Service Data:

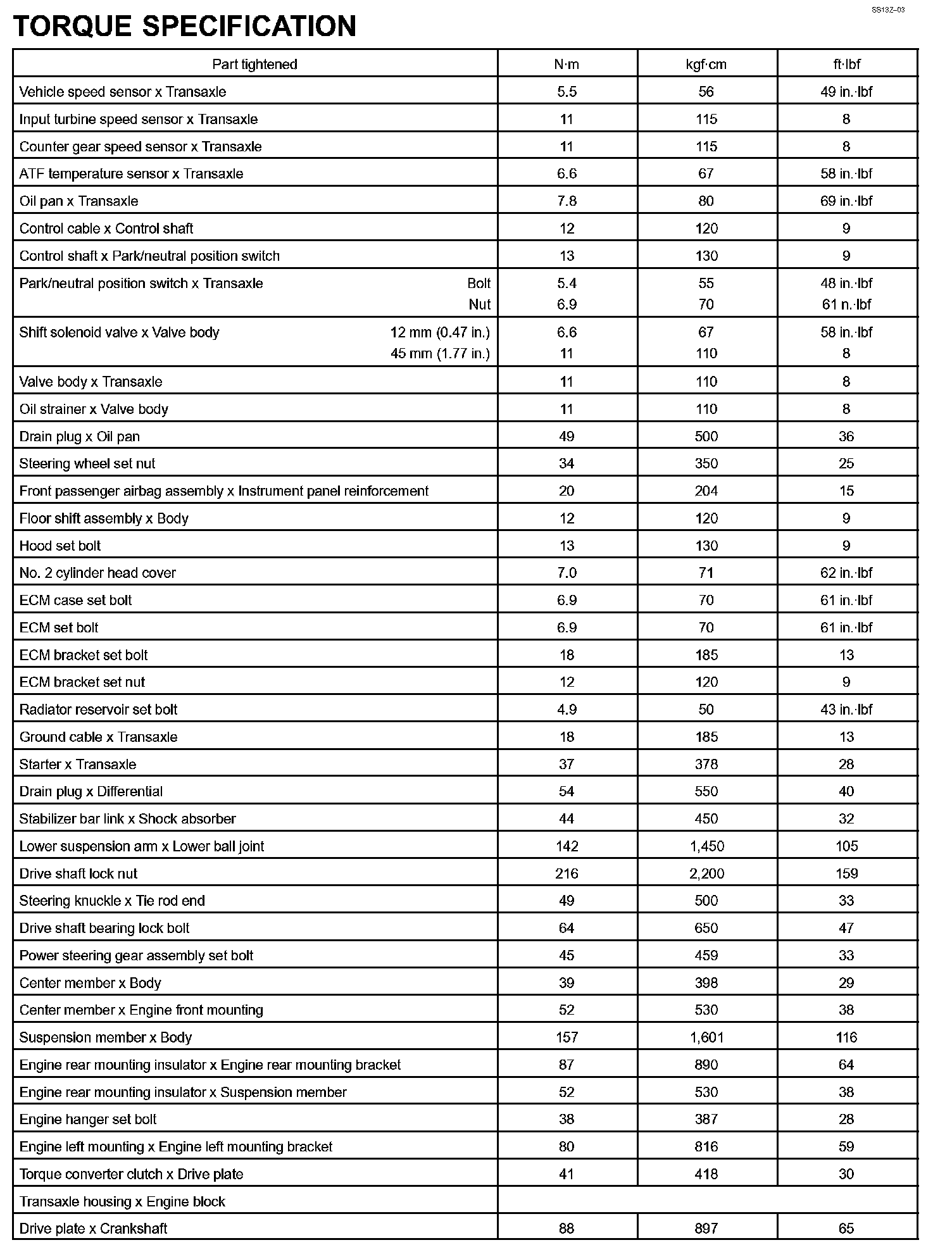

Automatic Transaxle (U240E) - Torque Specification:
