Power Mirror Control System

INSPECTION

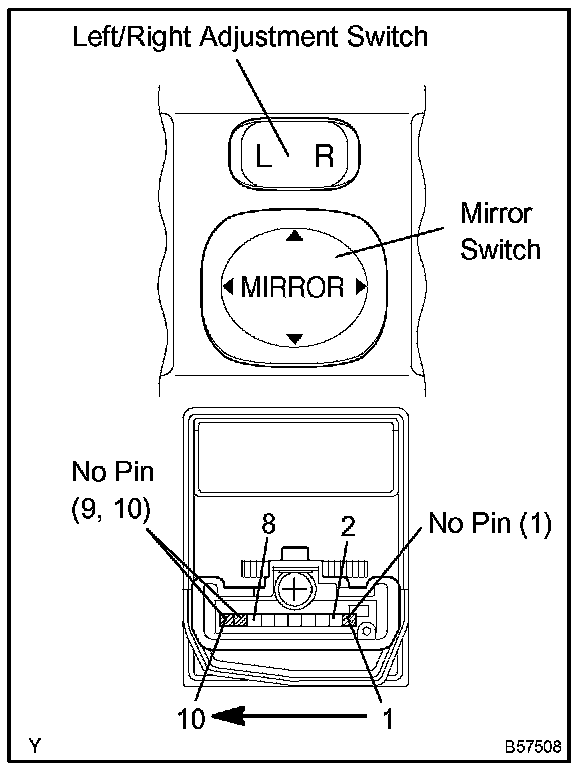

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY
a. Check the mirror switch continuity.

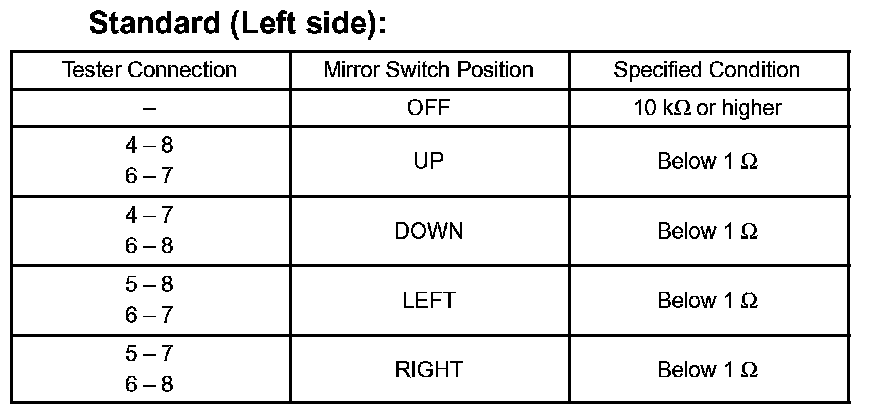

1. Left side for left/right adjustment switch:
Measure the resistance of the mirror switch.
If the result is not as specified, replace the switch assembly.




2. Right side for left/right adjustment switch:
Measure the resistance of the mirror switch.
If the result is not as specified, replace the switch assembly.

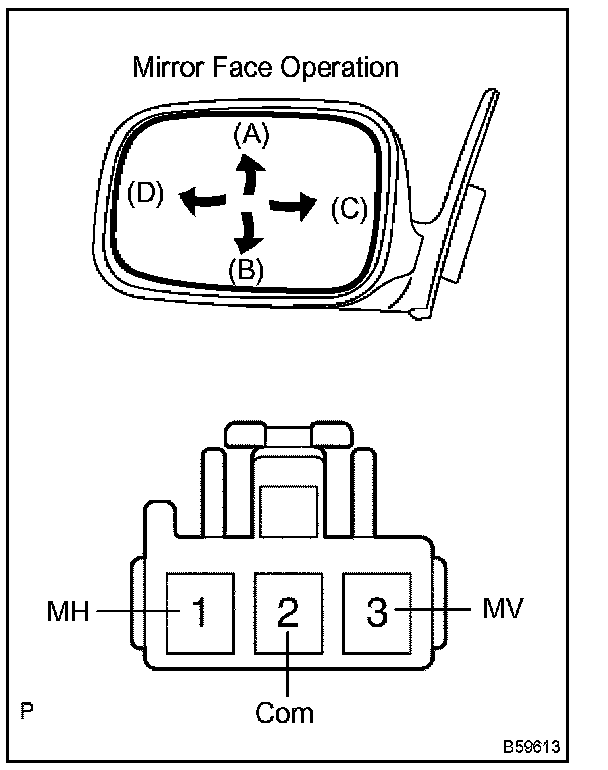

2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
a. Disconnect the outer rear view mirror assembly LH connector.
b. Inspect the mirror motor operation.

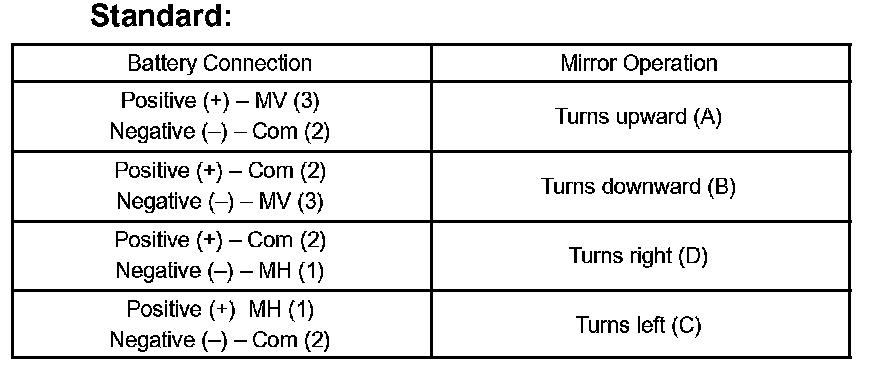

1. Apply battery voltage as shown in the table.
If the result is not as specified, replace the mirror assembly.

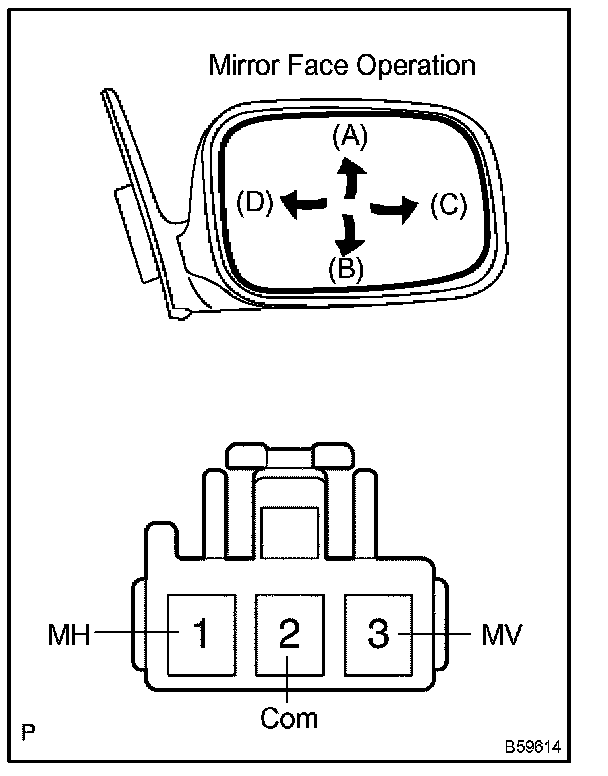

3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
a. Disconnect the outer rear view mirror assembly RH connector.
b. Inspect the mirror motor operation.
1. Apply battery voltage as shown in the table.
If the result is not as specified, replace the mirror assembly.
