Electronic Brake Control Module: Locations

Engine Compartment:



Ig - Wa:

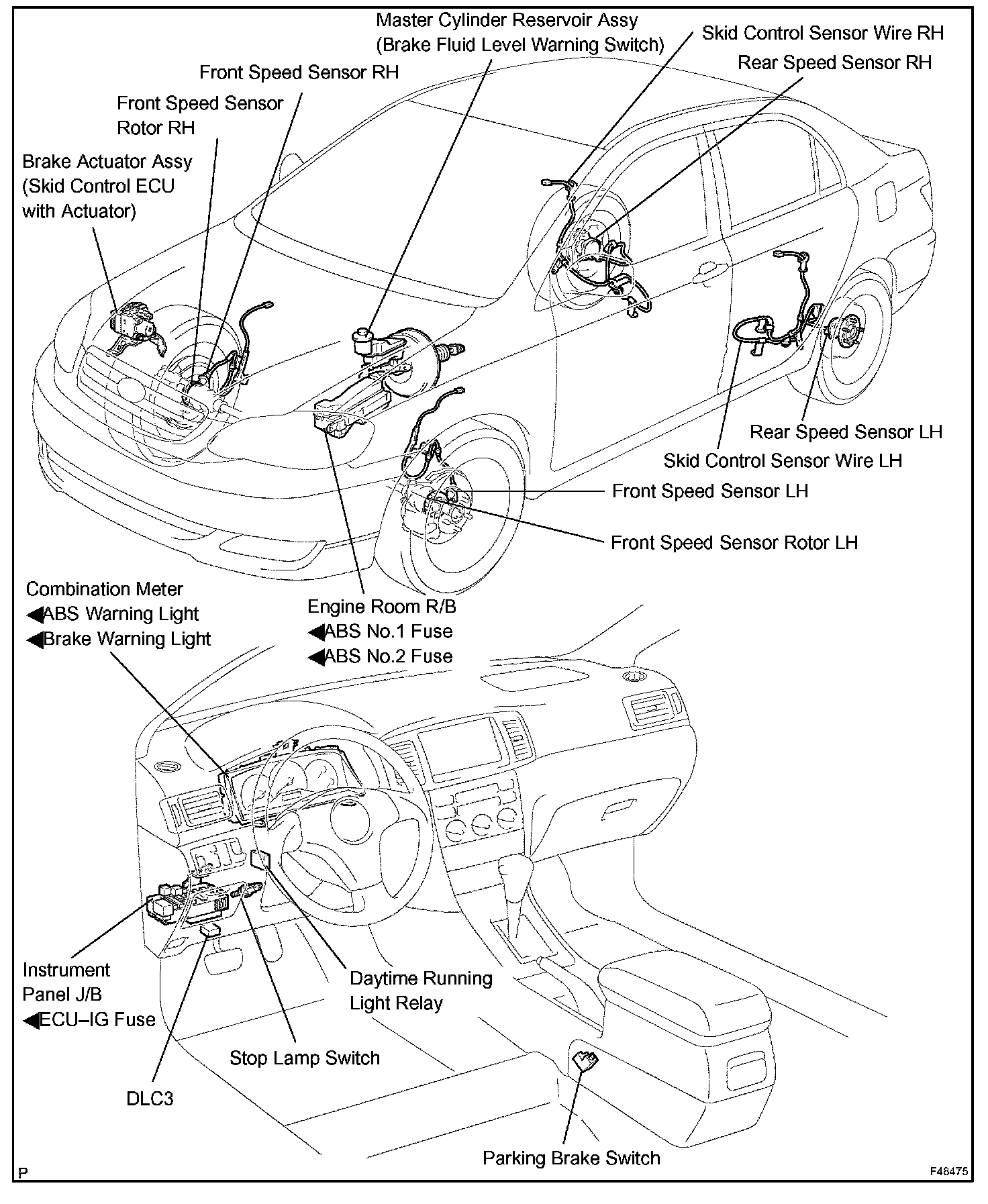

ABS With EBD System:

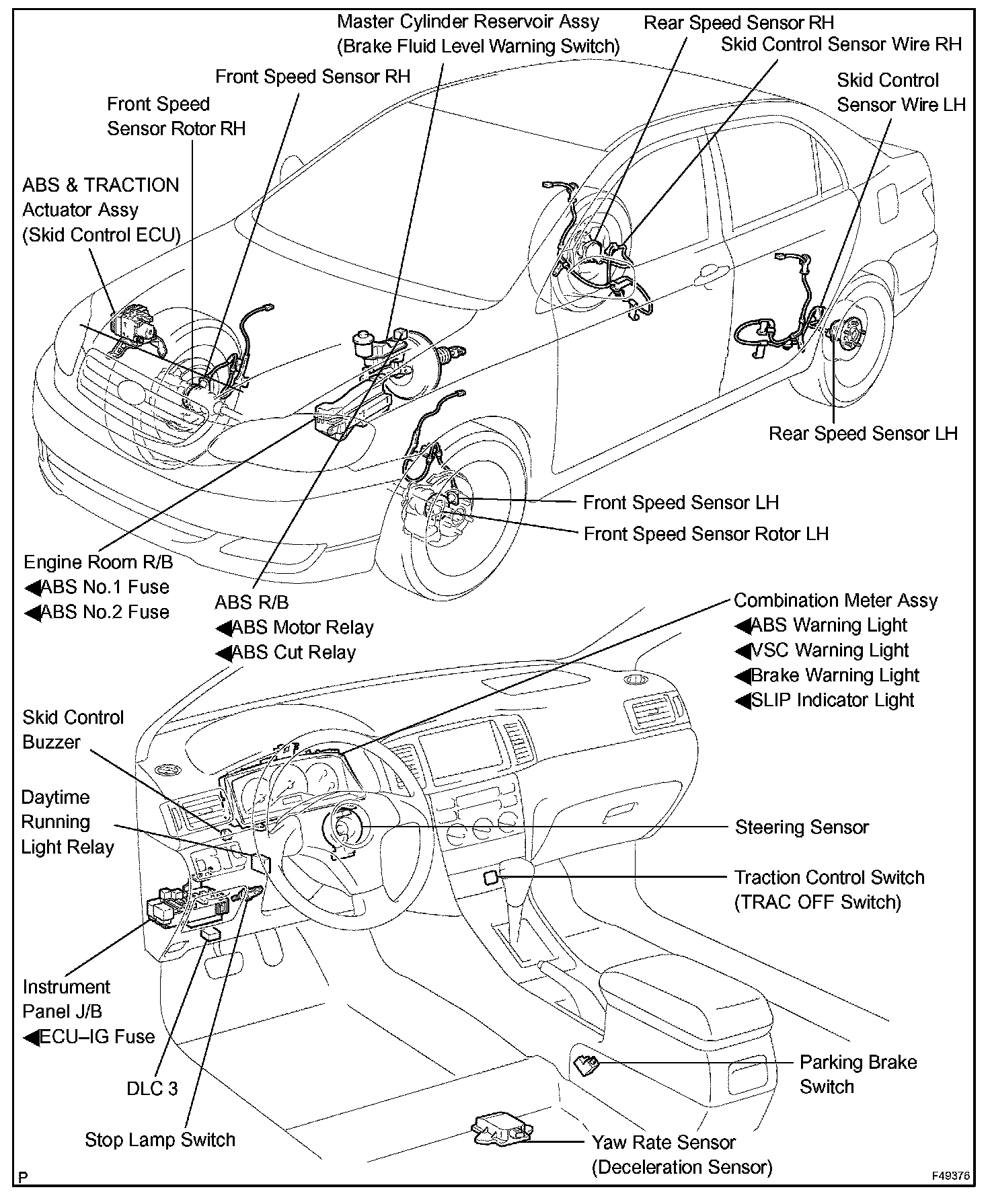

ABS With EBD & BA & TRAC VSC System:
