With EBD System
With EBD System

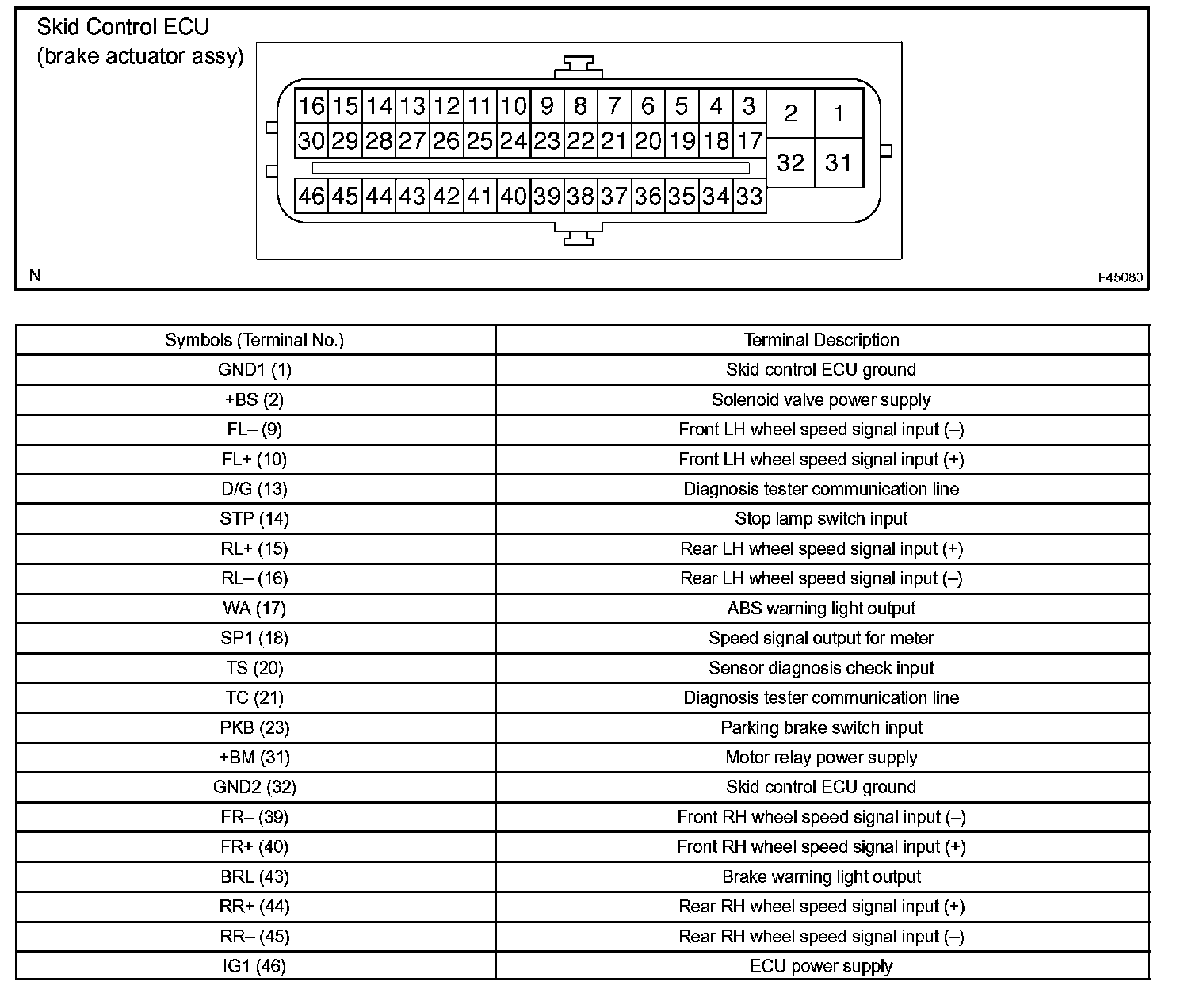

Terminals Of Control Module/Pinouts:

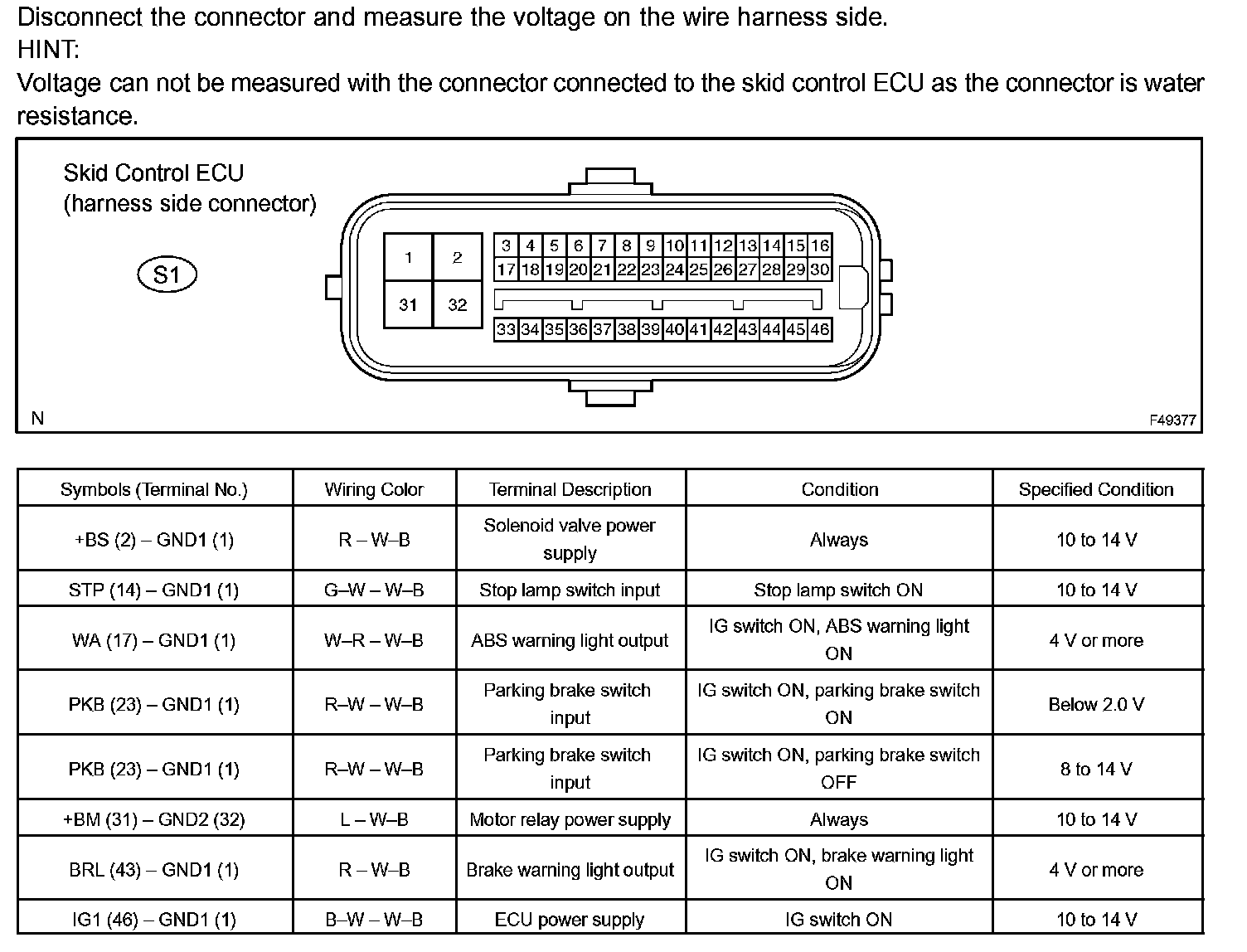

Terminals Of Control Module/Pinouts - Terminal Inspection:
