Cruise Control
>>
Cruise Control Module
>>
Testing and Inspection
>>
Cruise Control System (W/ ETCS-i)
Cruise Control System (W/ ETCS-i)

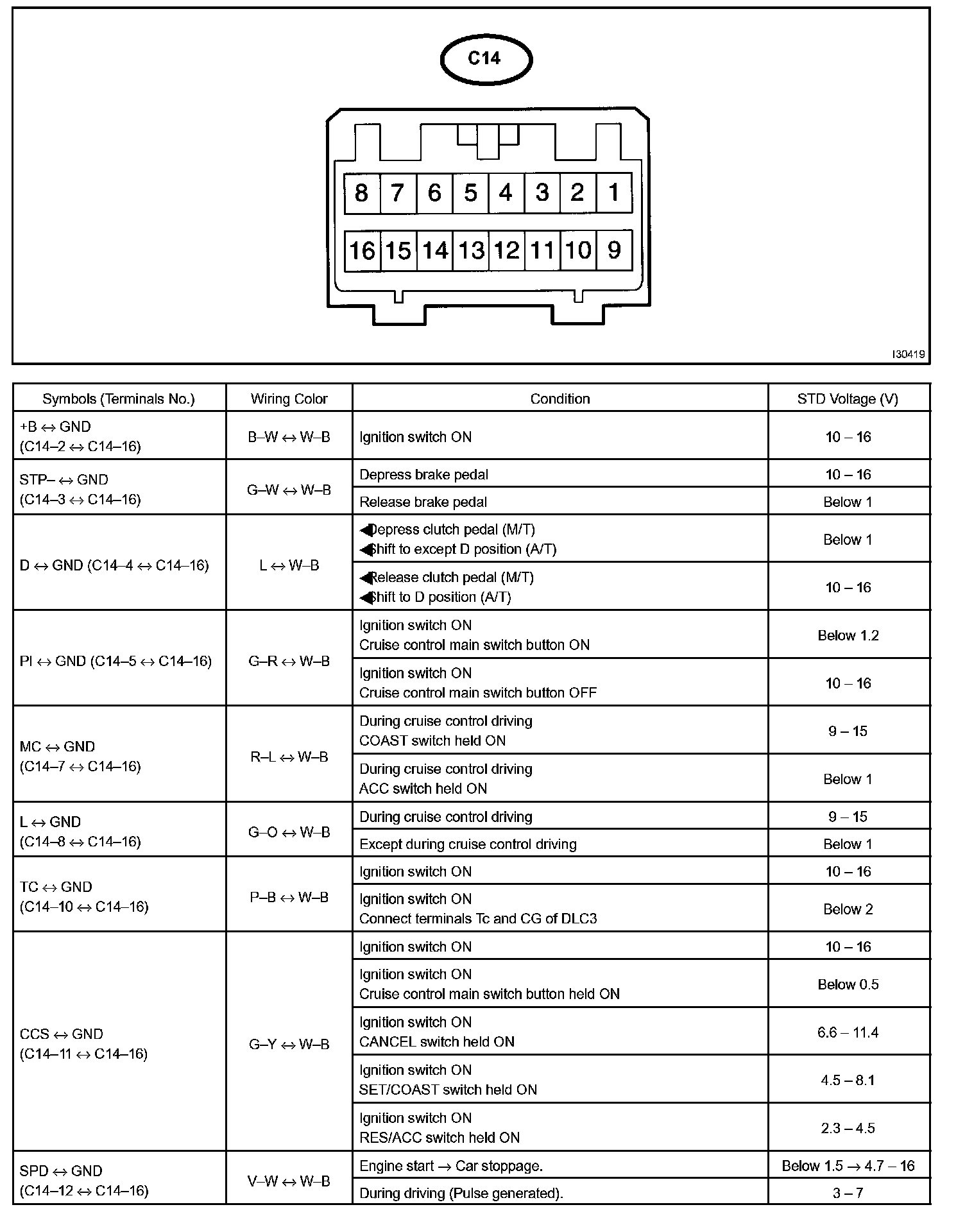

Terminals Of Control Module/Pinouts Part 1:

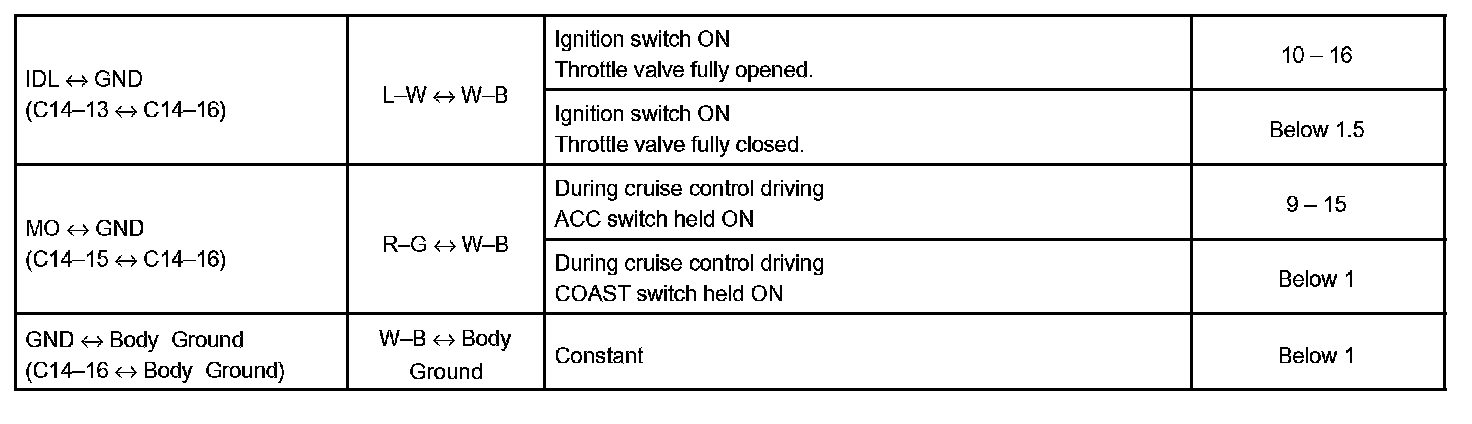

Terminals Of Control Module/Pinouts Part 2:
