Cruise Control
>>
Cruise Control Module
>>
Testing and Inspection
>>
Cruise Control System (W/O ETCS-i)
Cruise Control System (W/O ETCS-i)

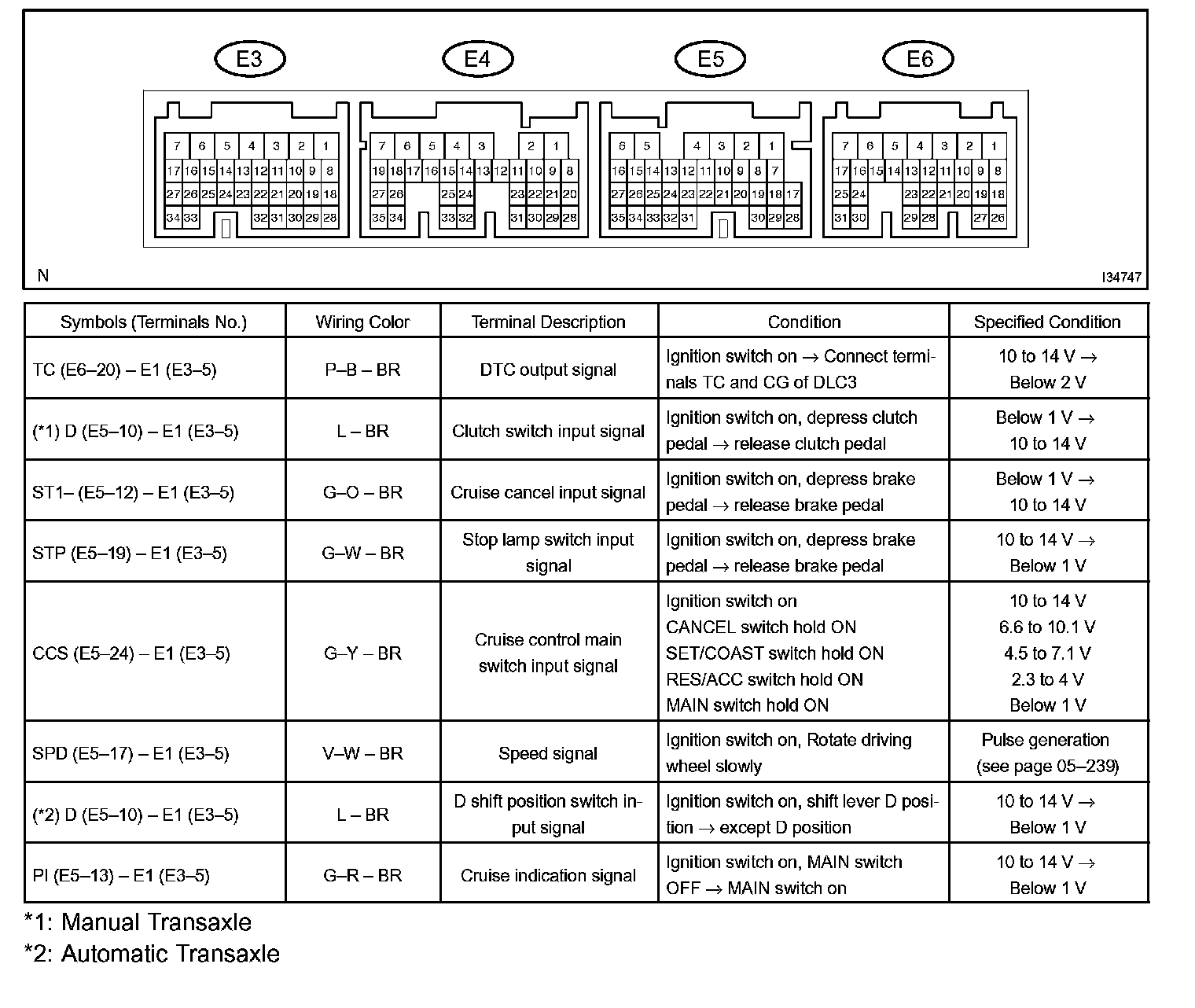

Terminals Of ECM/ Pinouts:
