Fuse Block: Locations




Engine Room R/B, J/B - Engine Compartment:

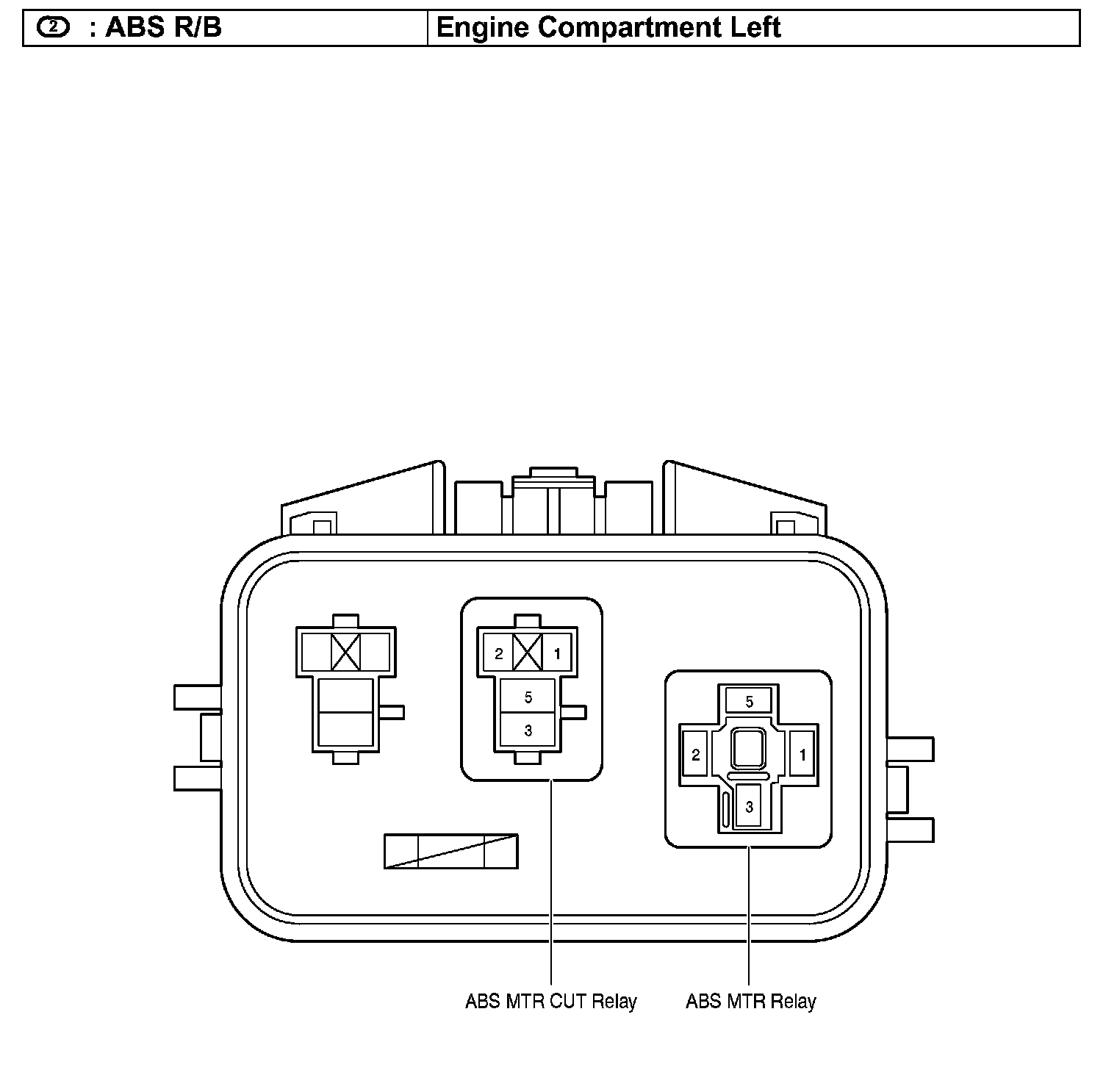

ABS R/B - Engine Compartment Left:




Instrument Panel J/B - Lower Finish Panel:




Instrument Panel J/B - Lower Finish Panel:




RH R/B - Right Side Of The Instrument Panel Reinforcement:




Details



Engine Compartment:

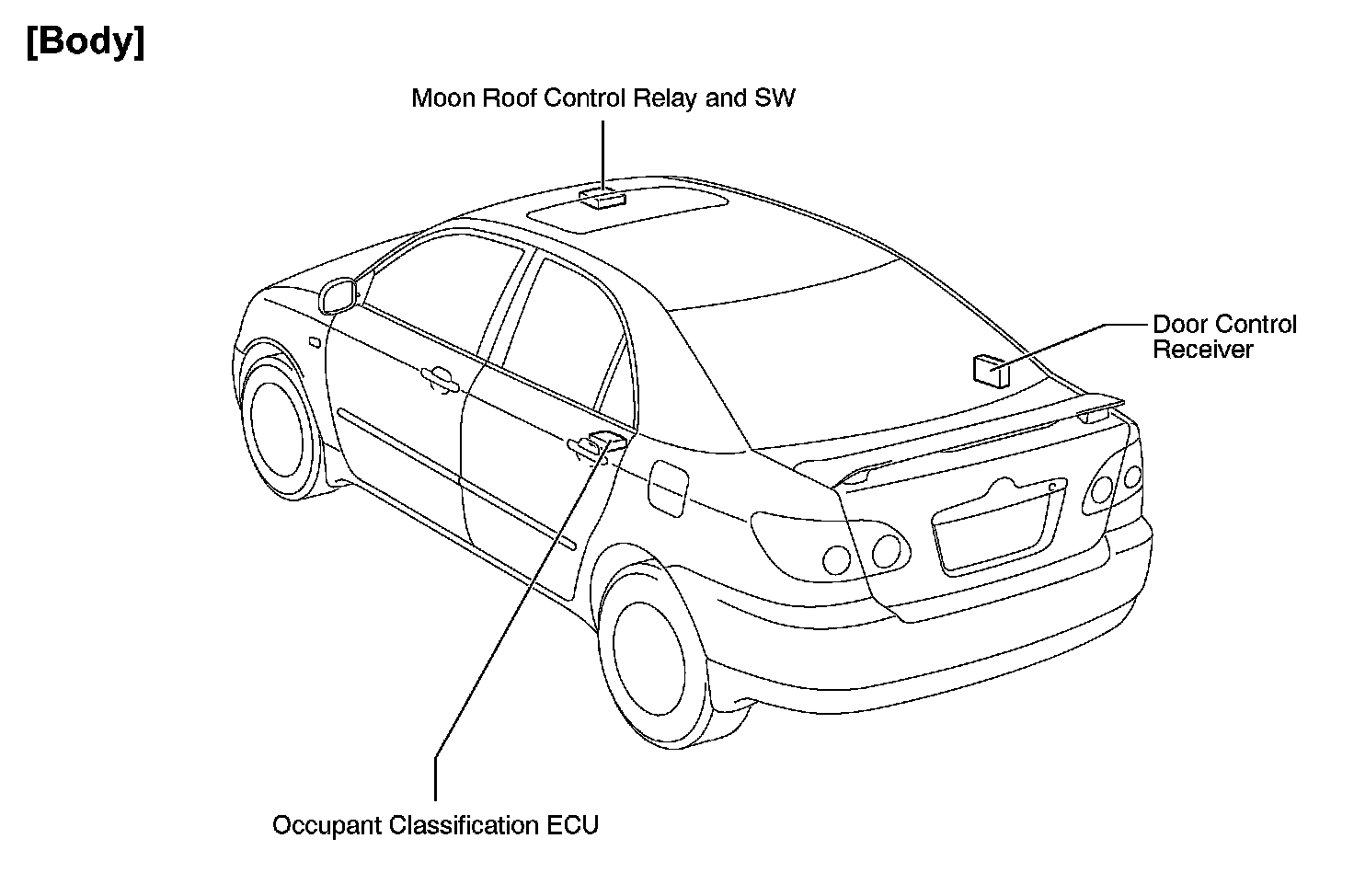

Body:




Instrument Panel:




Locations
