E.F.I. Circuit Opening Relay Assy

INSPECT E.F.I. CIRCUIT OPENING RELAY ASSY

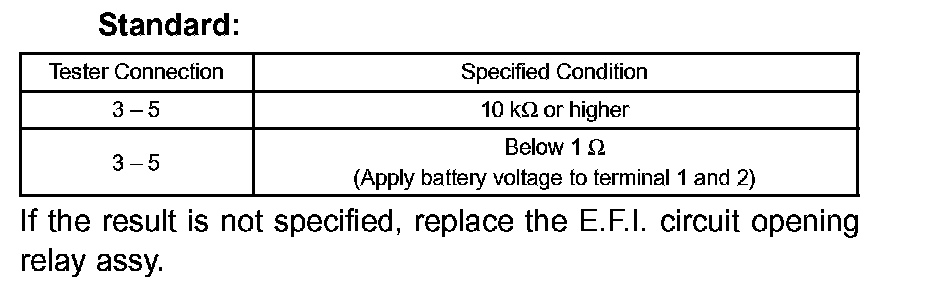

Check the resistance.

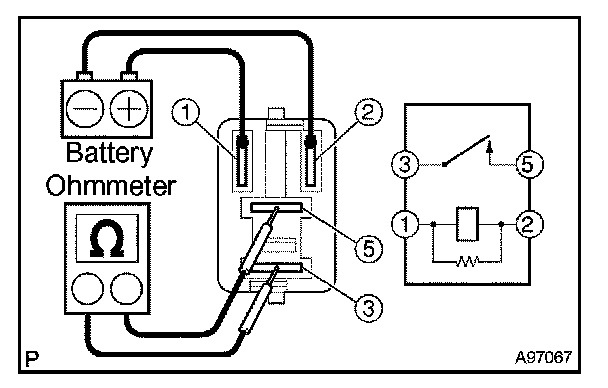

Using an Ohmsmeter, measure the resistance between the terminals.
