Fuel Filter: Locations

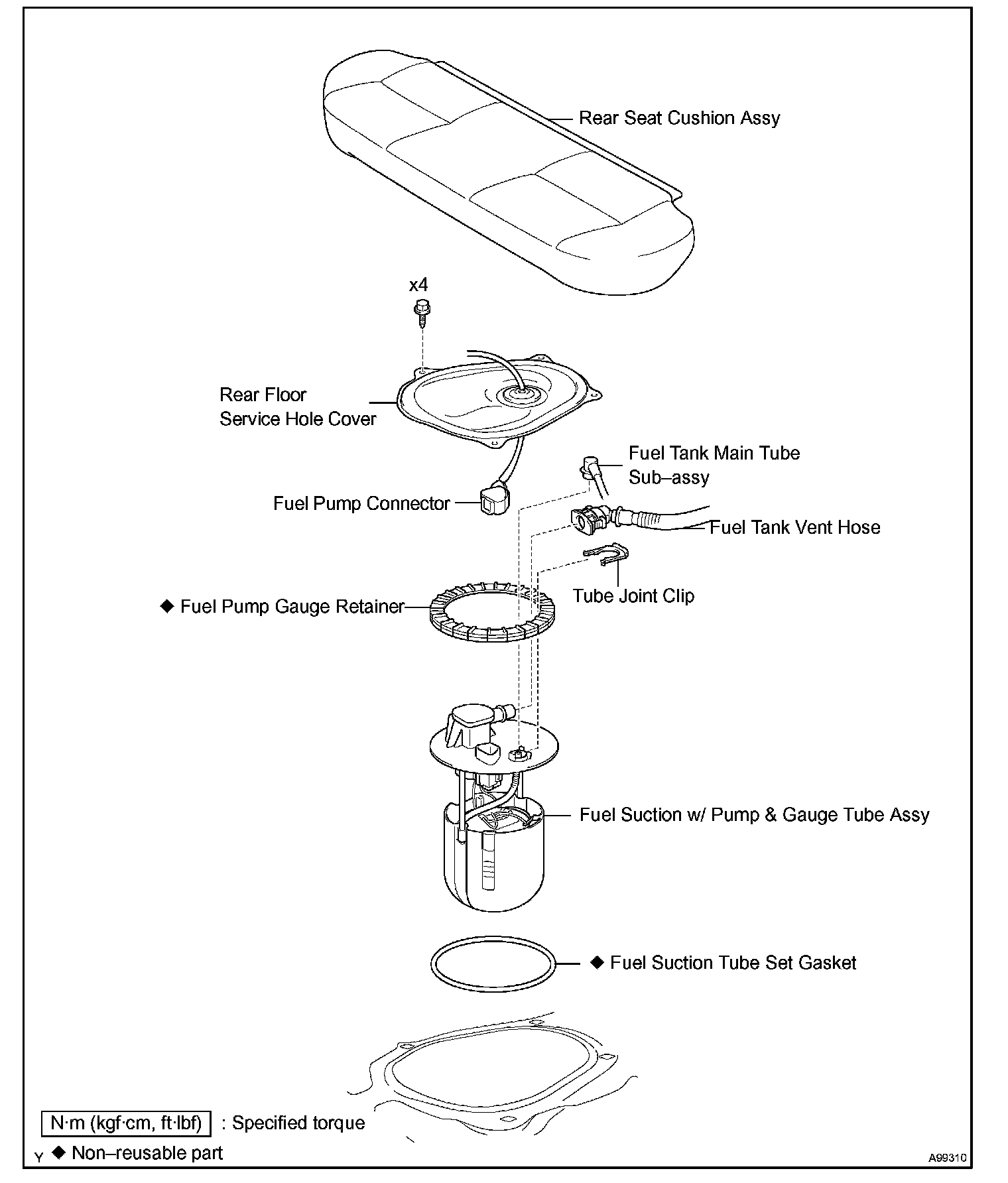

The fuel filter is part of the fuel pump assembly located underneath the rear seat cushion inside the fuel tank.

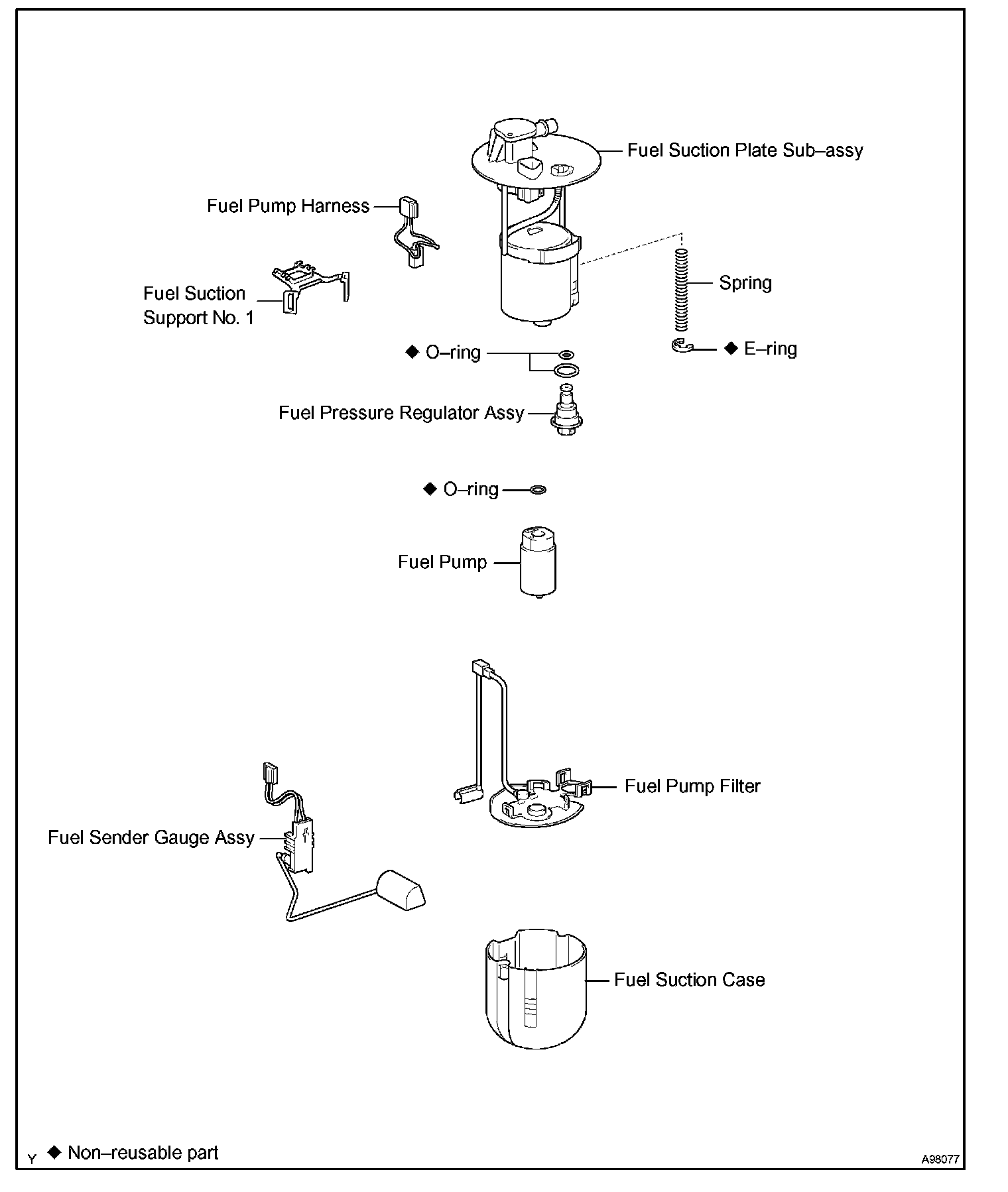

Fuel Suction W/ Pump & Gauge Tube Assy:

Fuel Suction W/ Pump & Gauge Tube Assy:
