Rear Axle Hub & Bearing Assy LH

REAR AXLE HUB & BEARING ASSY LH





COMPONENTS

REPLACEMENT

HINT: Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL





2. SEPARATE REAR DISC BRAKE CALIPER ASSY LH (DISC REAR BRAKE TYPE)
a. Remove the 2 bolts, and separate the rear disc brake caliper assy LH.
3. REMOVE REAR DISC (DISC REAR BRAKE TYPE)
4. REMOVE REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
5. DISCONNECT SKID CONTROL SENSOR WIRE (W/ ABS)





6. REMOVE REAR AXLE HUB & BEARING ASSY LH

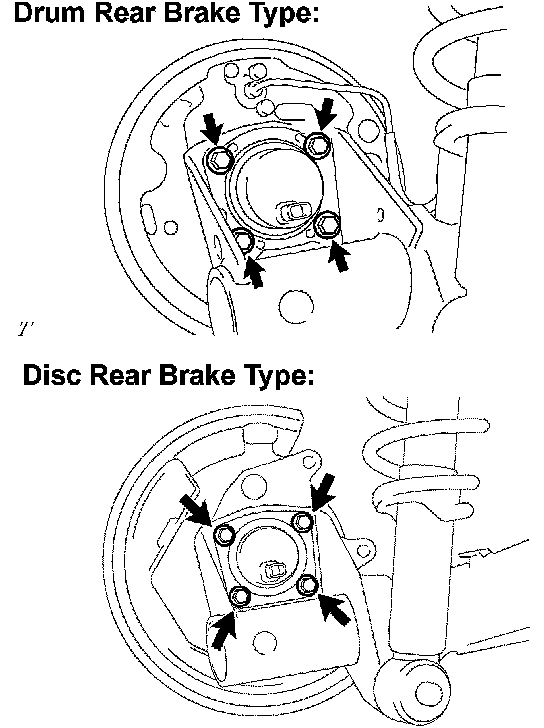

a. Remove the 4 bolts and hub & bearing assy LH.





7. INSTALL REAR AXLE HUB & BEARING ASSY LH
a. Install the hub & bearing assy LH with the 4 bolts.
Torque: 61 Nm (622 kgf-cm, 45 ft. lbs.)
8. CONNECT SKID CONTROL SENSOR WIRE (W/ ABS)

NOTICE: Do not twist the sensor wire when connecting it.

9. INSPECT AXLE HUB BEARING LOOSENESS
10. INSPECT AXLE HUB BEARING RUNOUT
11. INSTALL REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
12. INSTALL REAR DISC (DISC REAR BRAKE TYPE)





13. INSTALL REAR DISC BRAKE CALIPER ASSY LH (DISC REAR BRAKE TYPE)
a. Install the rear disc brake caliper assy LH with 2 bolts.
Torque: 47 Nm (480 kgf-cm, 34 ft. lbs.)
14. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
15. CHECK ABS SPEED SENSOR SIGNAL (W/ ABS)
