Home >> Toyota >> 2005 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Locations

Keyless Entry: Locations

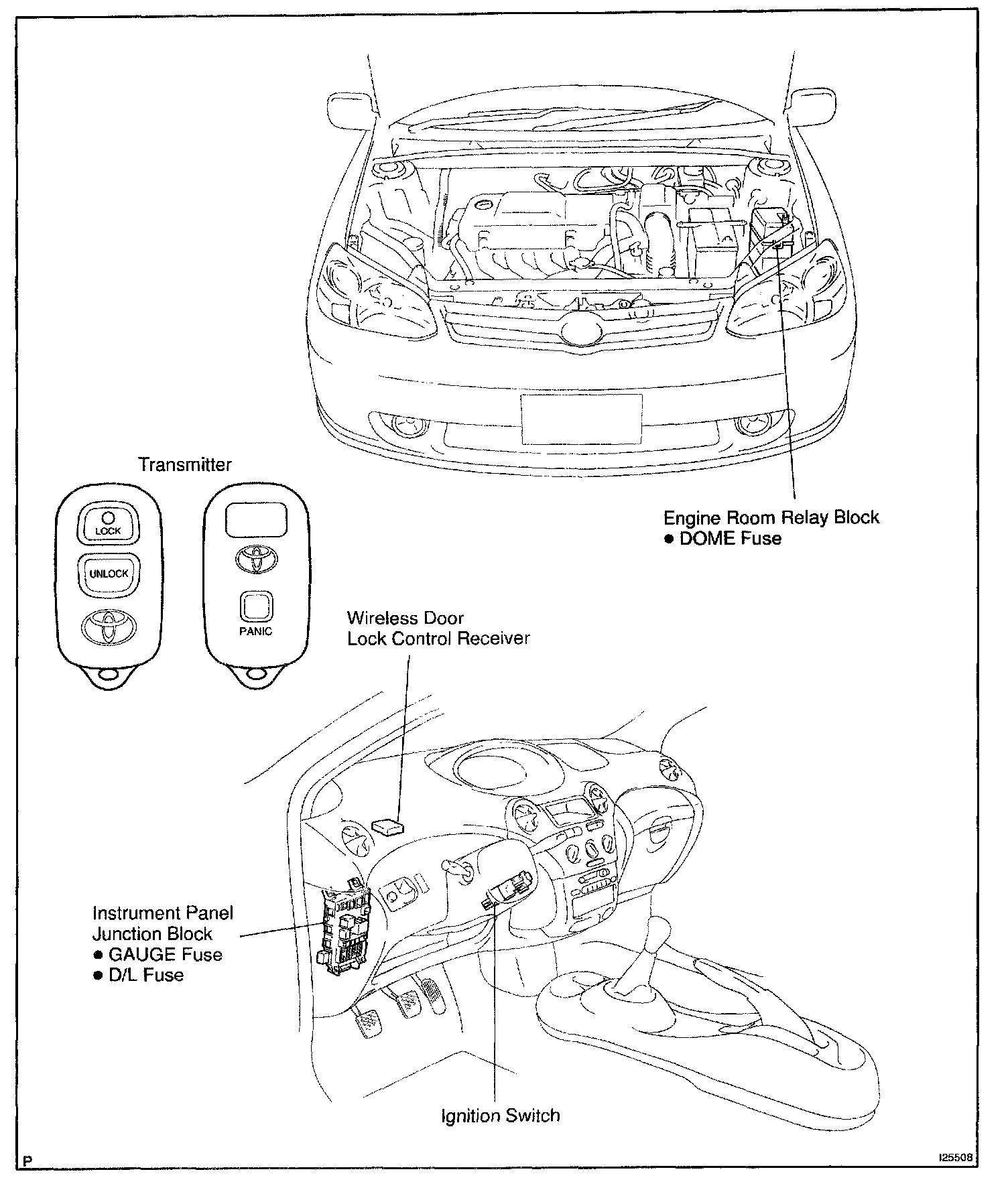

Wireless Door Lock Control System (Part 1):

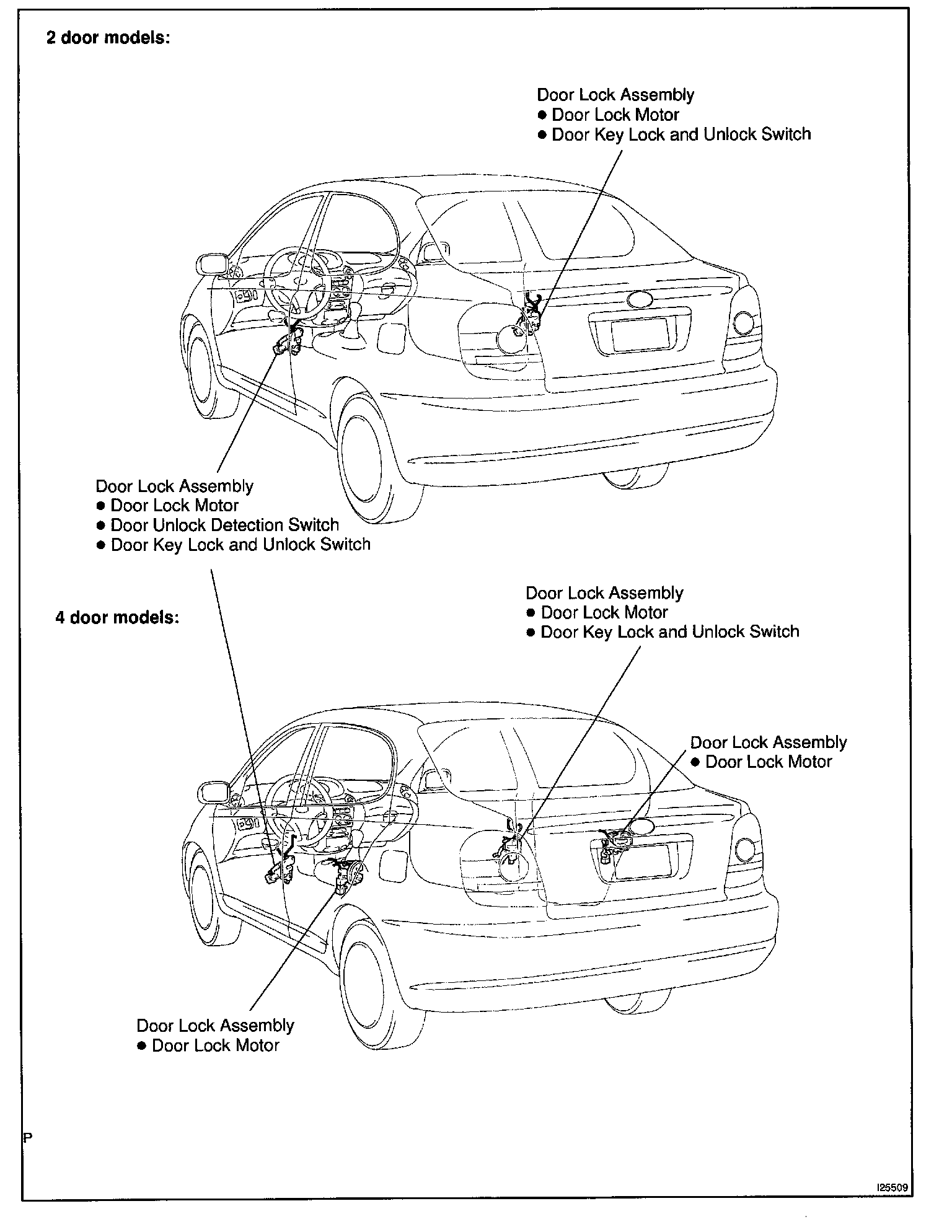

Wireless Door Lock Control System (Part 2):
