Electronic Brake Control Module: Locations

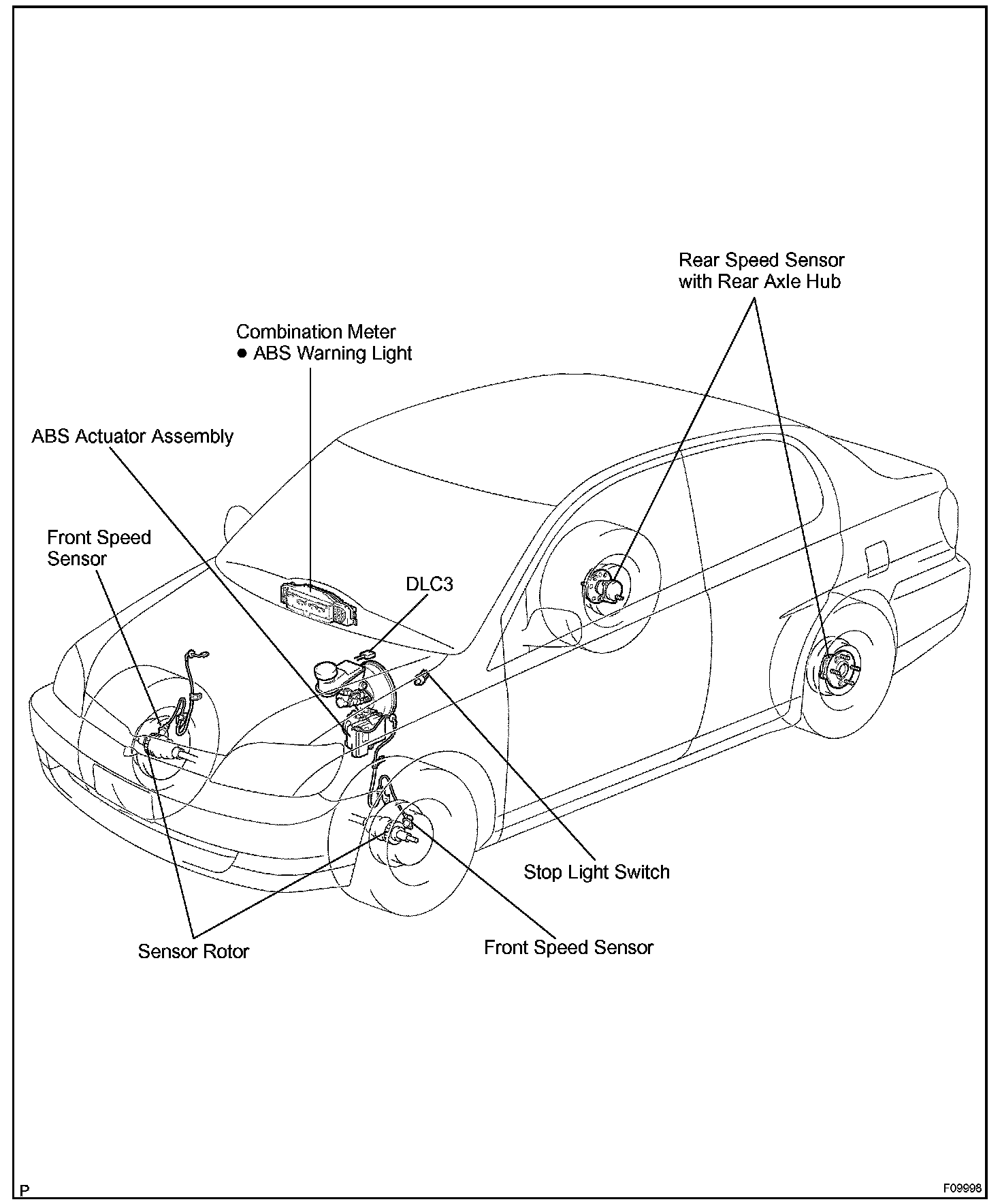

Anti-Lock Brake System:



A/C - Ho:



ABS - In:



ABS - In:
