Blower Motor Switch: Service and Repair

REAR HEATER BLOWER SWITCH

REPLACEMENT

HINT: Installation is in the reverse order of removal.




1. REMOVE DECK SIDE TRIM COVER FRONT LH

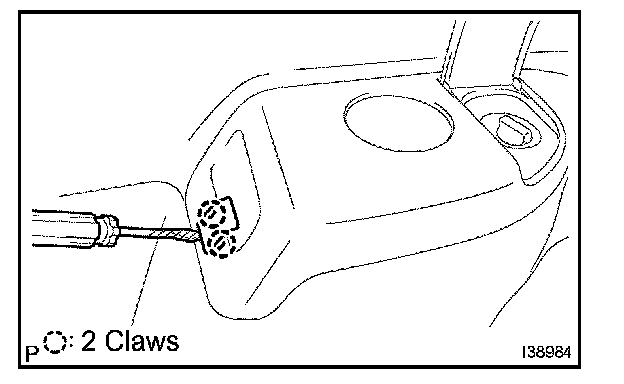

a. Using a thin flat-head screwdriver with the tip taped up with protective tape, disengage the 2 claw fittings and remove the deck side trim cover front.




2. REMOVE DECK SIDE TRIM COVER RH
a. Remove the bolt.
b. Release the 2 clip fittings and 2 claw fittings.
c. Remove the connector and deck side trim cover RH.




3. REMOVE REAR HEATER BLOWER SWITCH

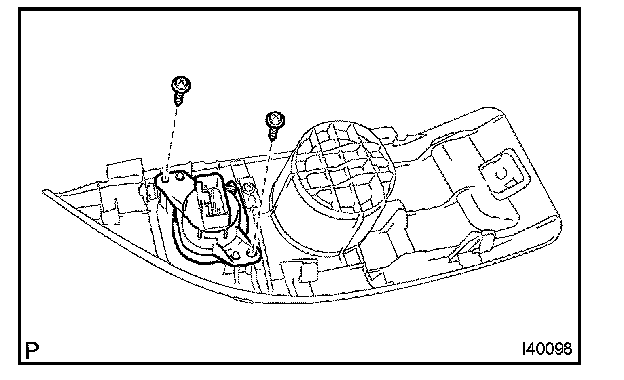

a. Remove the 2 screws and rear heater blower switch.
