Electronic Brake Control Module: Locations

Engine Compartment:



Ig - Wi:



Tire Pressure Warning System:

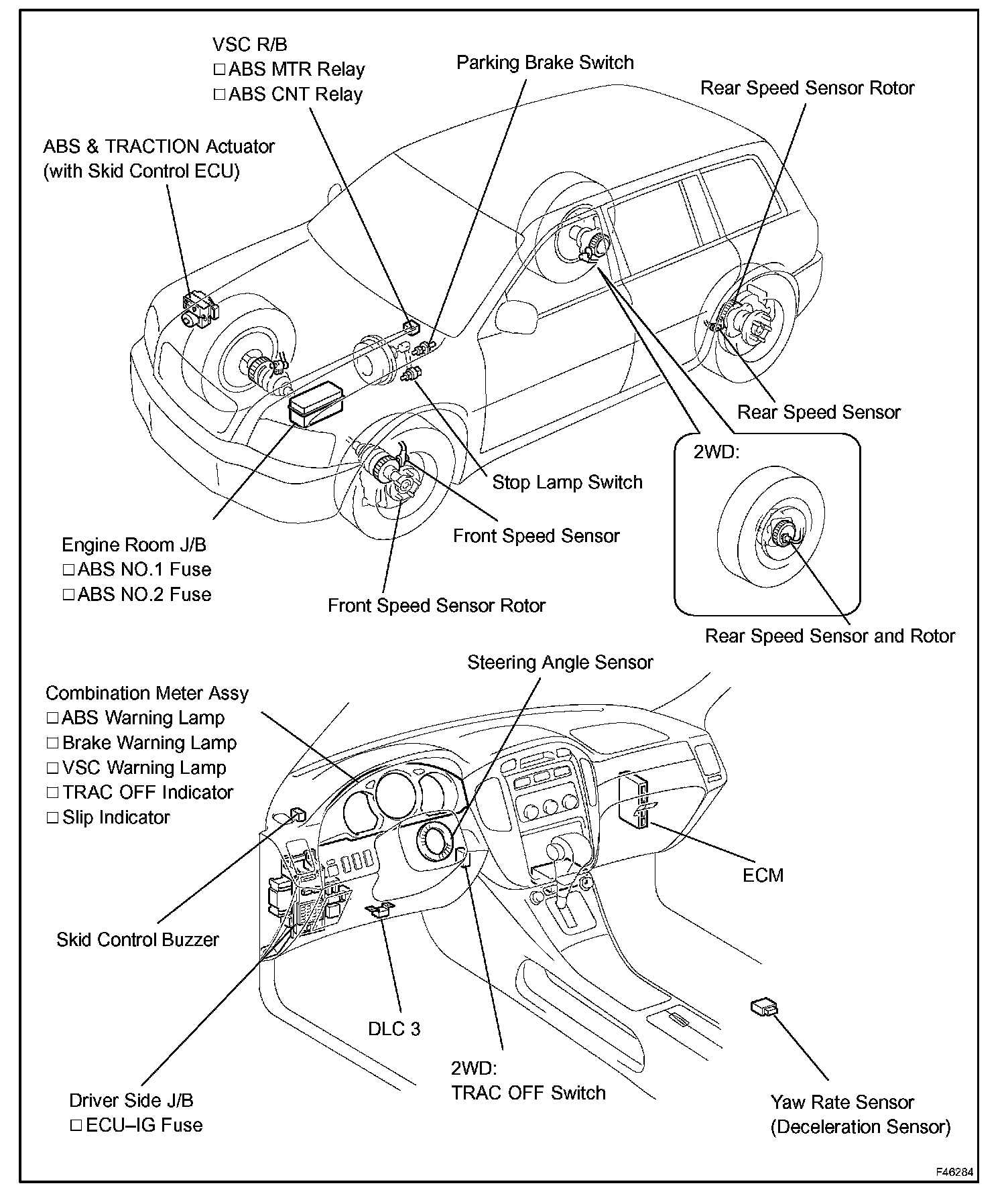

ABS With EBD & BA TRAC & VSC System:



Combination Meter:



Cruise Control System:

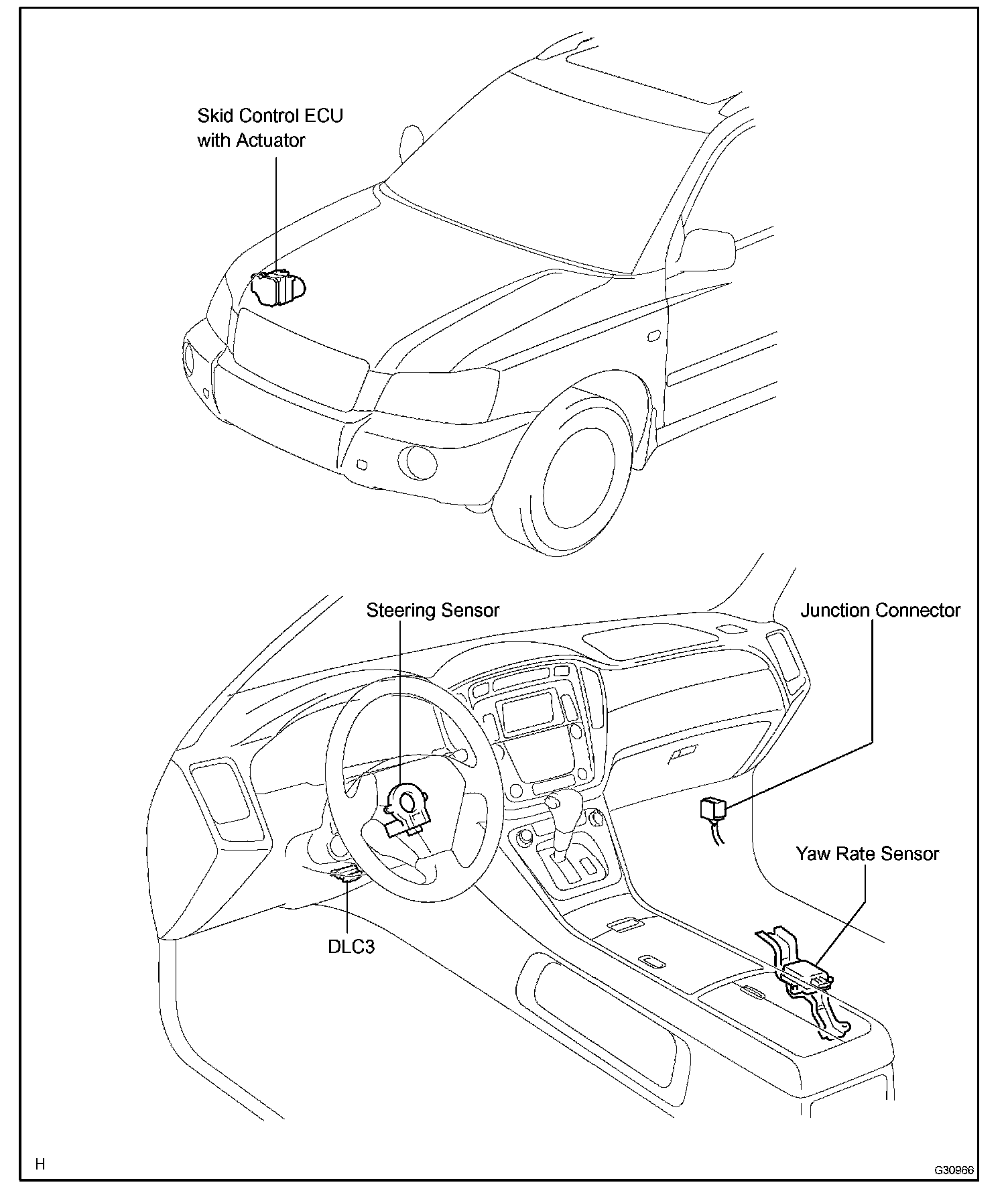

CAN Communication System:
