Engine Immobilizer System
Engine Immobilizer System

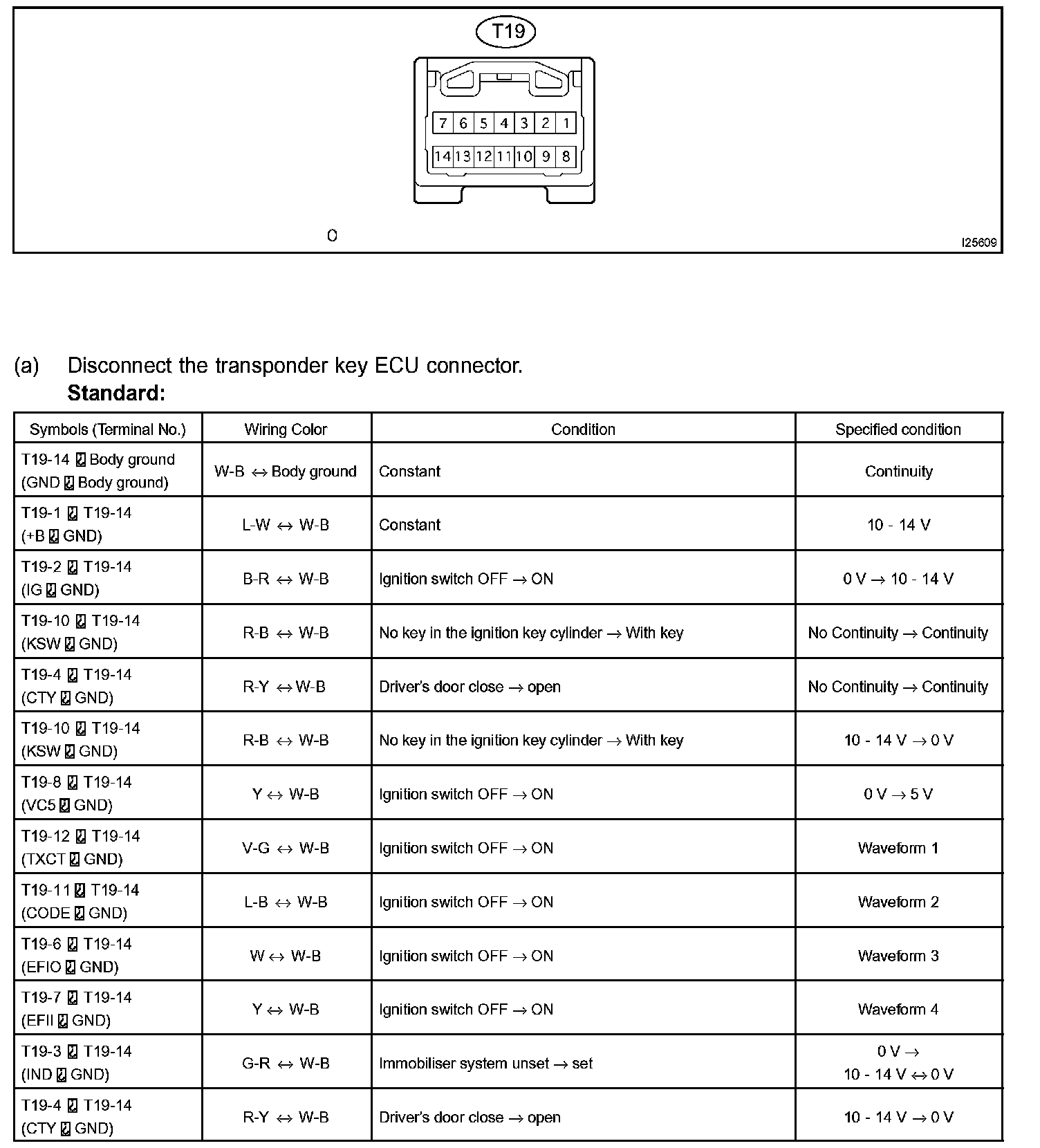

Terminals Of ECM/Pinouts - Transponder Key ECU:

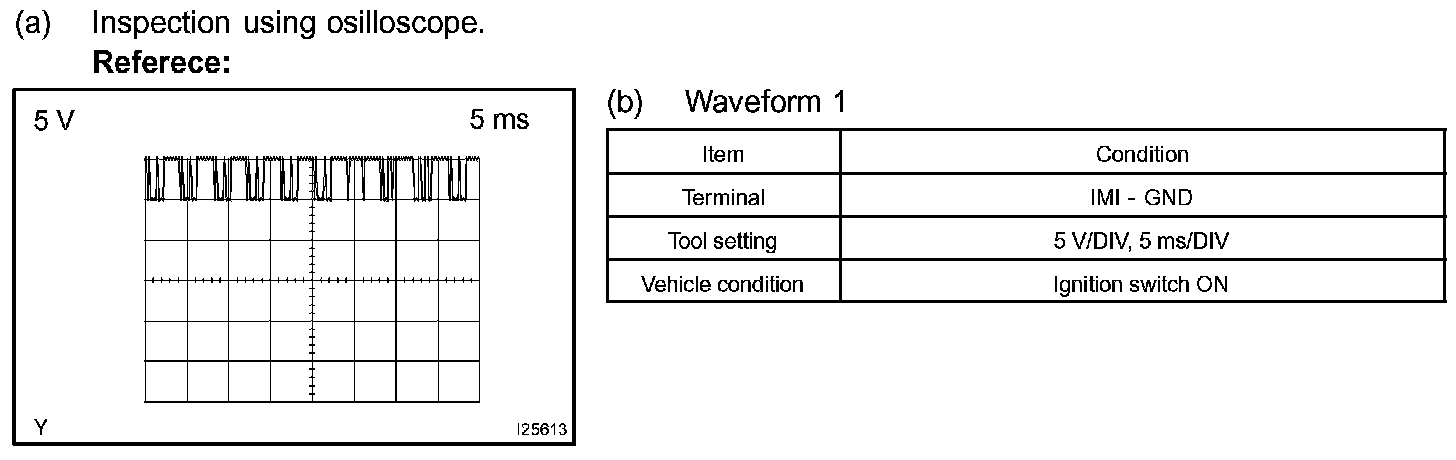

Oscilloscope Waveform:
Terminals Of ECM/ Pinouts - ECM:

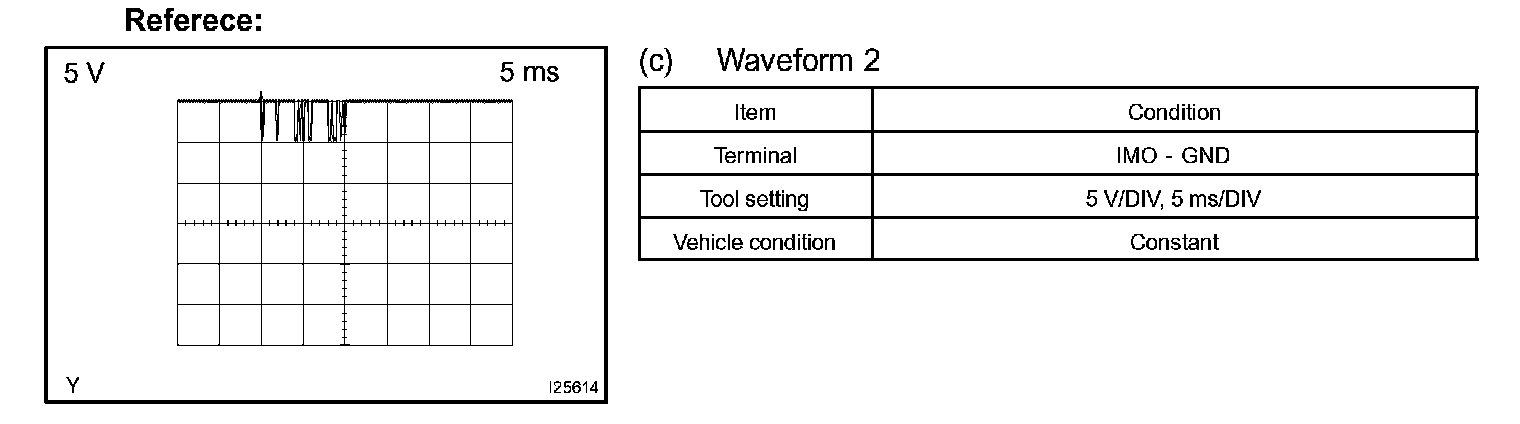

Oscilloscope Waveform:
Oscilloscope Waveform:
