Navigation Module: Testing and Inspection

TERMINALS OF ECU

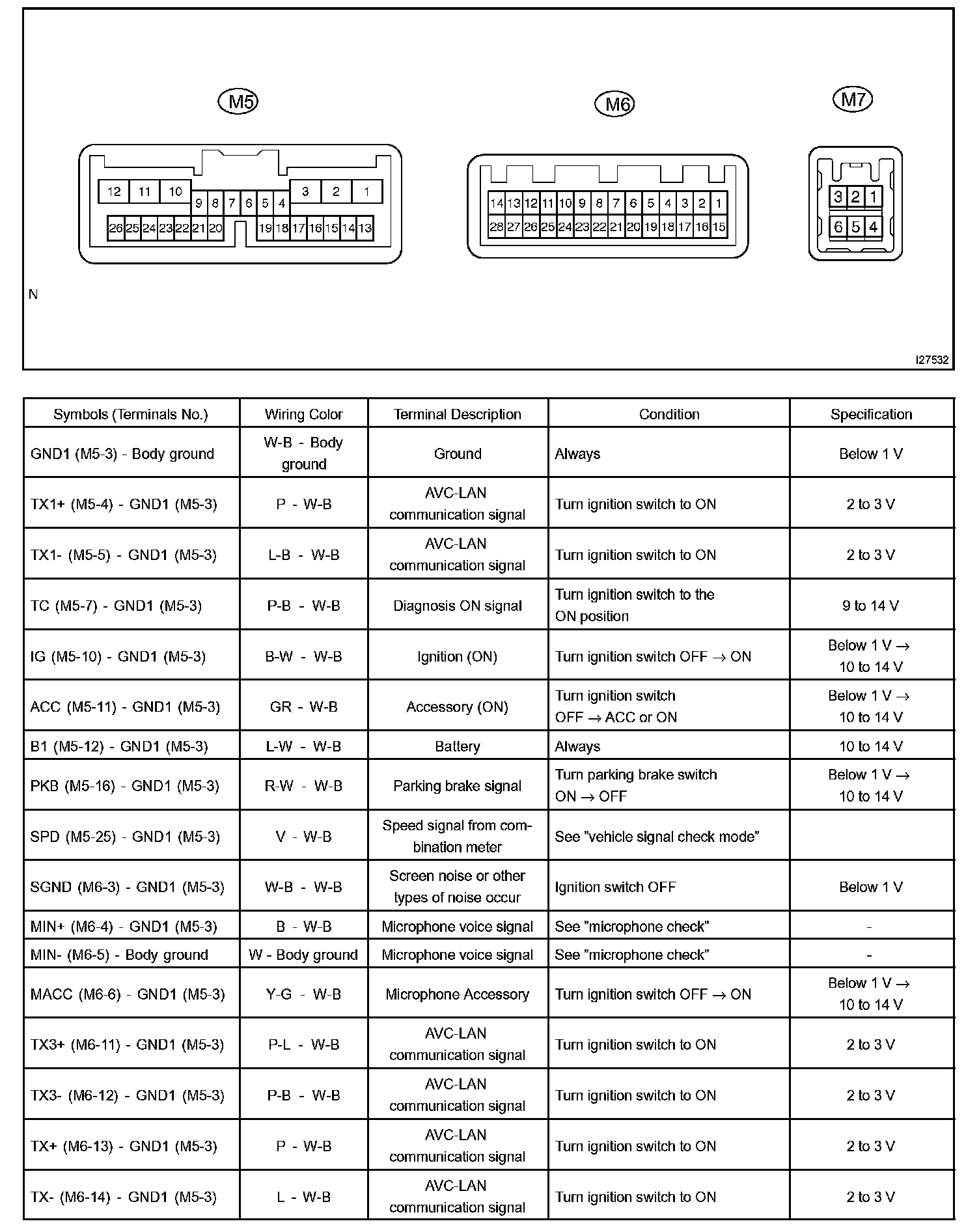

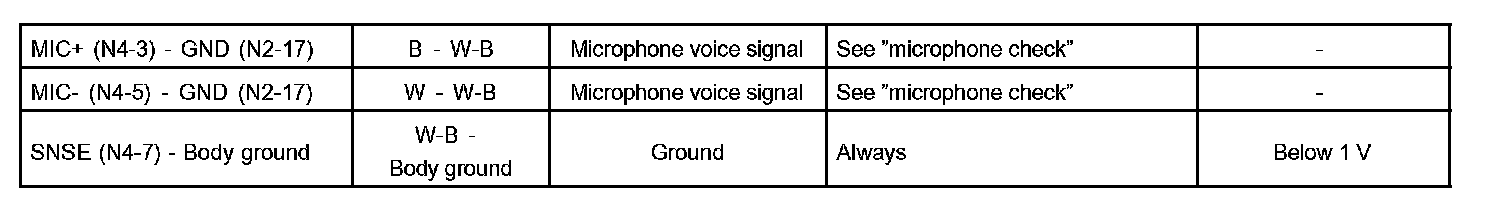

Terminals Of Control Module/Pinouts - Multi-display Part 1:

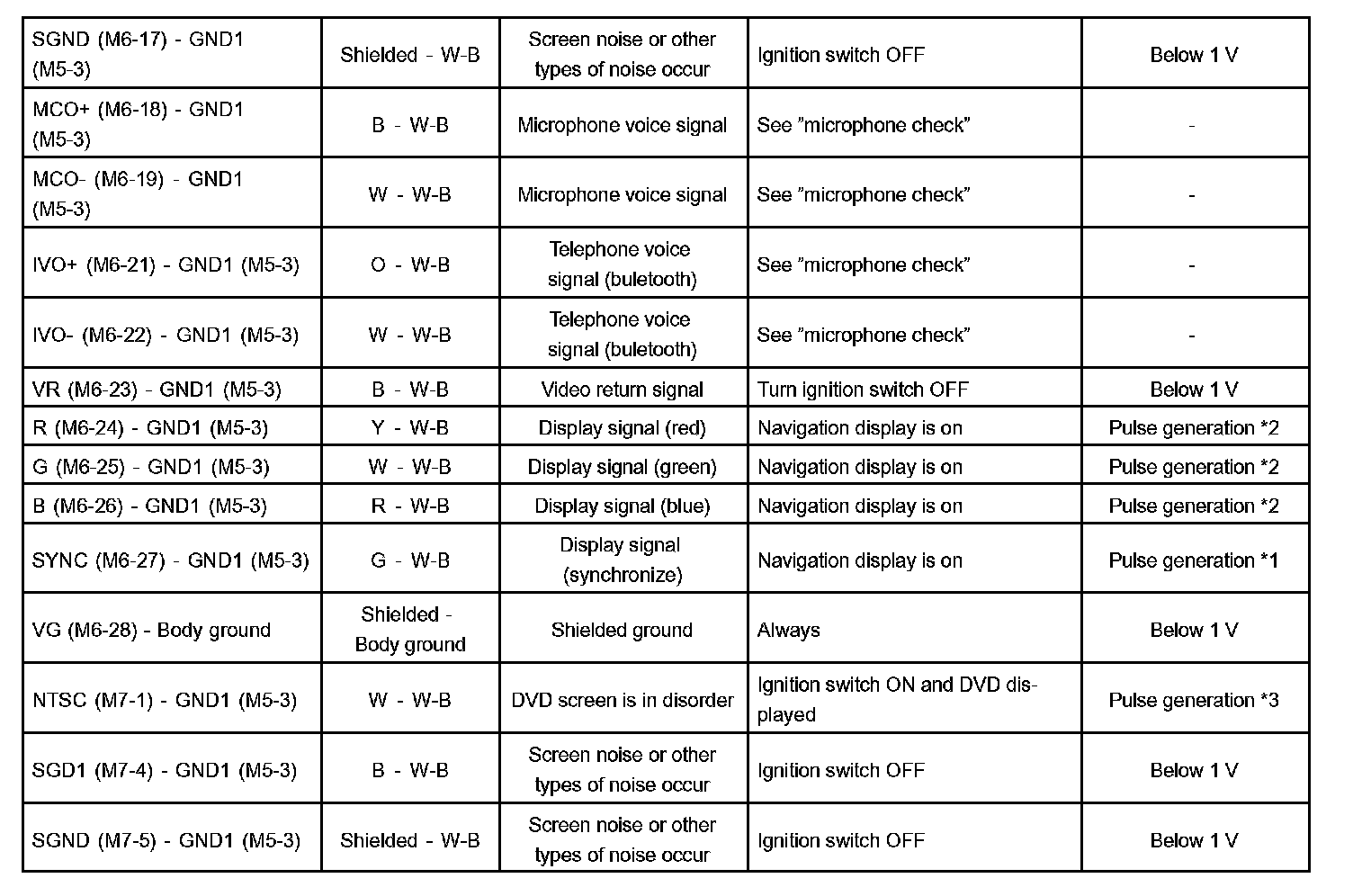

Terminals Of Control Module/Pinouts - Multi-display Part 2:

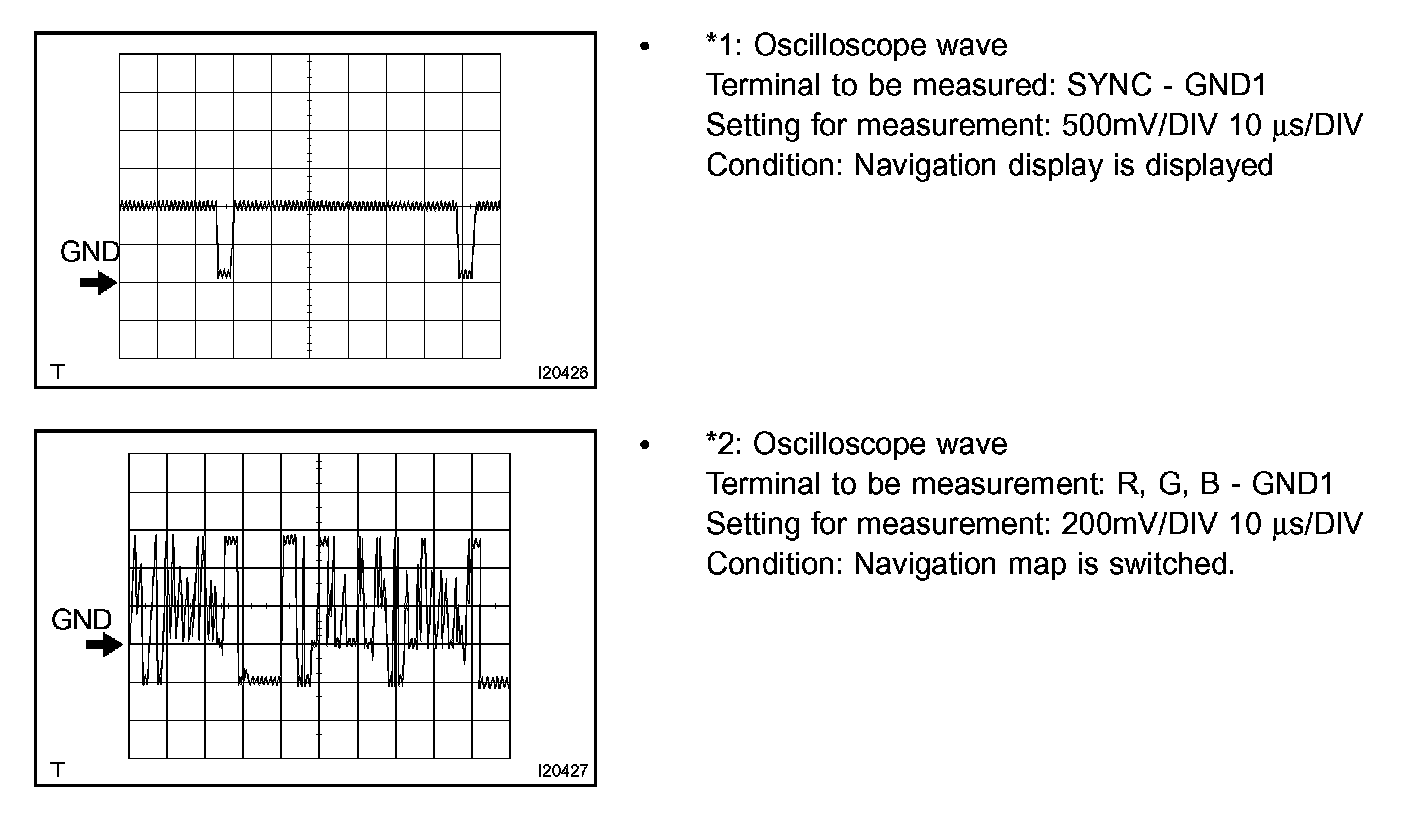

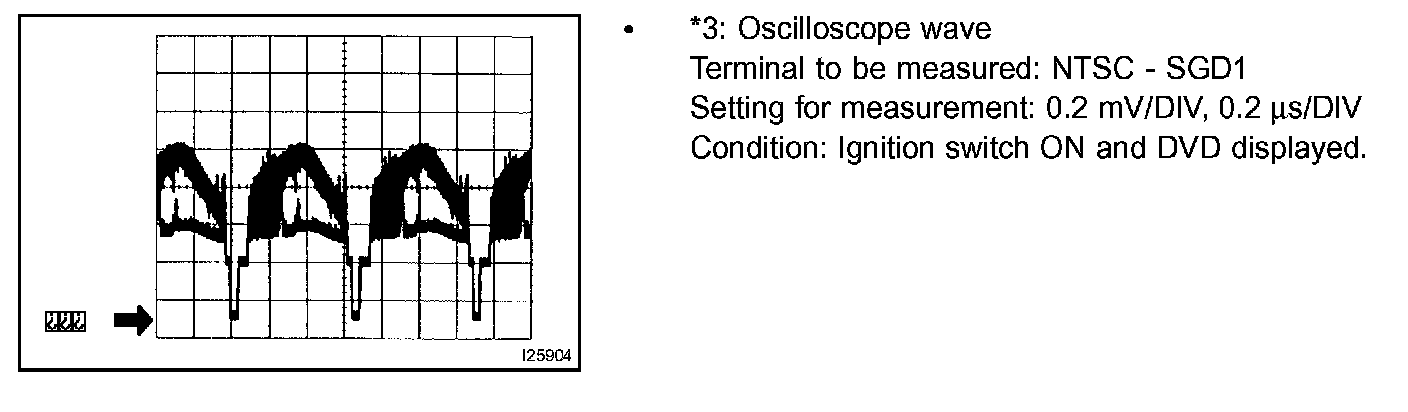

Oscilloscope Waveforms:

Oscilloscope Wave:

Multi-display

Terminals Of Control Module/Pinouts - Navigation ECU Part 1:

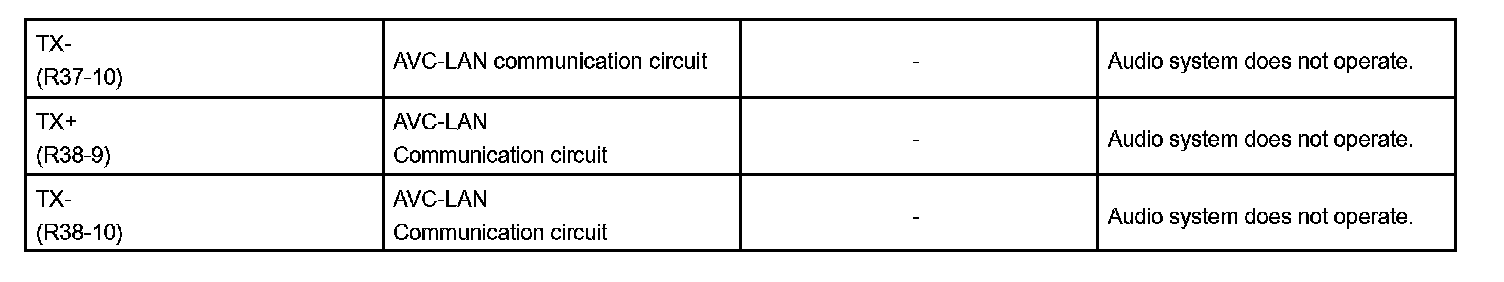

Terminals Of Control Module/Pinouts - Navigation ECU Part 2:

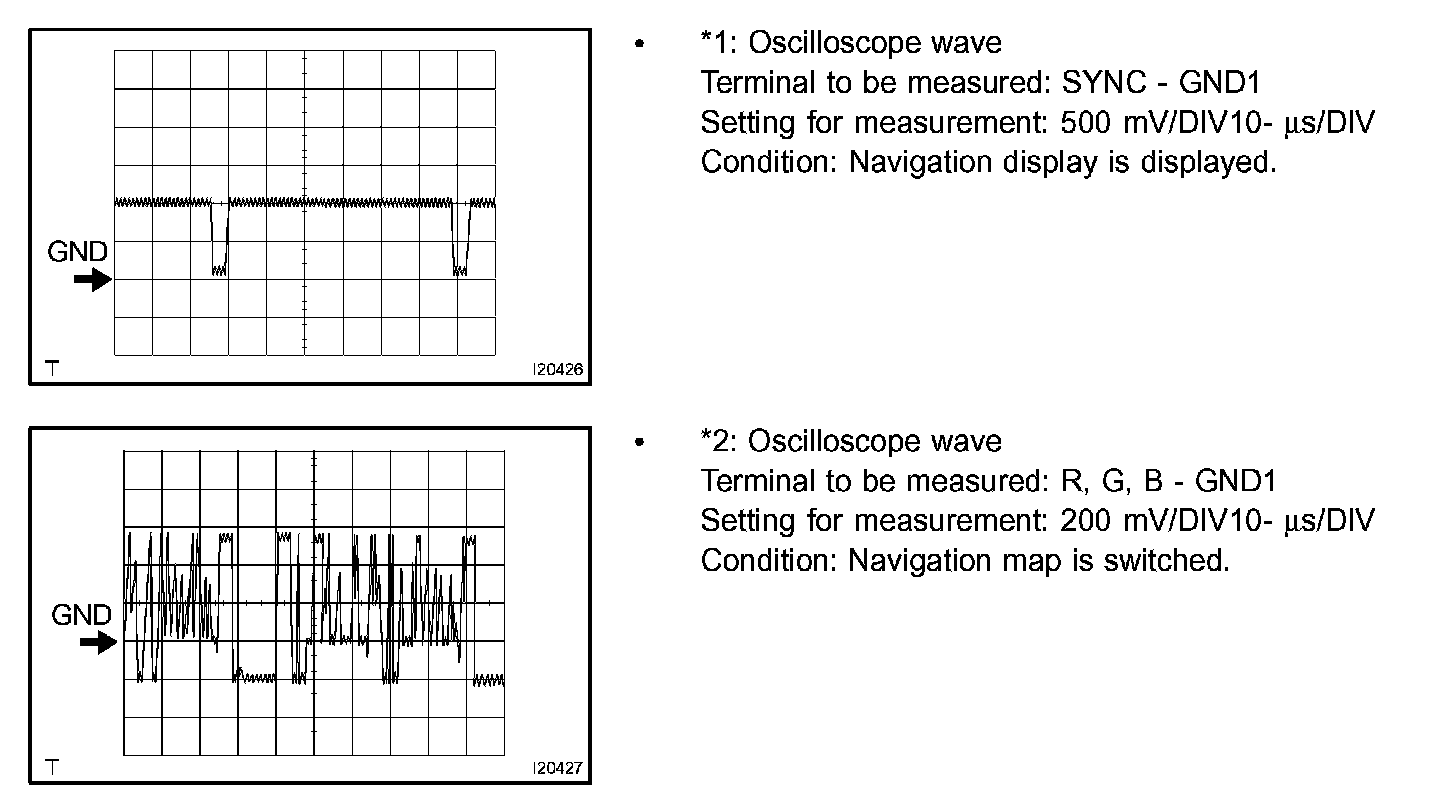

Oscilloscope Waveforms:

Navigation ECU

Terminals Of Control Module/Pinouts - Radio Receiver Assembly Part 1:

Terminals Of Control Module/Pinouts - Radio Receiver Assembly Part 2:

Radio receiver assembly

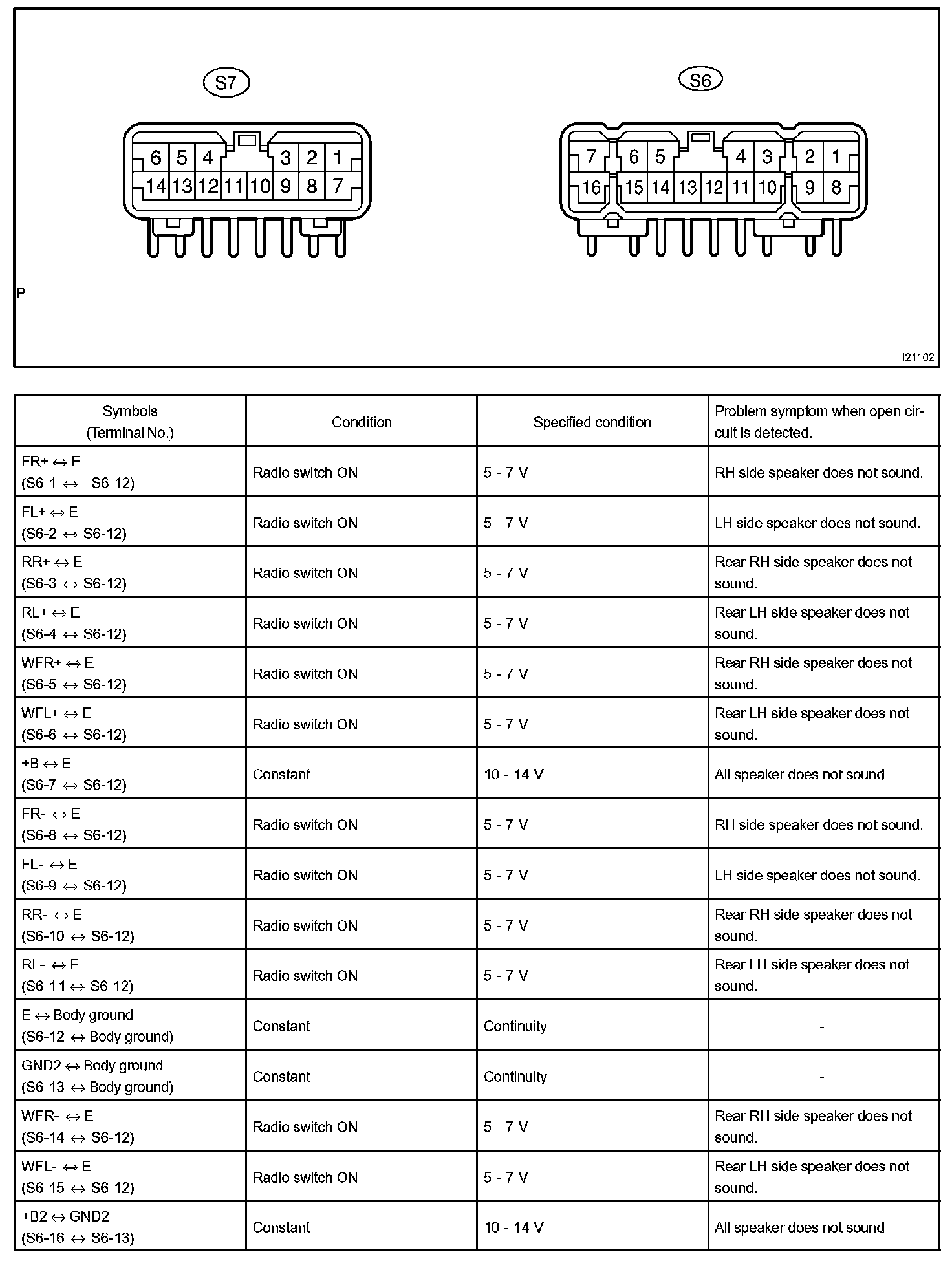

Terminals Of Control Module/Pinouts - Stereo Component Amplifier Part 1:

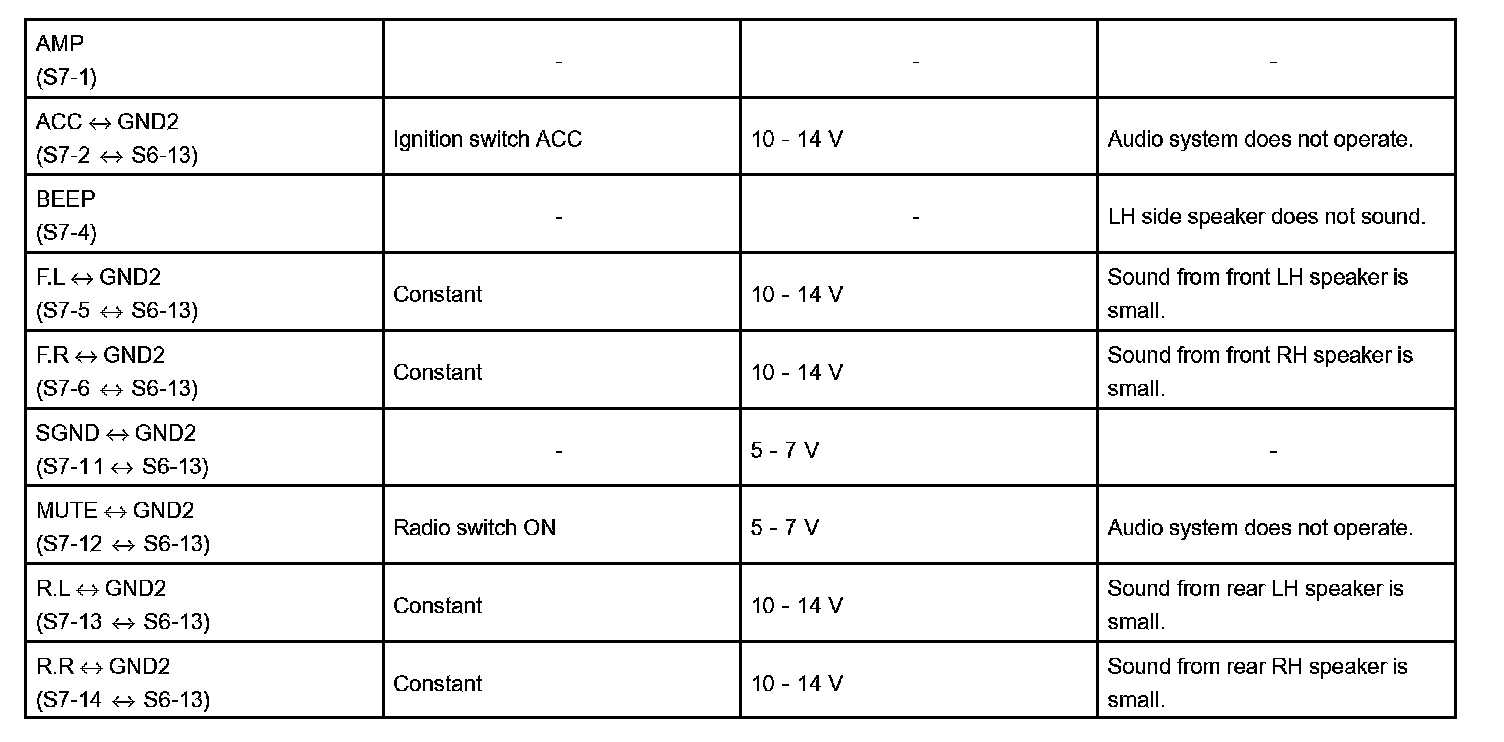

Terminals Of Control Module/Pinouts - Stereo Component Amplifier Part 2:

Stereo component amplifier

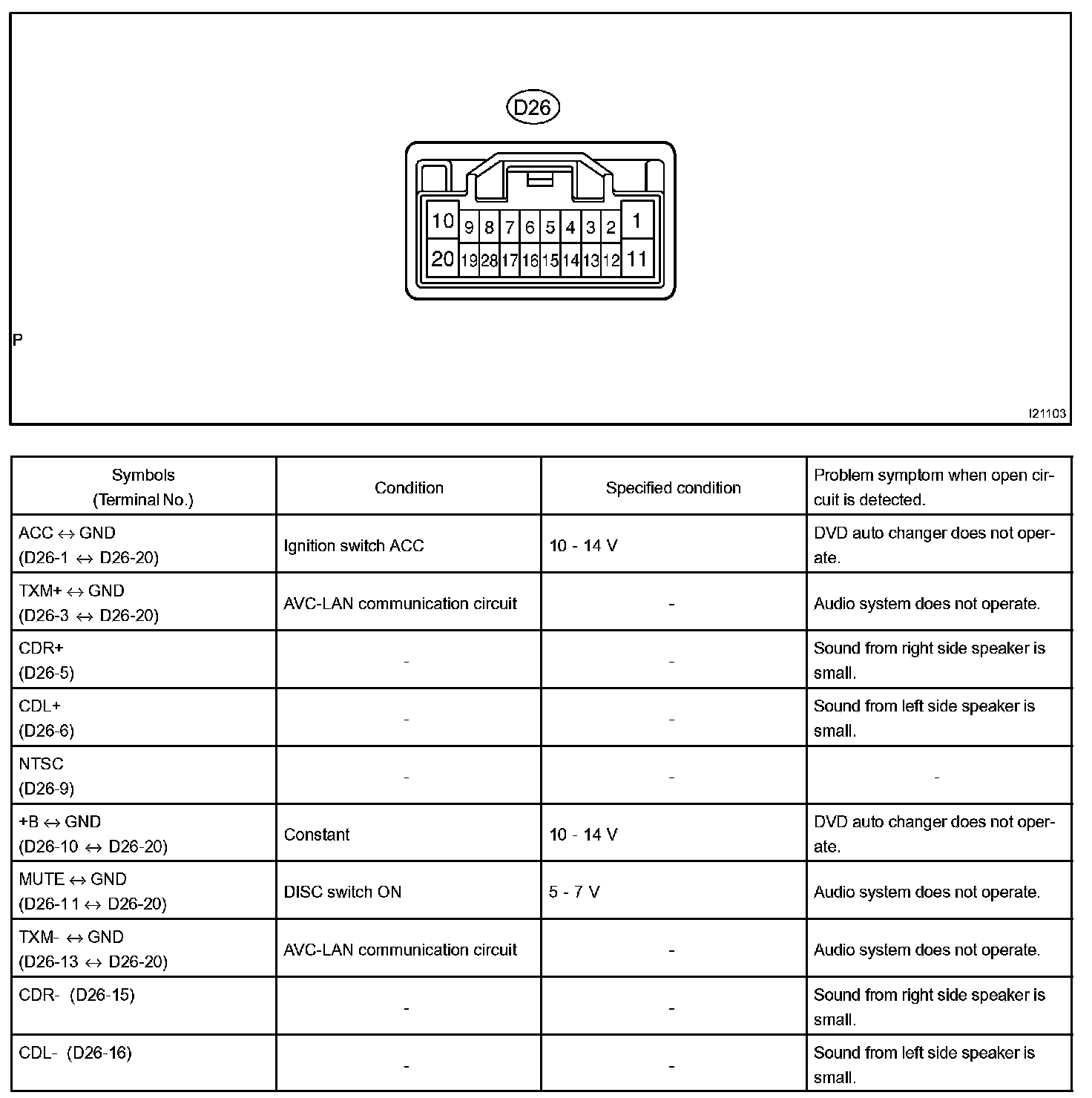

Terminals Of Control Module/Pinouts - DVD Auto Changer:

DVD auto changer

Terminals Of Control Module/Pinouts - Gateway ECU:

Oscilloscope Waveforms:

Gateway ECU
