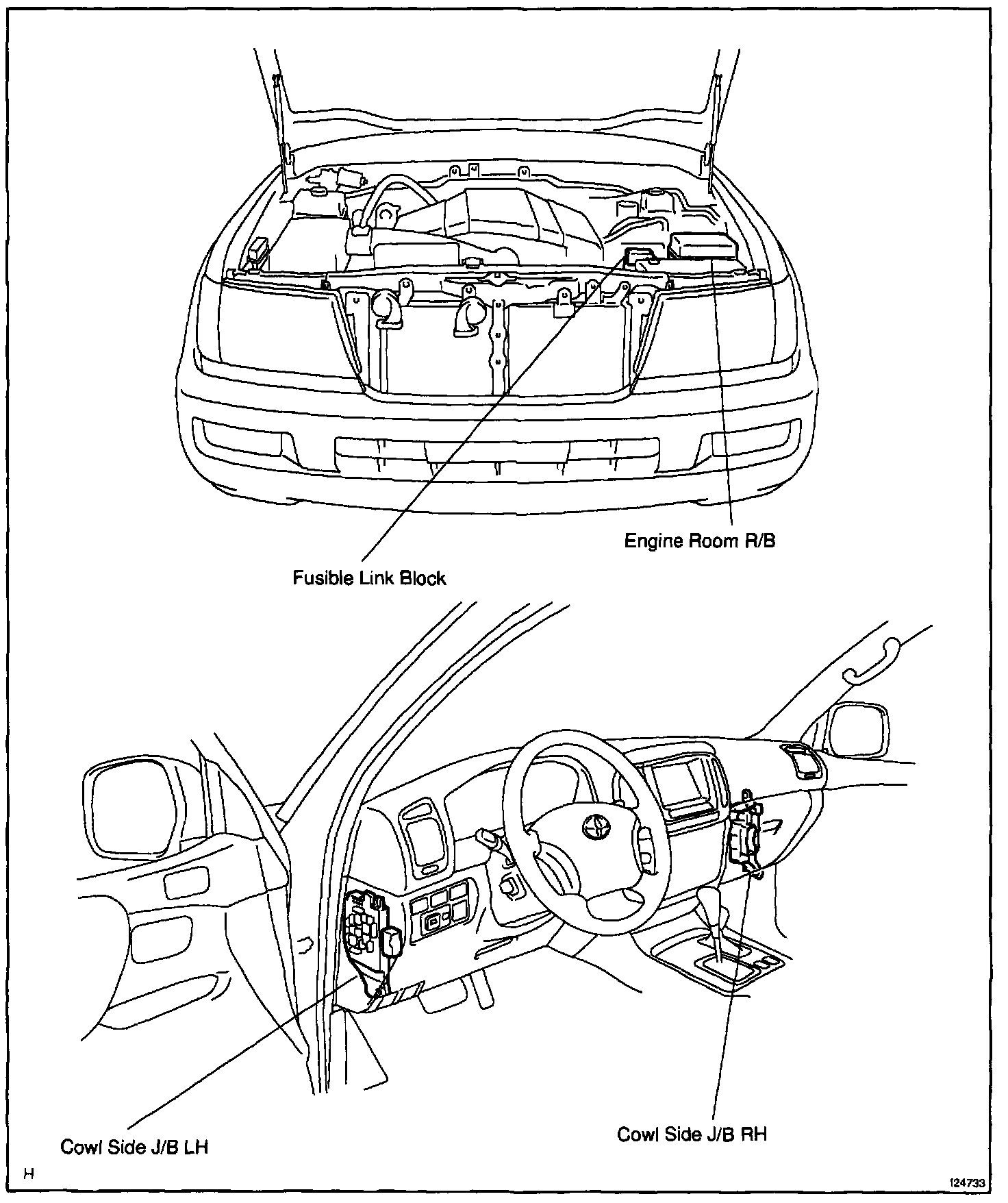

Power and Ground Distribution: Locations
Power Source:

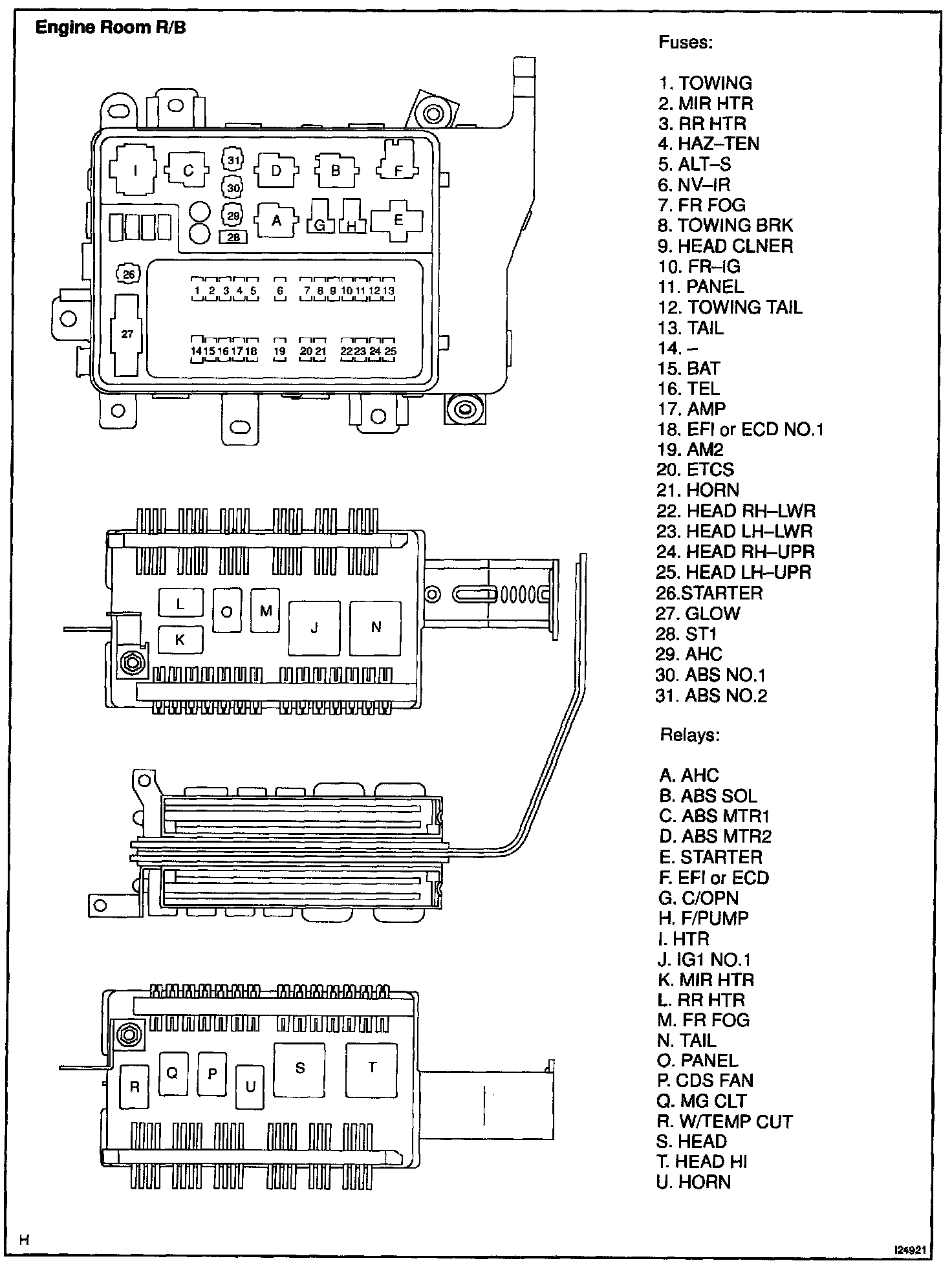

Engine Room R/B:

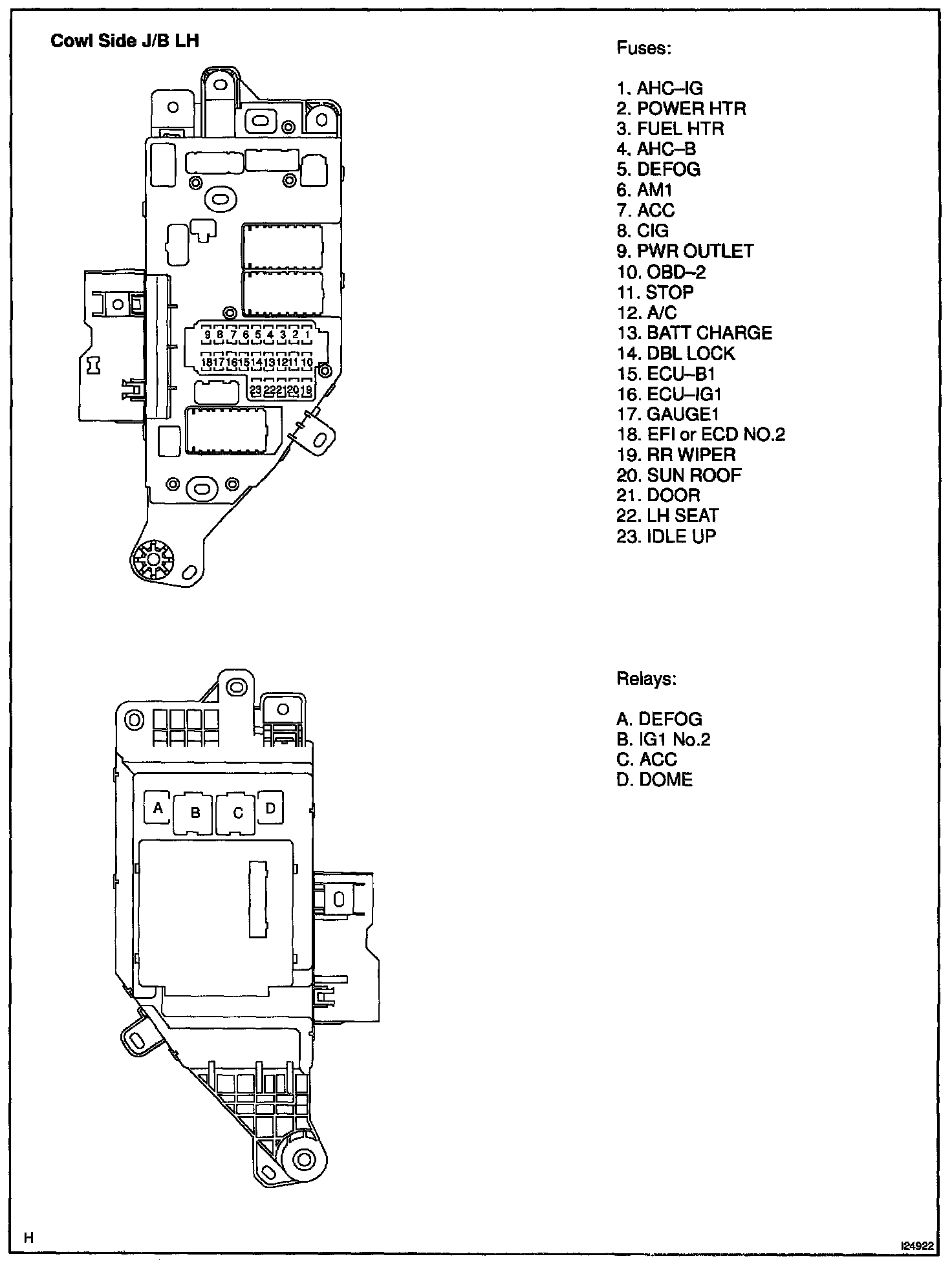

Cowl Side J/B LH:

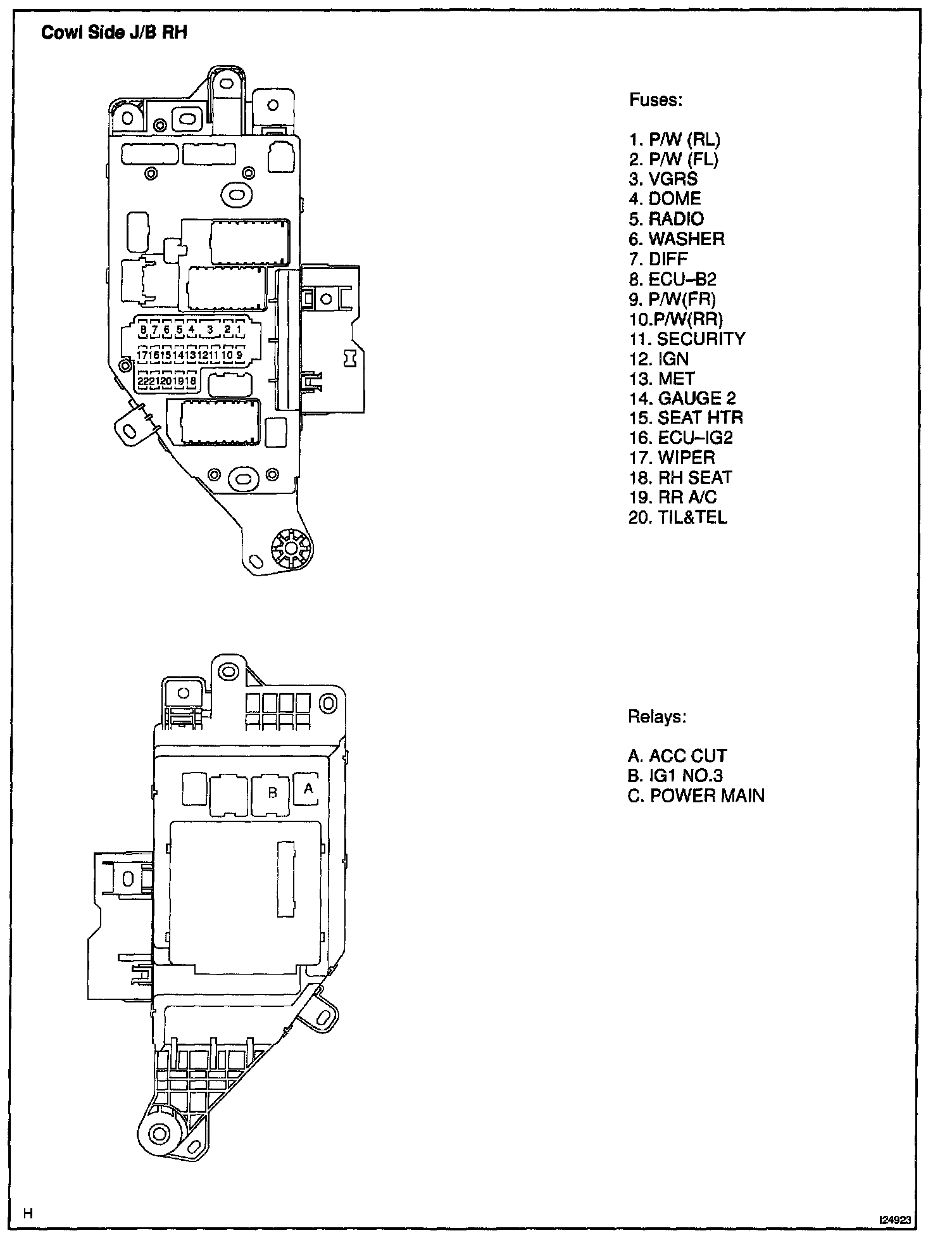

Cowl Side J/B RH:
