Specifications
>>
Electrical Specifications
Electrical Specifications

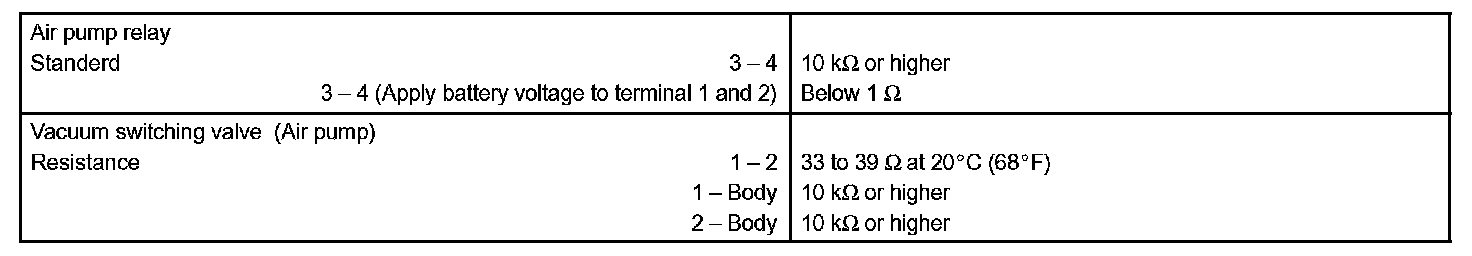

Emission Control - Service Data Part 1:

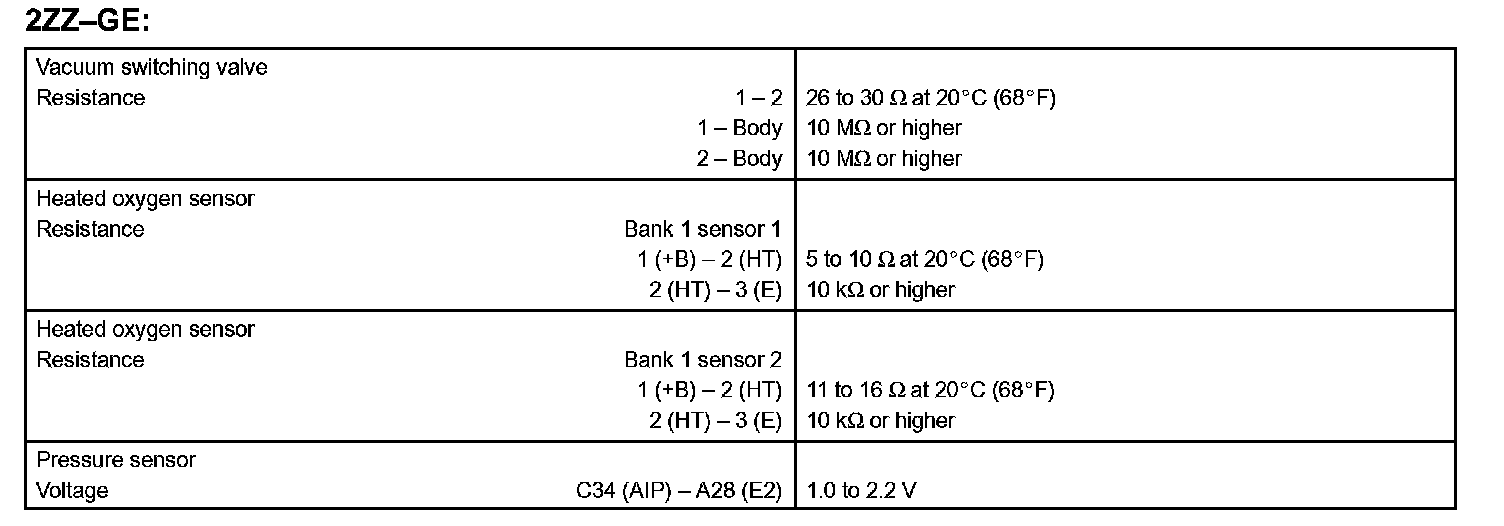

Emission Control - Service Data Part 2:
