Door Lock Control Switch Circuit
Door Lock Control Switch CircuitCIRCUIT DESCRIPTION
When the door lock control switch is turned to the the lock position, terminal LOCK of the switch is grounded. When the switch is turned to the unlock position, terminal UNLOCK is grounded.

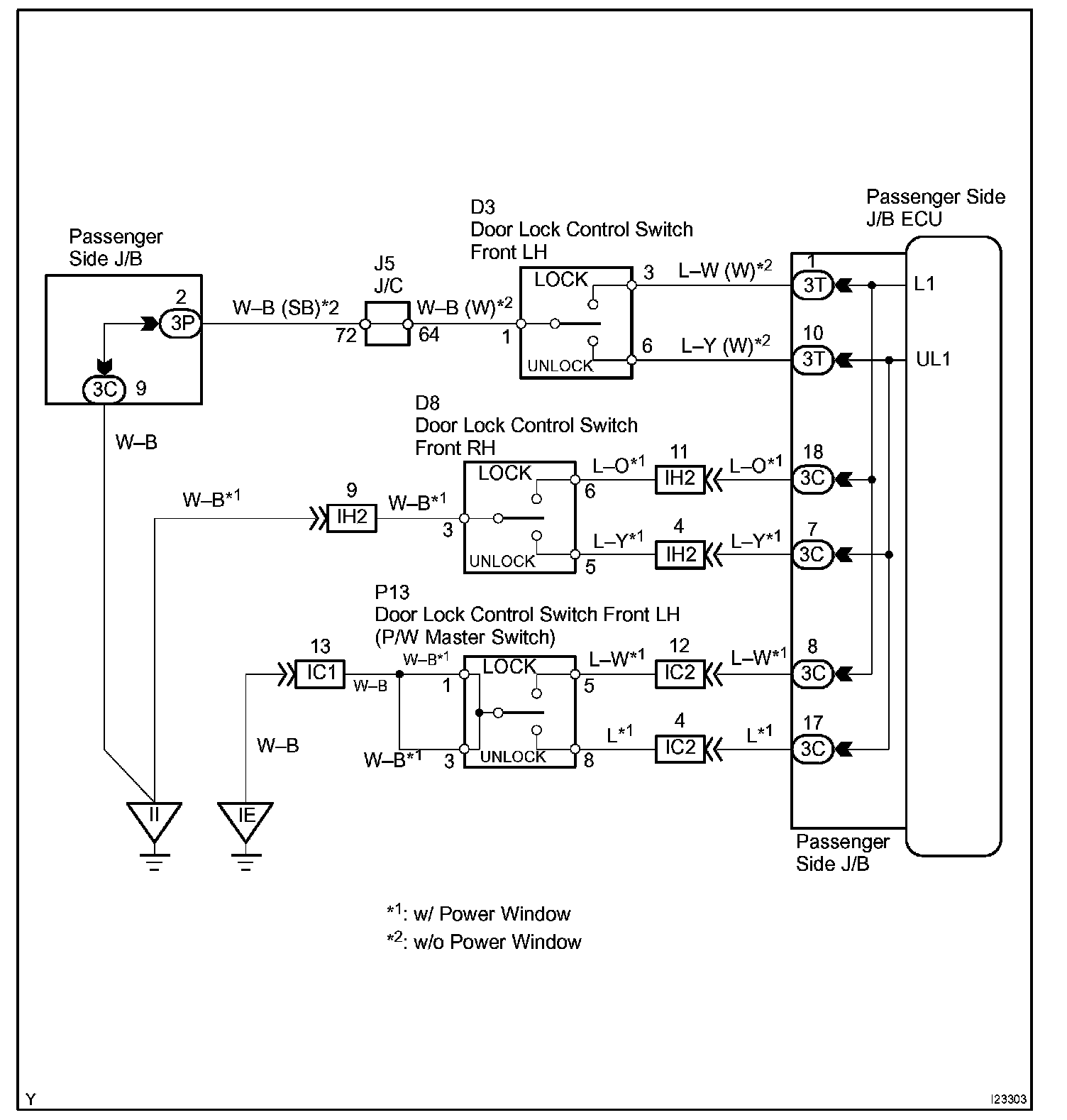

Wiring Diagram:

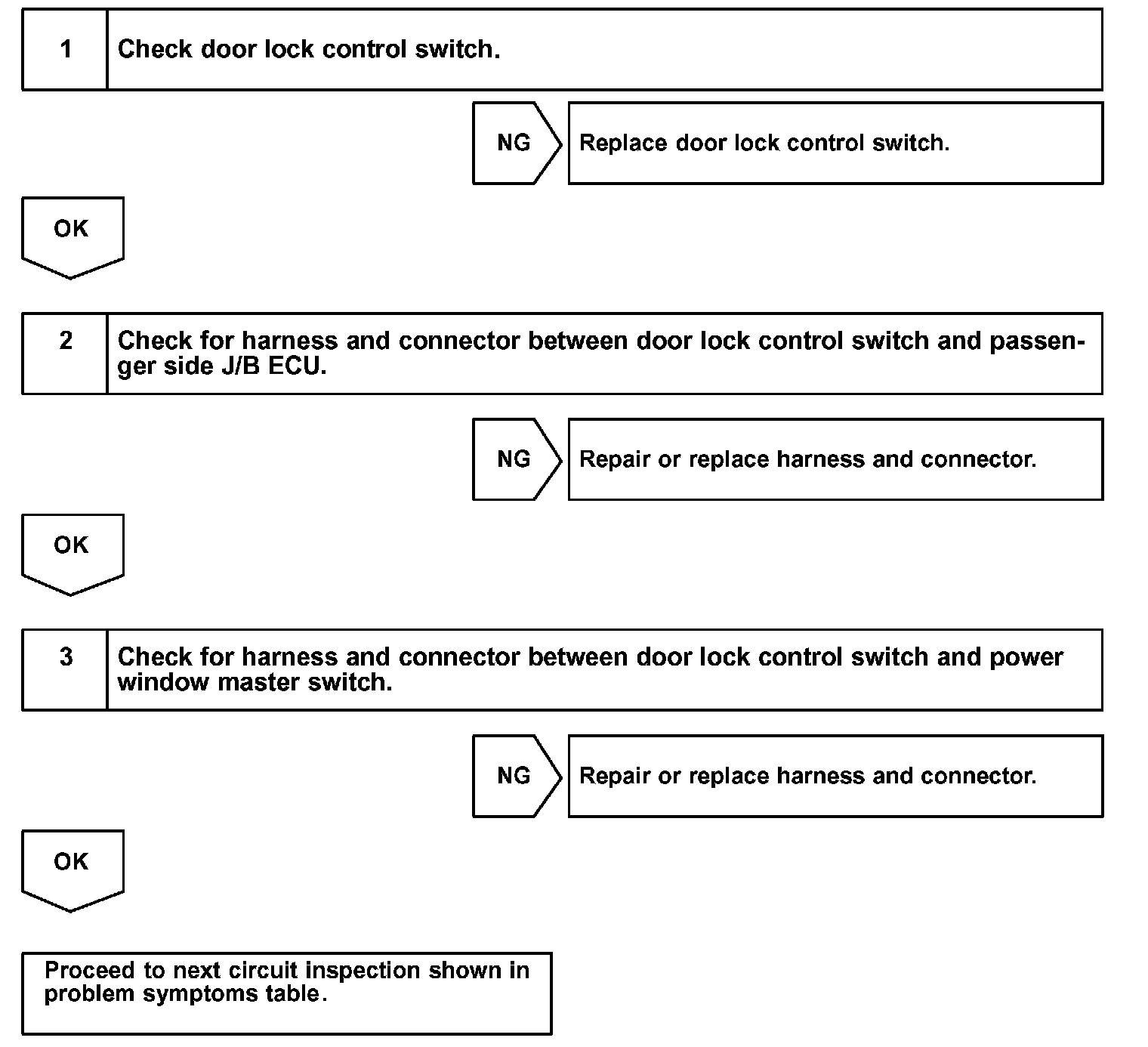

Step 1 - 3:
INSPECTION PROCEDURE
