Key Unlock Warning Switch Circuit
Key Unlock Warning Switch CircuitCIRCUIT DESCRIPTION
The key unlock warning switch turns ON when the ignition key is inserted into the key cylinder and turns OFF when the ignition key is removed.
The passenger side J/B ECU operates the key confinement prevention function while the key unlock warning switch is ON.

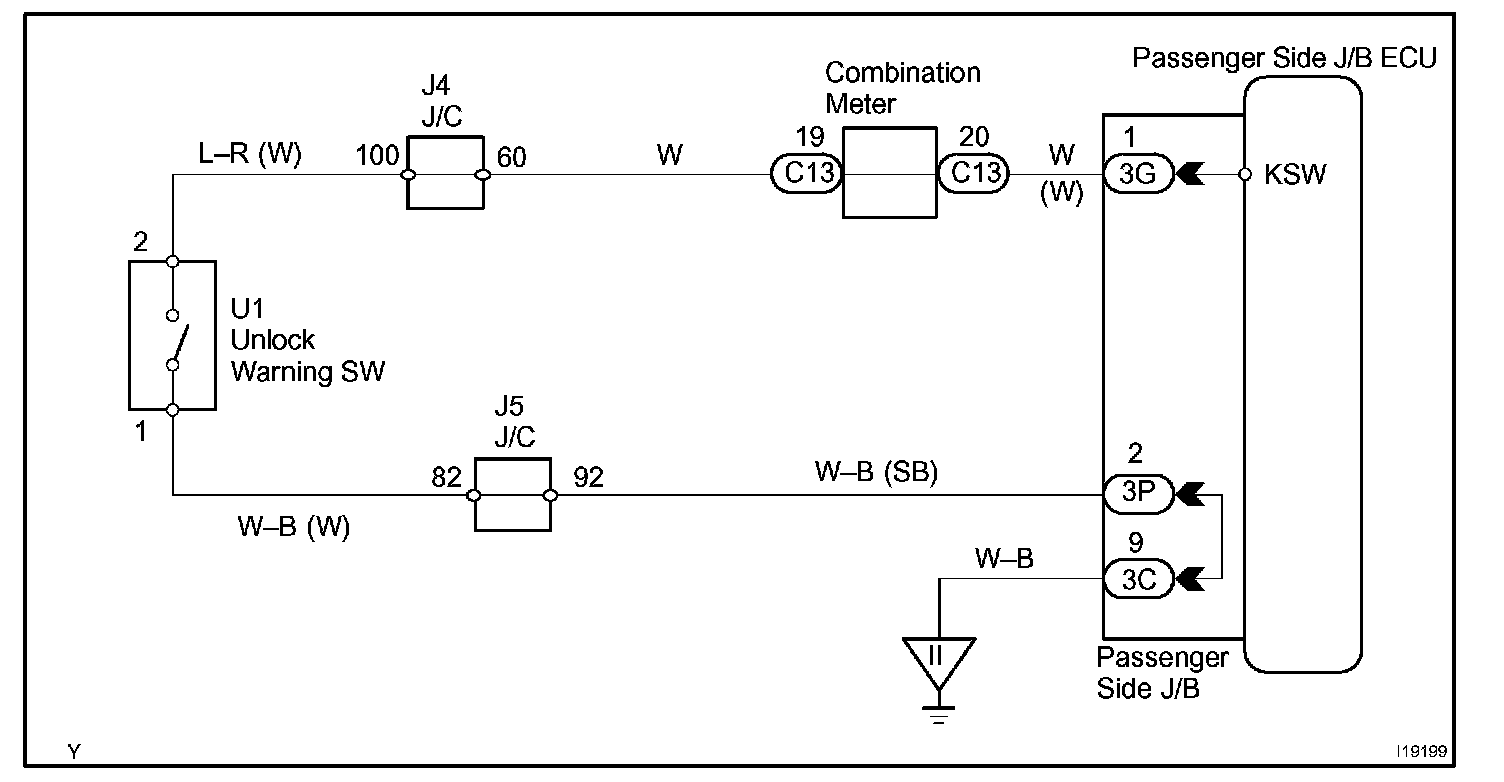

Wiring Diagram:

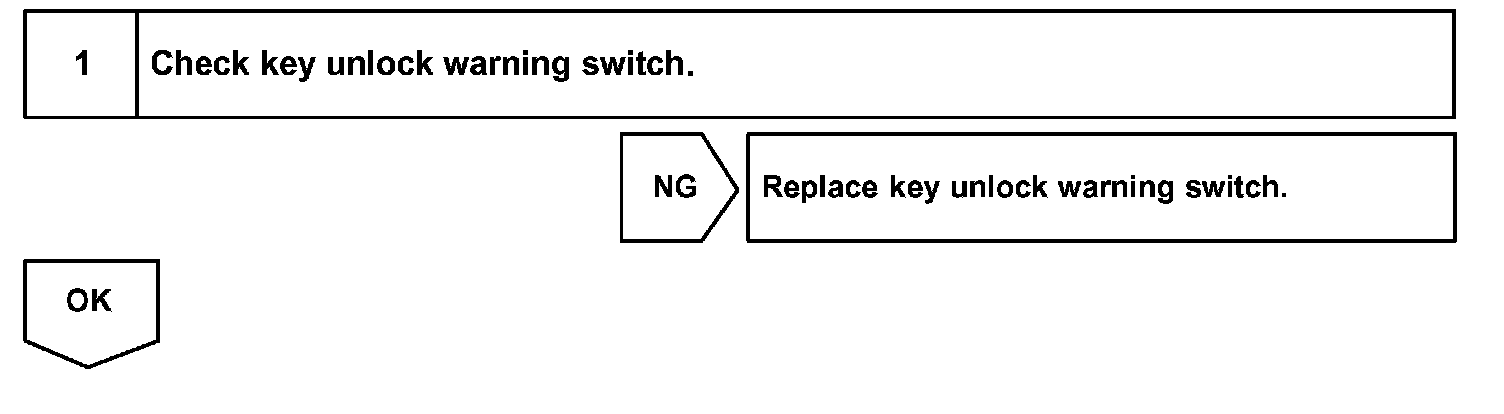

Step 1:

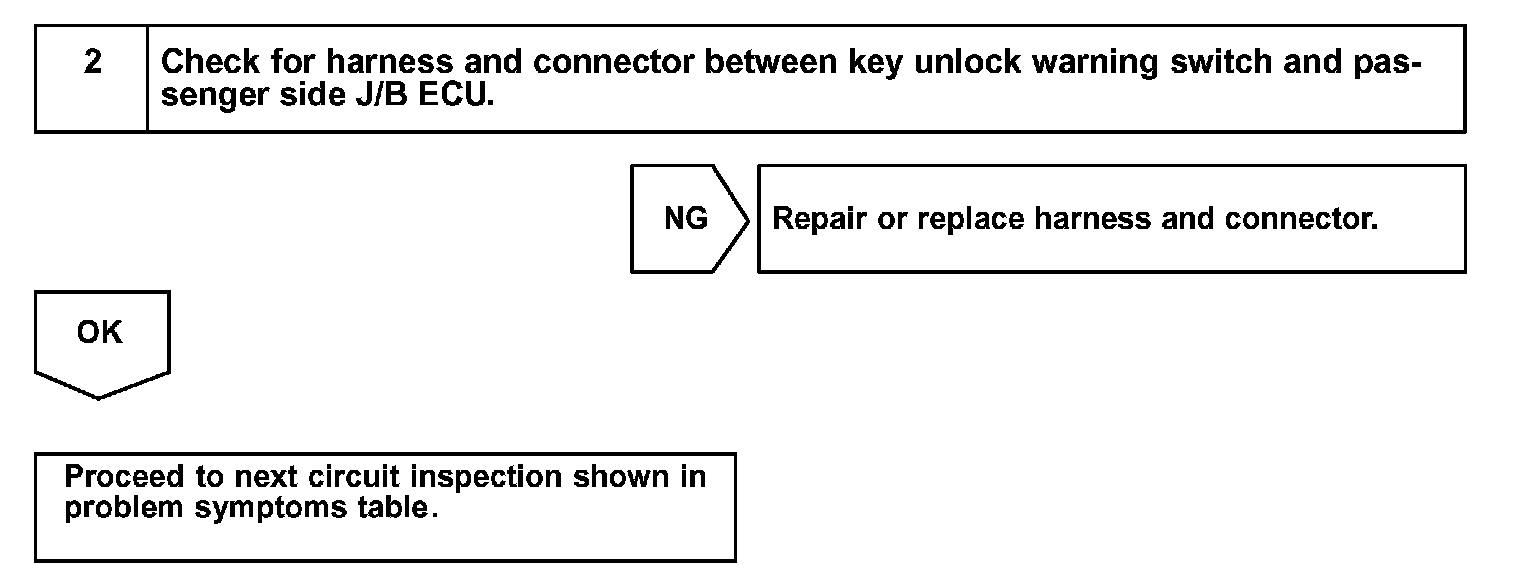

Step 2:
INSPECTION PROCEDURE
