Electronic Brake Control Module: Locations

Engine Compartment:



A/C - Ho:



Ig - Op:

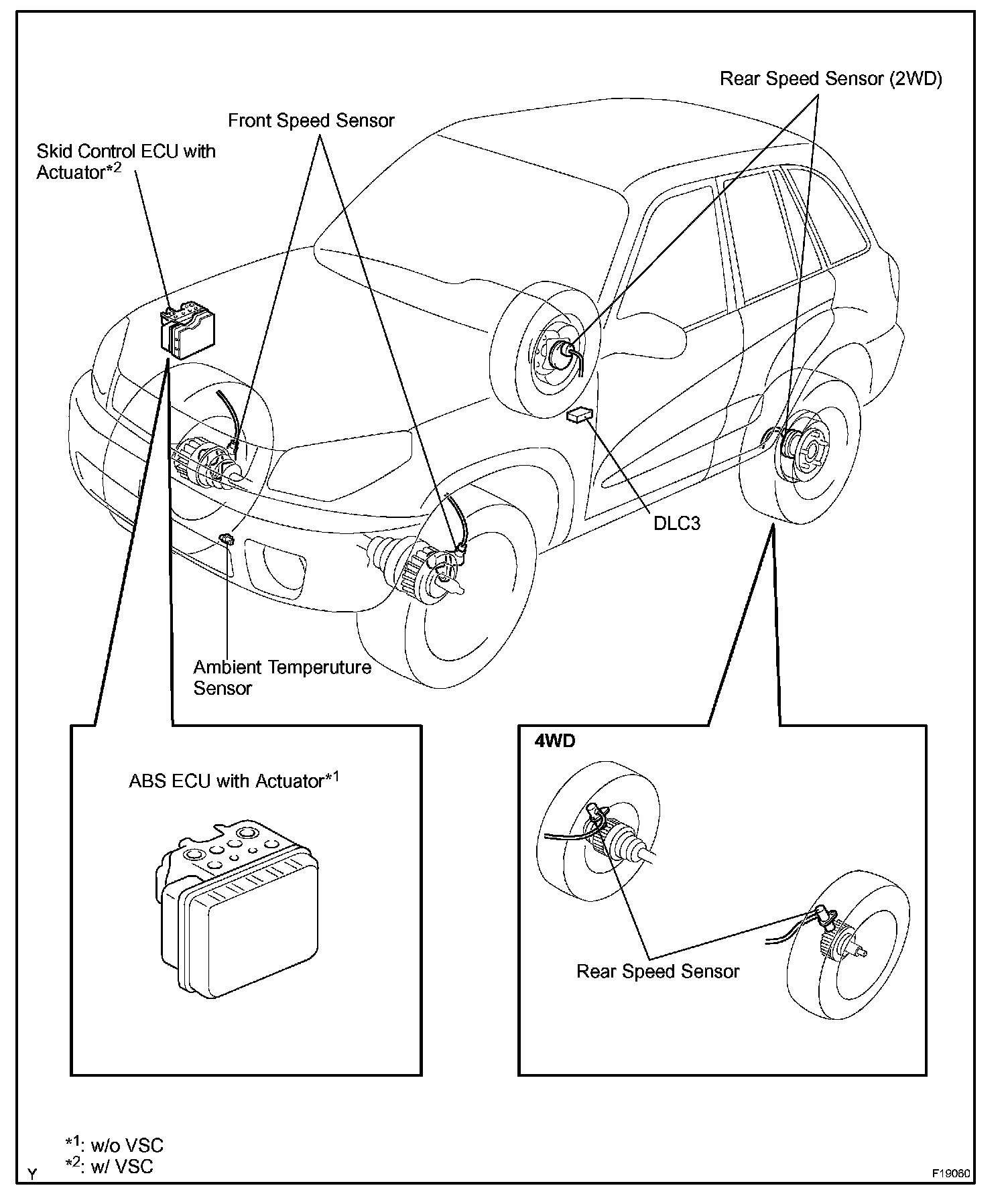

Tire Pressure Warning System Part 1:

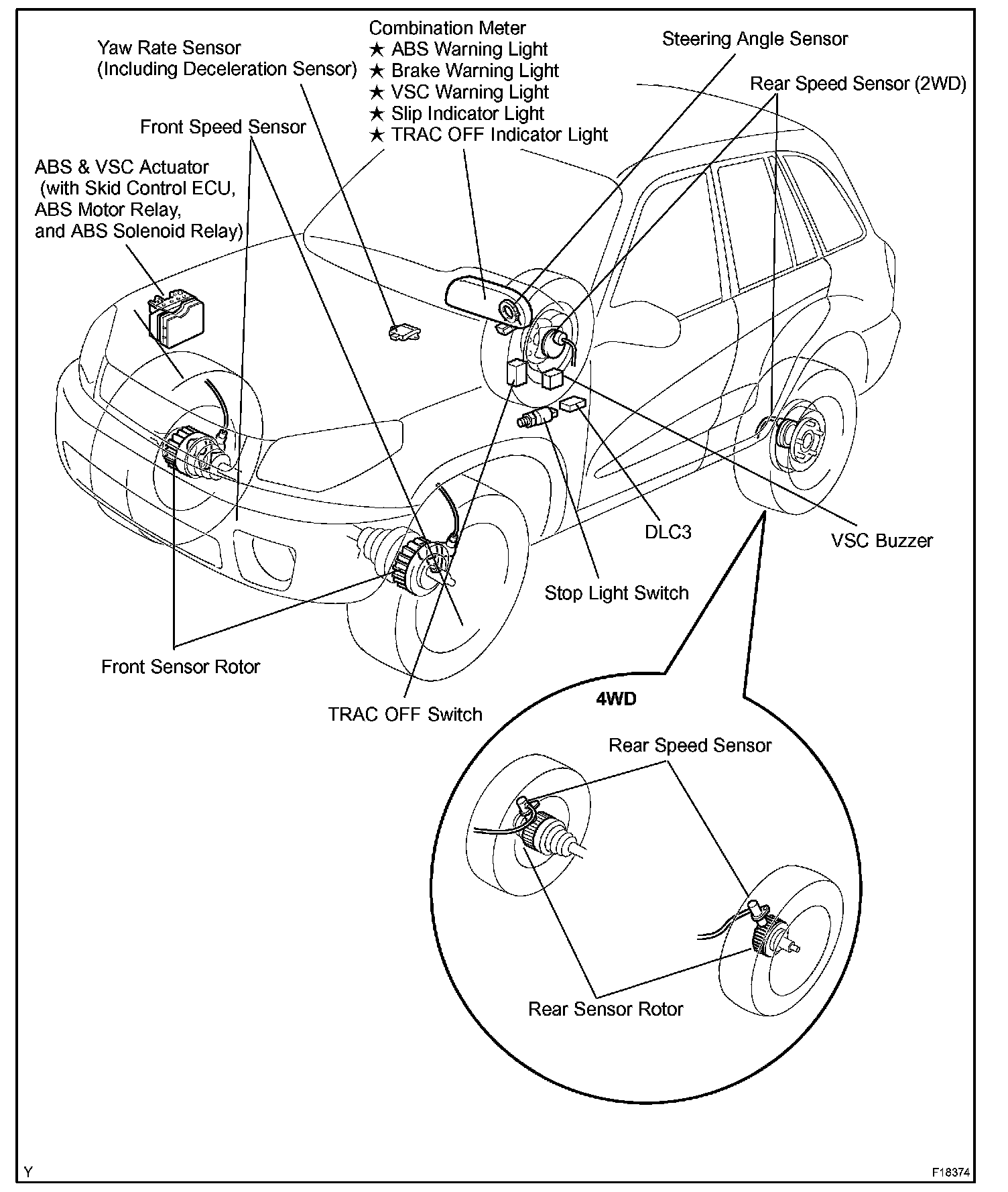

ABS With EBD & BA & TRAC & VSC System:
