System Diagram

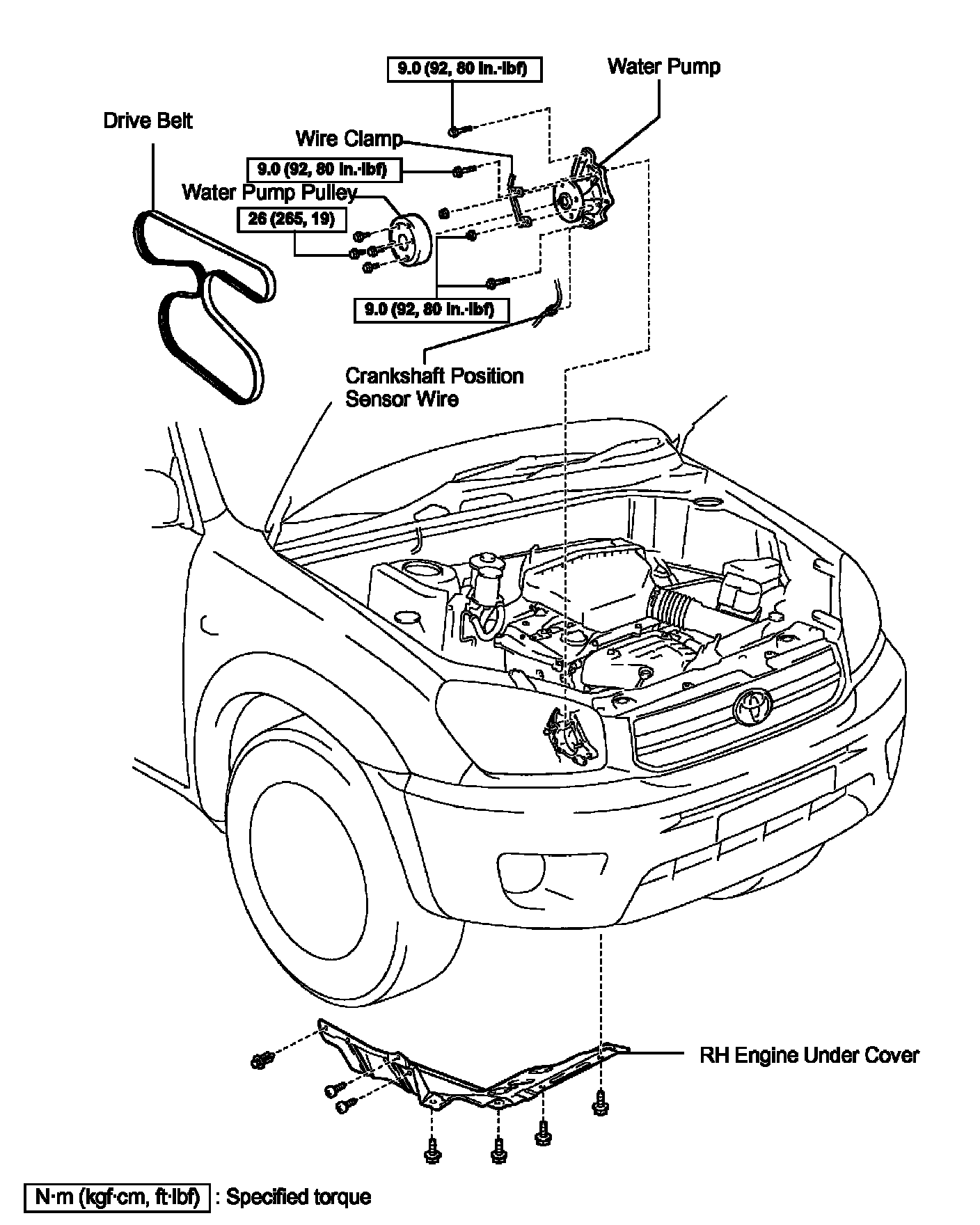

Water Pump:

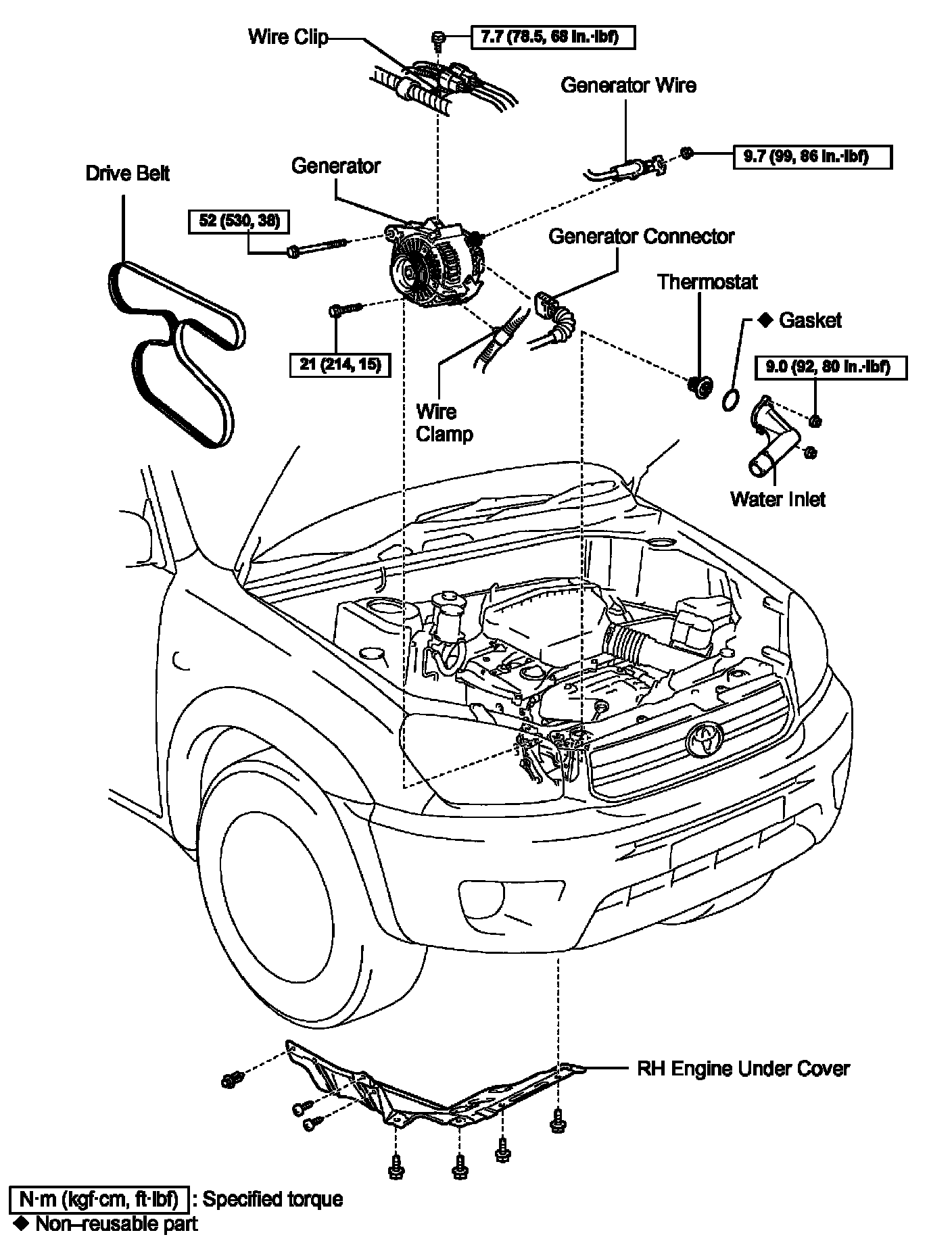

Thermostat:







Radiator:




Radiator:

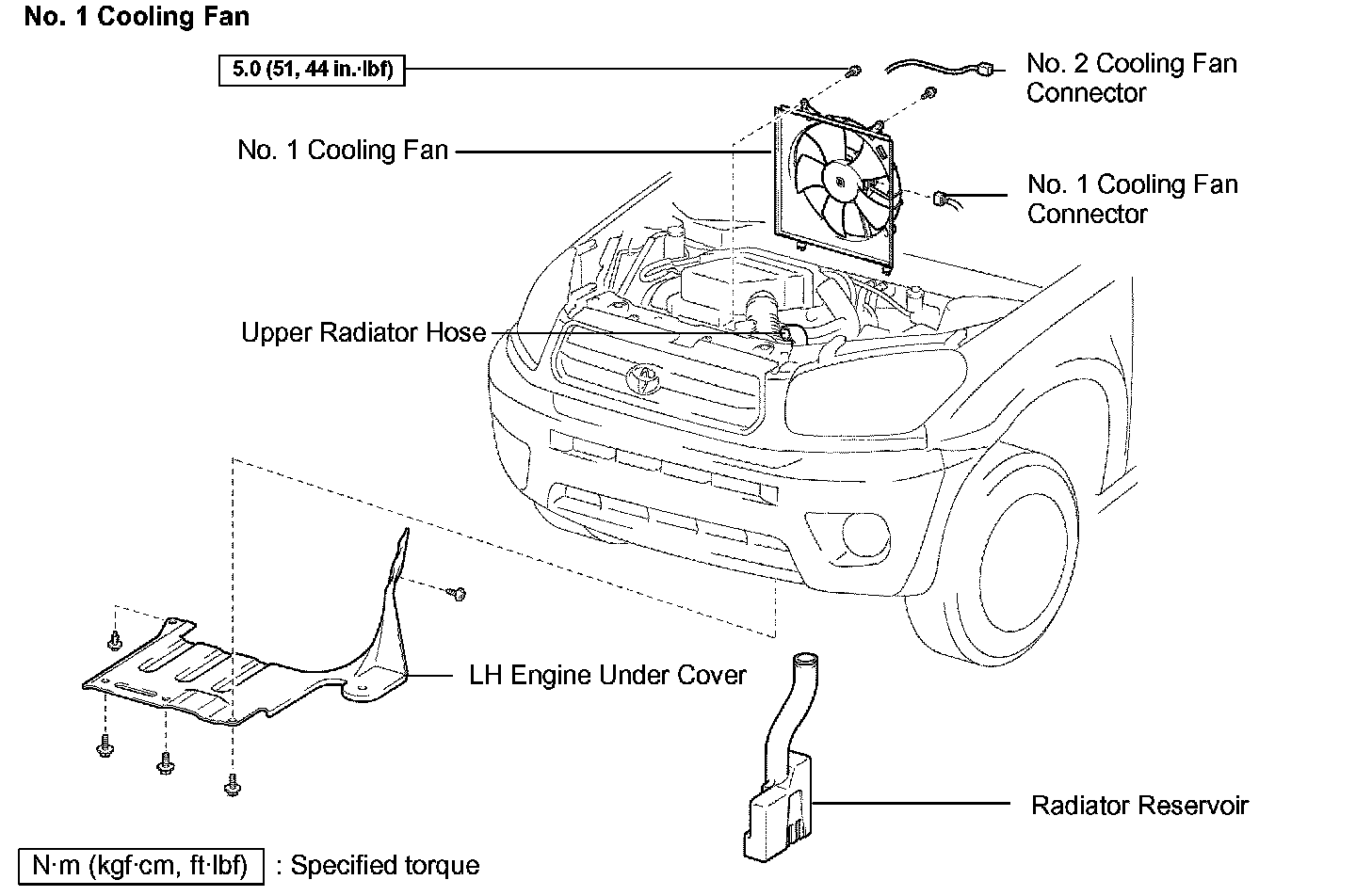

#1 Cooling Fan:

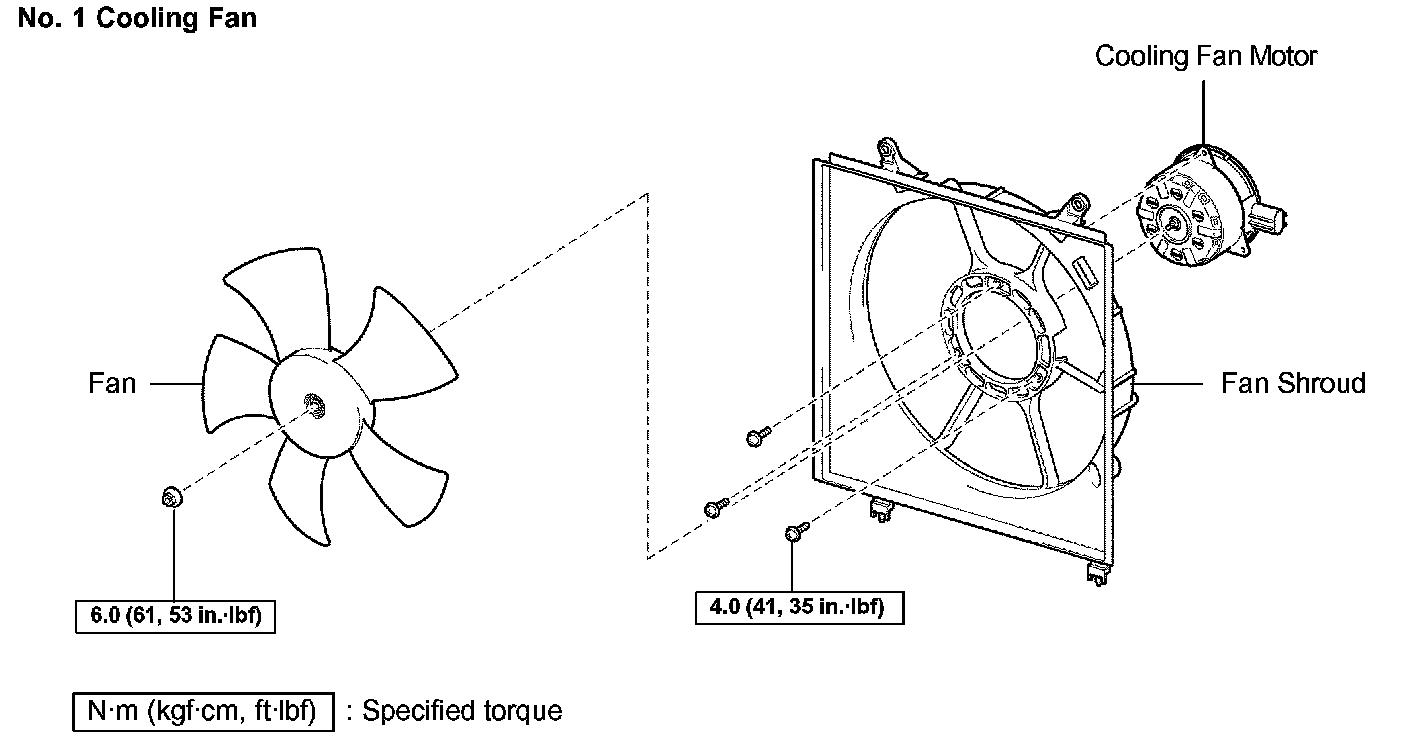

#1 Cooling Fan:

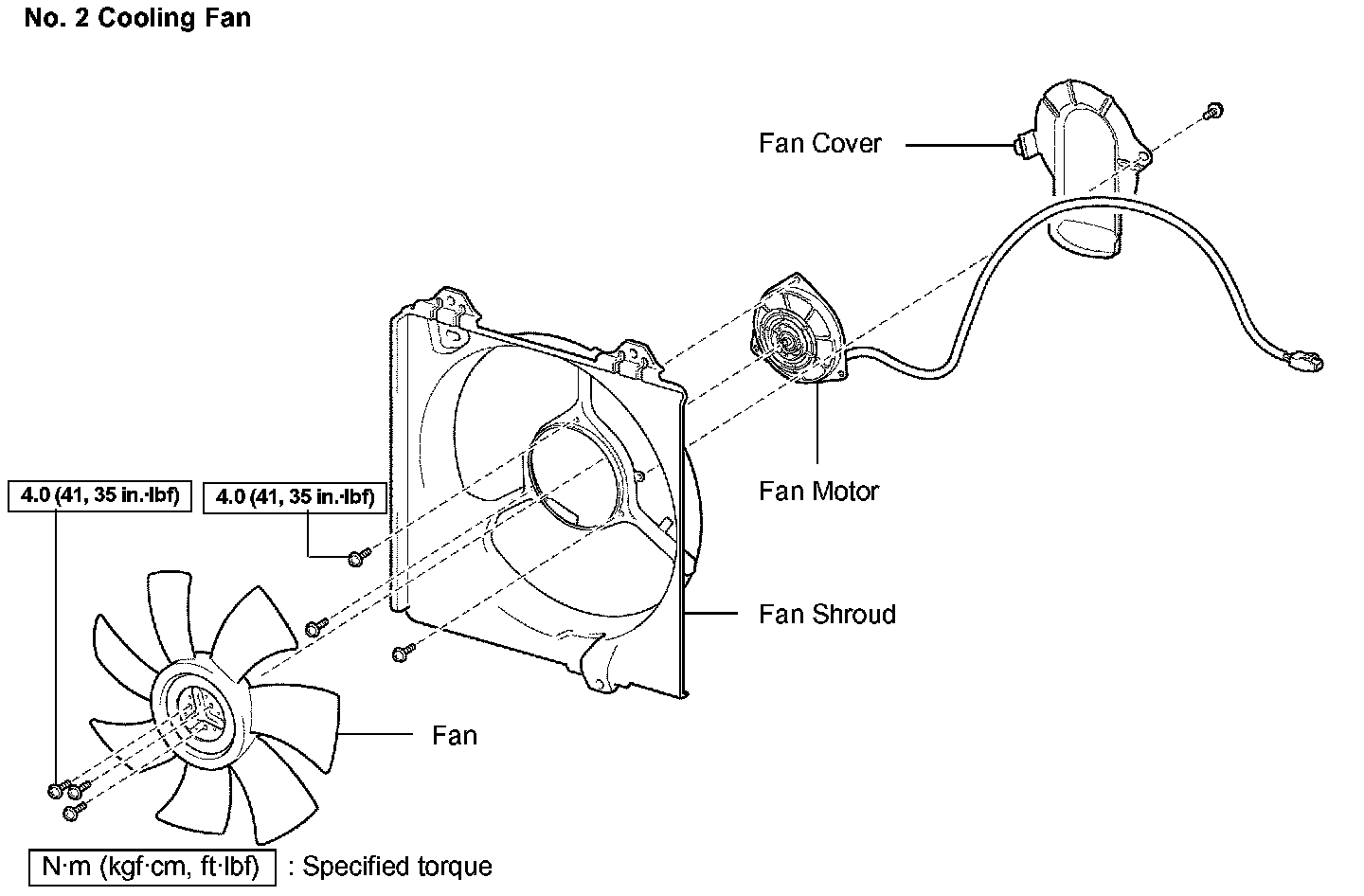

#2 Cooling Fan:




#2 Cooling Fan:
