Engine Oil: Testing and Inspection
OIL AND FILTERINSPECTION
GRADE: API grade SL Energy-Conserving or ILSAC multigrade engine oil (Use Toyota approved "Toyota Genuine Motor Oil" or equivalent):
1. CHECK ENGINE OIL QUALITY
Check the oil for deterioration, entry of water, discoloring or thinning.
If the quality is visibly poor, replace the oil.

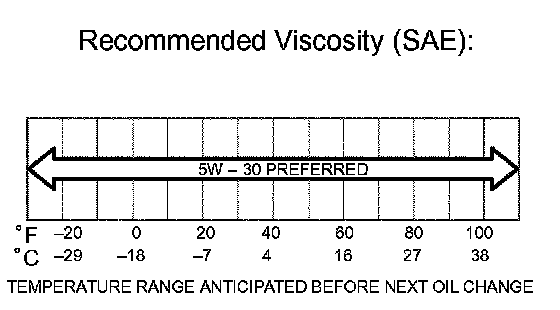

Oil grade: API grade SL, Energy-Conserving or ILSAC multigrade engine oil. SAE 5W-30 is the best choice for your vehicle, for good fuel economy, and good starting in cold weather.
2. CHECK ENGINE OIL LEVEL
After warming up the engine and then 5 minutes after the engine stop, oil level should be between the upper and lower marks on the dipstick.
If low, check for leakage and add oil up to the upper dot mark.
NOTICE: Do not fill with engine oil above the upper dot mark.
3. REMOVE OIL PRESSURE SWITCH AND INSTALL OIL PRESSURE GAUGE

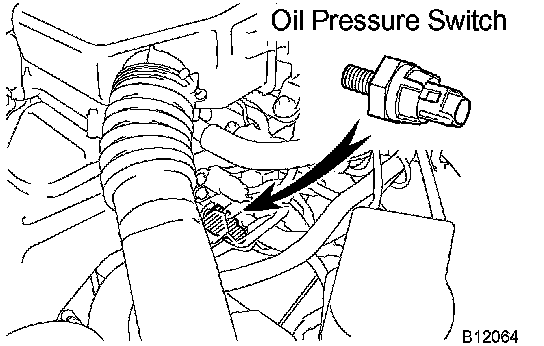

a. Remove the oil pressure switch.

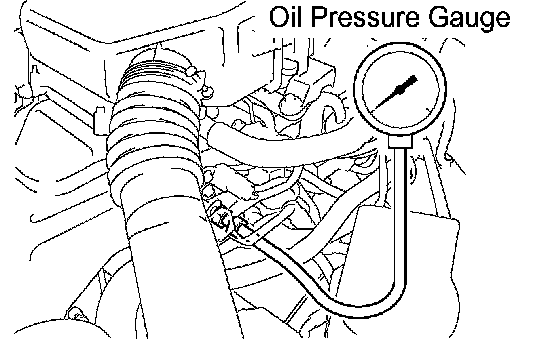

b. Install the oil pressure gauge.
4. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.
5. CHECK OIL PRESSURE
OIL PRESSURE @ Normal Operating Temperature:
6. REMOVE OIL PRESSURE GAUGE AND REINSTALL OIL PRESSURE SWITCH
a. Remove the oil pressure gauge.

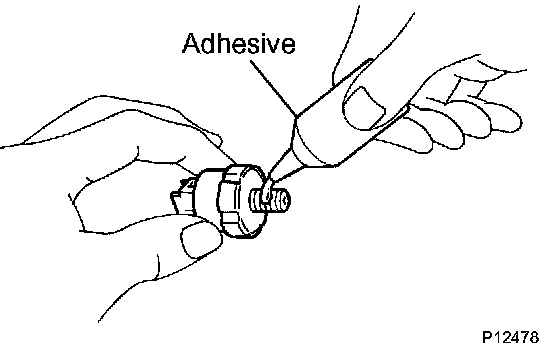

b. Apply adhesive to 2 or 3 threads of the oil pressure switch.
Adhesive: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
c. Install the oil pressure switch.
Torque: 13 Nm (133 kgf-cm, 10 ft. lbs.)
7. START ENGINE AND CHECK FOR OIL LEAKS
