Connecting Rod, Engine
CONNECTING RODConnecting Rod:
Connecting Rod Cap Bolts
Install and alternately tighten the 2 connecting rod cap bolts in several passes.
Torque: 24.5 Nm (250 kgf-cm, 18 ft. lbs.)

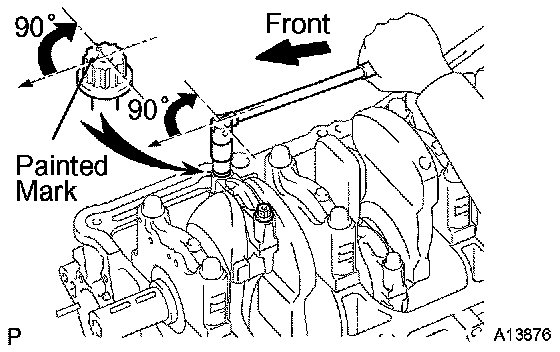

Retighten the cap bolts by 90°
Connecting Rod Cap Bolts
Install and alternately tighten the 2 connecting rod cap bolts in several passes.
Torque: 24.5 Nm (250 kgf-cm, 18 ft. lbs.)
Retighten the cap bolts by 90°
