Flywheel

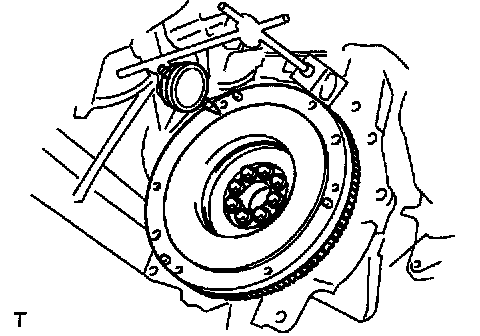

Flywheel Runout.
Maximum runout: 0.1 mm (0.004 inch)

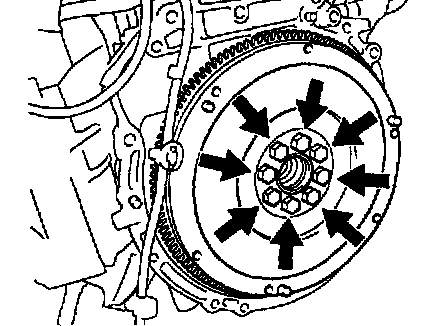

Install the 8 mounting bolts in several passes, in the sequence shown.
Torque: 130 Nm (1,325 kgf-cm, 96 ft. lbs.)
