Home >> Toyota >> 2005 >> RAV4 4WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications

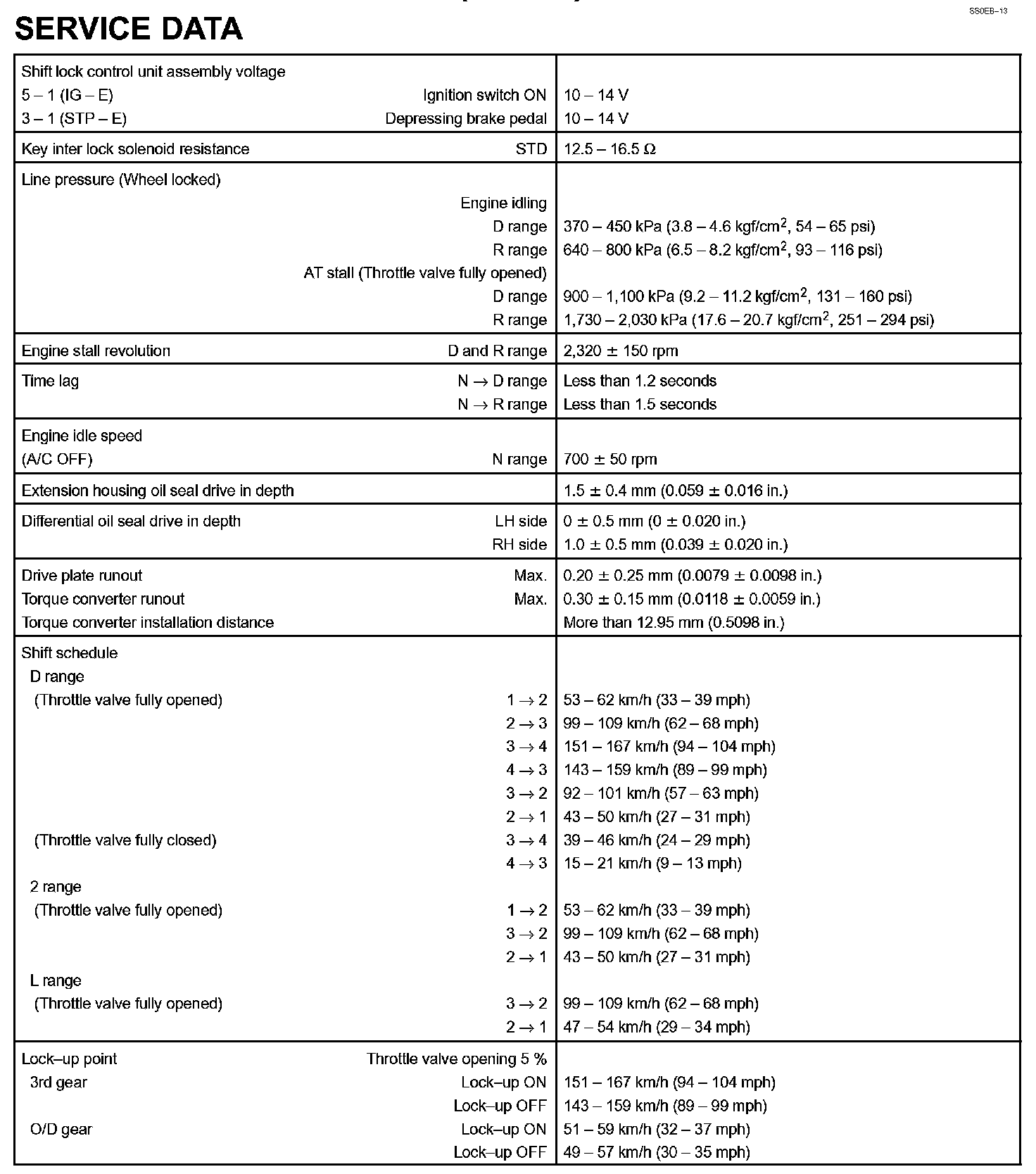

Automatic Transaxle (U140F) - Service Data:

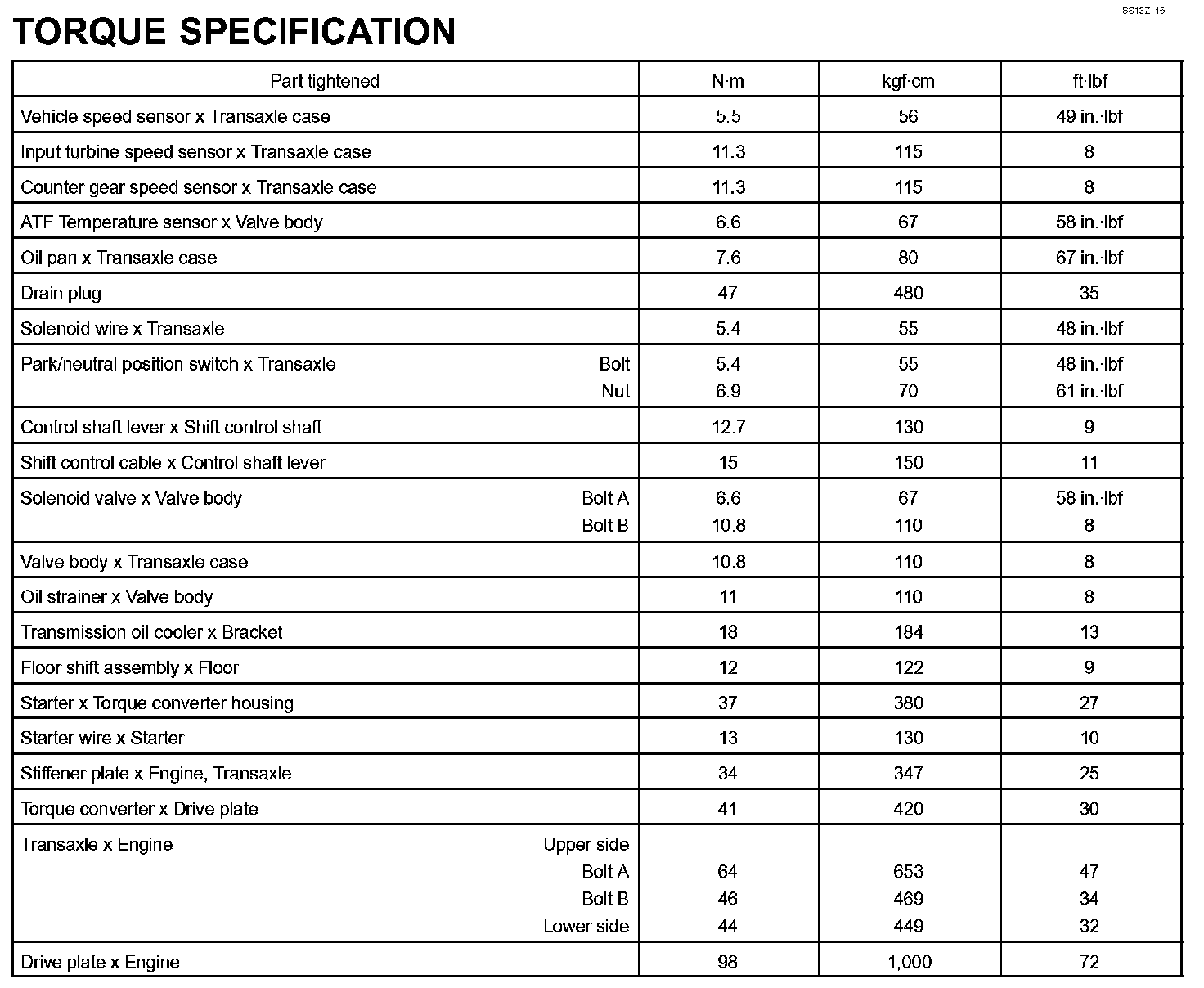

Automatic Transaxle (U140F) - Torque Specification:
