Body Control System
Body Control System

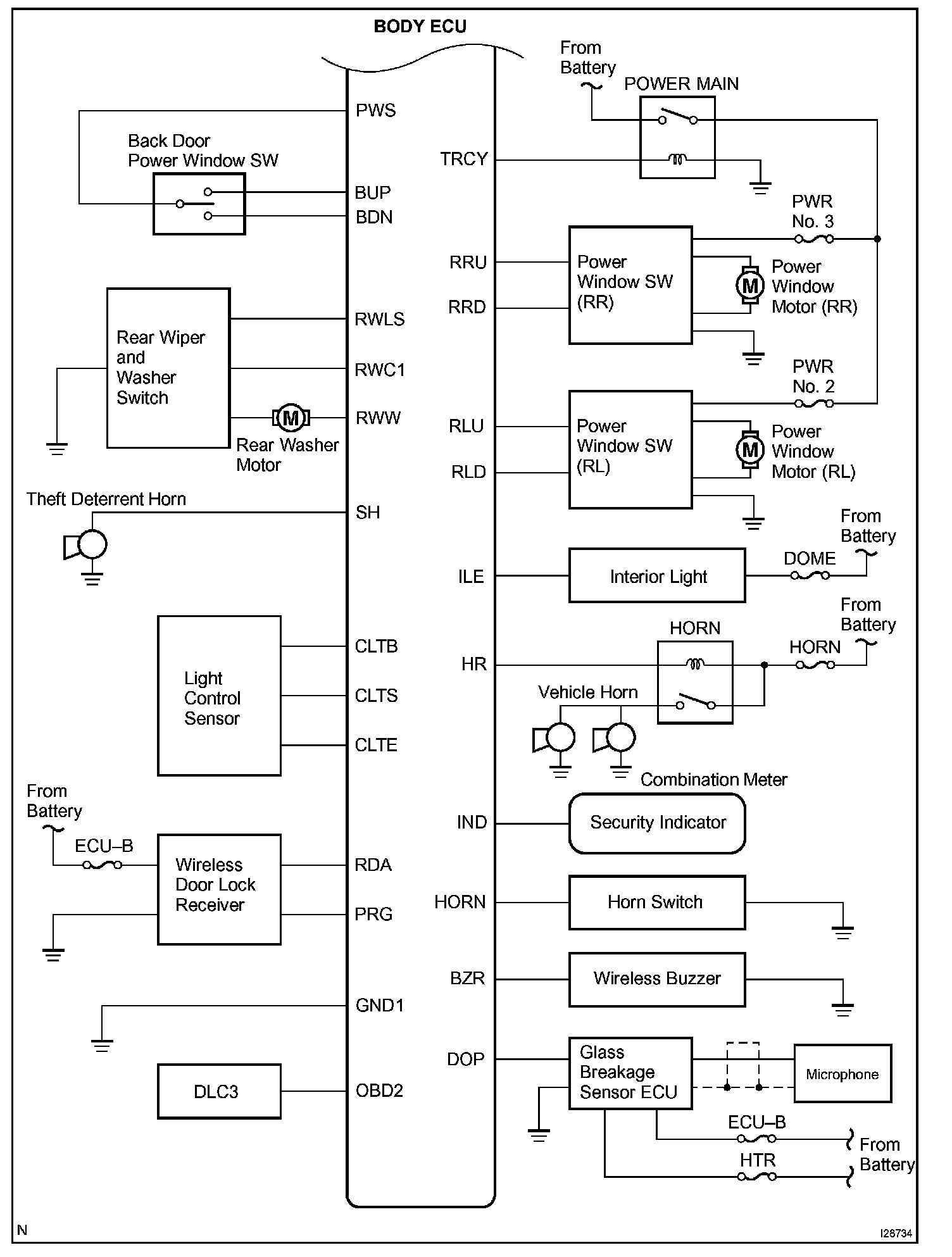

System Diagram Part 1:

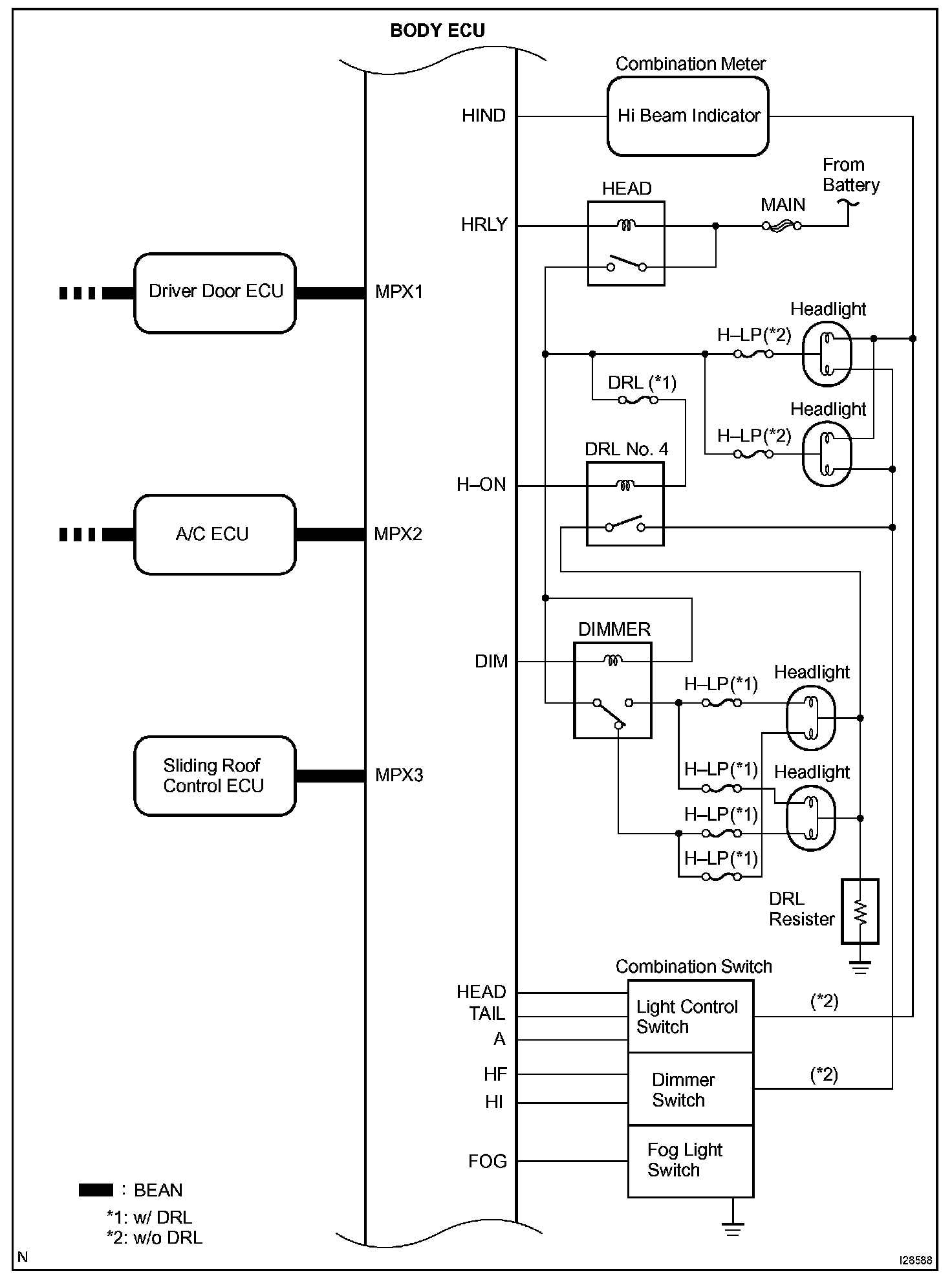

System Diagram Part 2:
System Diagram Part 3:
