Driving Position Memory Switch Circuit (W/ Driving Position Memory)

DRIVING POSITION MEMORY SWITCH CIRCUIT (W/ DRIVING POSITION MEMORY)

CIRCUIT DESCRIPTION

The position control ECU & switch assy memorizes the driver seat position and the outer mirror positions.

It controls each motor when the driving position memory switch is operated.

The position signals of the driving position memory switch received by the body ECU are sent to the position control ECU and switch assy via BEAN.

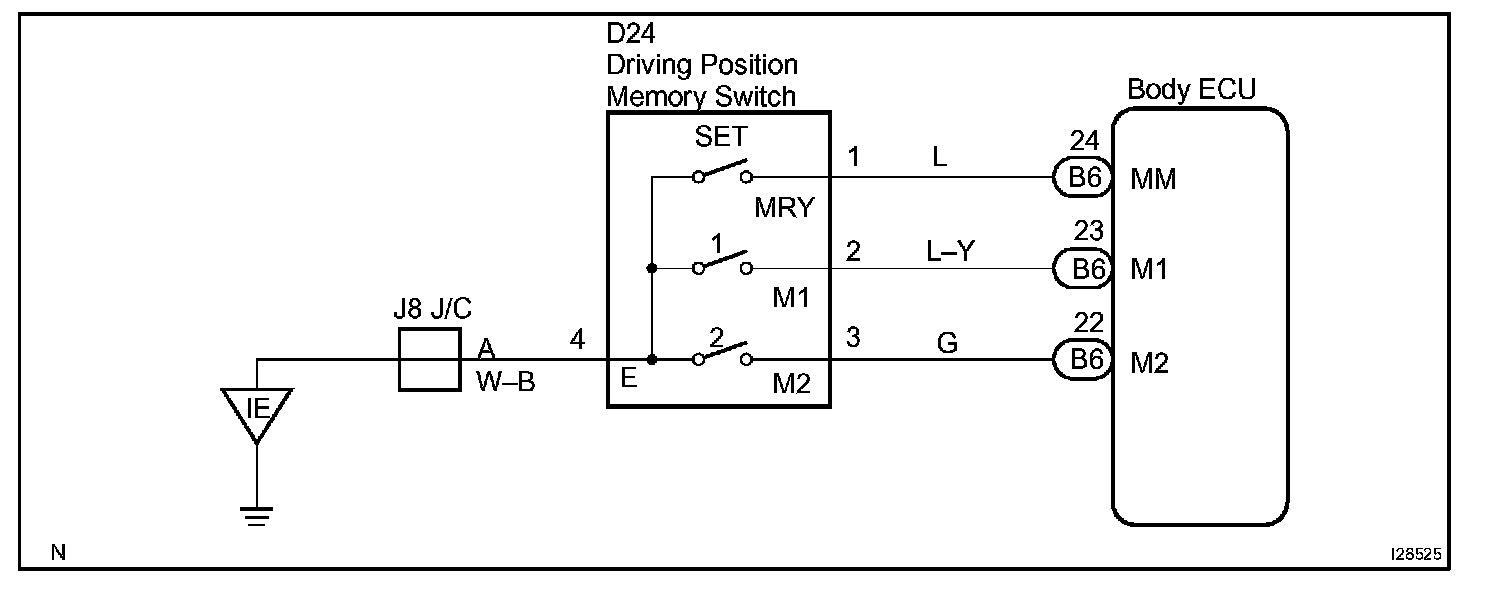

Wiring Diagram:

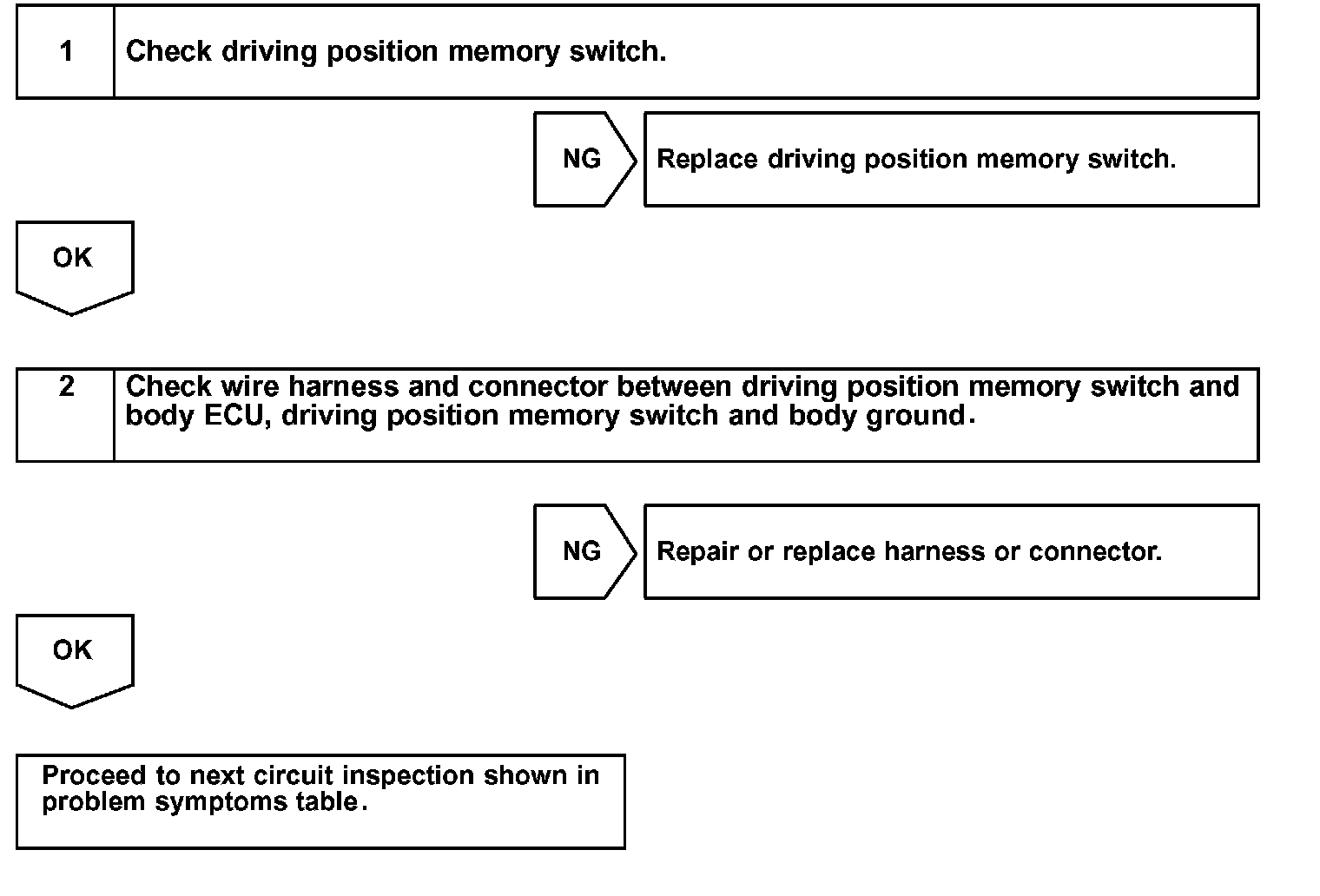

Step 1 - 2:

INSPECTION PROCEDURE
