Key Unlock Warning Switch Circuit

KEY UNLOCK WARNING SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The key unlock warning switch turns on when the ignition key is inserted into the key cylinder and turns off when the key is removed.

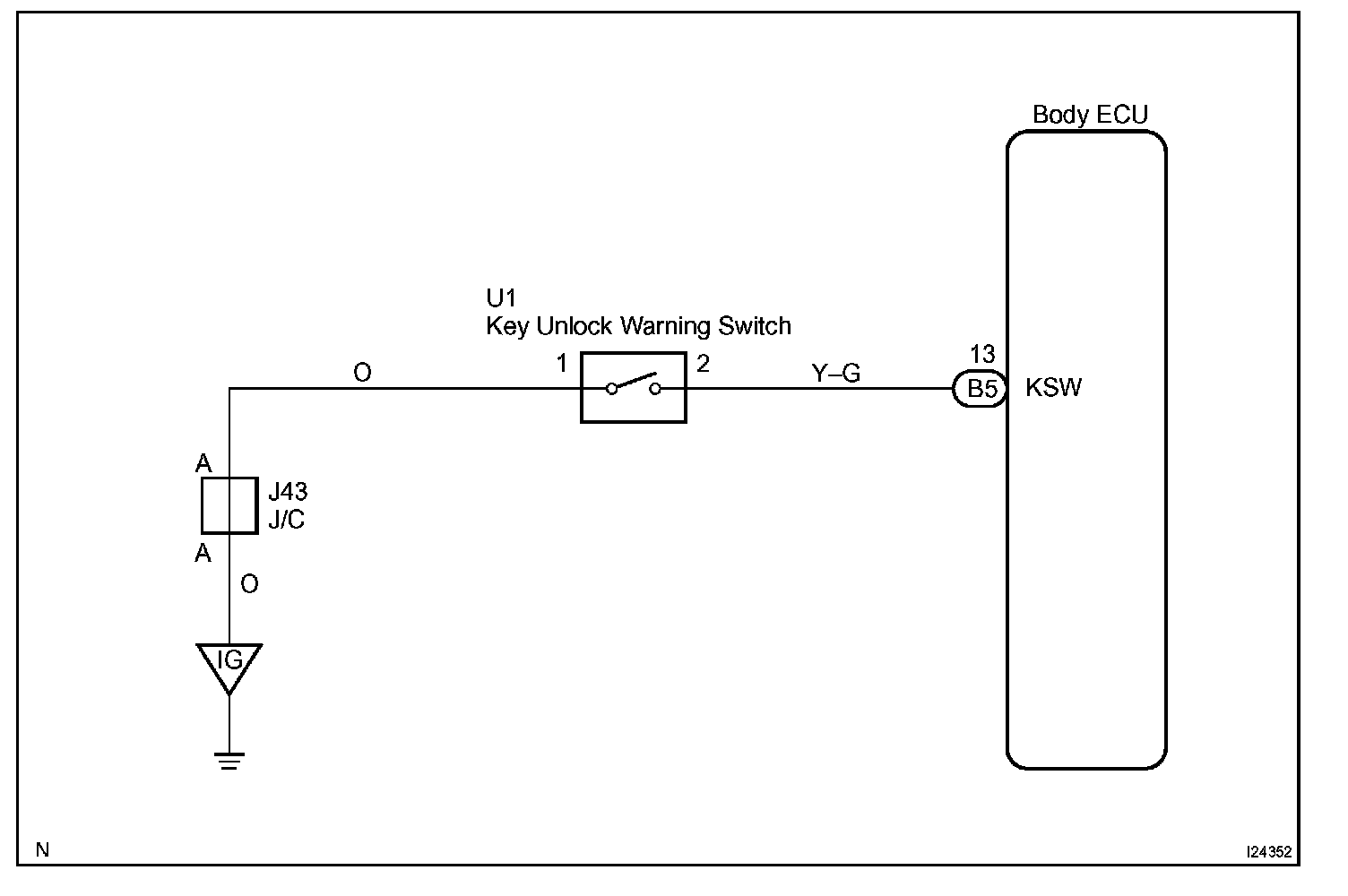

Wiring Diagram:

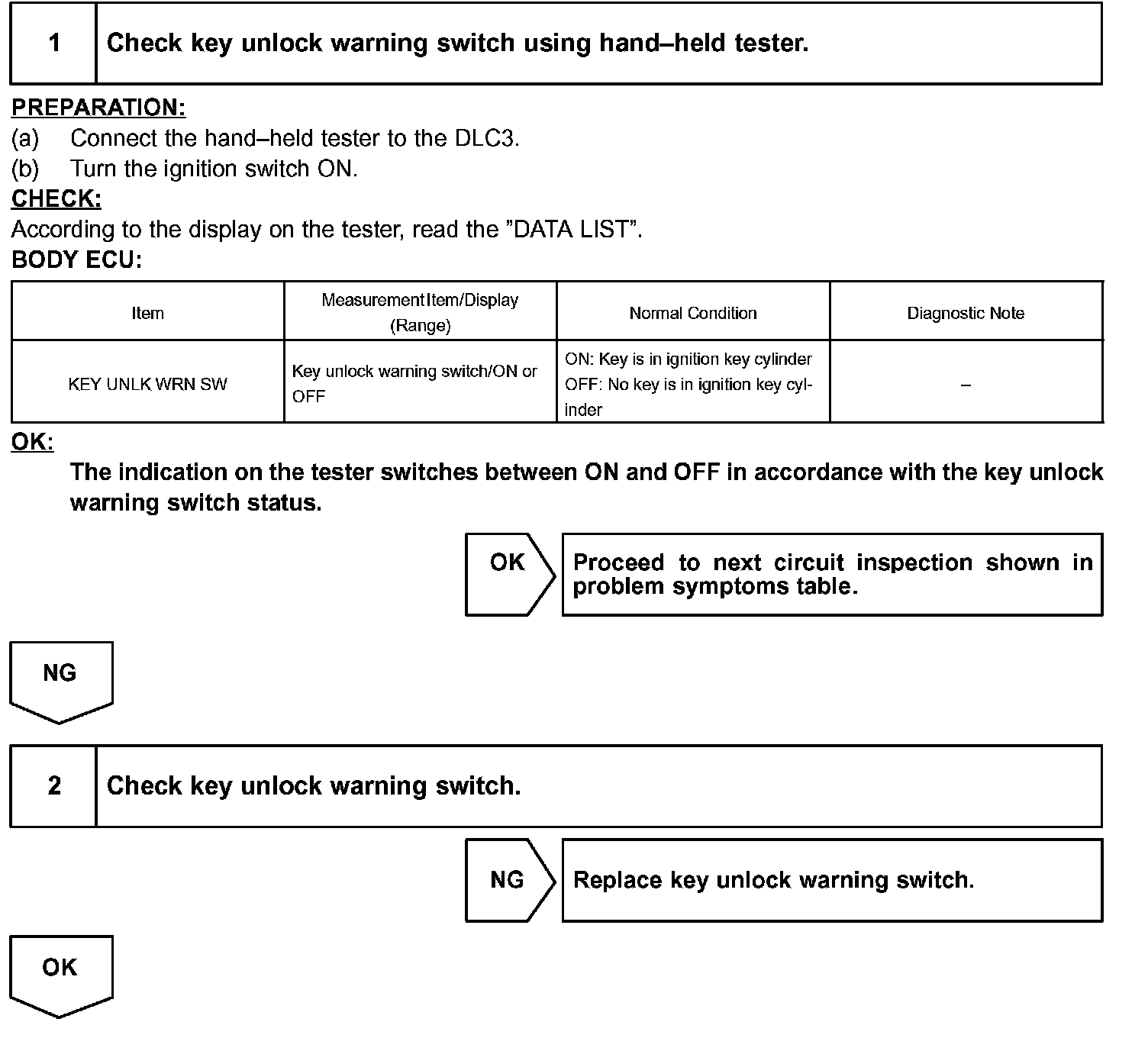

Step 1 - 2:

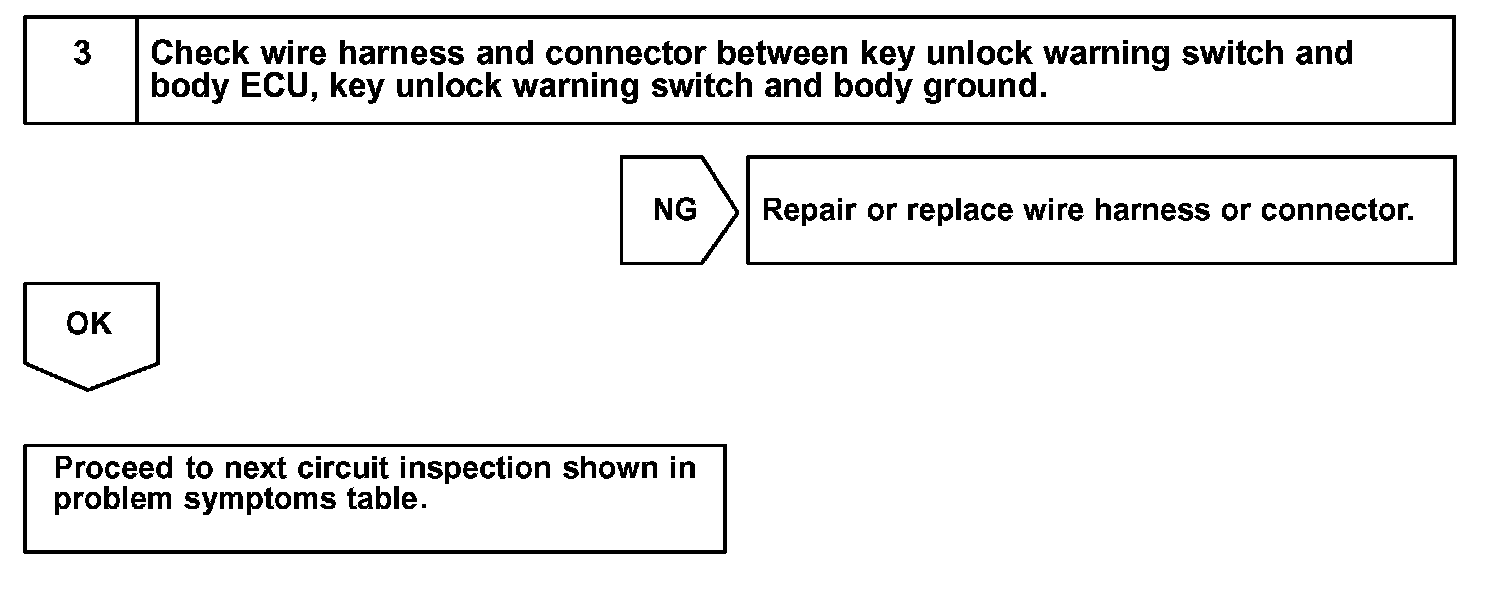

Step 3:

INSPECTION PROCEDURE

HINT: When using the hand-held tester, start the inspection from step 1 and when not using the hand-held tester, start from step 2.
