Jam Protection Pulse Sensor Circuit

JAM PROTECTION PULSE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

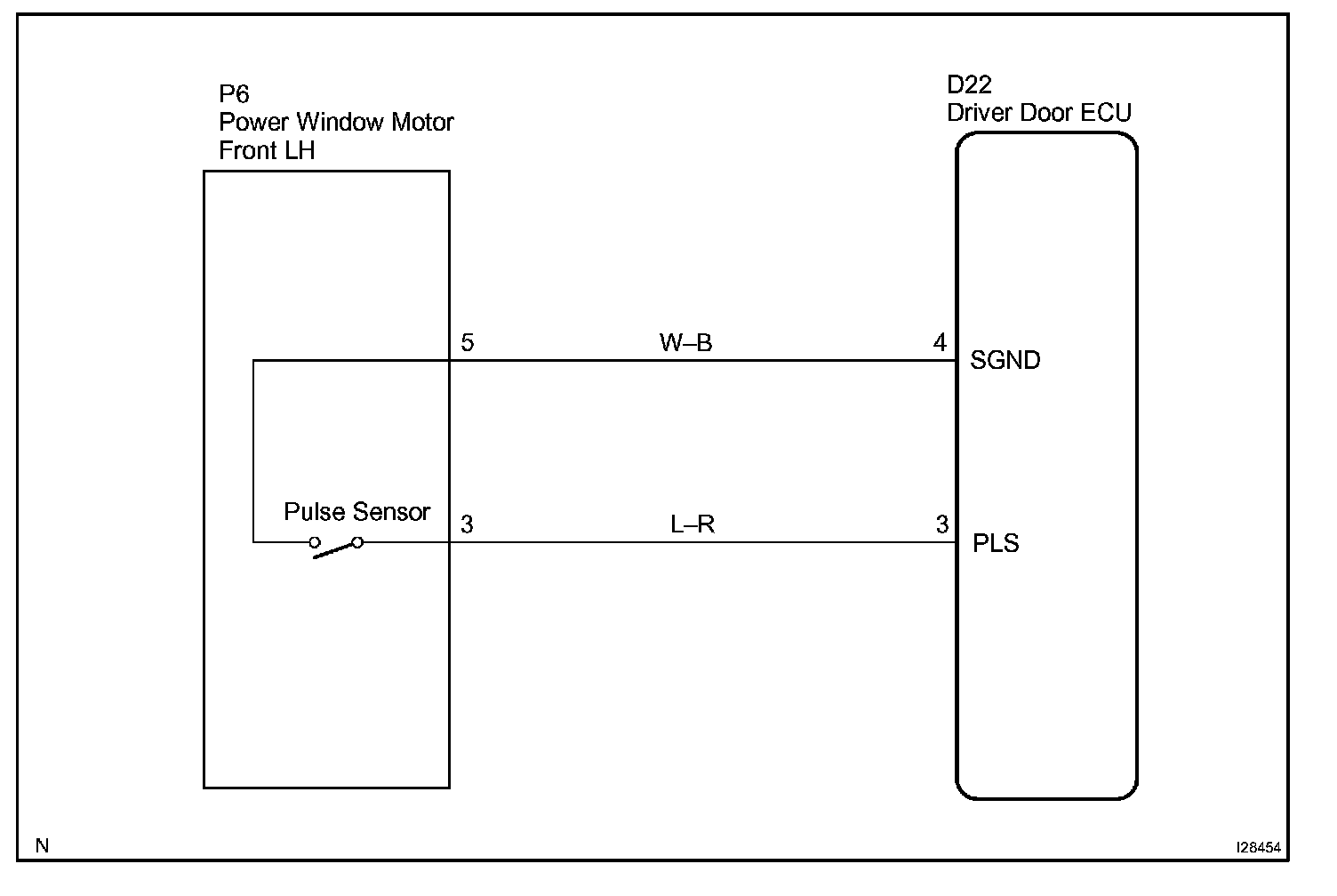

The jam protection pulse sensor, built in the power window motor, outputs a ON/OFF pulse when the motor rotates.
