Remote Control Mirror Position Sensor LH Circuit (W/ Driving Position Memory)

REMOTE CONTROL MIRROR POSITION SENSOR LH CIRCUIT (W/ DRIVING POSITION MEMORY)

CIRCUIT DESCRIPTION

SEQUOIA features a driving position memory function, and up to 2 driver positions can be memorized.

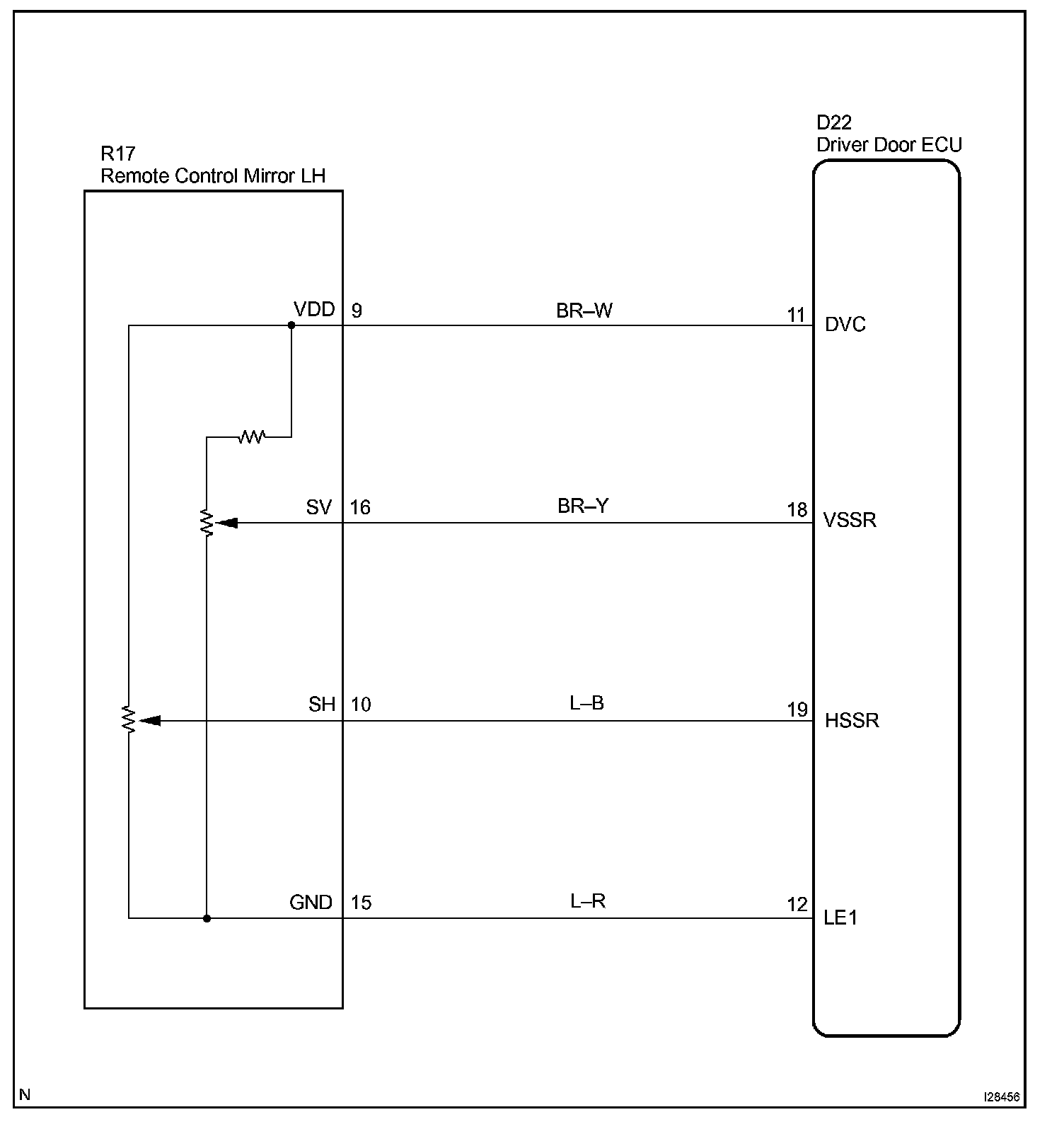

The driver door ECU operates 2 motors built into the remote control mirror. The motors move the mirror to the memorized positions based on information from the position sensor.
