Body Control System

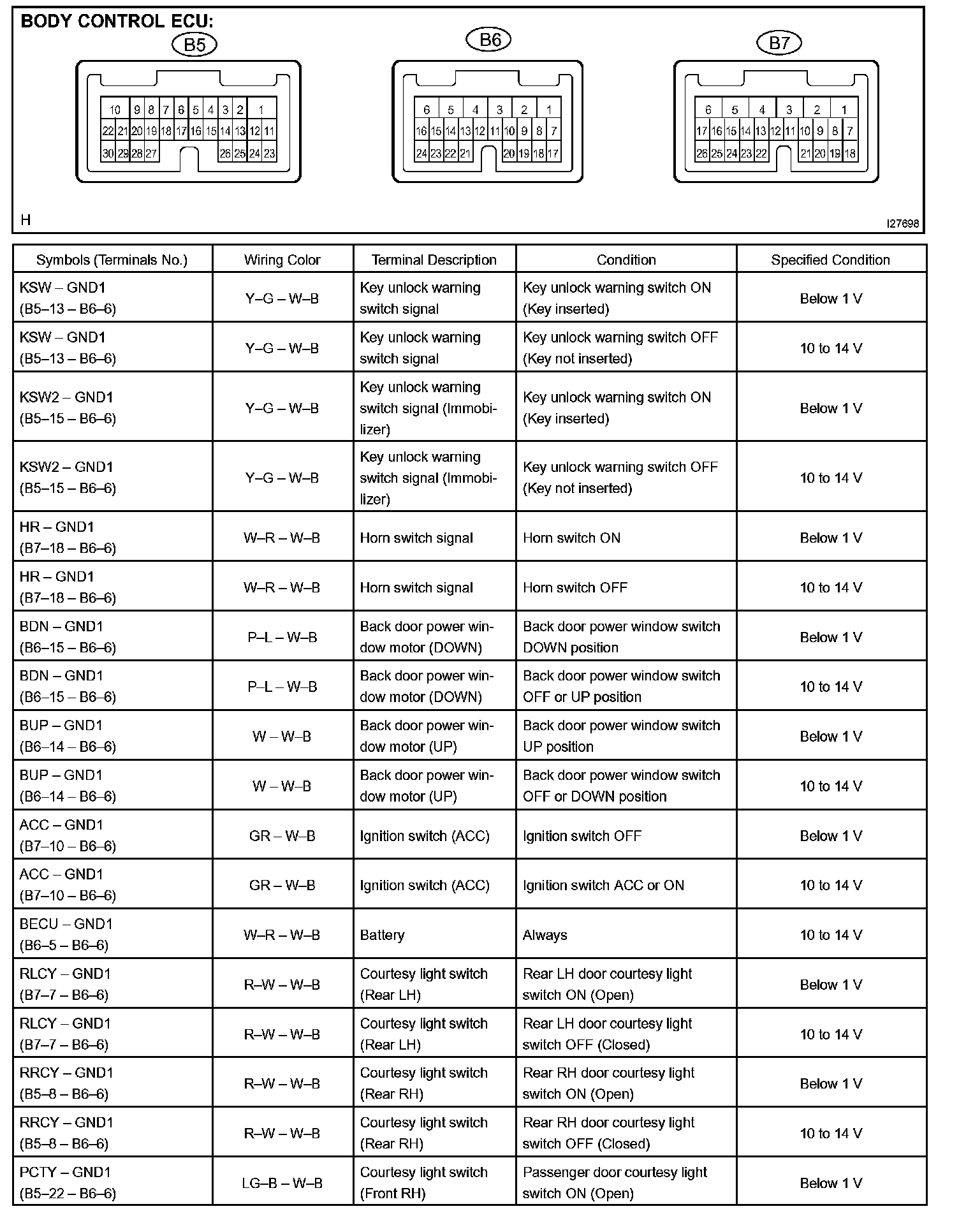

Terminals Of Control Module/Pinouts Part 1:

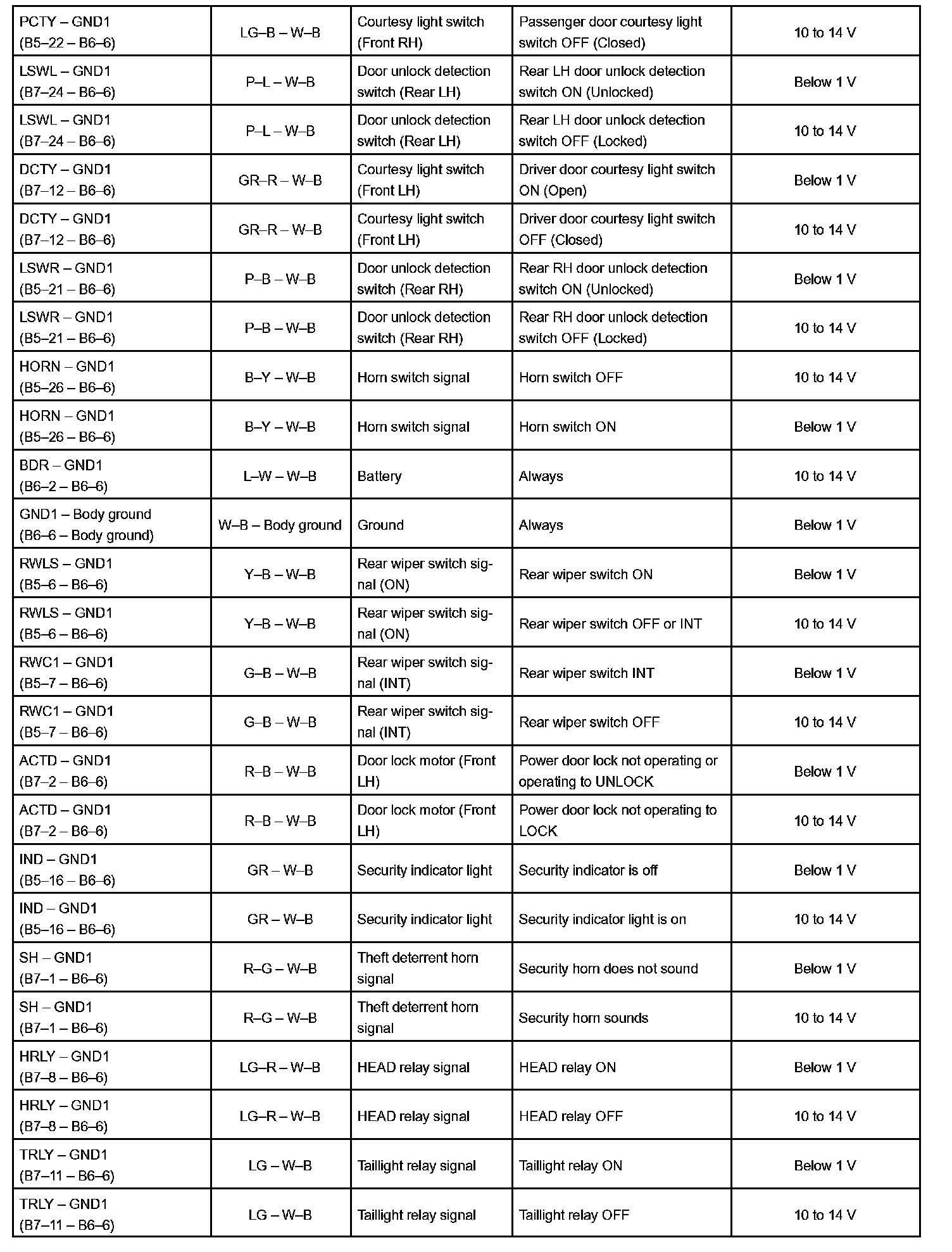

Terminals Of Control Module/Pinouts Part 2:

Terminals Of Control Module/Pinouts Part 3:

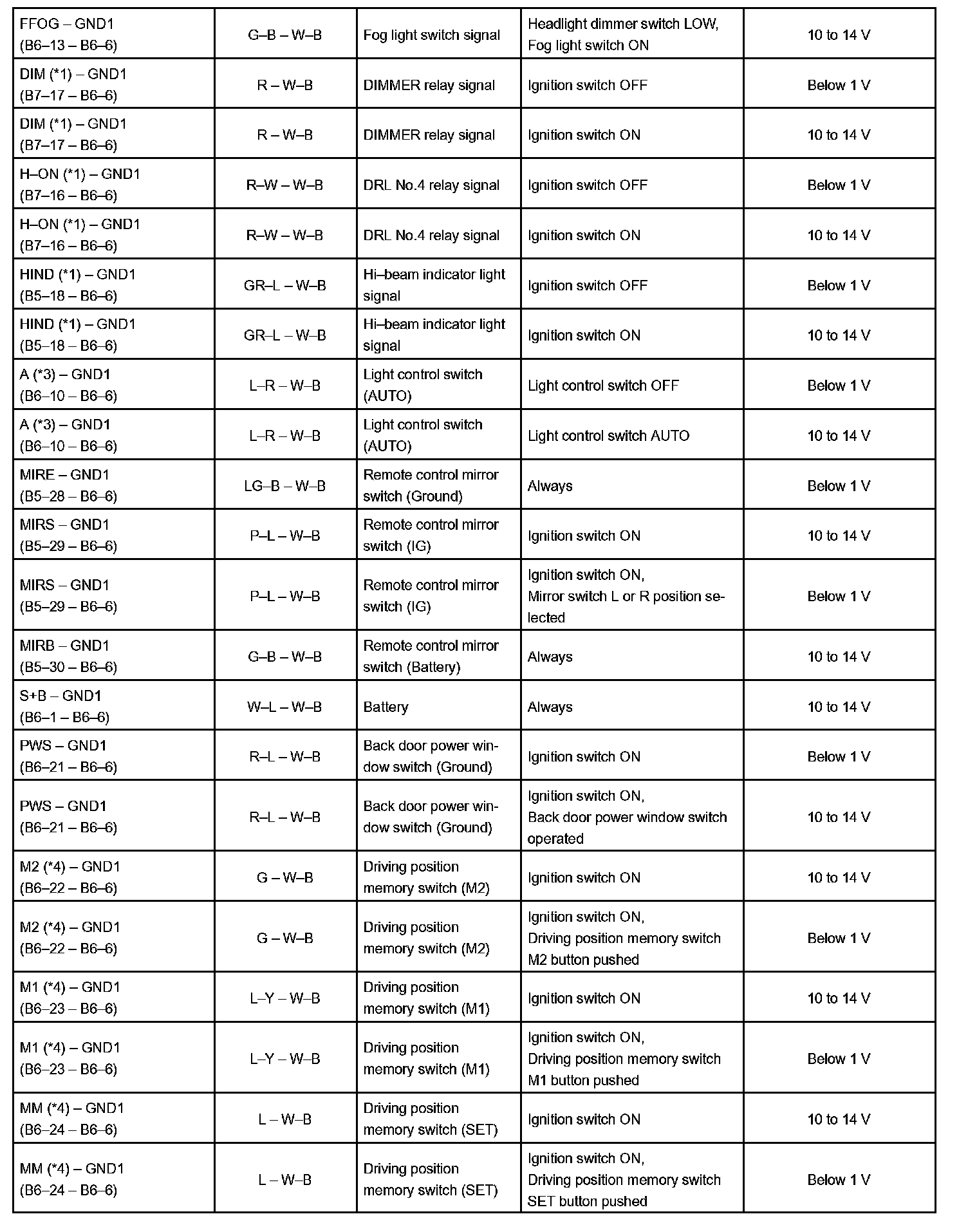

Terminals Of Control Module/Pinouts Part 4:

Terminals Of Control Module/Pinouts Part 5:

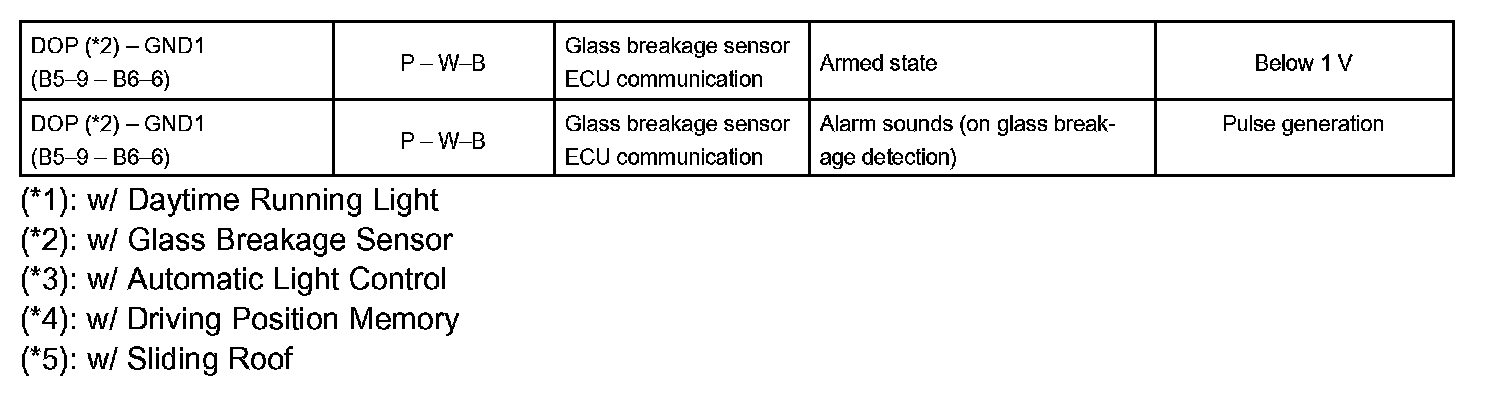

Terminals Of Control Module/Pinouts Part 6:
