Data List

DATA LIST

HINT: According to the DATA LIST displayed by the the hand-held tester, you can read the values of the switches, the sensors and so on without parts removal. Reading the DATA LIST as a first step in troubleshooting is one of the methods to shorten labor time.

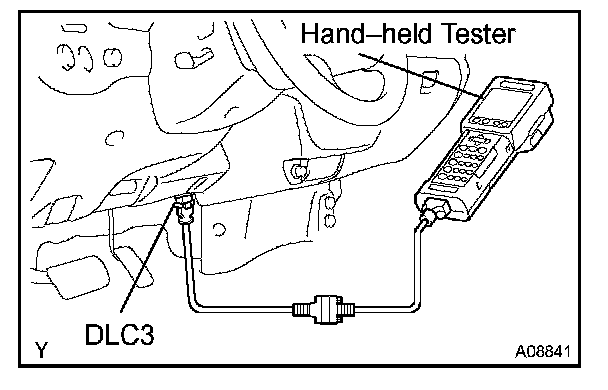

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.

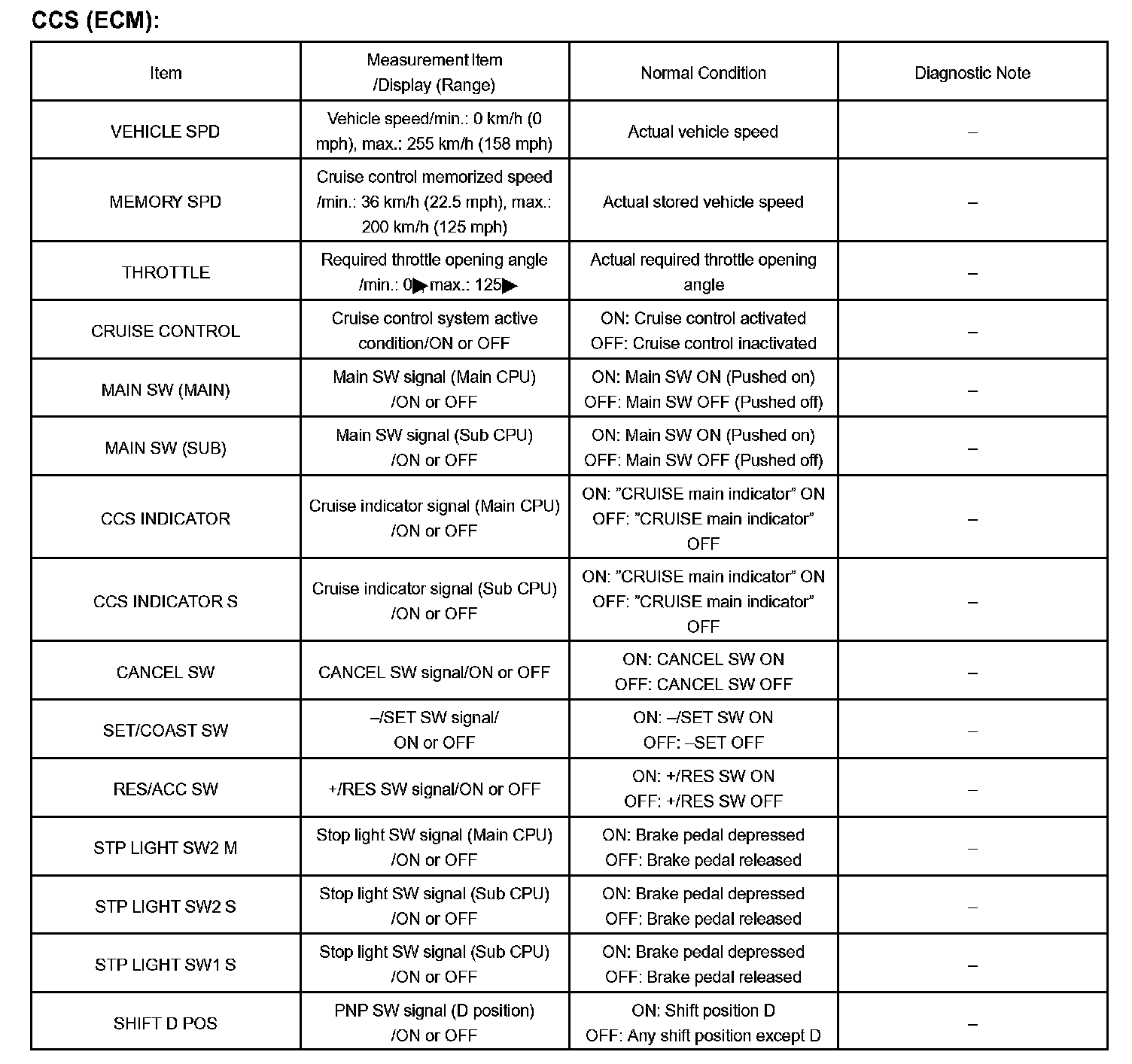

c. According to the display on the tester, read the "DATA LIST".
