Air Injection
Air Injection

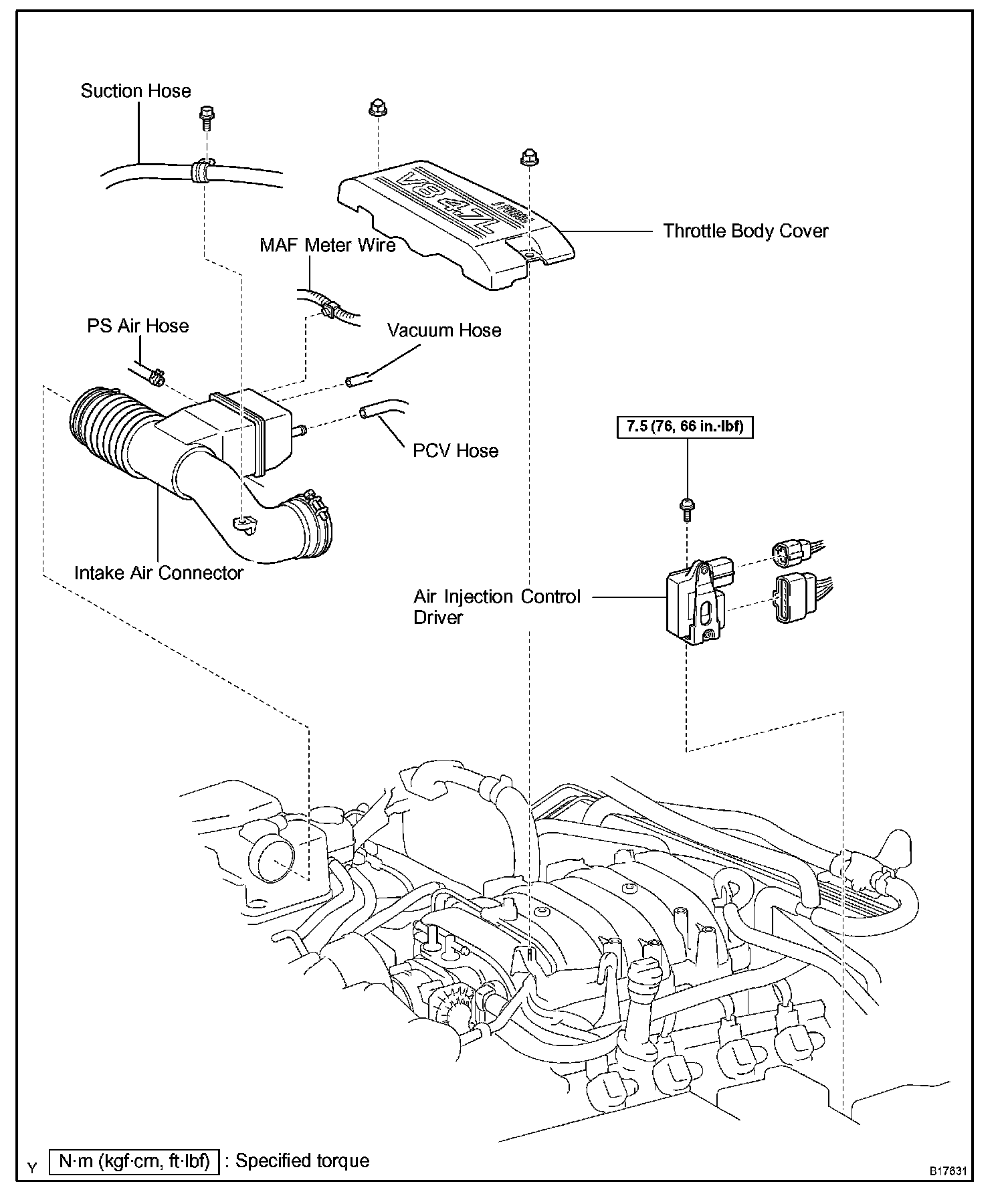

Secondary Air Injection System Part 1:

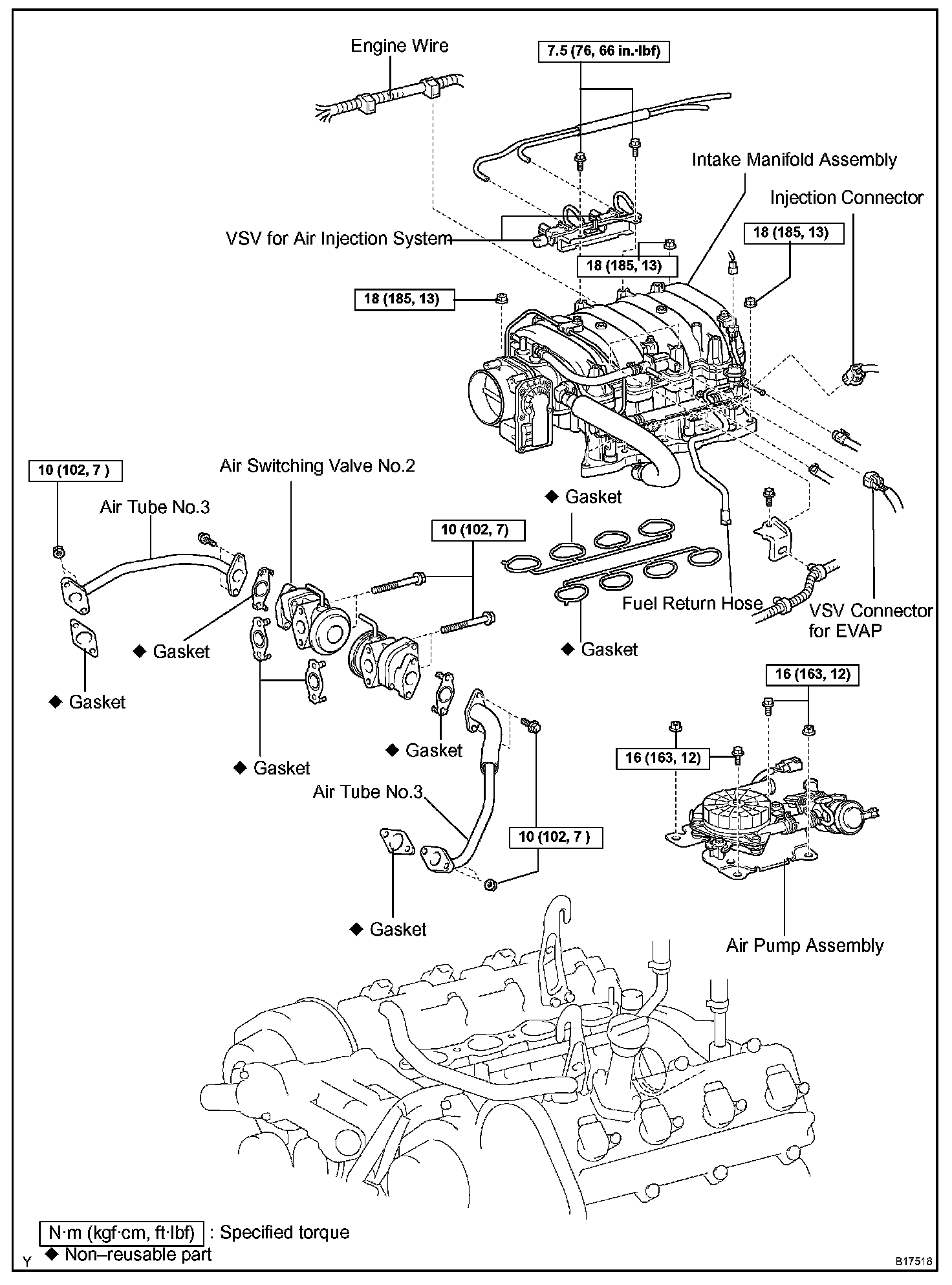

Secondary Air Injection System Part 2:
Secondary Air Injection System Part 3:
