Variable Induction System
Variable Induction System

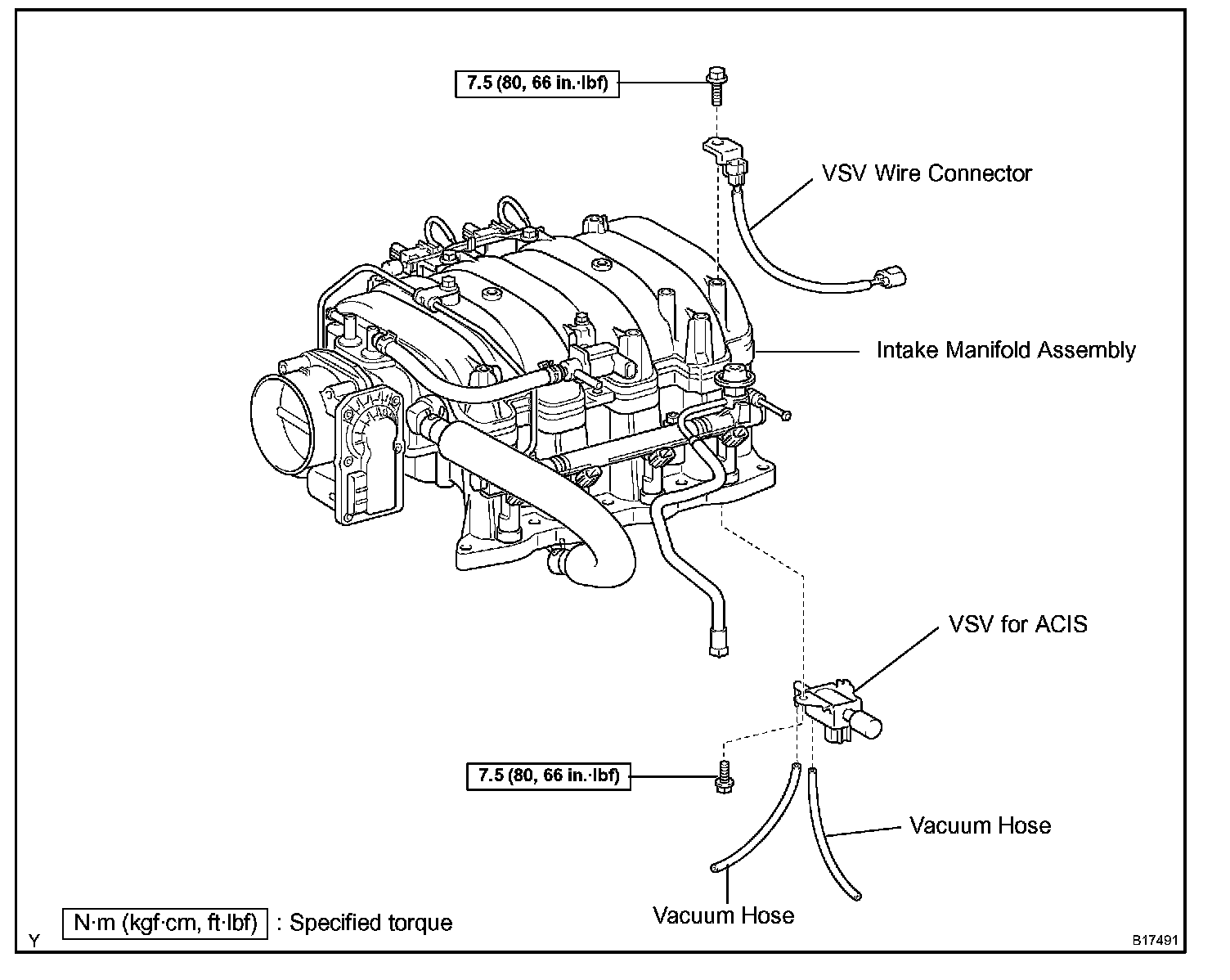

Acoustic Control Induction System (ACIS) Part 1:

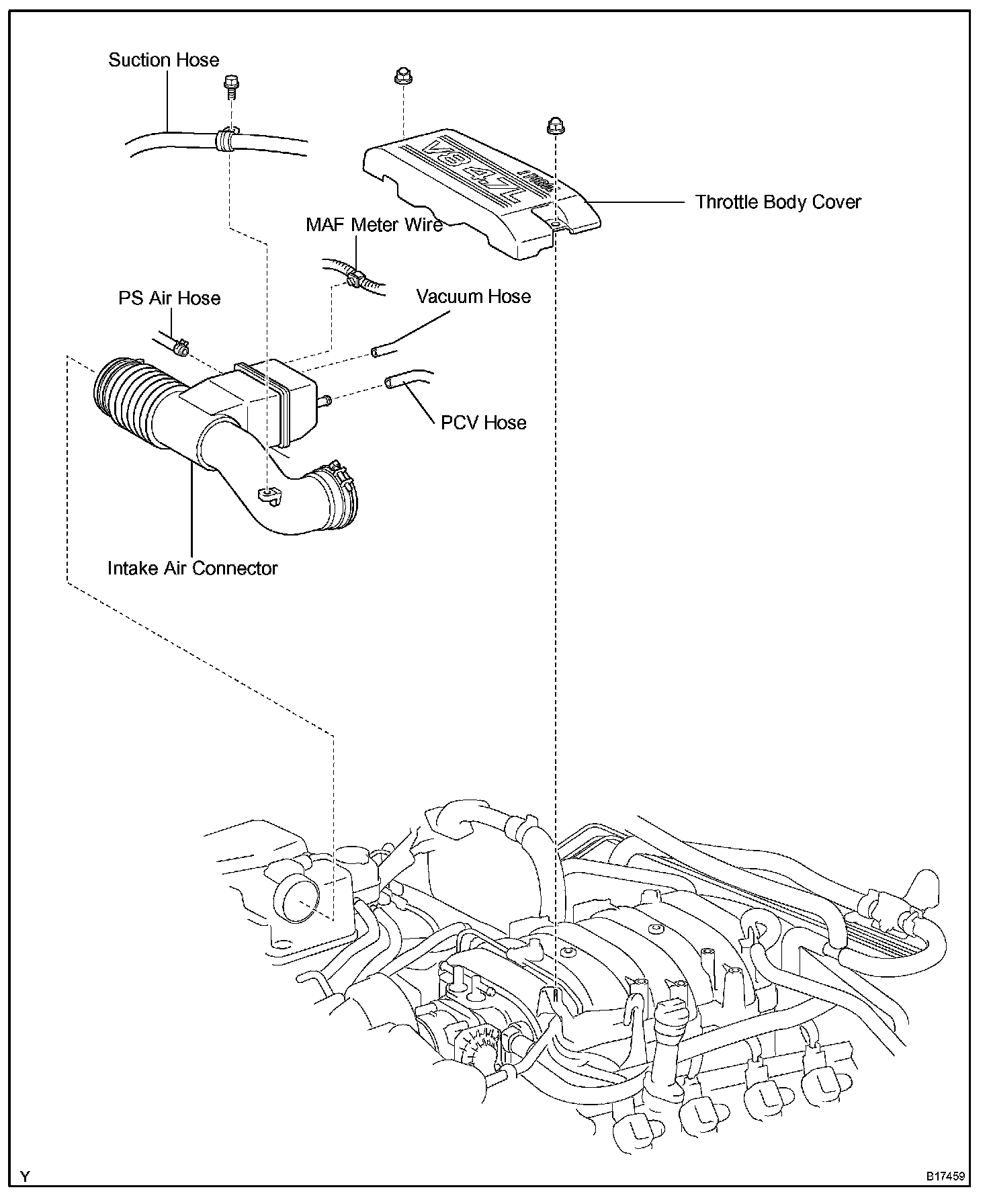

Acoustic Control Induction System (ACIS) Part 2:

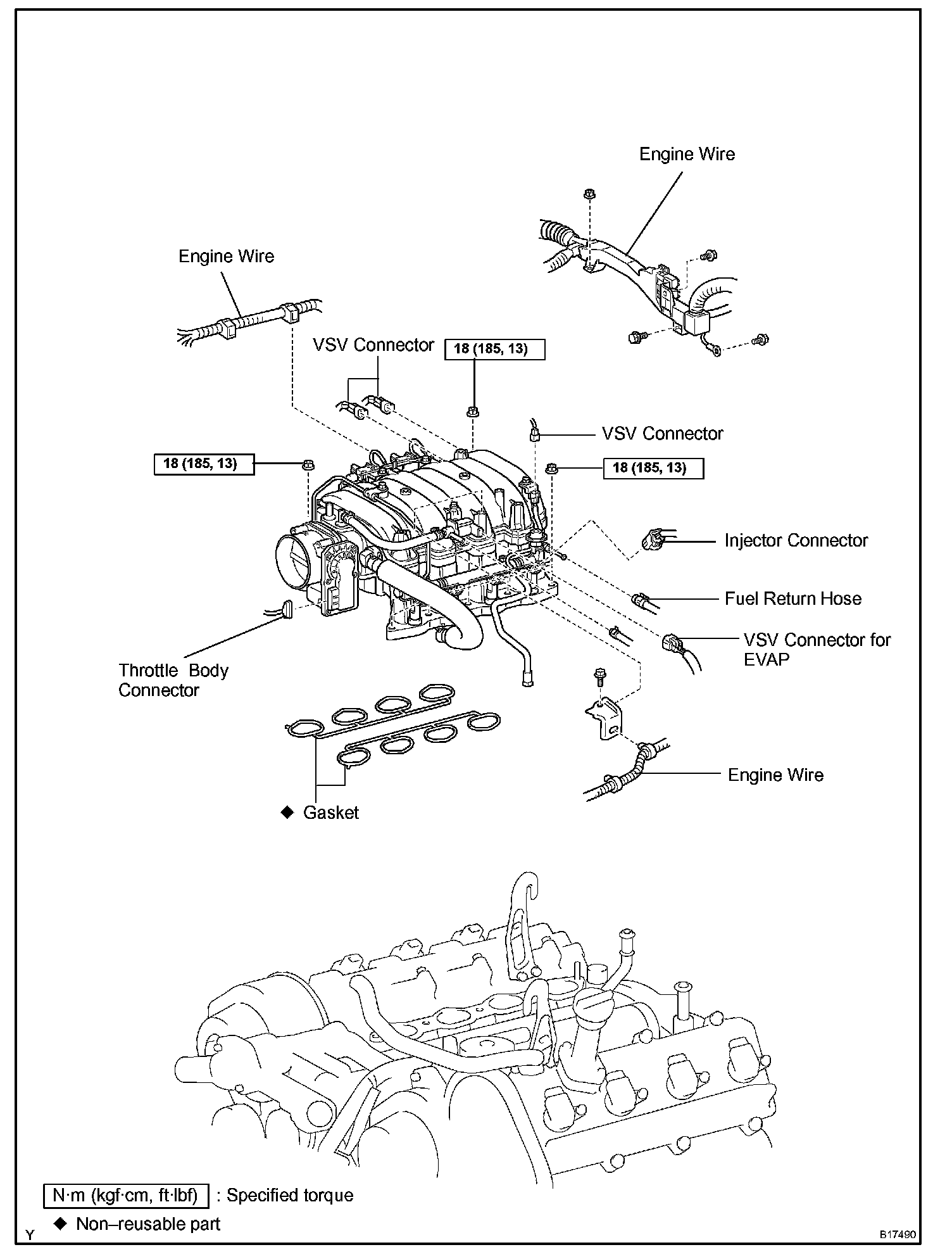

Acoustic Control Induction System (ACIS) Part 3:
