Fuse Block: Locations

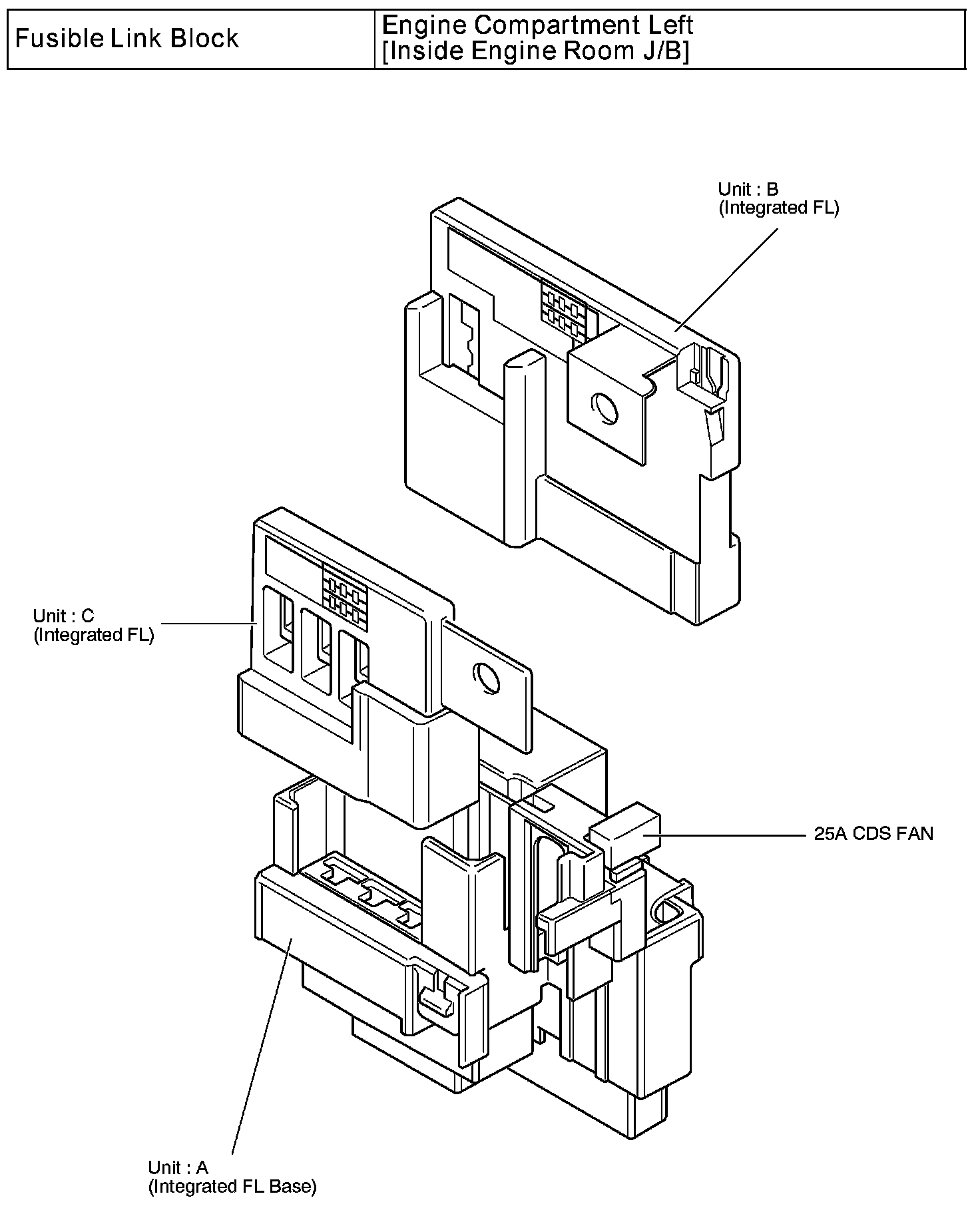

Fusible Link Block - Engine Compartment Left (Inside Engine Room J/B):




Fusible Link Block - Engine Compartment Left (Inside Engine Room J/B):

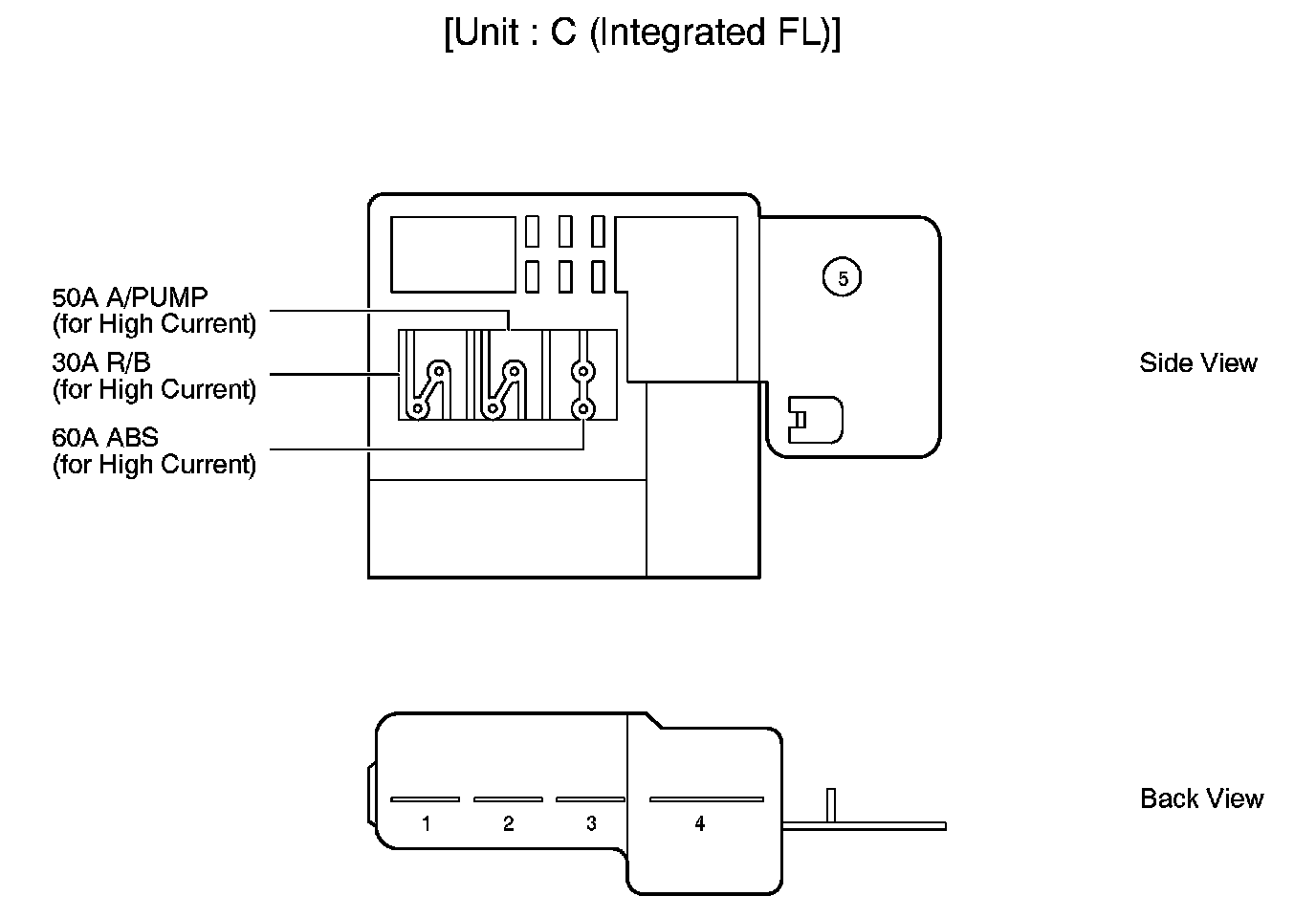

Fusible Link Block - Engine Compartment Left (Inside Engine Room J/B):




Engine Room R/B No. 2 - Engine Compartment Left:

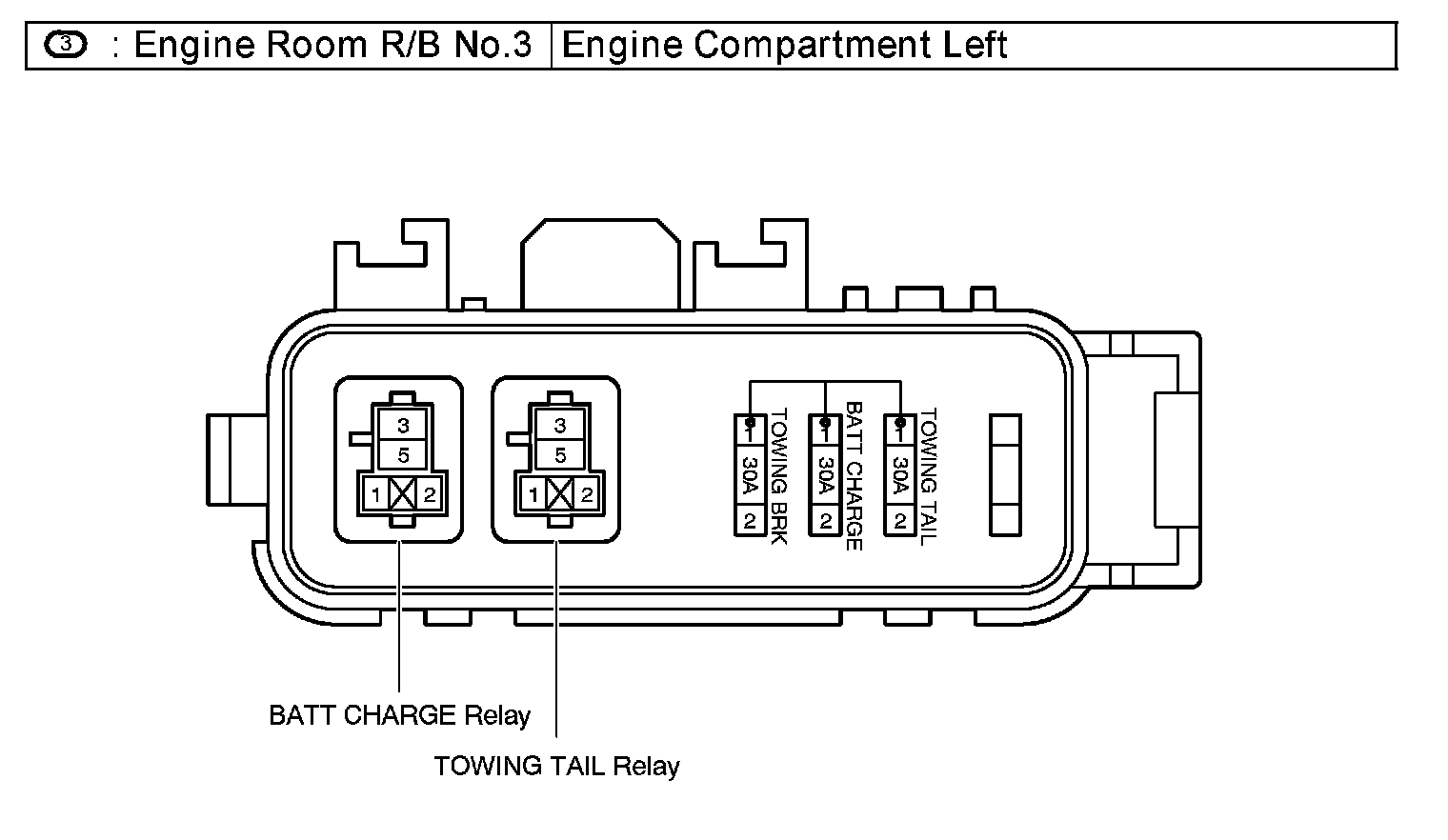

Engine Room R/B No. 3 - Engine Compartment Left:

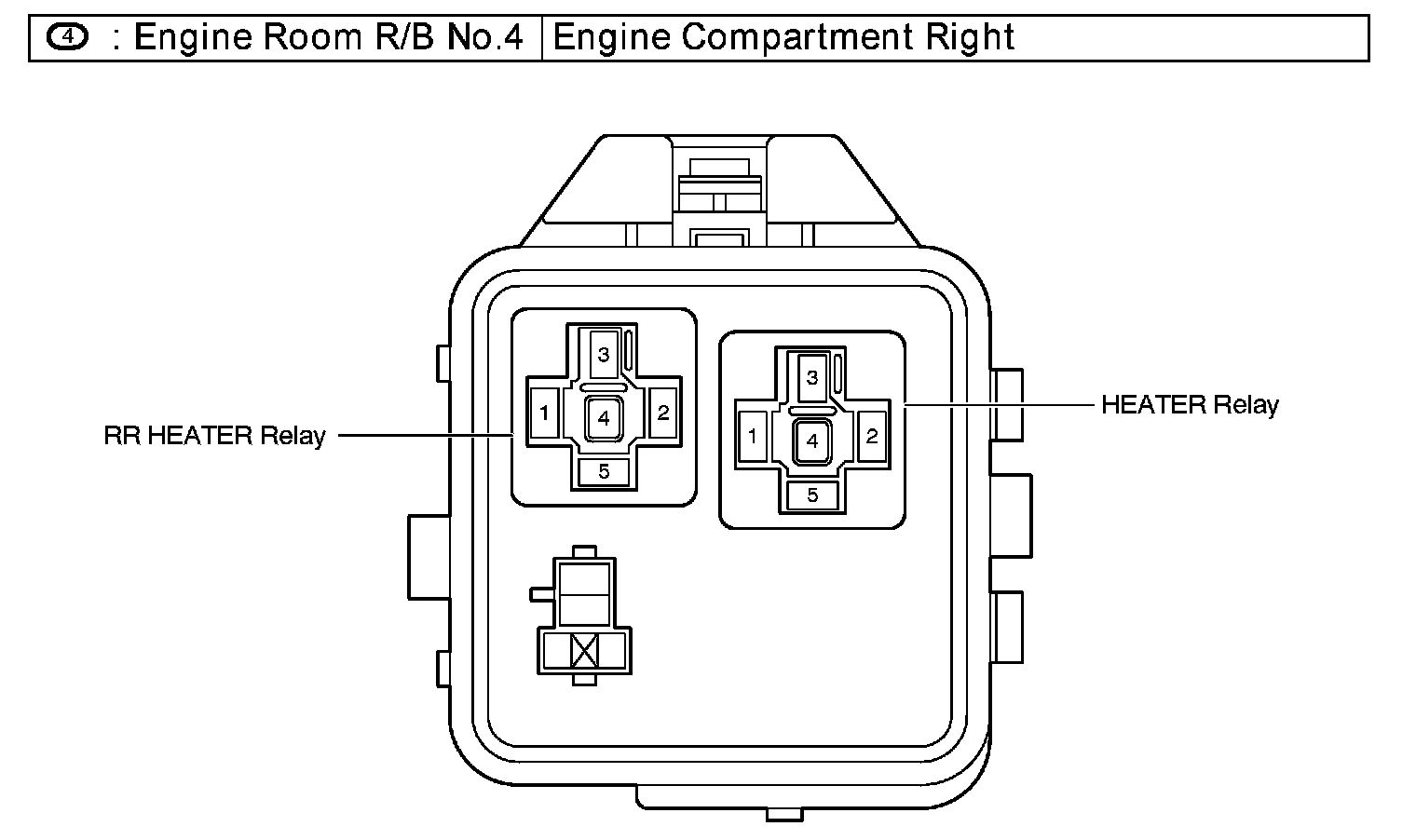

Engine Room R/B No. 4 - Engine Compartment Right:




Driver Side R/B - Under The Instrument Panel J/B:




Engine Room J/B - Engine Compartment Left:

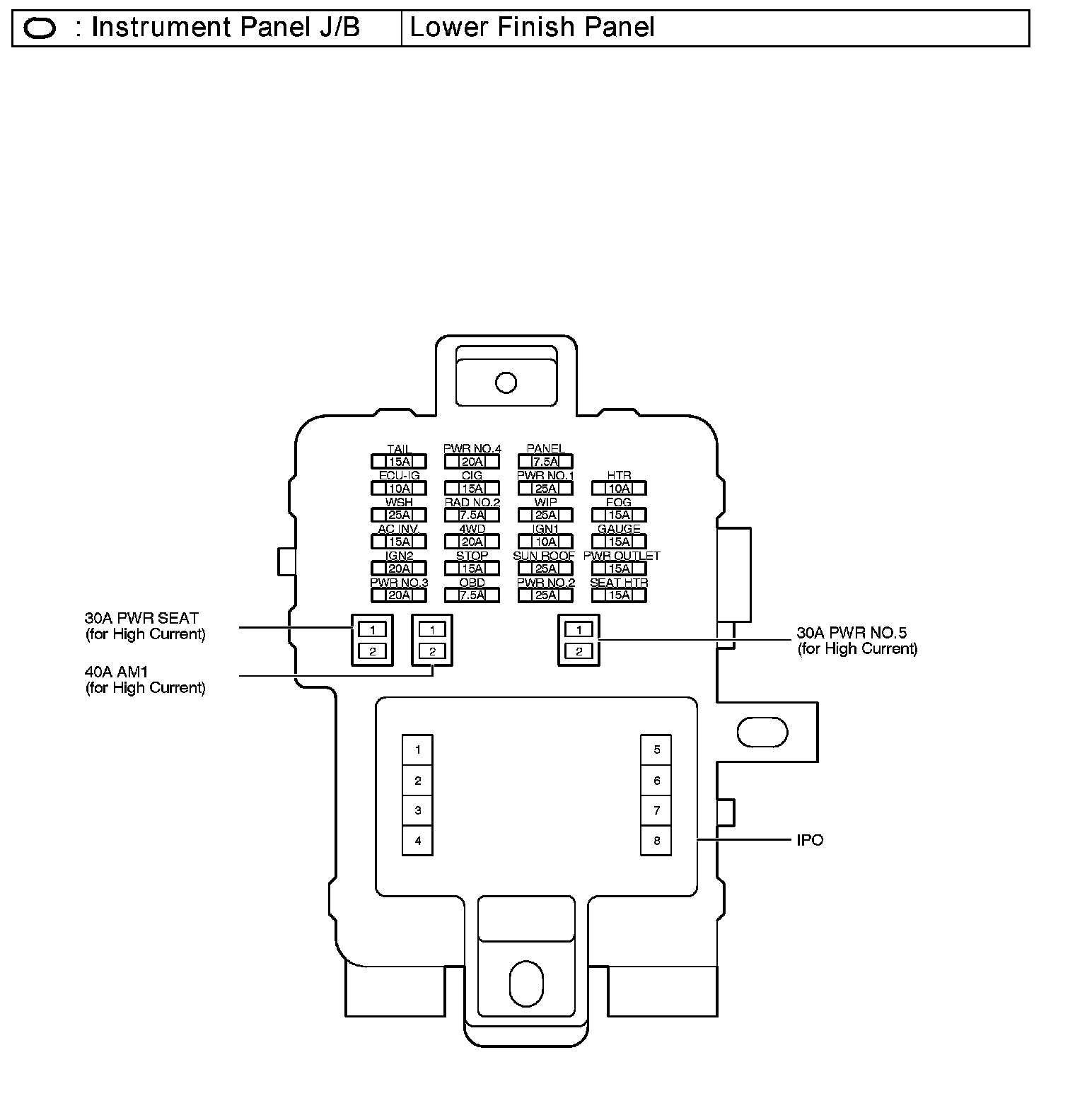

Instrument Panel J/B - Lower Finish Panel:




Instrument Panel J/B - Lower Finish Panel:




Details

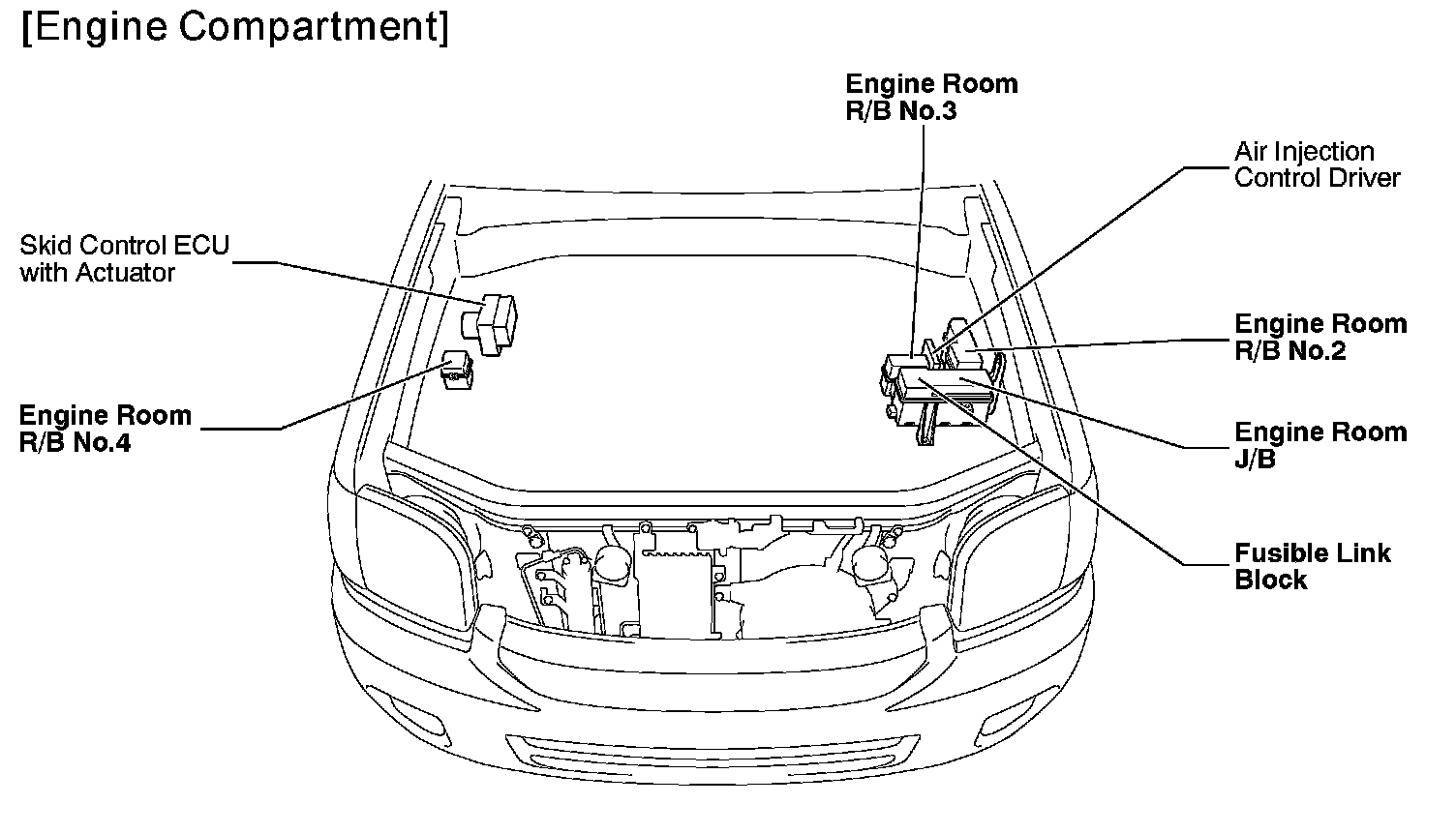

Engine Compartment:




Instrument Panel:




Body:




Locations
