Power and Ground Distribution
>>
Power Distribution Relay
>>
Testing and Inspection
>>
Component Inspection
Component Inspection

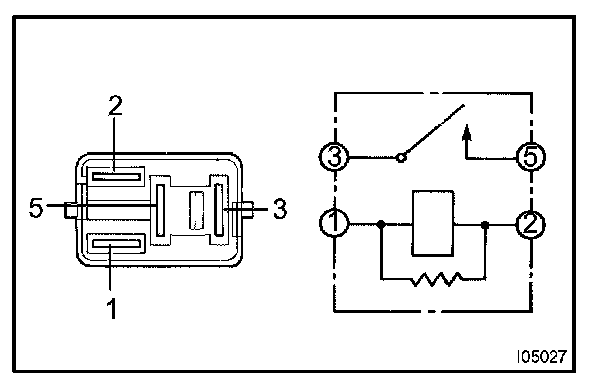

INSPECT INVERTER RELAY CONTINUITY

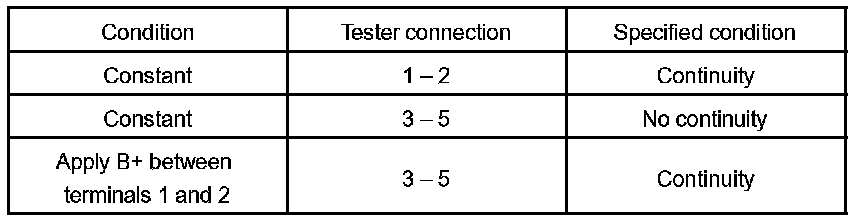

If continuity is not as specified, replace the relay.
