Check CAN Bus Line

CHECK CAN BUS LINE

When any DTC of the CAN communication system is output, first measure the resistance between the terminals of the DLC3 and the suspension control ECU connector to specify the trouble area.

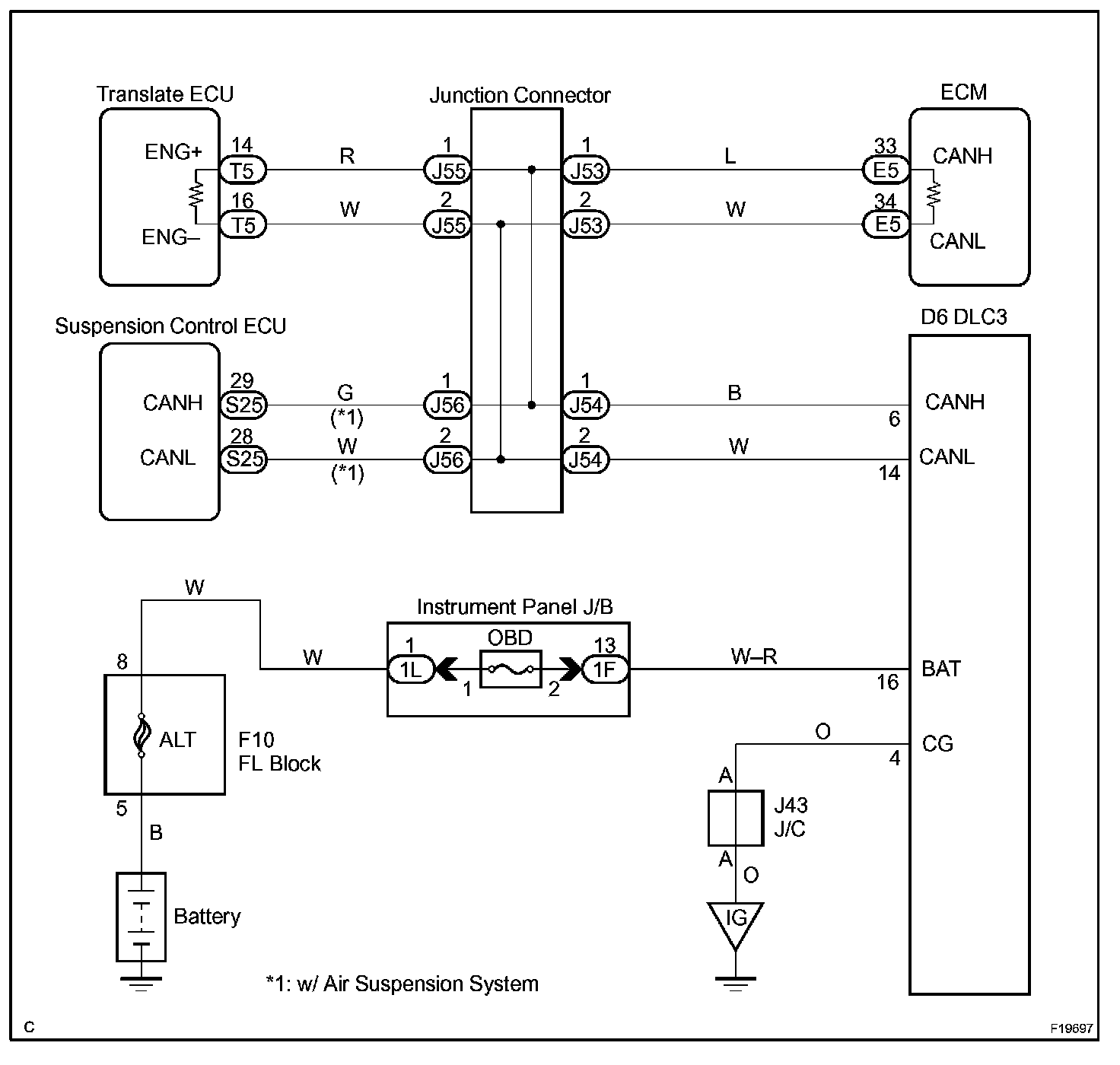

Wiring Diagram:

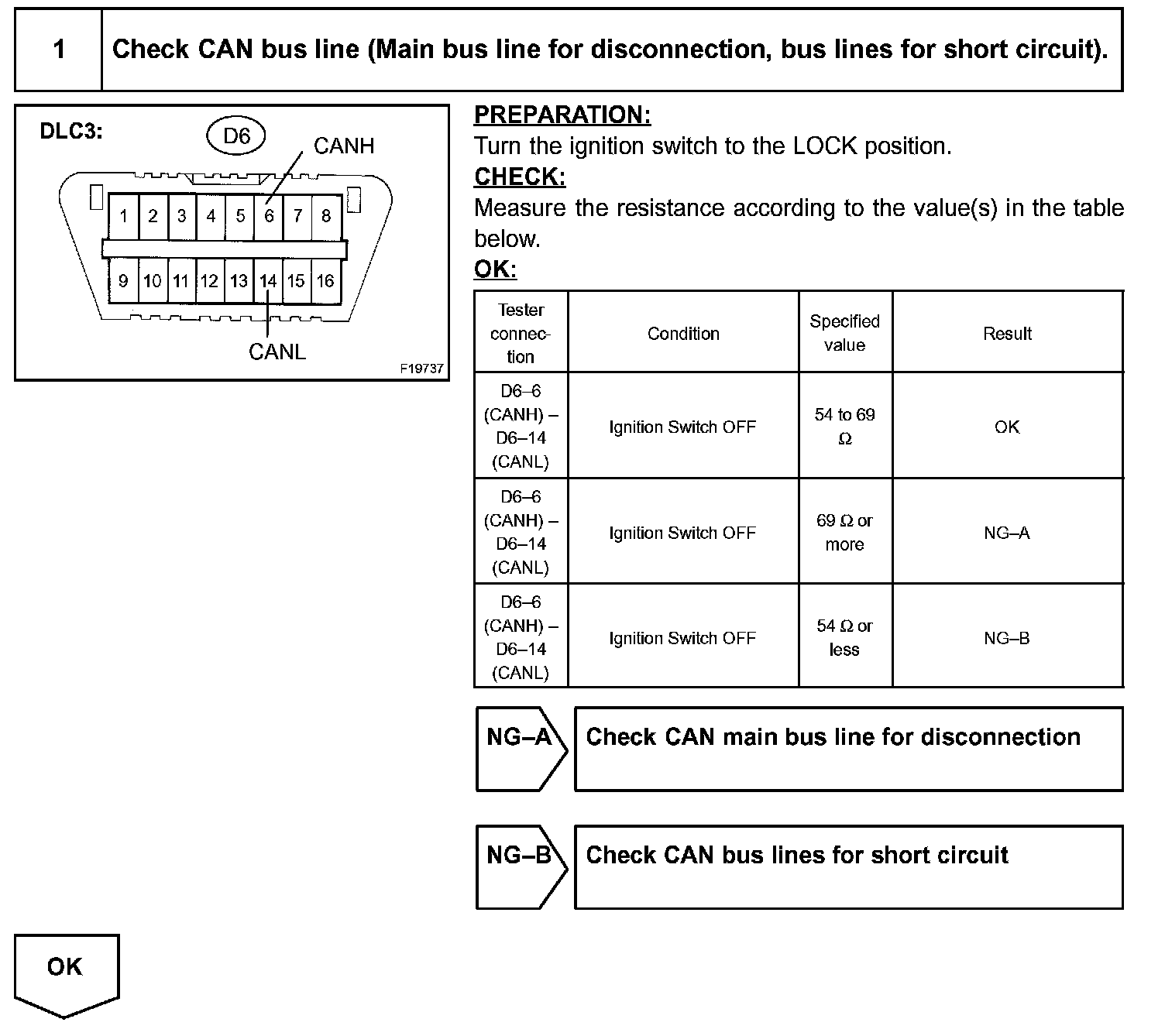

Step 1:

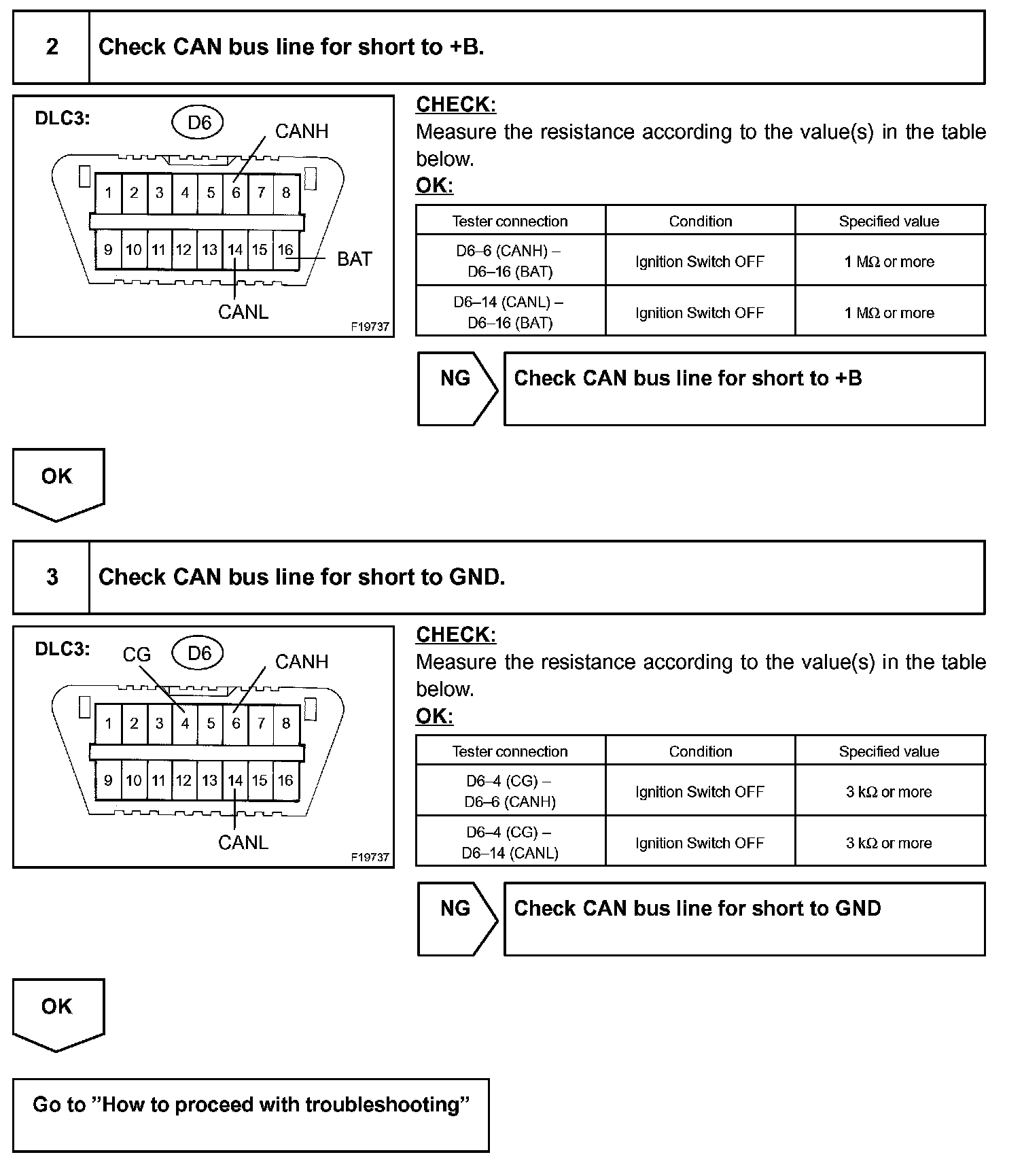

Step 2 - 3:

INSPECTION PROCEDURE
