Check CAN Main Bus Line For Disconnection

CHECK CAN MAIN BUS LINE FOR DISCONNECTION

CIRCUIT DESCRIPTION




The CAN main bus line and DLC3 sub bus line may have a disconnection when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is more than 69 Ohms.

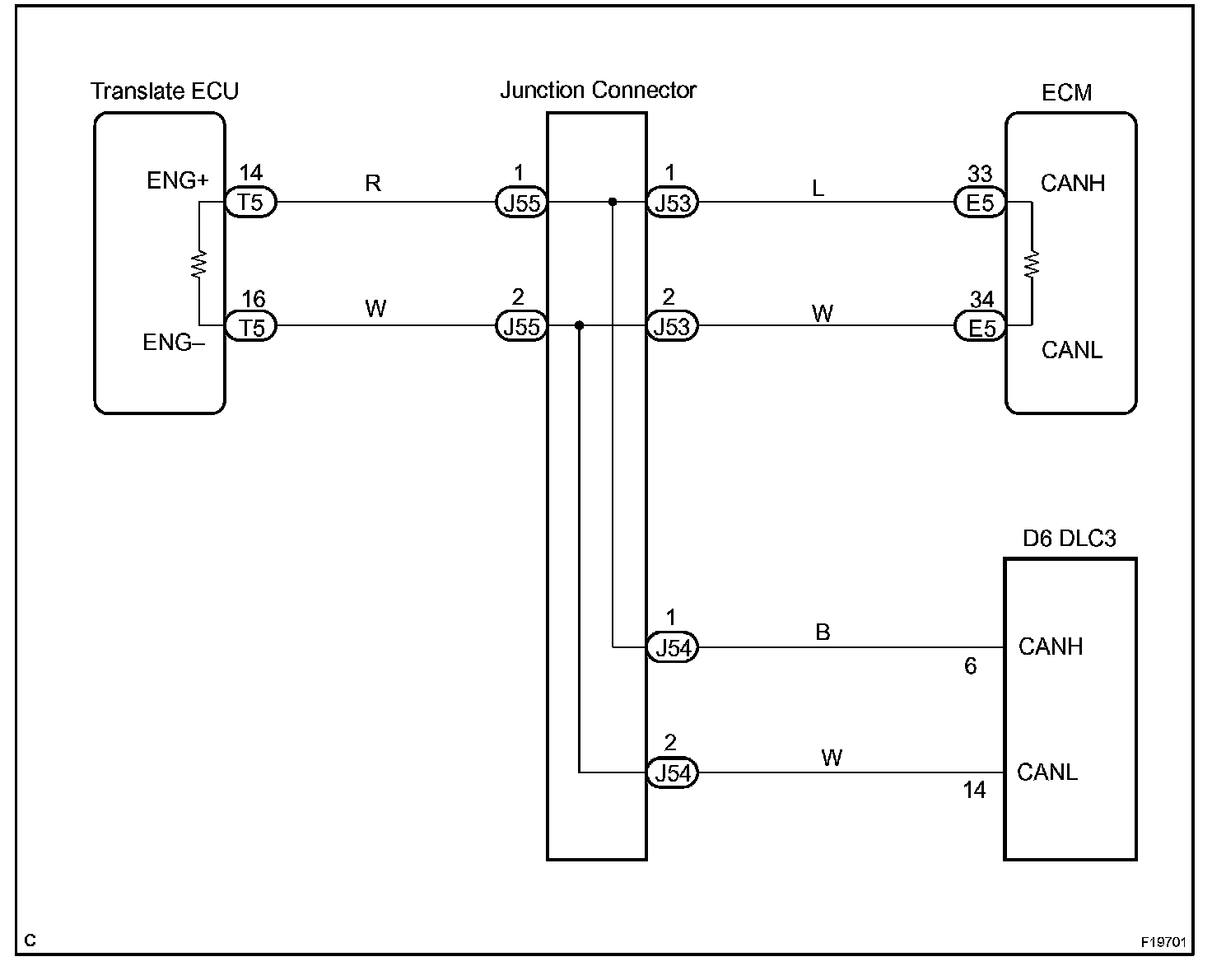

Wiring Diagram:

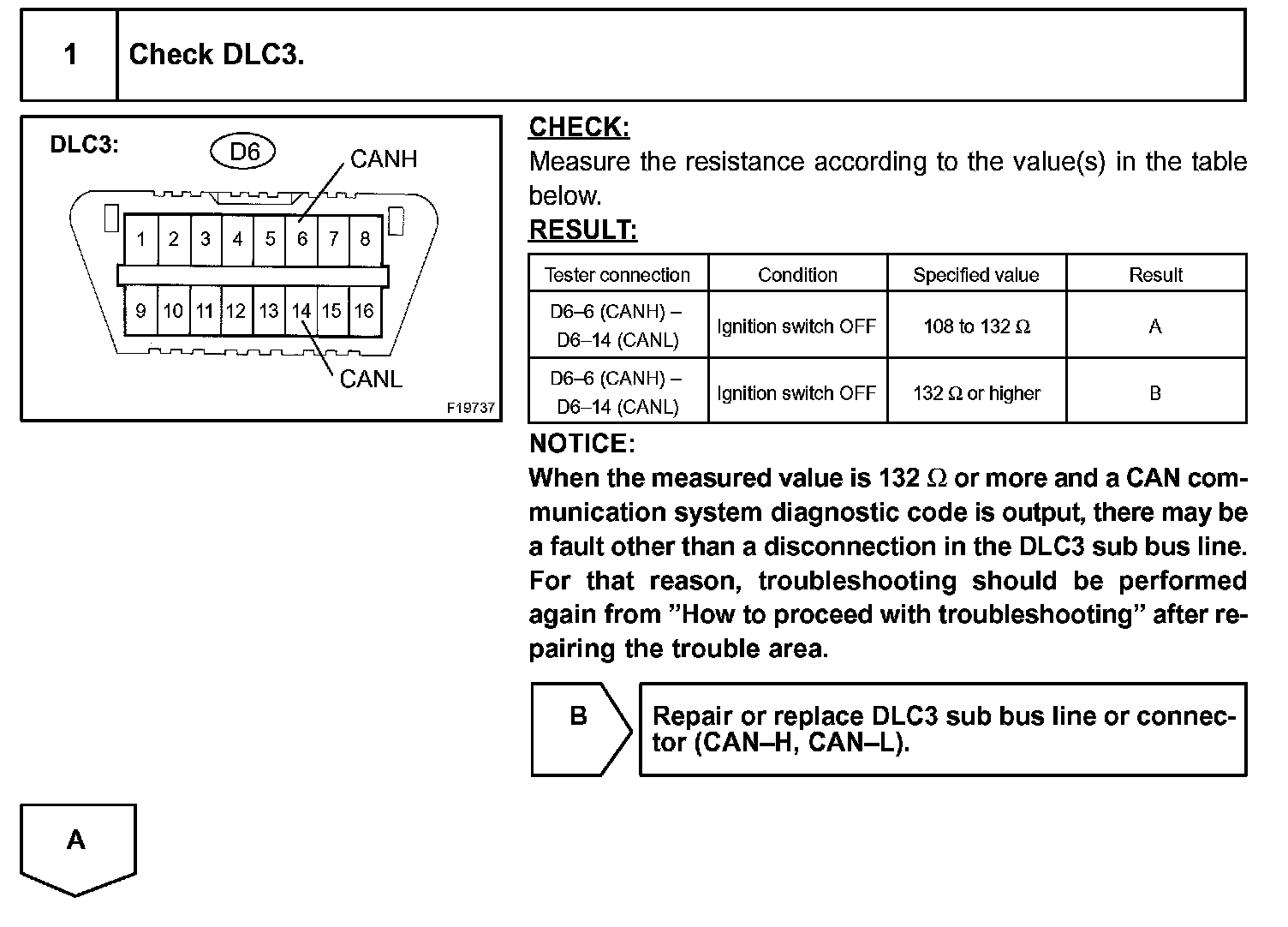

Step 1:

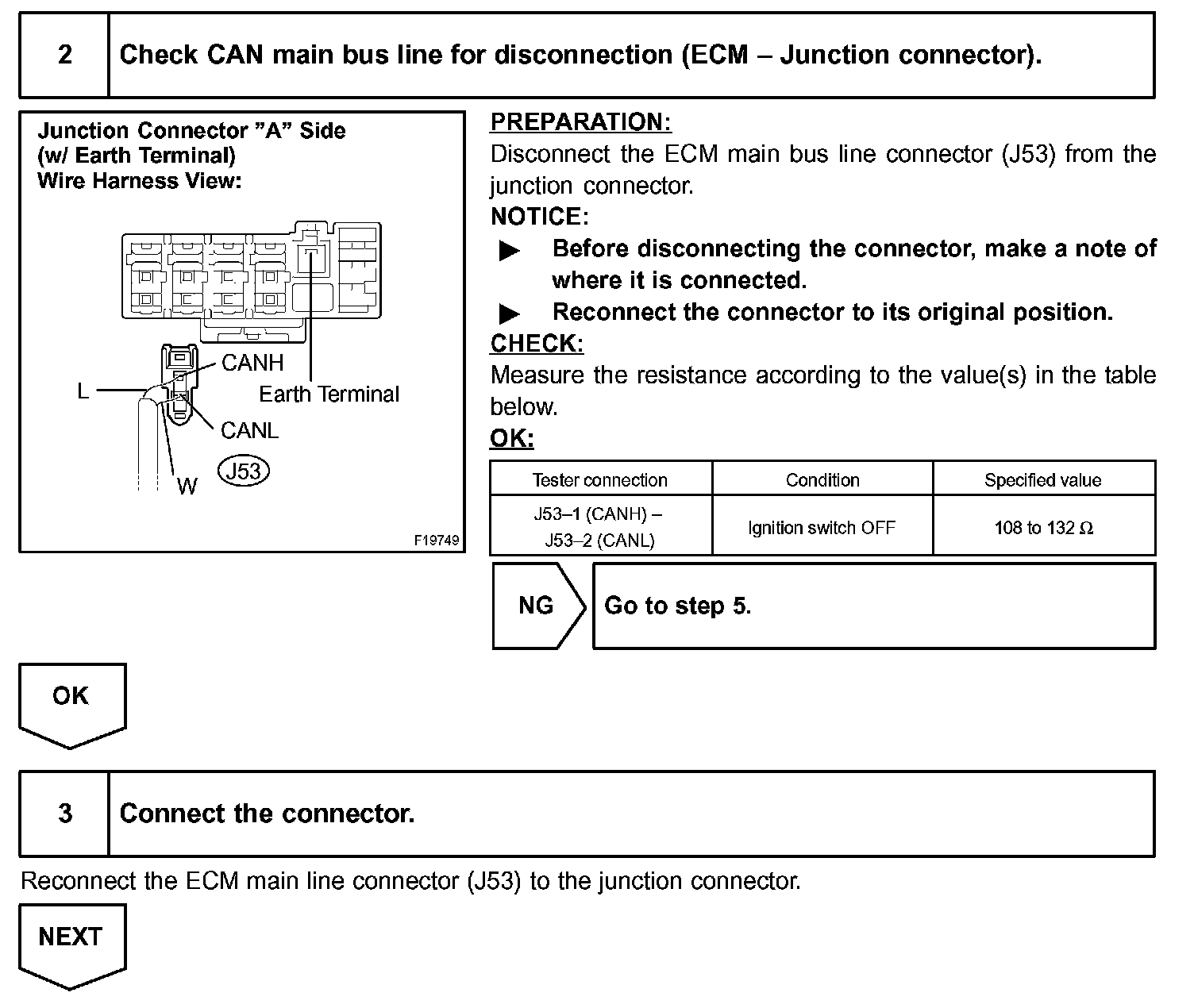

Step 2 - 3:

Step 4 - 5:

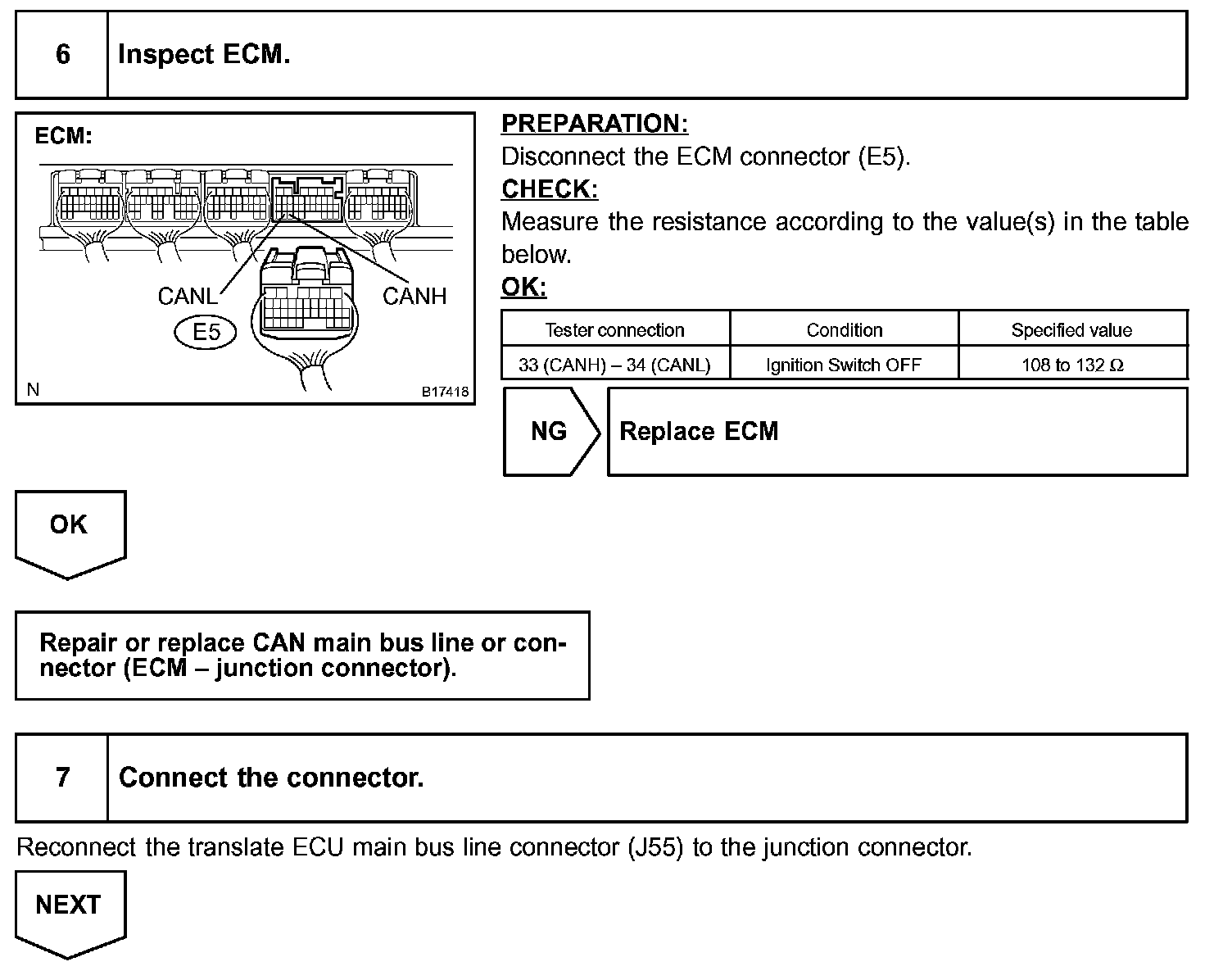

Step 6 - 7:

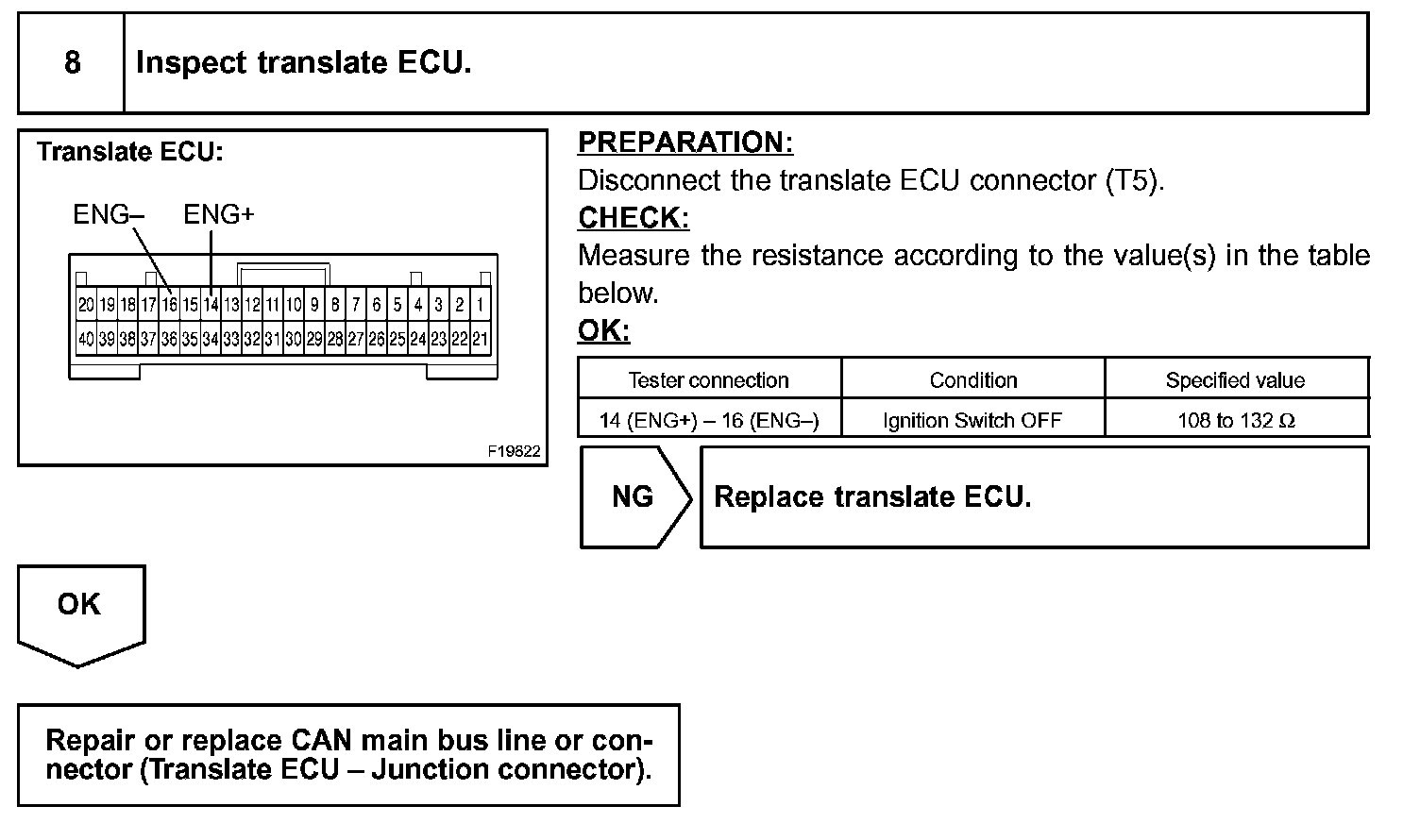

Step 8:

INSPECTION PROCEDURE
