Operation CHARM: Car repair manuals for everyone.

Multiplex Communication System

TERMINALS OF ECU

1. CHECK BODY ECU

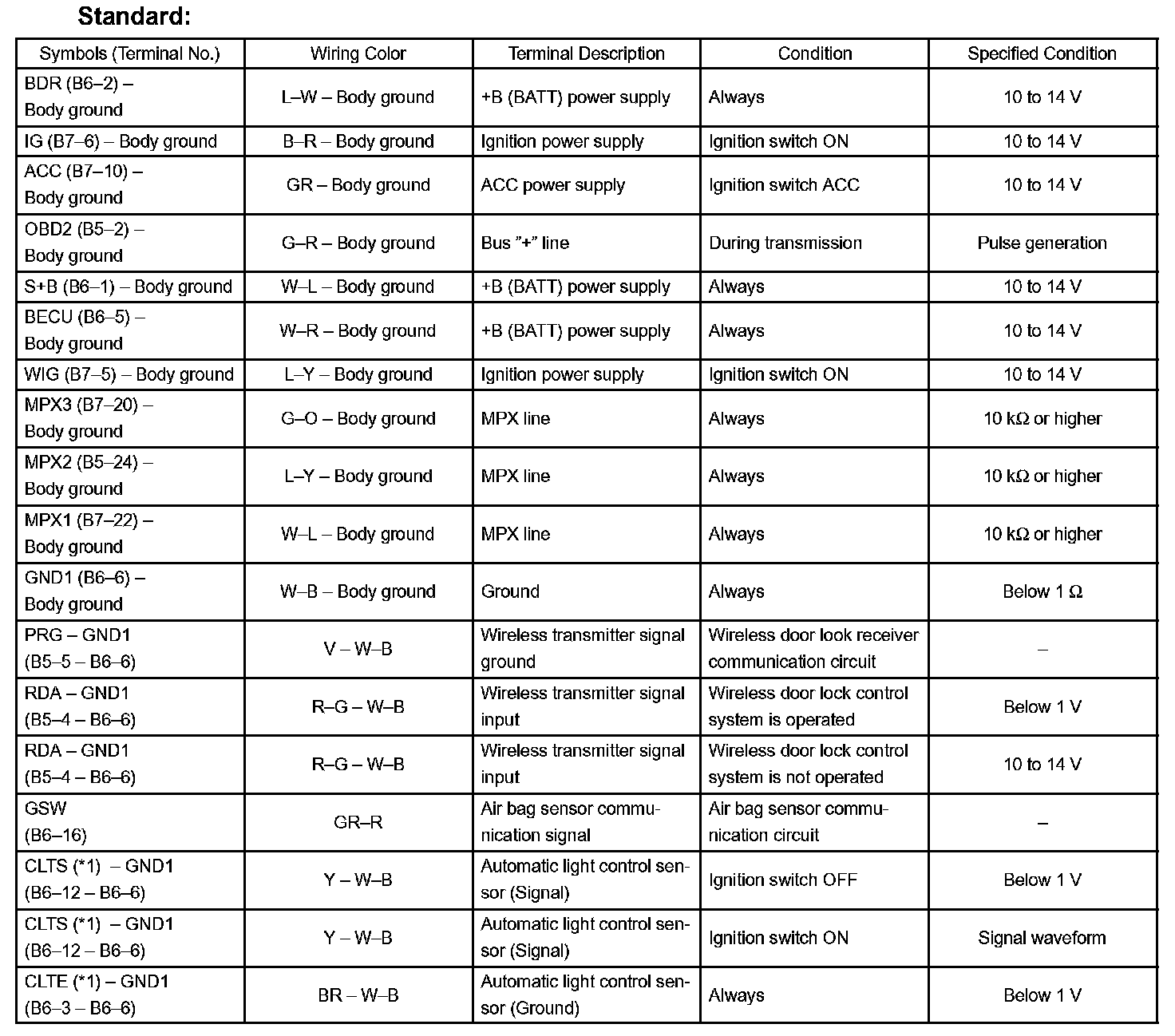

Terminals Of Control Module/Pinouts - Check Body ECU:

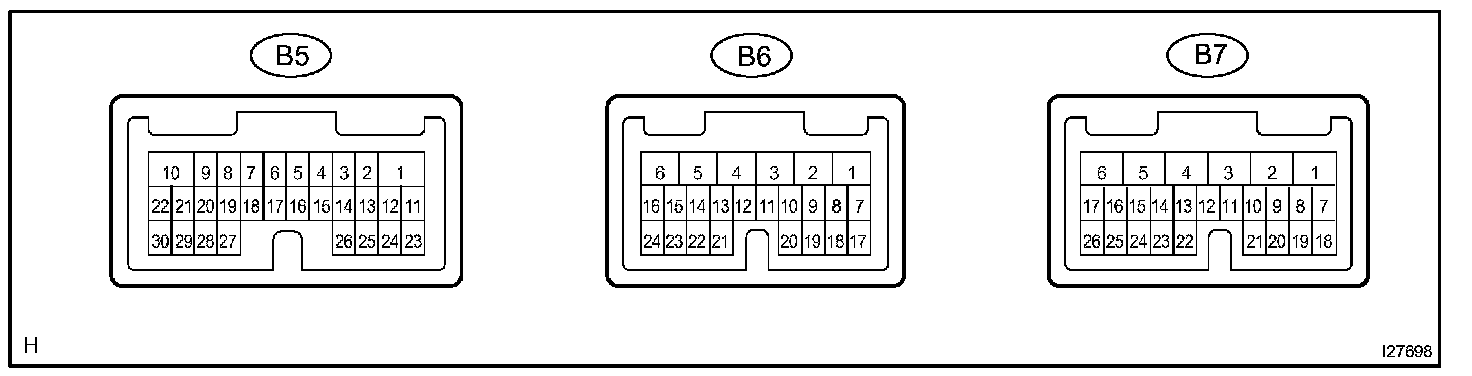

a. Disconnect the B5, B6 and B7 ECU connectors.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

2. CHECK DRIVER DOOR ECU

Terminals Of Control Module/Pinouts - Check Driver Door ECU:

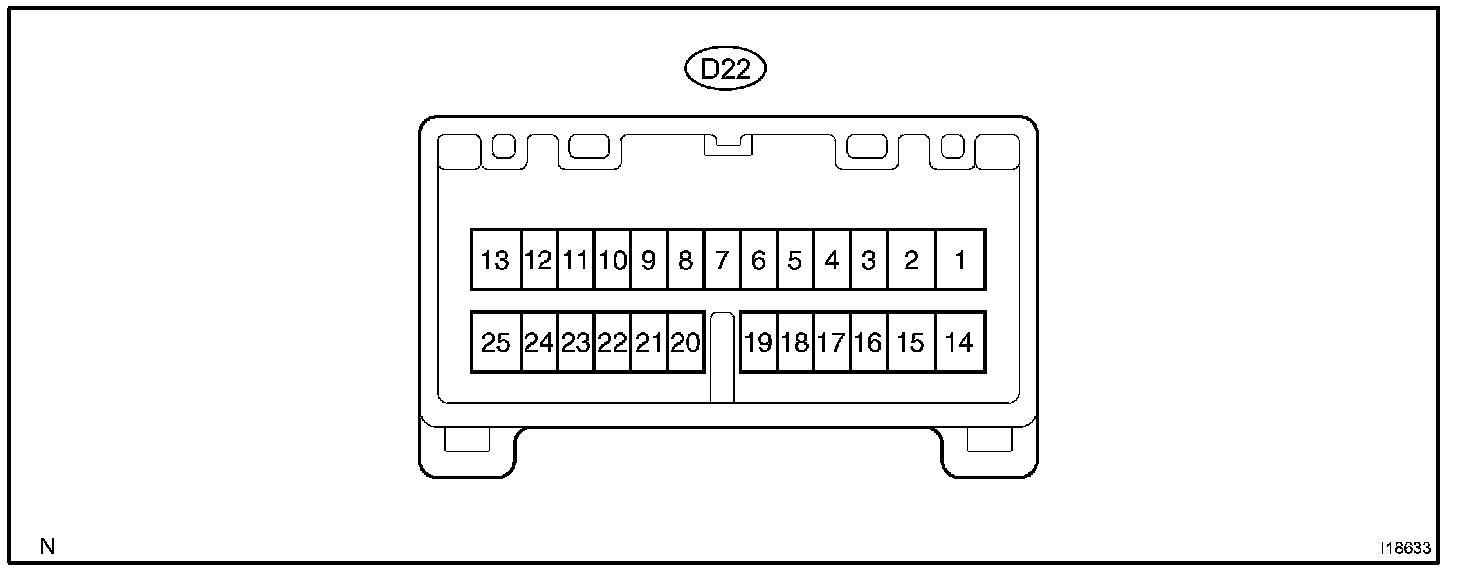

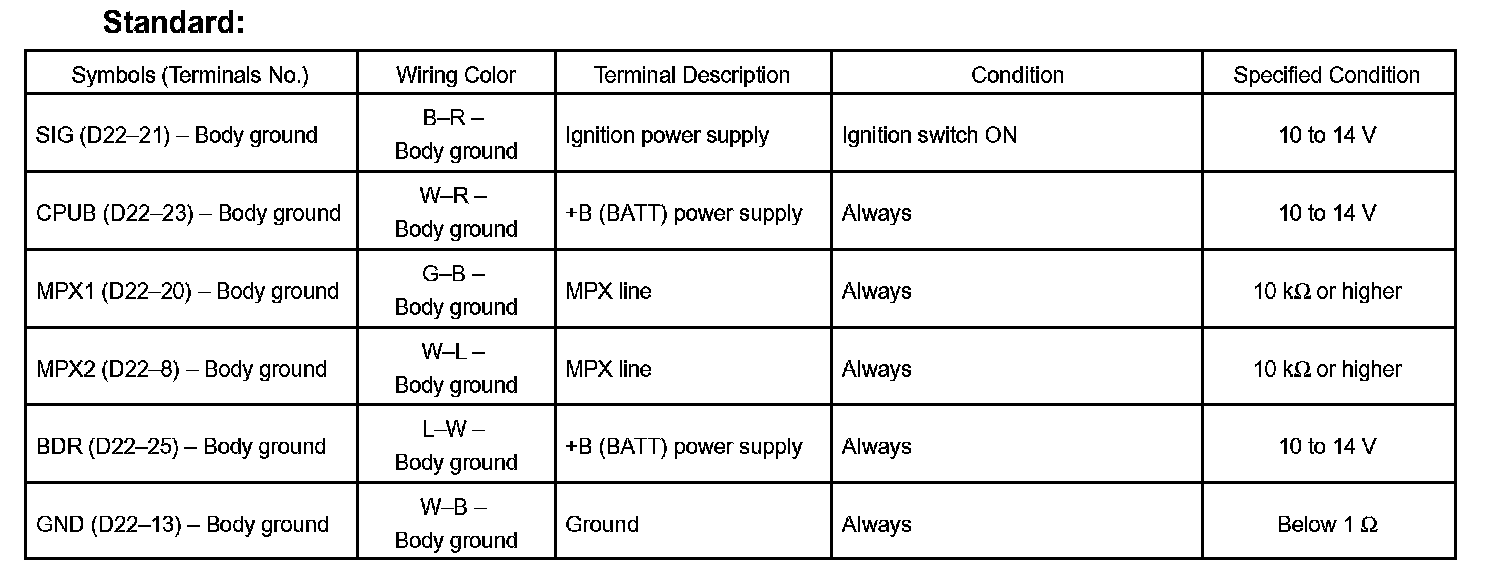

a. Disconnect the D22 ECU connector.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

3. CHECK FRONT PASSENGER DOOR ECU

Terminals Of Control Module/Pinouts - Check Front Passenger Door ECU:

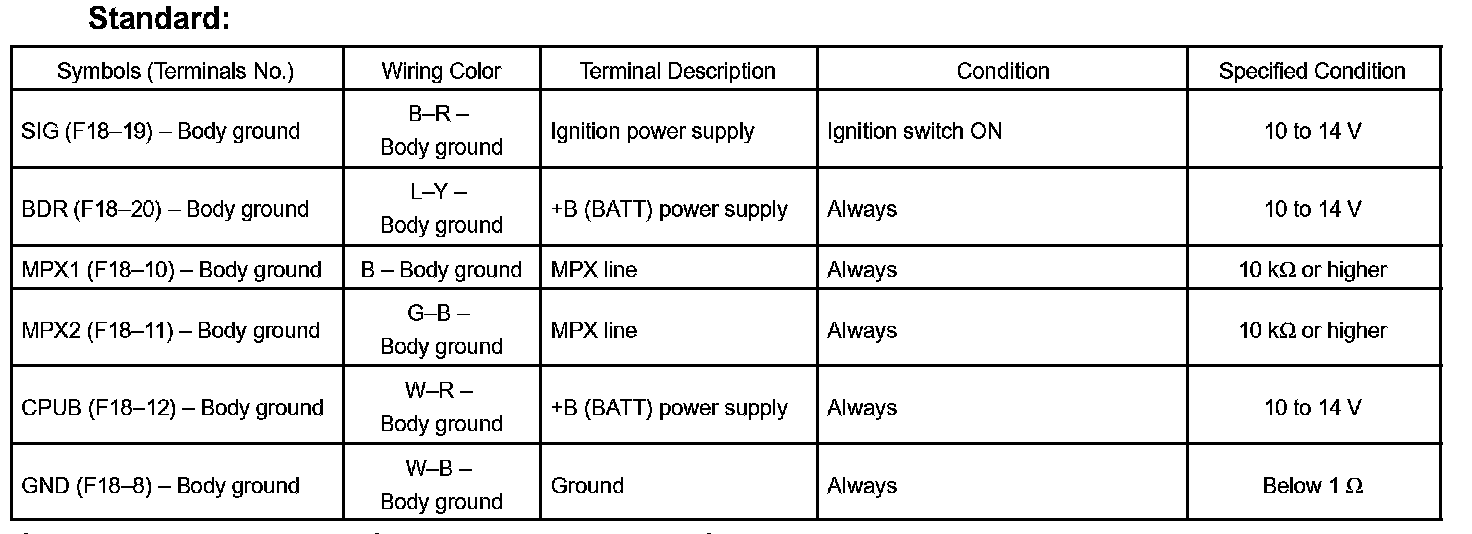

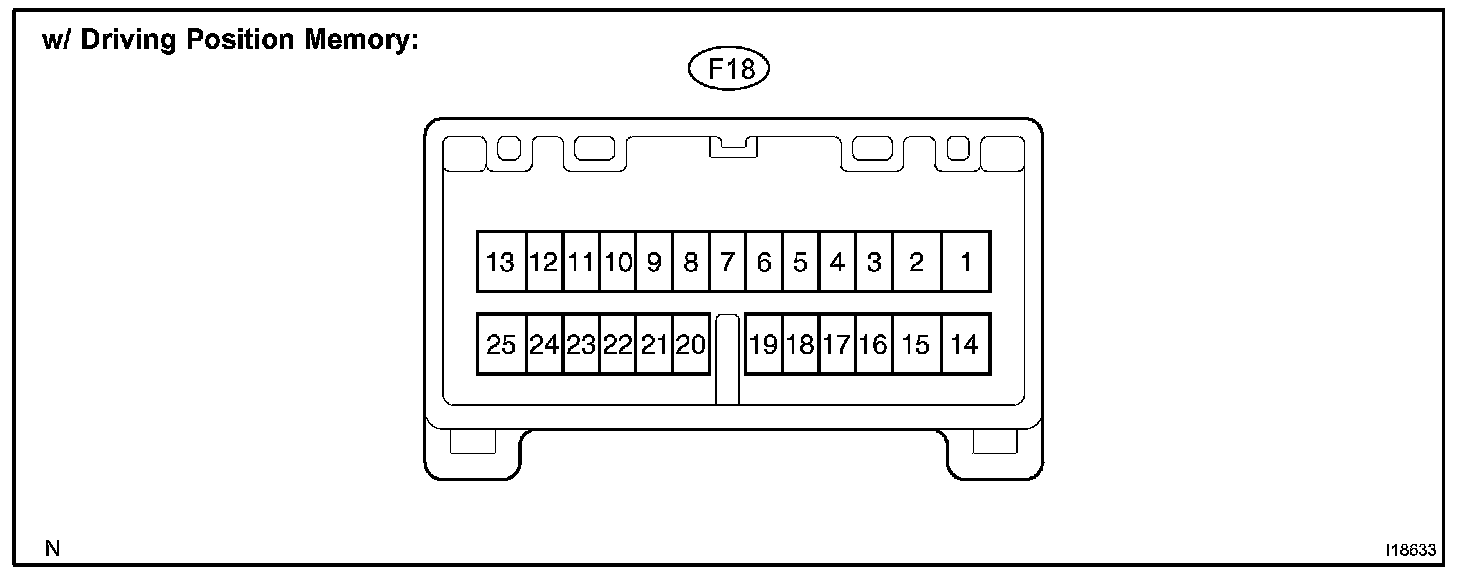

a. Disconnect the F18 ECU connector.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

Terminals Of Control Module/Pinouts- Check Front Passenger Door ECU:

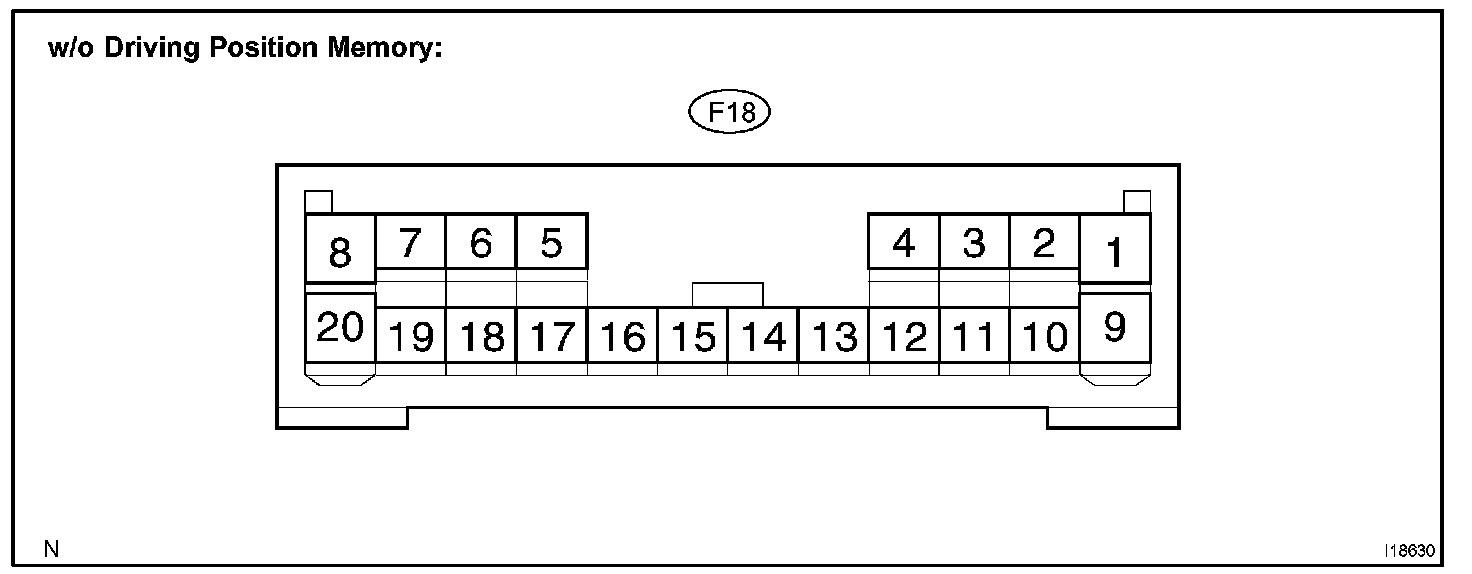

a. Disconnect the F18 ECU connector.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

4. CHECK SLIDING ROOF ECU

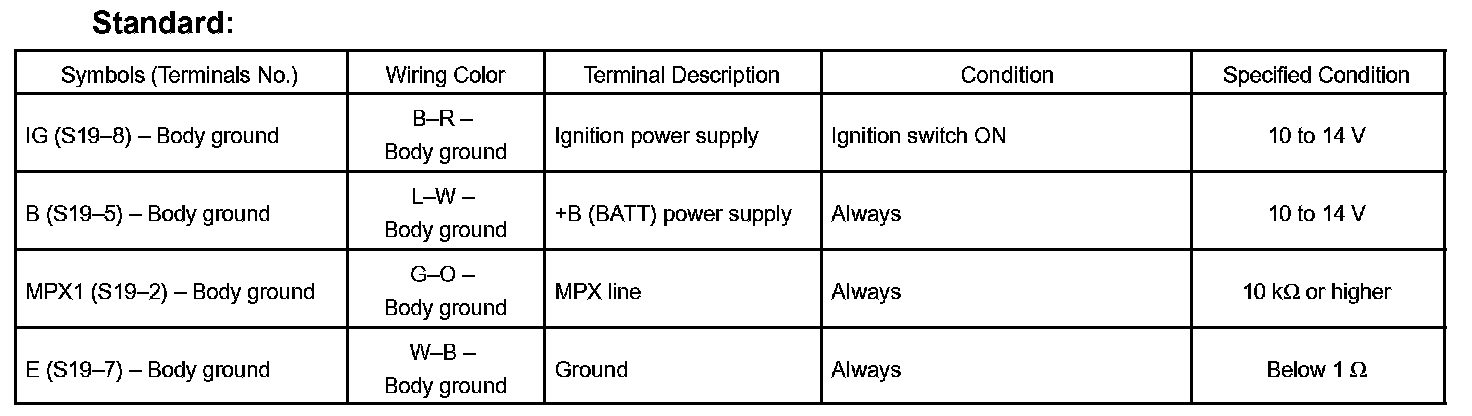

Terminals Of Control Module/Pinouts- Check Sliding Roof ECU:

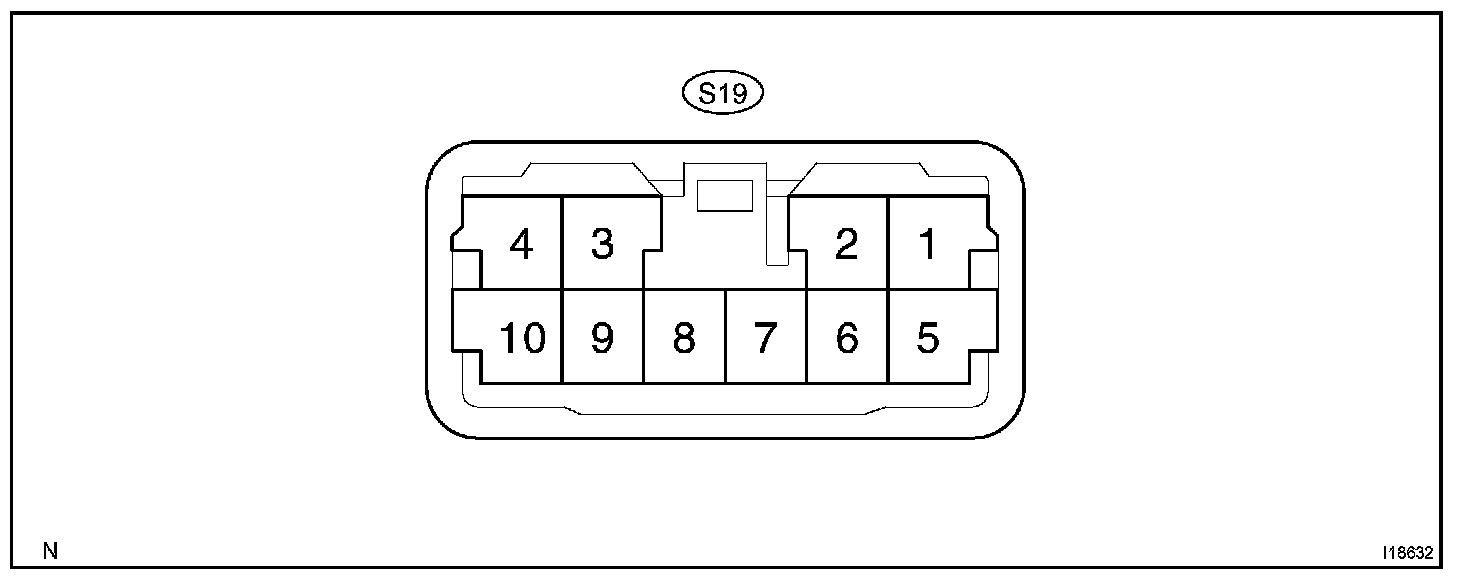

a. Disconnect the S19 ECU connector.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

5. CHECK BACK DOOR ECU

Terminals Of Control Module/Pinouts- Check Back Door ECU:

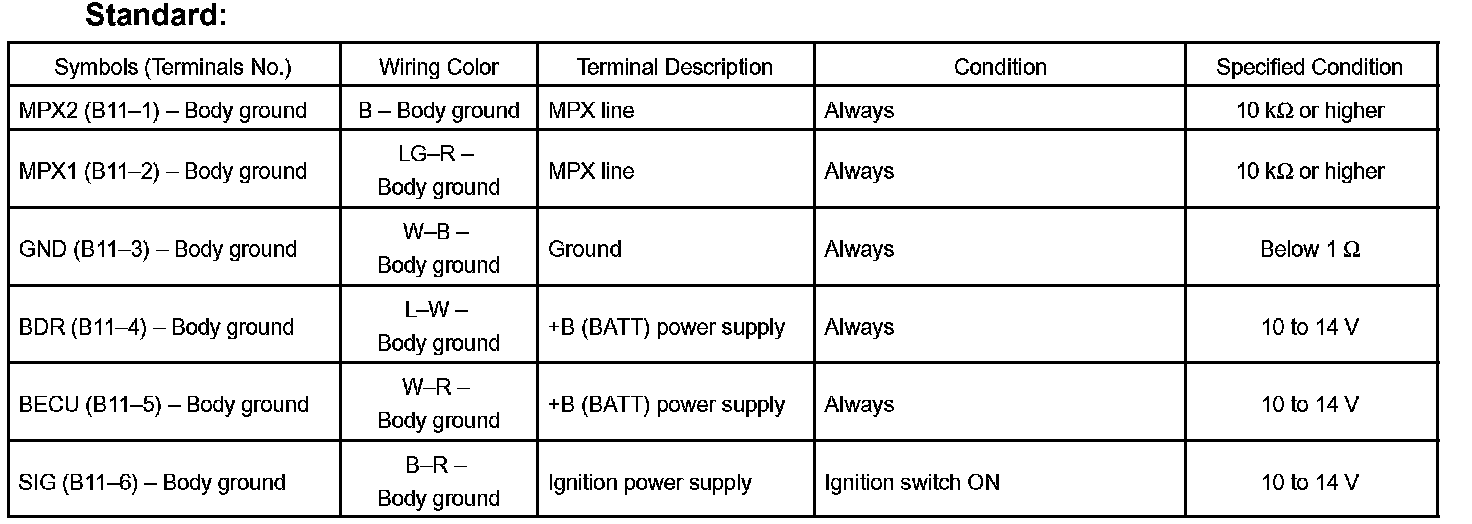

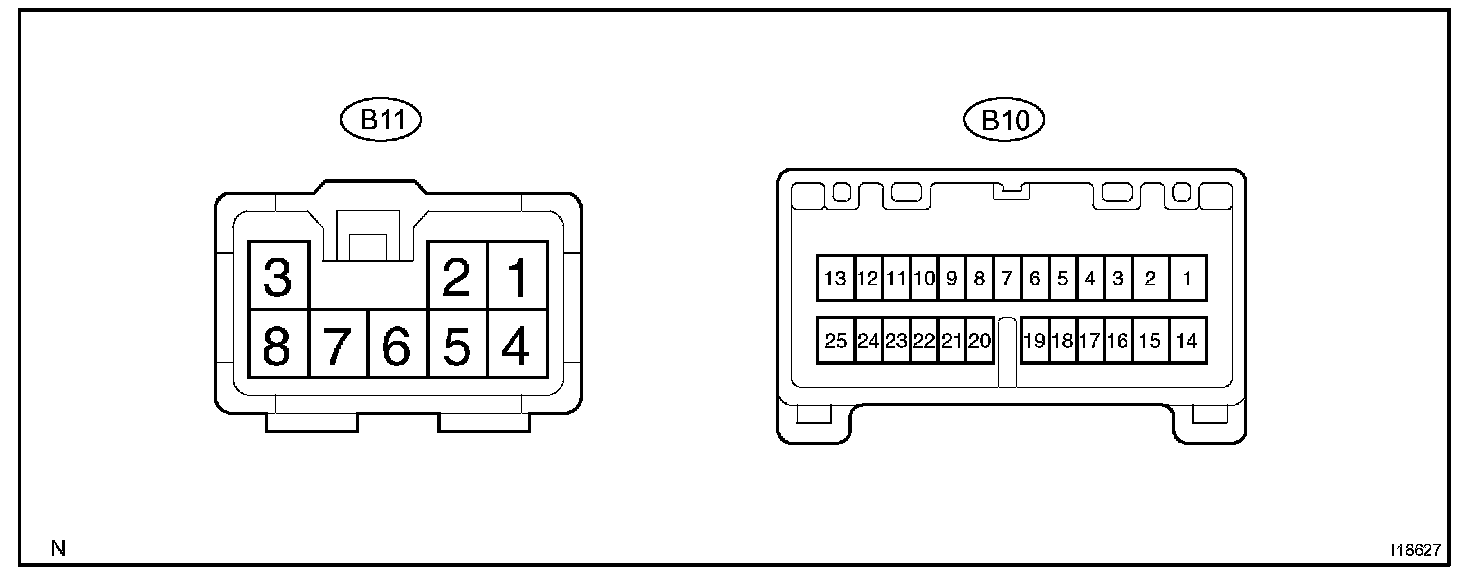

a. Disconnect the B10 and B11 ECU connectors.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

6. CHECK COMBINATION METER

Terminals Of Control Module/Pinouts - Check Combination Meter:

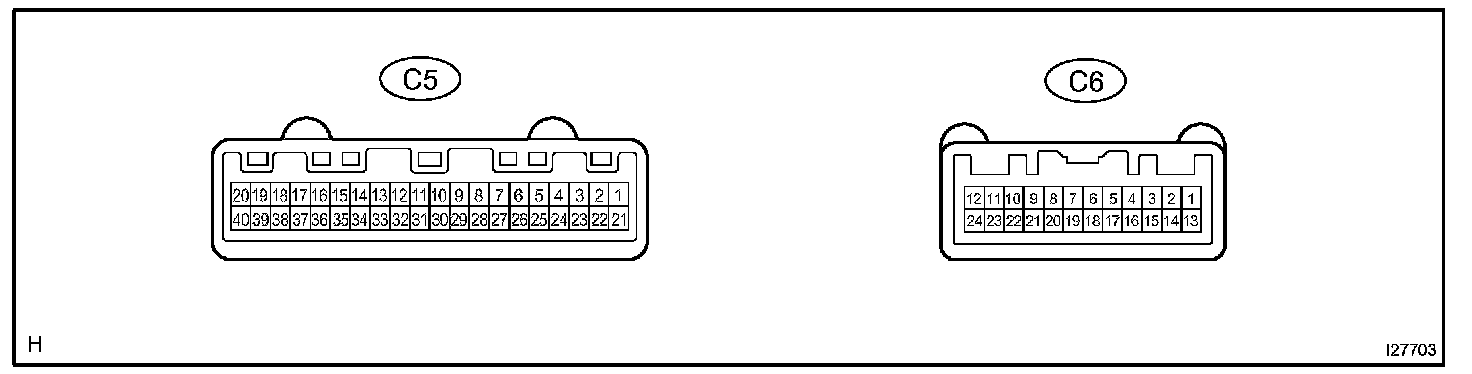

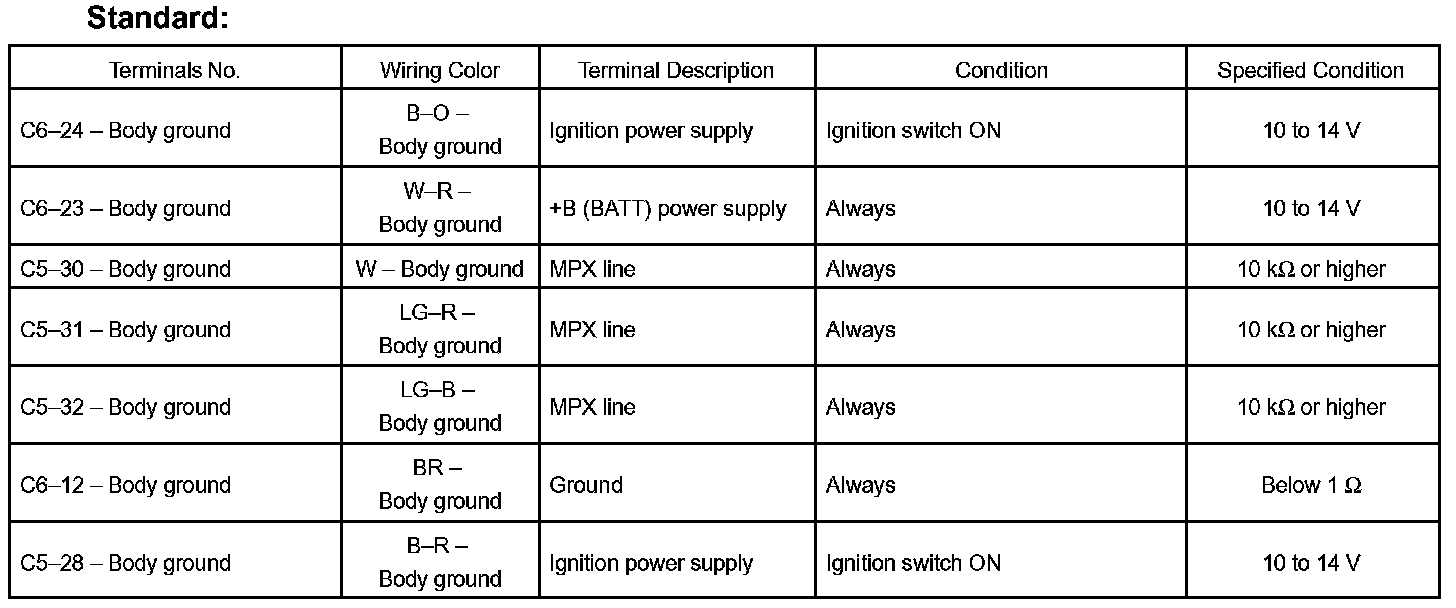

a. Disconnect the C5 and C6 meter connectors.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

7. CHECK MEMORY SEAT ECU & SWITCH (W/ Driving Position Memory)

Terminals Of Control Module/Pinouts - Check Memory Seat ECU & Switch:







a. Disconnect the M6 and M7 ECU connectors.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

8. CHECK A/C ECU (INTEGRATION CONTROL AND PANEL)

Terminals Of Control Module/Pinouts- Check A/C ECU (Integration Control And Panel):

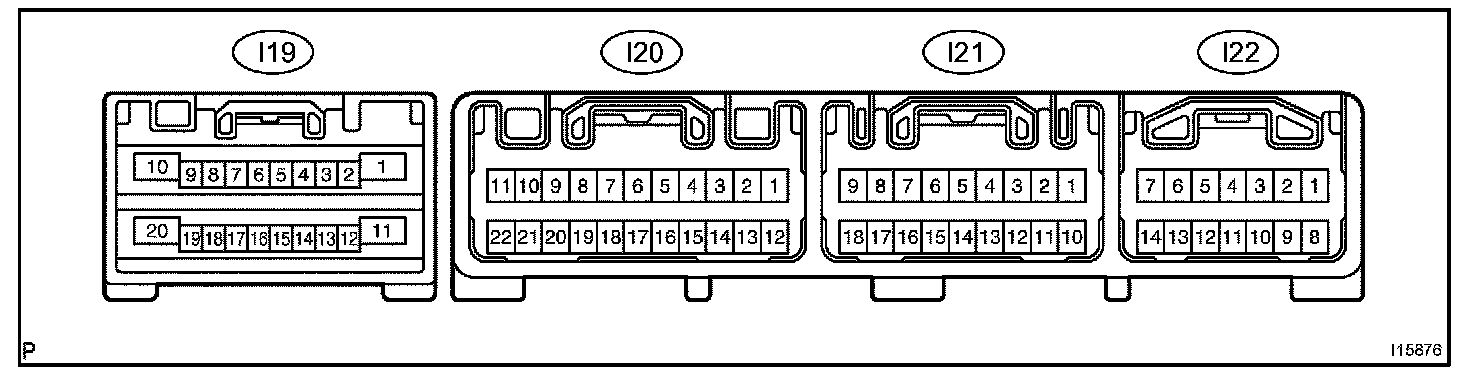

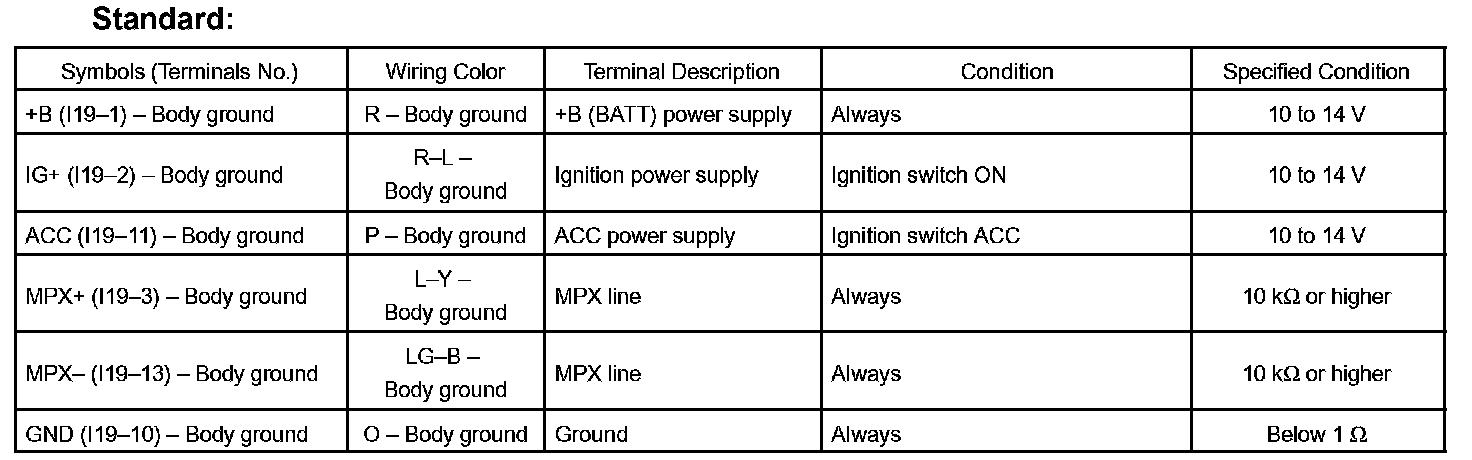

a. Disconnect the I19 ECU connector.
b. Measure the resistance or voltage of each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.
