Inspection

INSPECTION

INSPECT OIL CONTROL VALVE OPERATION

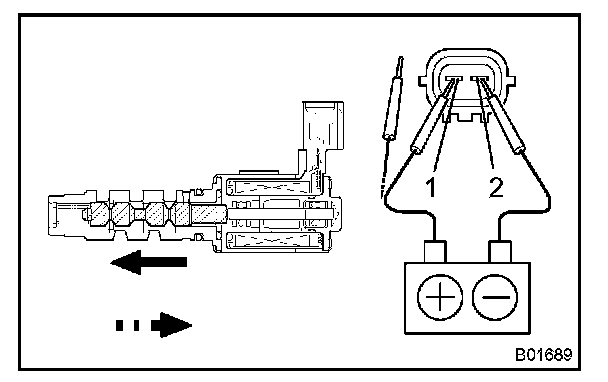

Connect the positive (+) lead to terminal 1 of the connector and the negative (-) lead to terminal 2, then check the movement of the valve.

If operation is not as specified, replace the oil control valve.
