Emission Control Systems: Locations

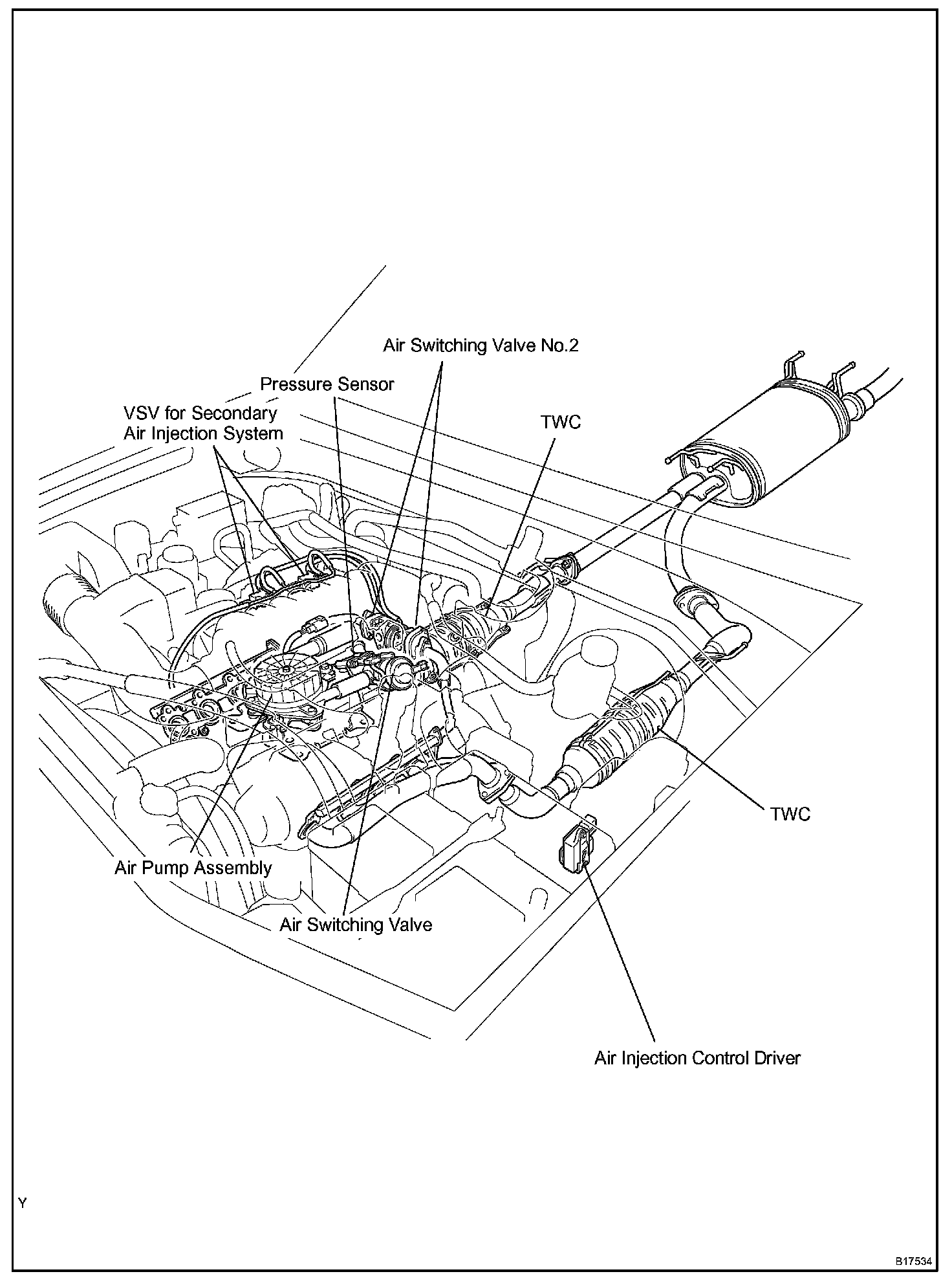

Parts Layout And Schematic Drawing Part 1:



Parts Layout And Schematic Drawing Part 2:
