Oil Pump, Engine

Oil Pump

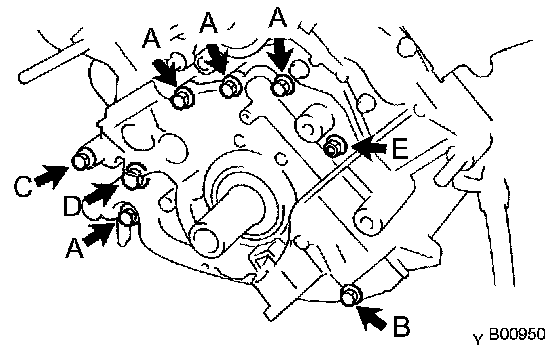

Install the oil pump with the 8 bolts. Uniformly tighten the bolts in several passes.
Torque:
30.5 Nm (310 kgf-cm, 22 ft. lbs.) for 14 mm head
15.5 Nm (160 kgf-cm, 11 ft. lbs.) for others
