B1660

DTC B1660 PASSENGER AIRBAG ON/OFF INDICATOR MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:




The passenger airbag ON/OFF indicator circuit consists of the airbag sensor assembly and the integration control and panel.

This circuit indicates the operation condition of the front passenger airbag assembly, the side airbag assembly RH and seat belt pretensioner RH.

DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator circuit.

Wiring Diagram:






Step 1:




Step 2 - 3:




Step 4 - 5:




Step 6:




Step 7 - 8:




Step 9:




Step 10 - 11:




Step 12:




Step 13:

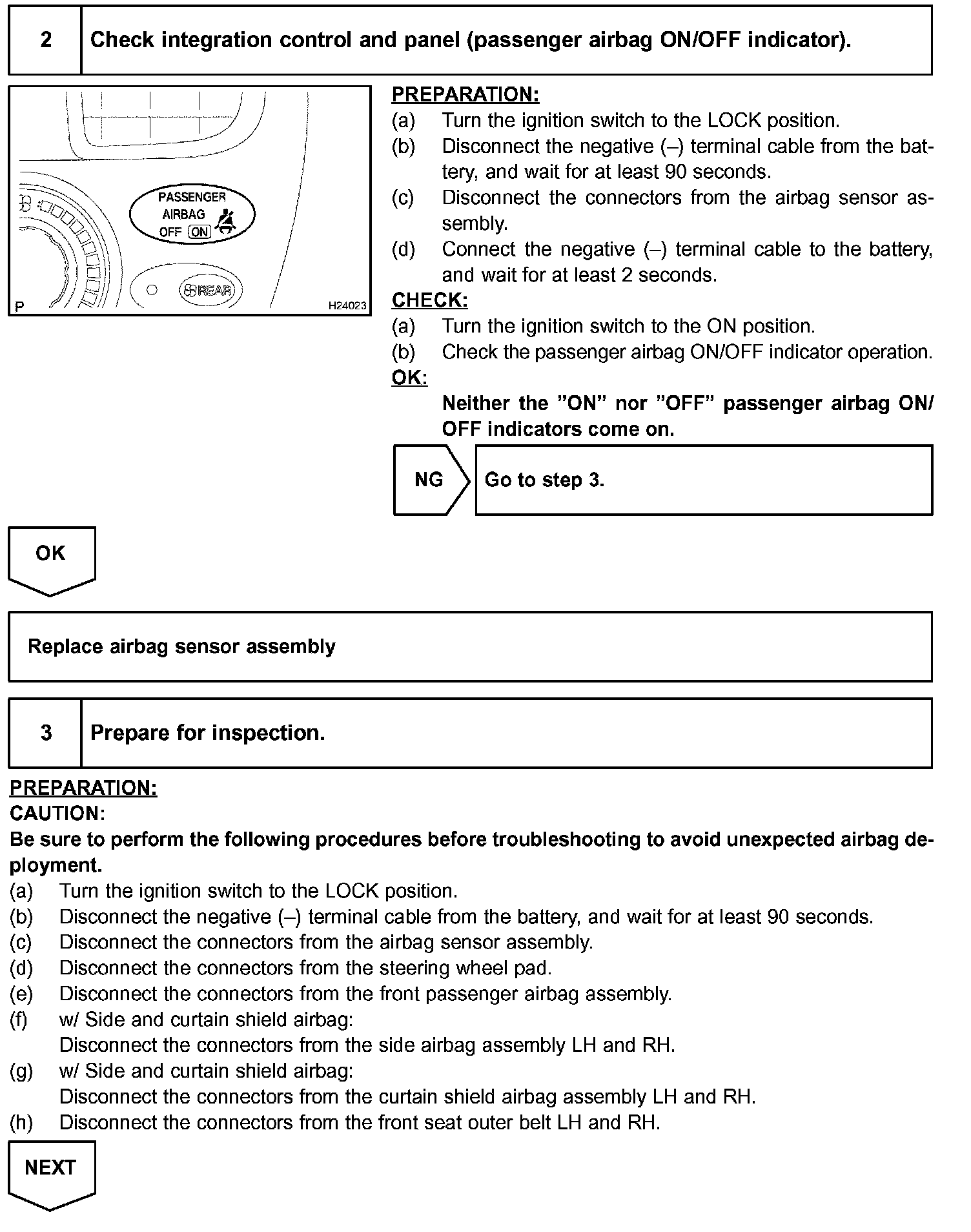

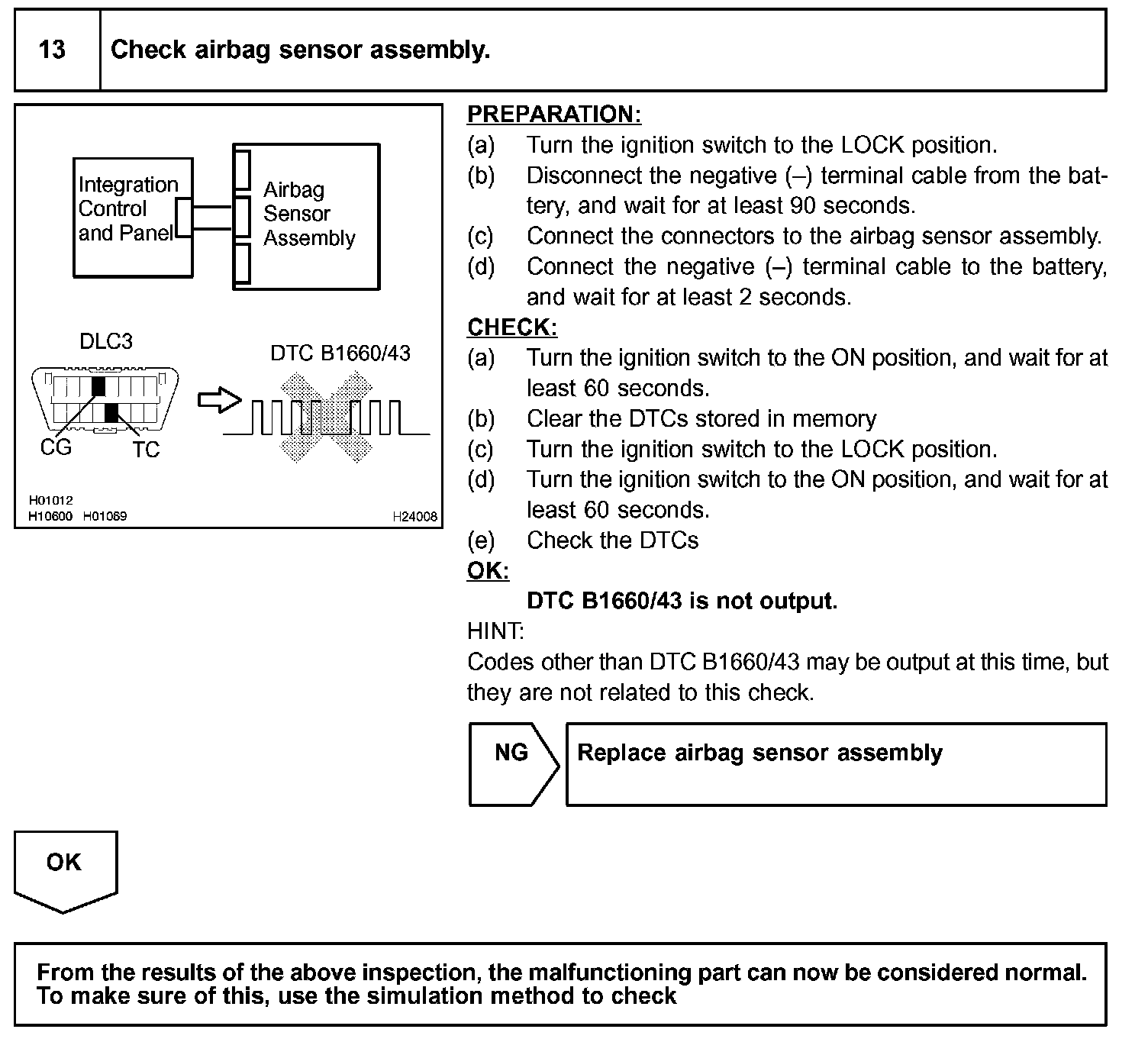

INSPECTION PROCEDURE
