C0205

DTC C0205 LEFT FRONT WHEEL SPEED SENSOR SIGNAL MALFUNCTION

CIRCUIT DESCRIPTION

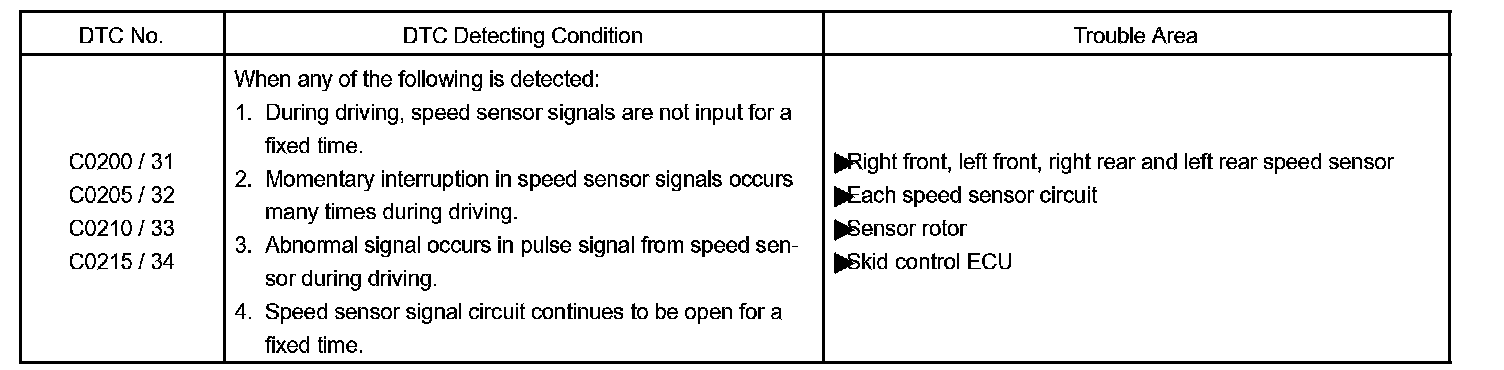

DTC Detecting Condition:

The speed sensor detects wheel speed and sends the appropriate signals to the ECU. These signals are used to control the ABS control system. The front and rear rotors have 48 serrations each.

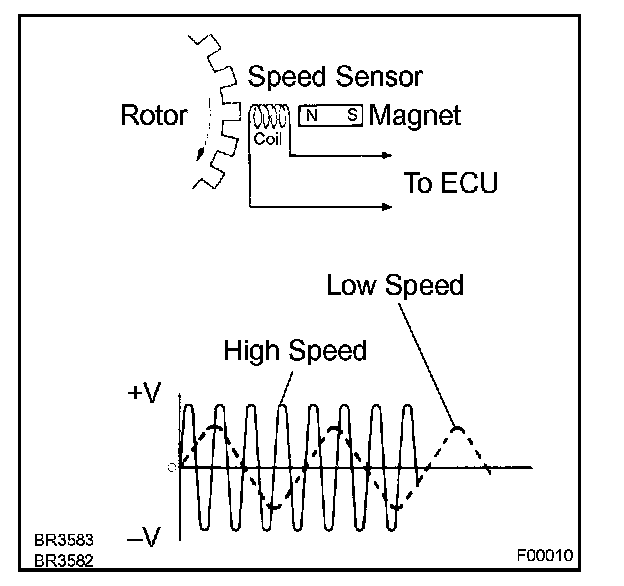

When the rotors rotate, the magnetic field emitted by the permanent magnet in the speed sensor generates AC voltage. Since the frequency of this AC voltage changes in direct proportion to the speed of the rotor, the frequency is used by the ECU to detect the speed of each wheel.

HINT:
DTC No. C0200 / 31 is for the right front speed sensor.
DTC No. C0205 / 32 is for the left front speed sensor.
DTC No. C0210 / 33 is for the right rear speed sensor.
DTC No. C0215 / 34 is for the left rear speed sensor.

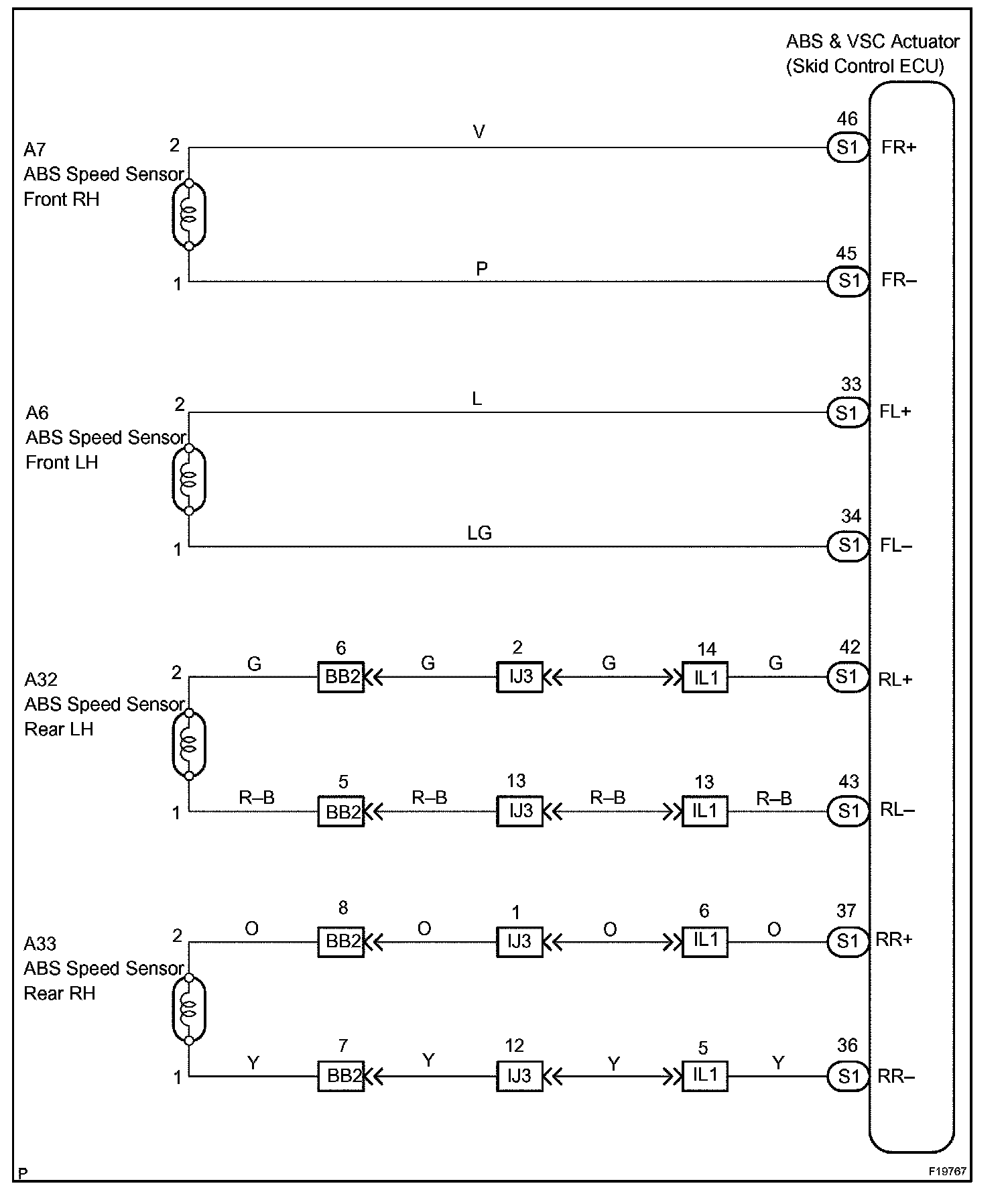

Wiring Diagram:

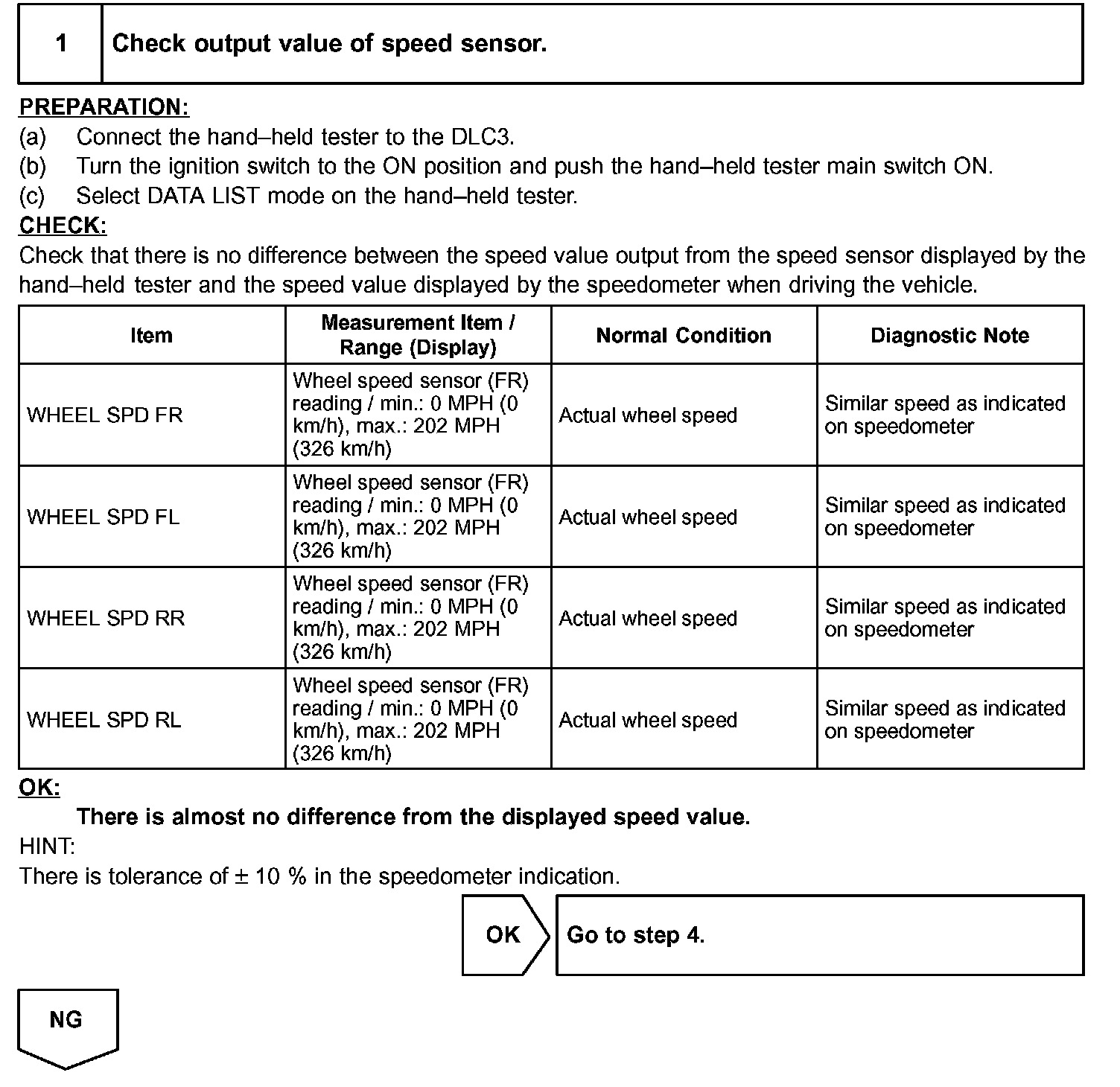

Step 1:

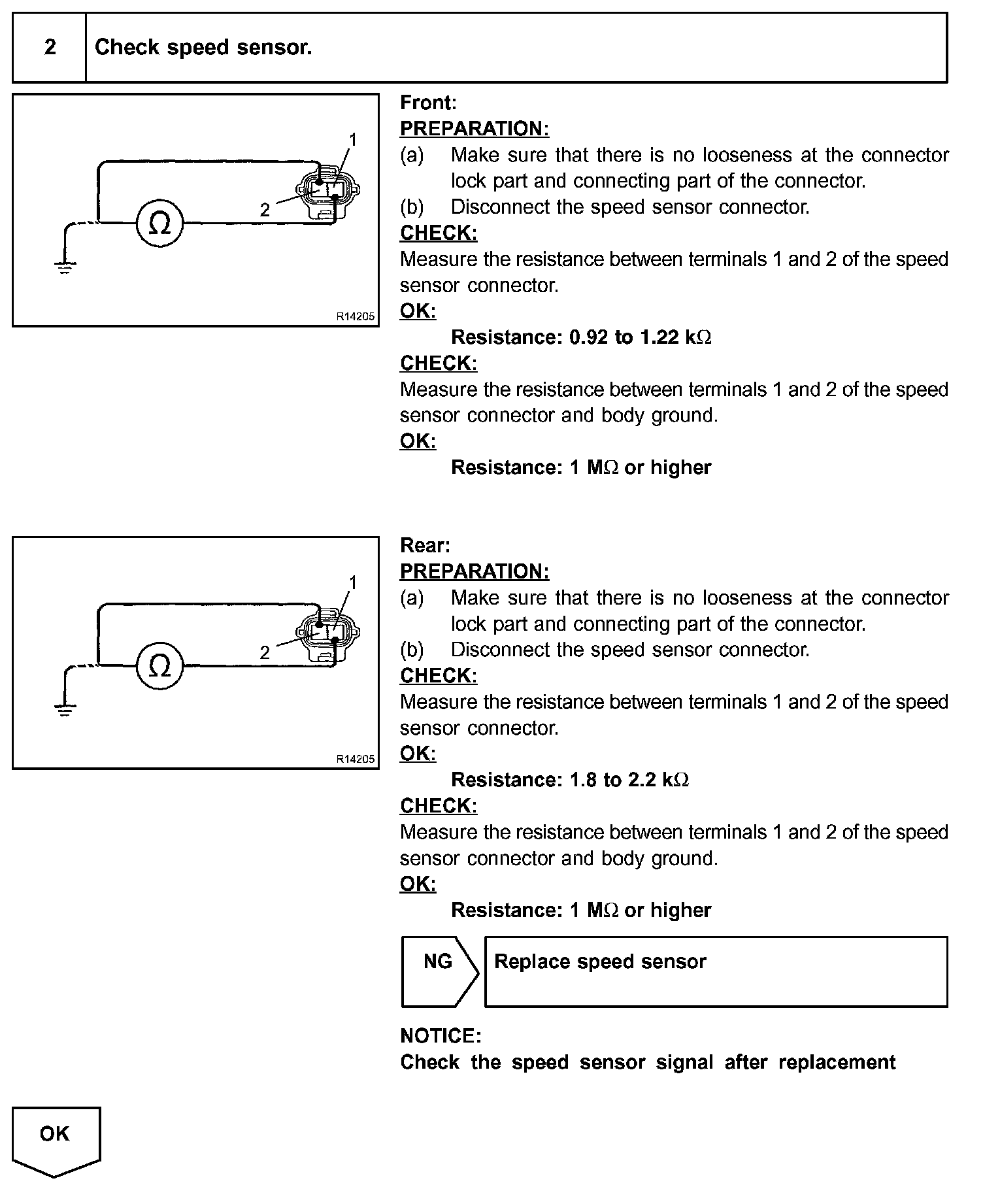

Step 2:

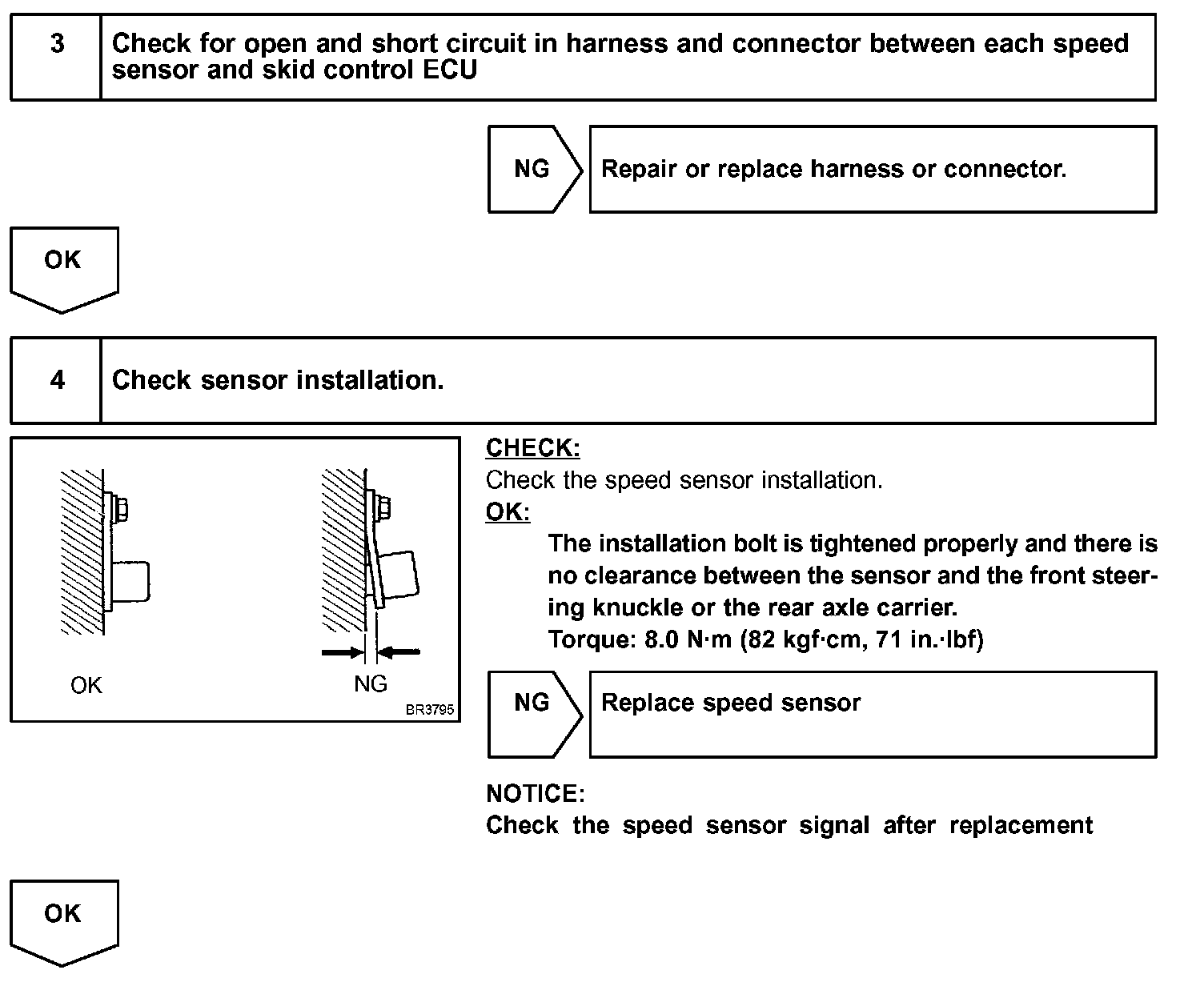

Step 3 - 4:

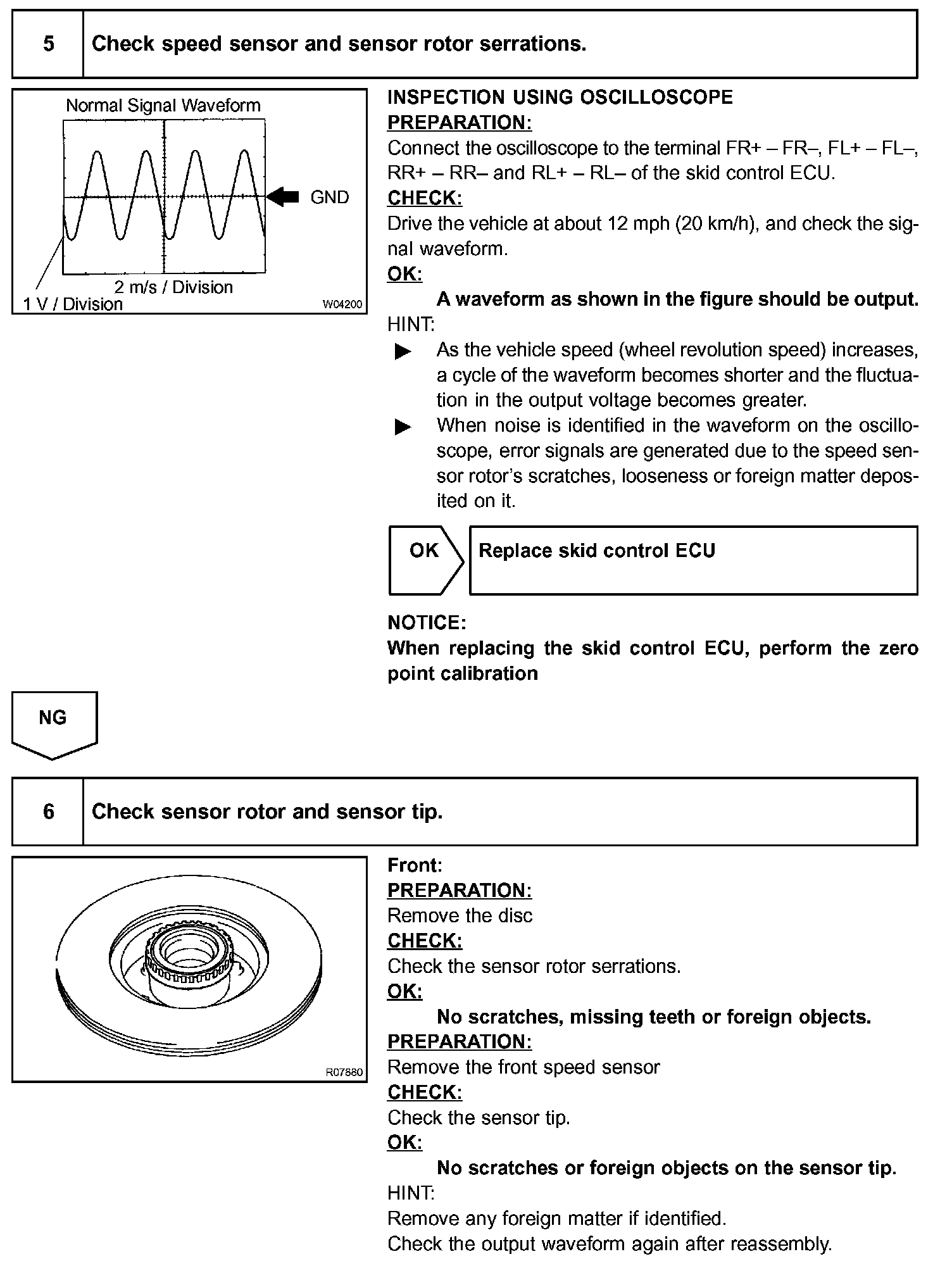

Step 5 - 6:

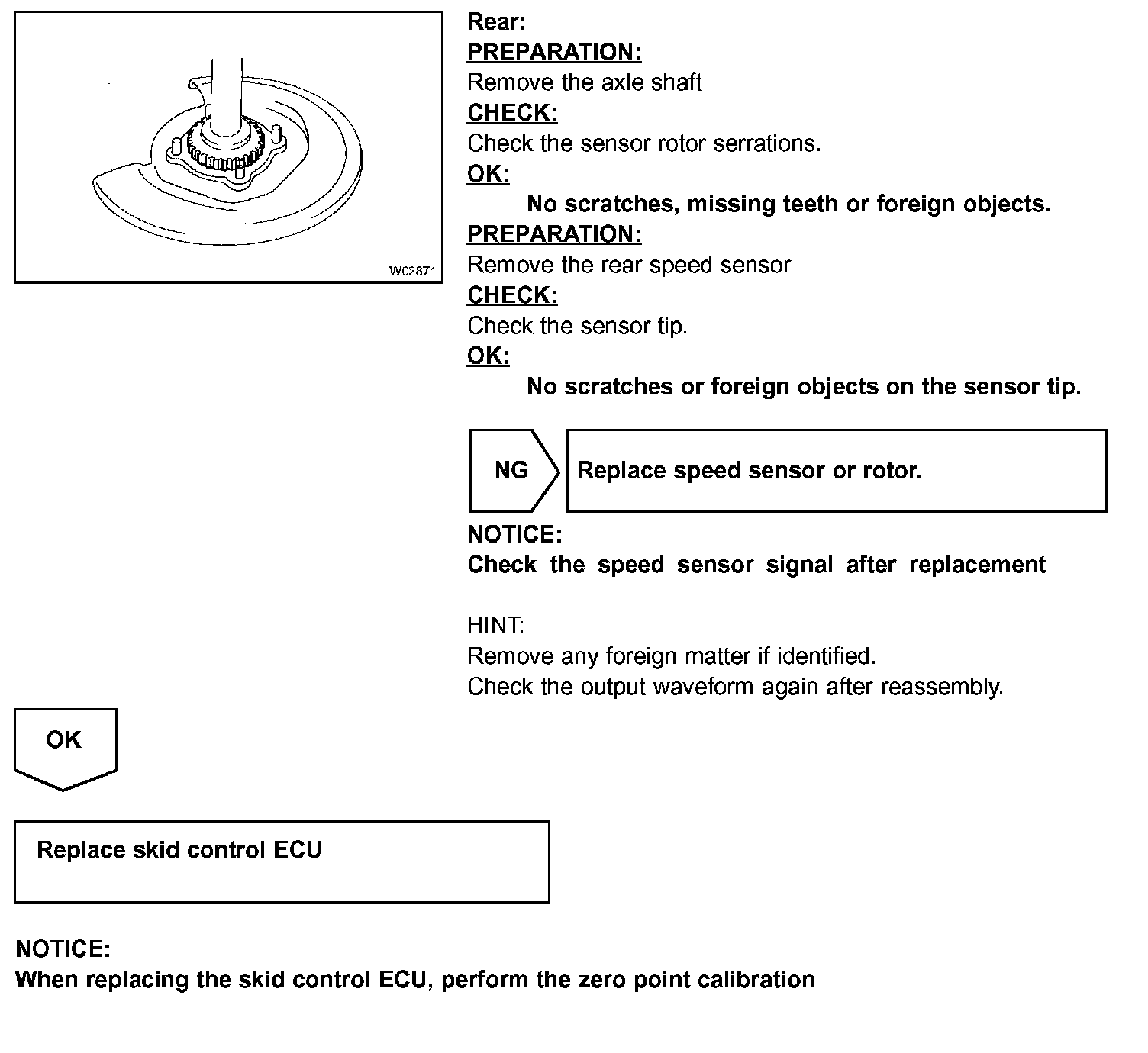

Step 6 (contd.):

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
