Jam Protection Limit Switch Circuit

JAM PROTECTION LIMIT SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The jam protection limit switch, built in the power window motor, turns off before top dead center. The ECU reads this "OFF" signal and fully closes the window.

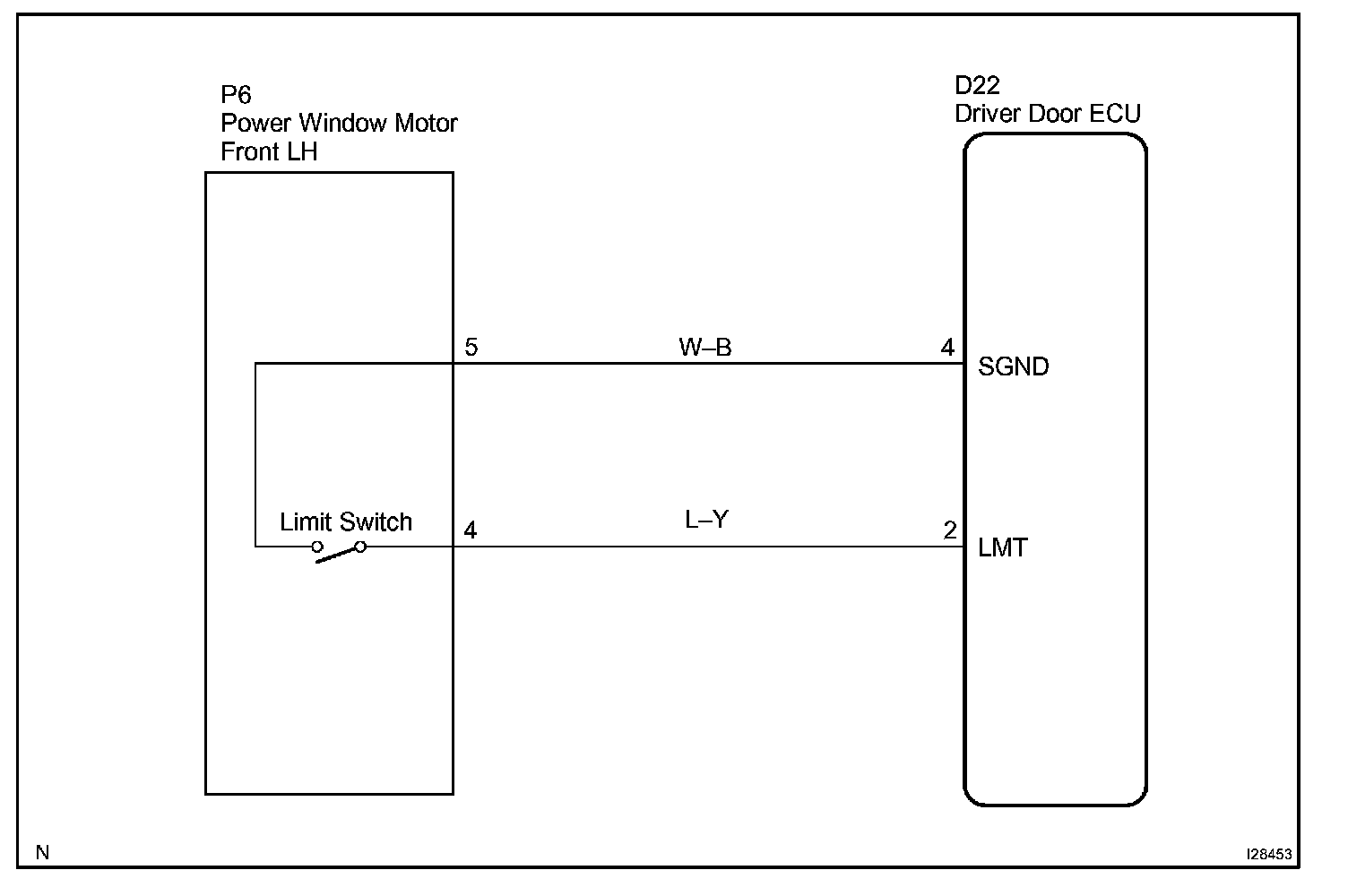

Wiring Diagram:

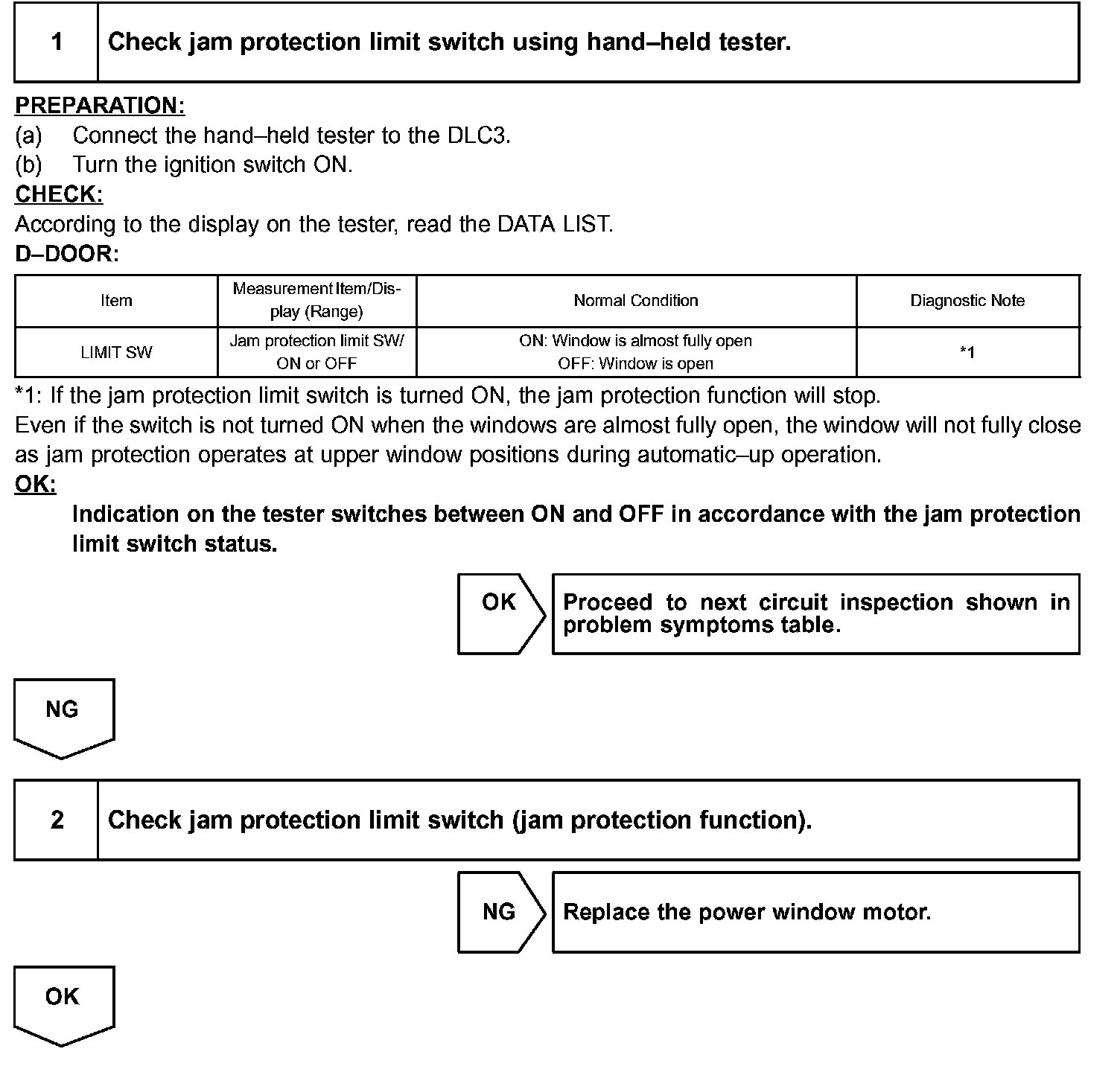

Step 1 - 2:

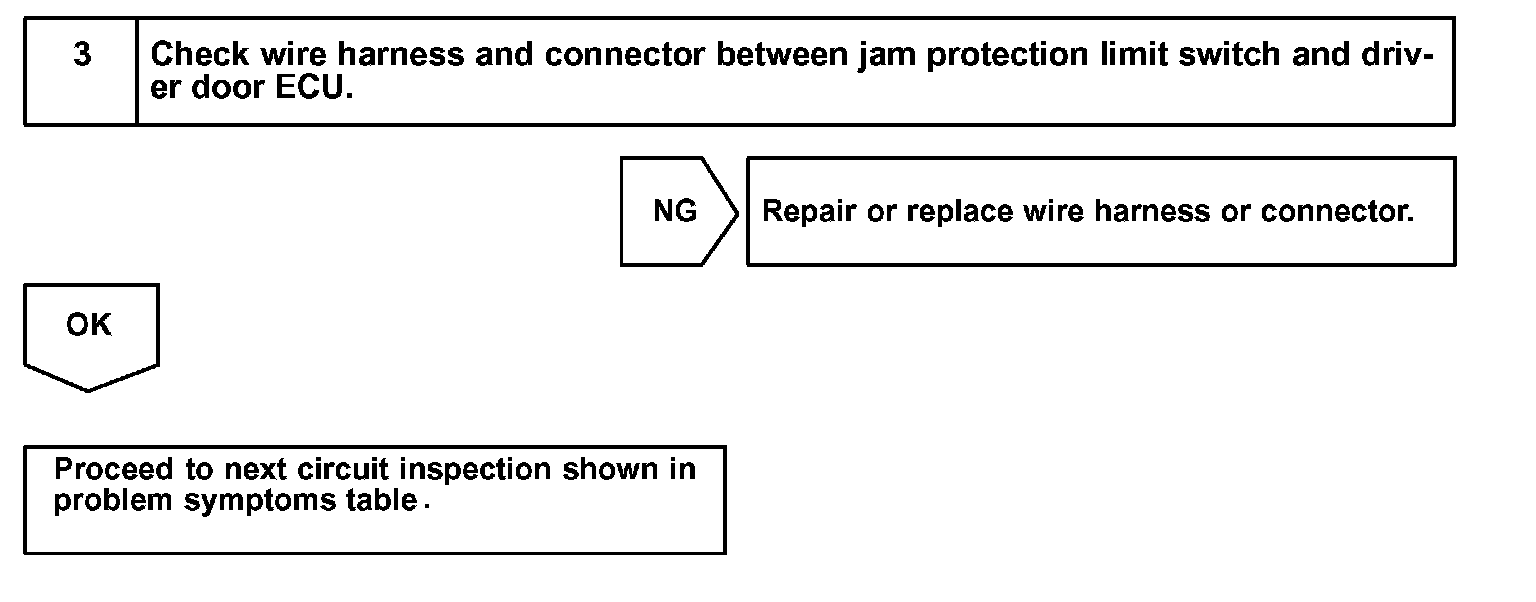

Step 3:

INSPECTION PROCEDURE

HINT: When using the hand-held tester, start the inspection from step 1 and when not using the hand-held tester, start from step 2.
