Control Assembly, HVAC

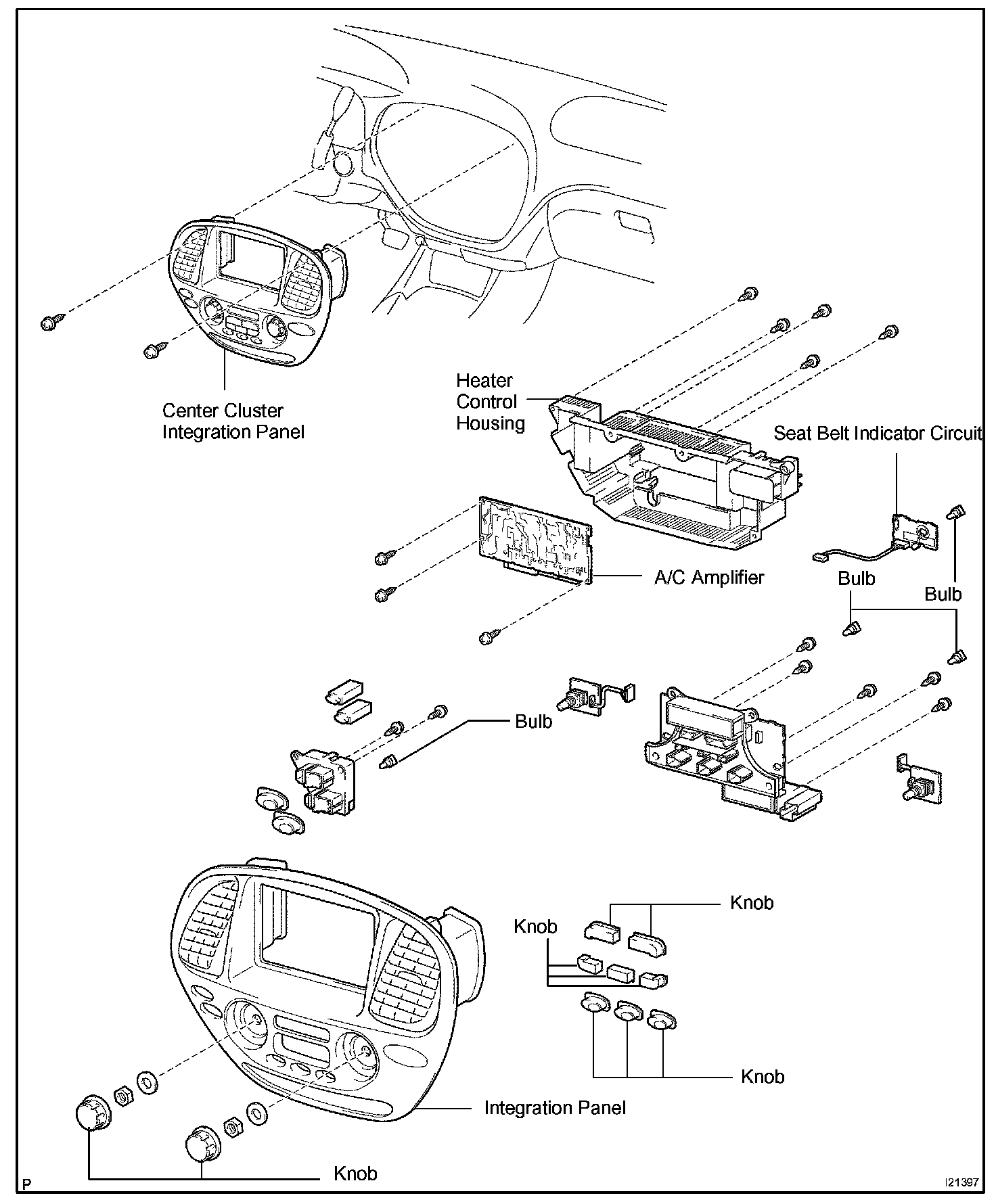

Air Conditioner Control Assembly (Centre Cluster Integration):
Rear A/C Control Assembly (For Rear A/C):
