Seats

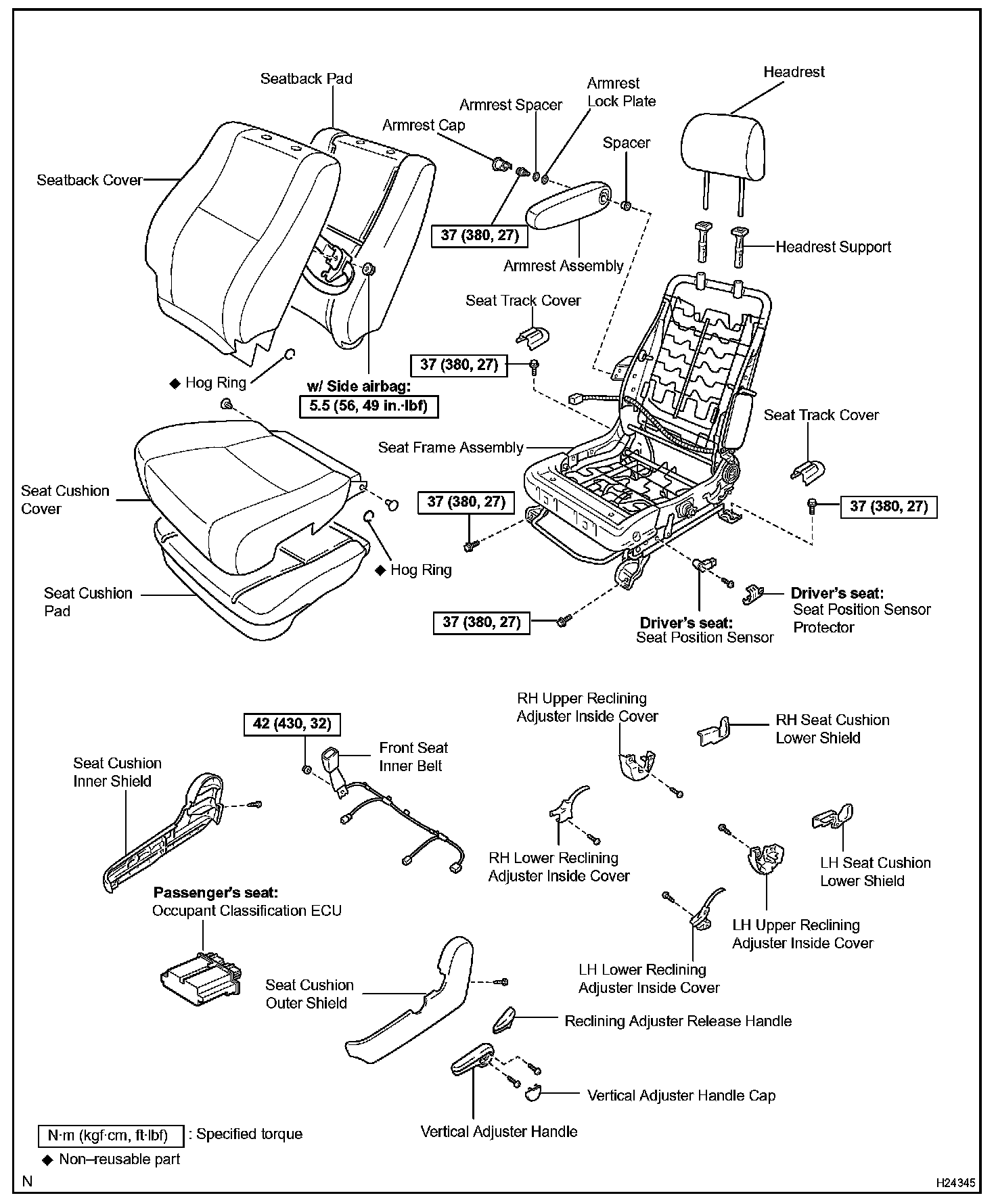

Front Seat (Power Adjuster Type):



Front Seat (Manual Adjuster Type):

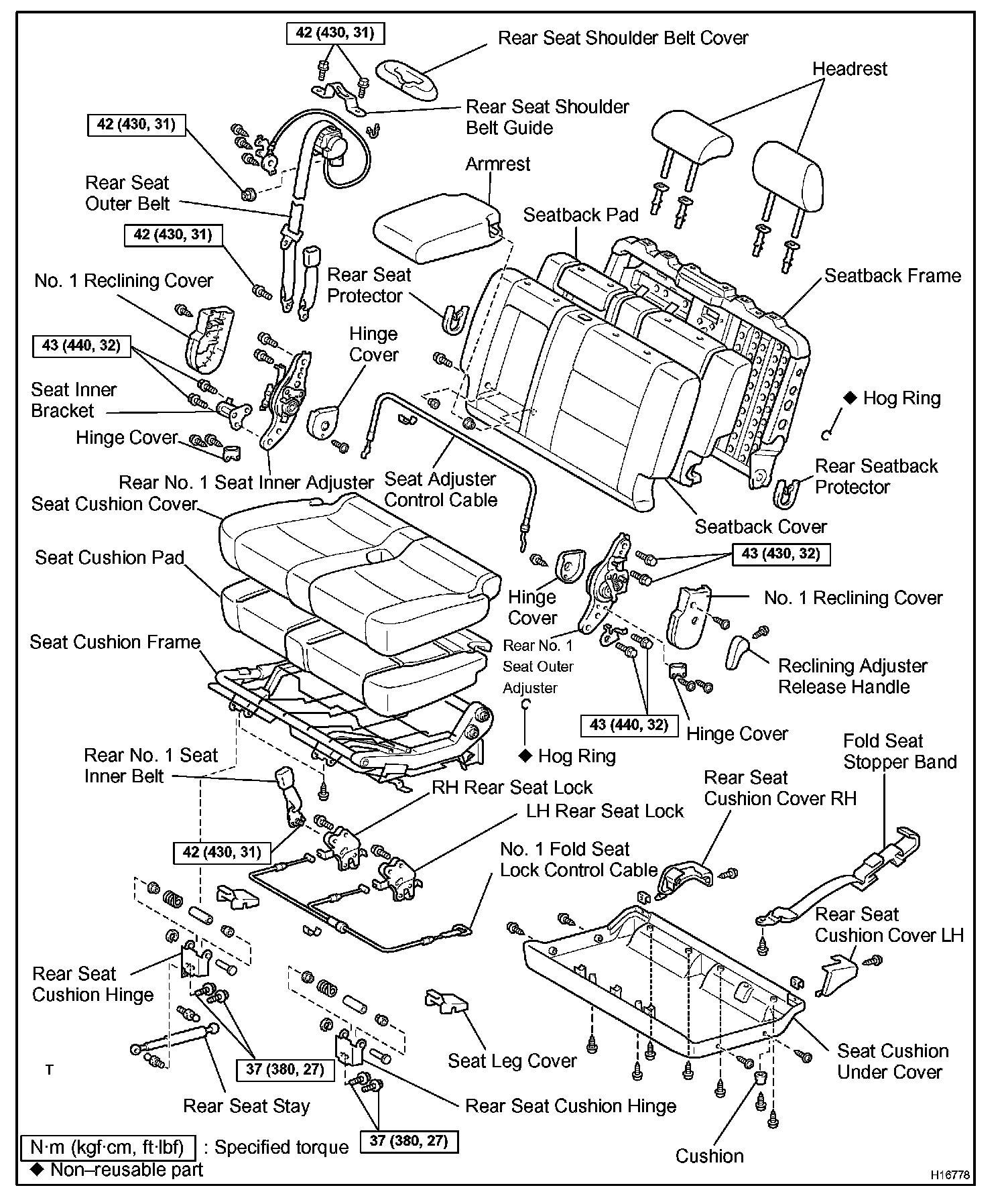

Rear No.1 Seat (Seperate Type):

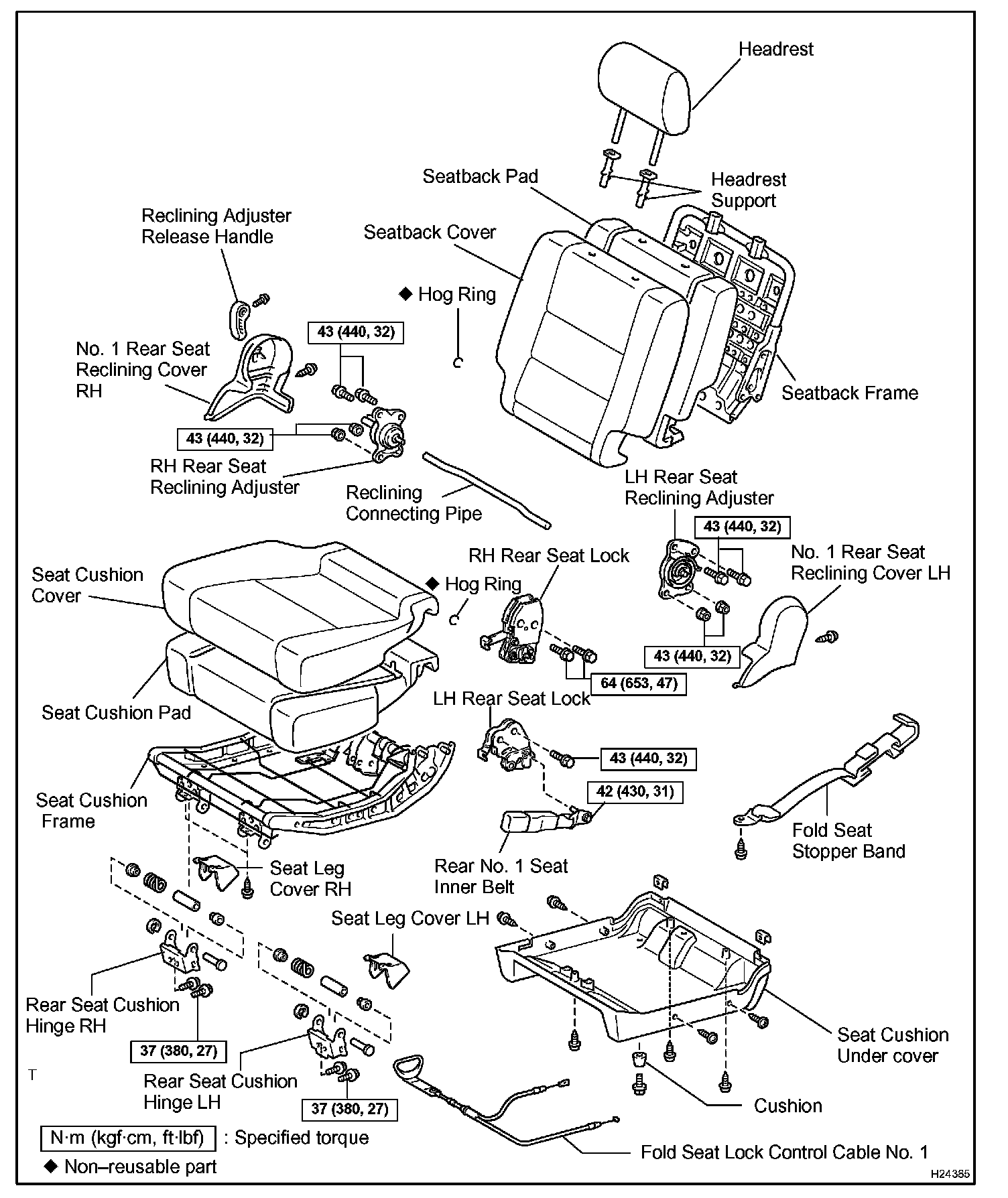

Rear No.1 Seat (Split Type LH):

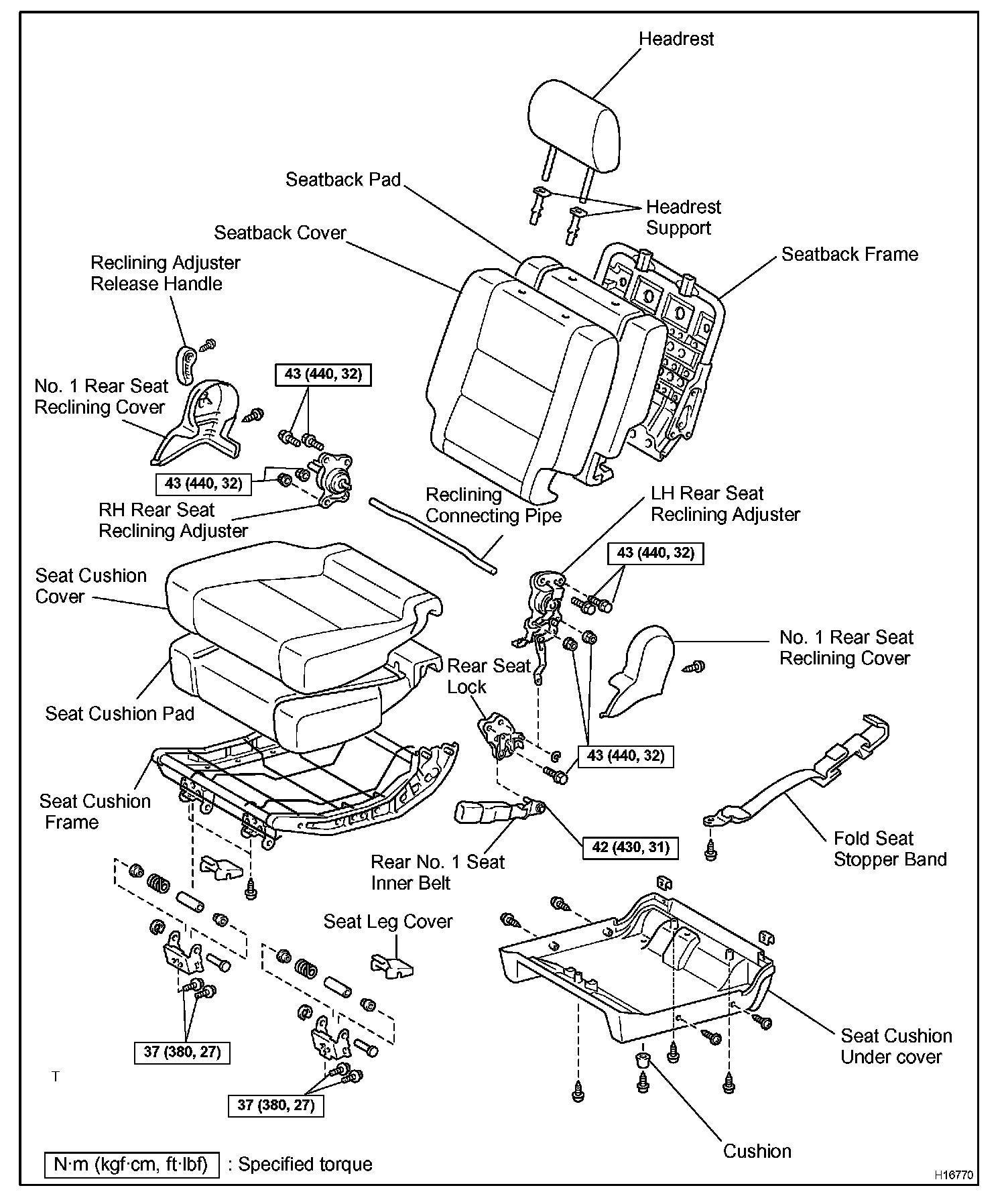

Rear No.1 Seat (Split Type RH):



Rear No.2 Seat:
