Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2005
>>
Sequoia 4WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Accelerator Pedal Position Sensor
>>
Locations

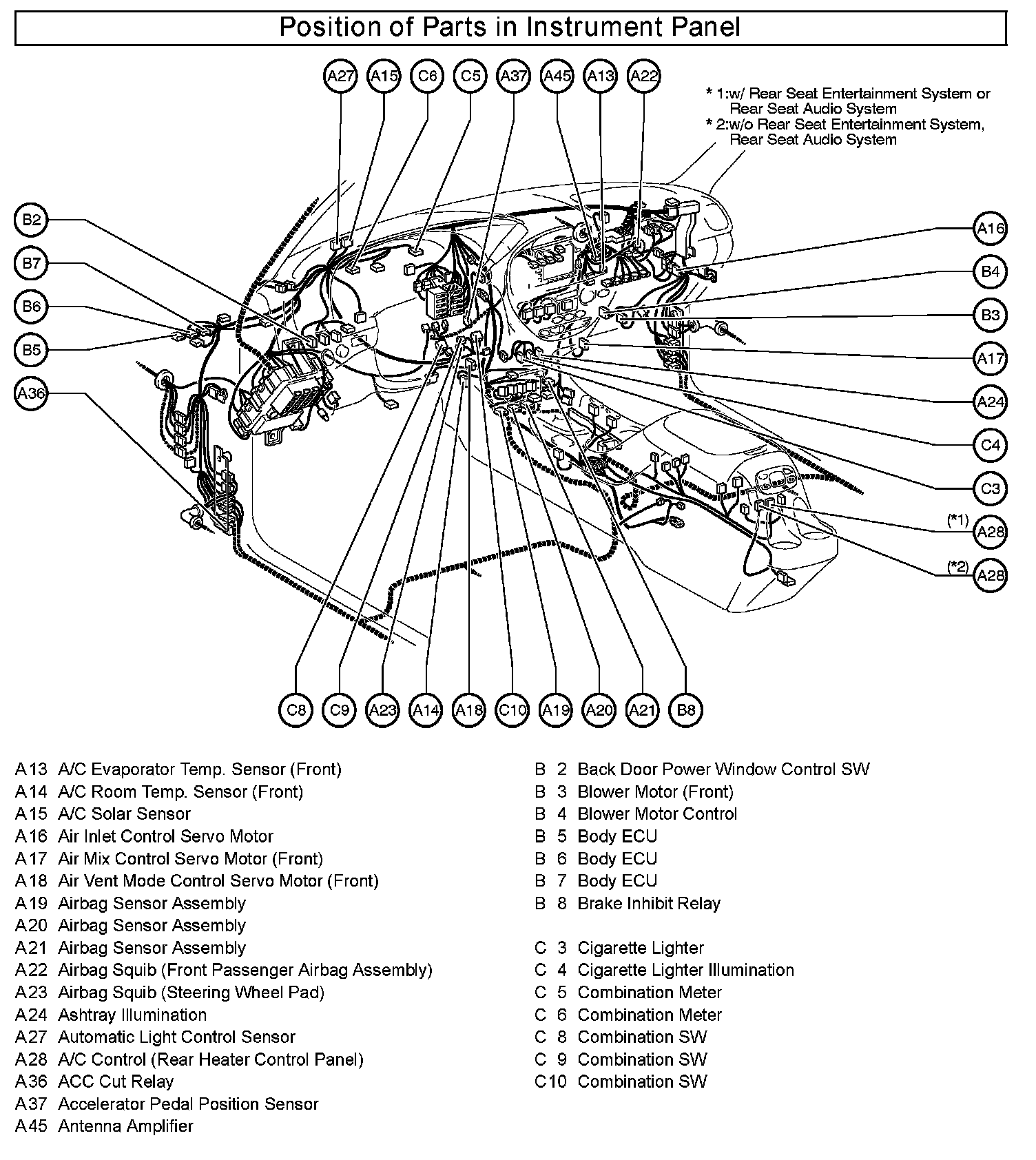

Accelerator Pedal Position Sensor: Locations
A/C - Co:
Li - Vo:

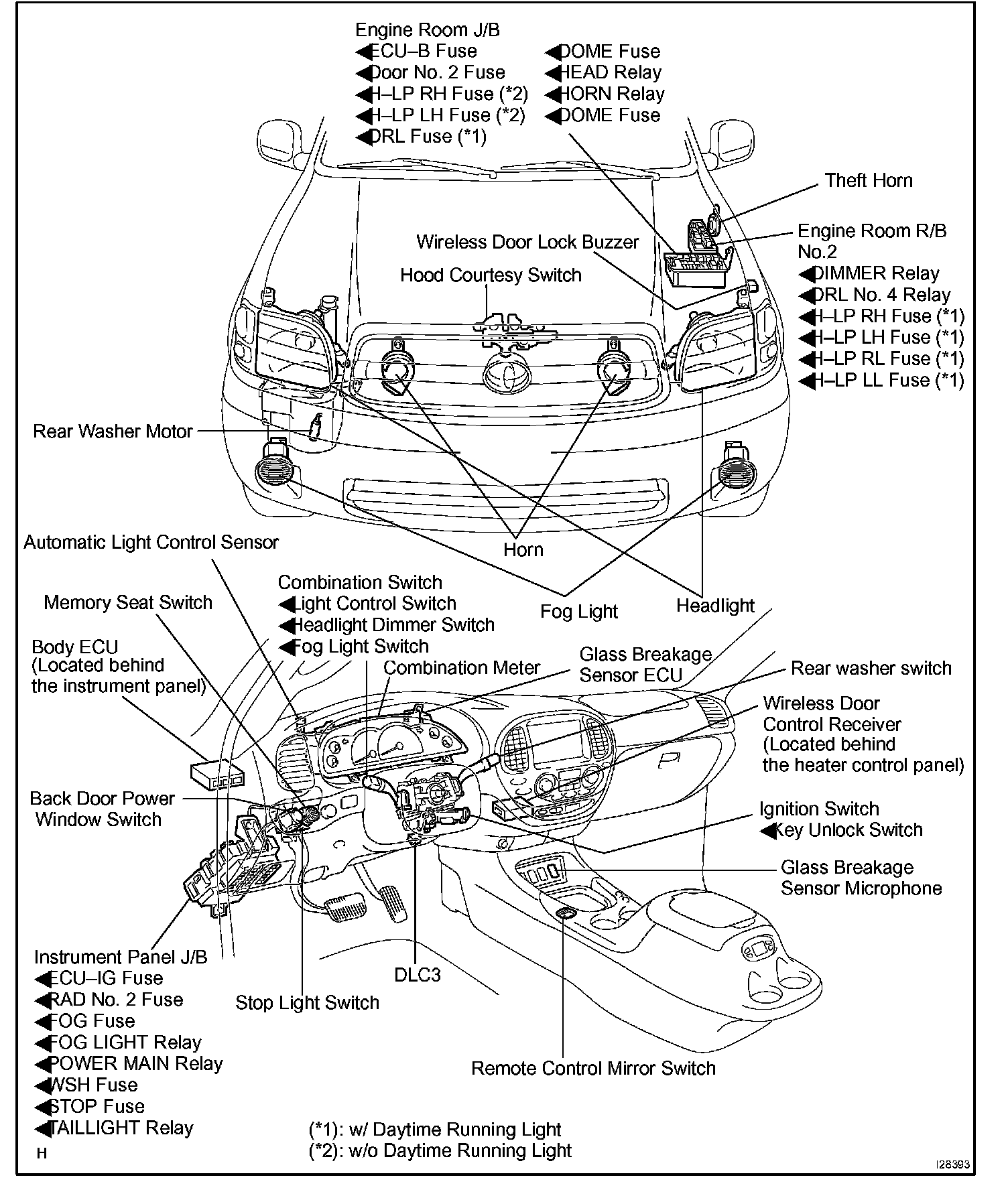

Body Control System:
Body Control System:

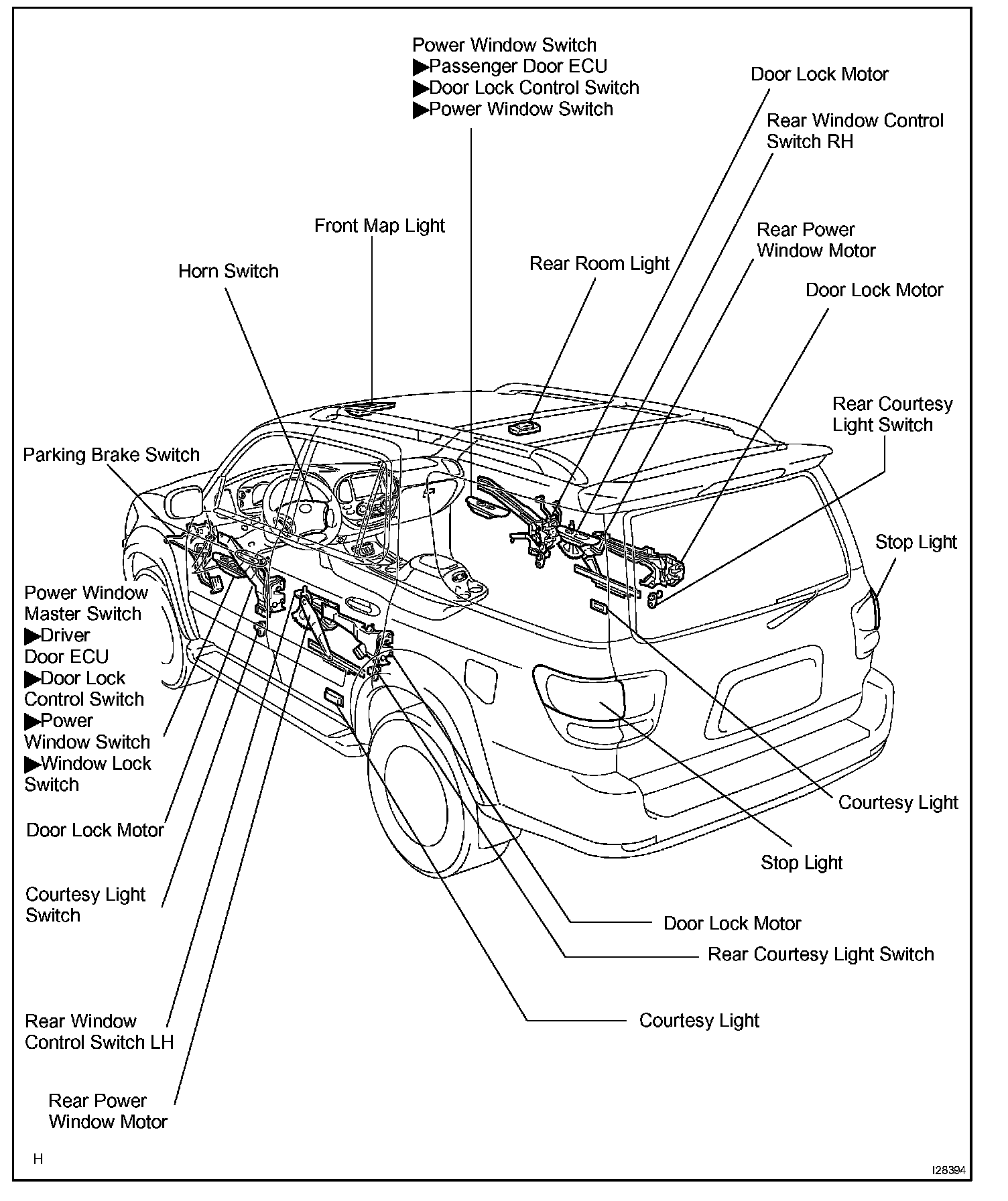

Driver Door Control System:
Passenger Door Control System:
Multiplex Communication System:
